### FAQ **How do I know when TWS is about to lose a track?** The track will start to blink. **How do I lock up in RWS or LRS mode?**...

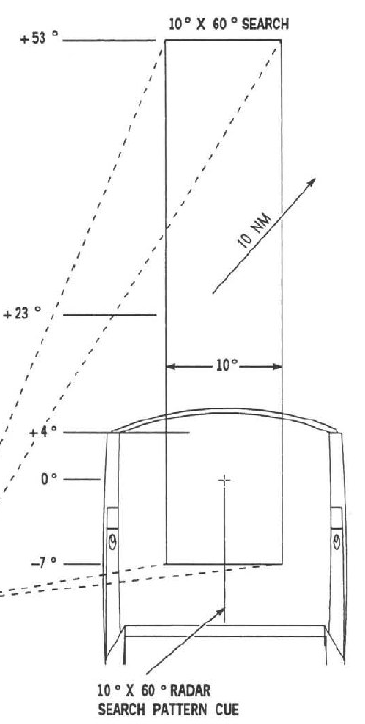

Here you can see the ACM 60 coverage:

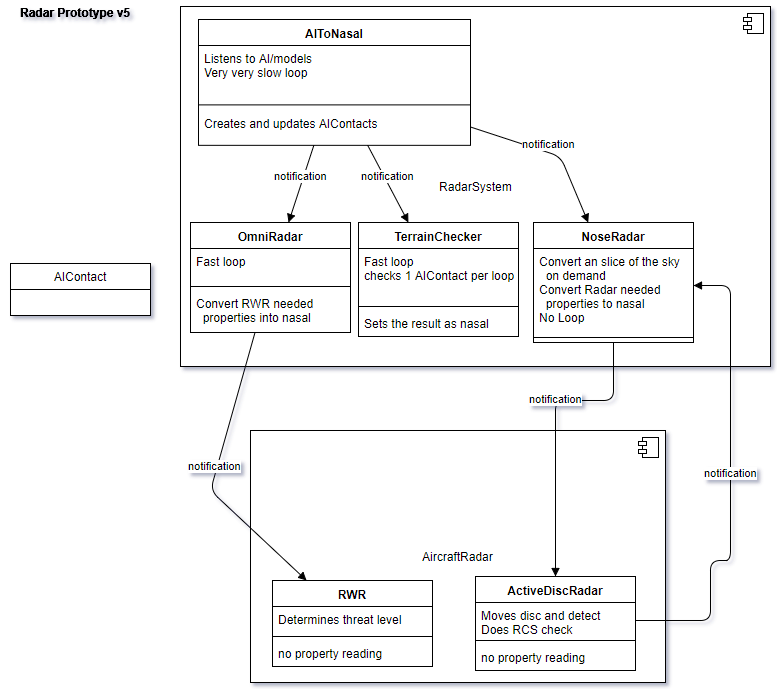

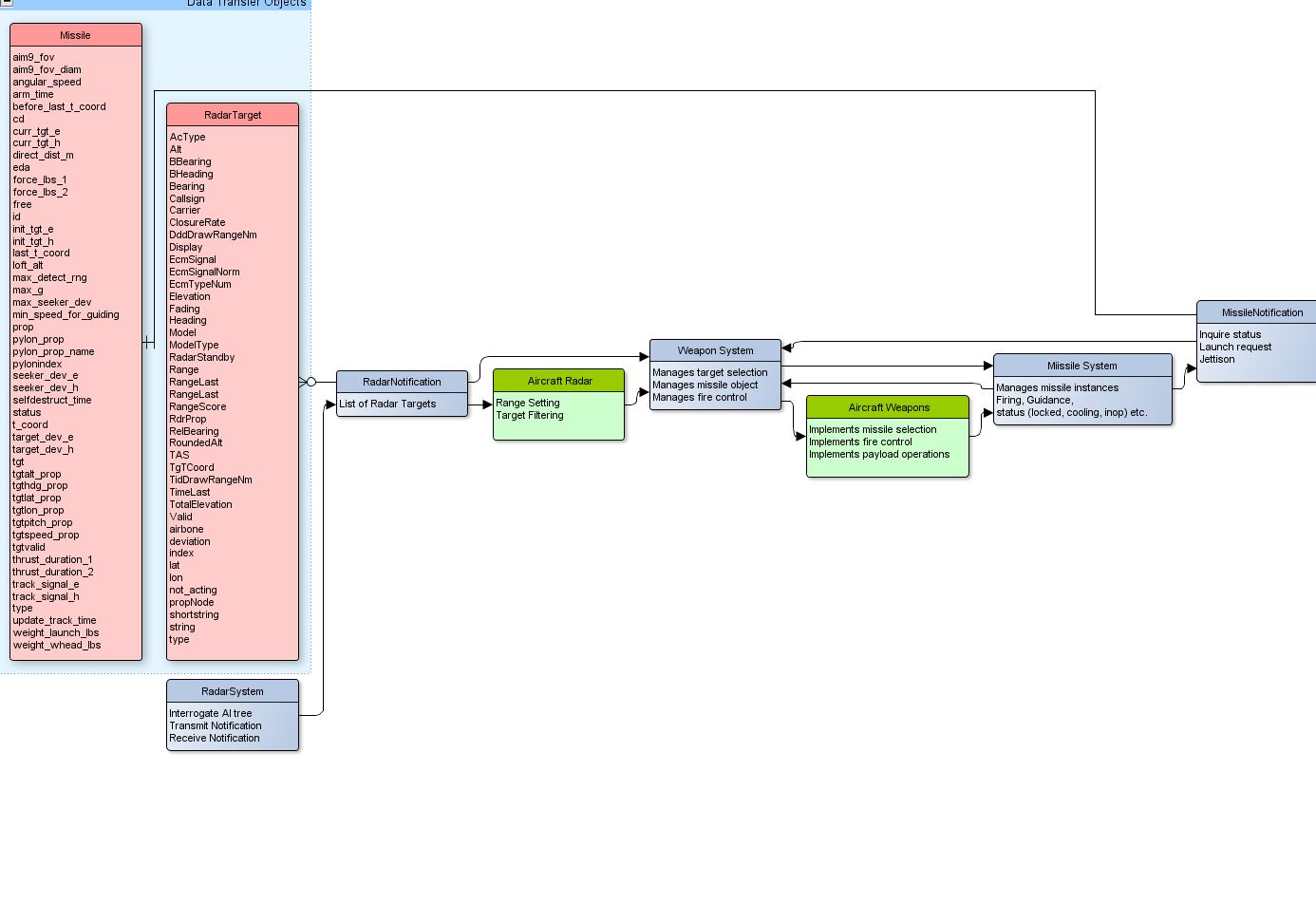

Development started in 2017 its now about ready for deployment. Richards original design that started it all:  Sorta how the core of it ended up:

I have not made a diagram of the implementation, no. As for finding references, Nasa Technical Document Server is a good place to start.

As for the diagram, ADA055-417 has the diagram that most of the control stuff is based on. Since yesterday it is now also based on ADA189-675. If you are just...

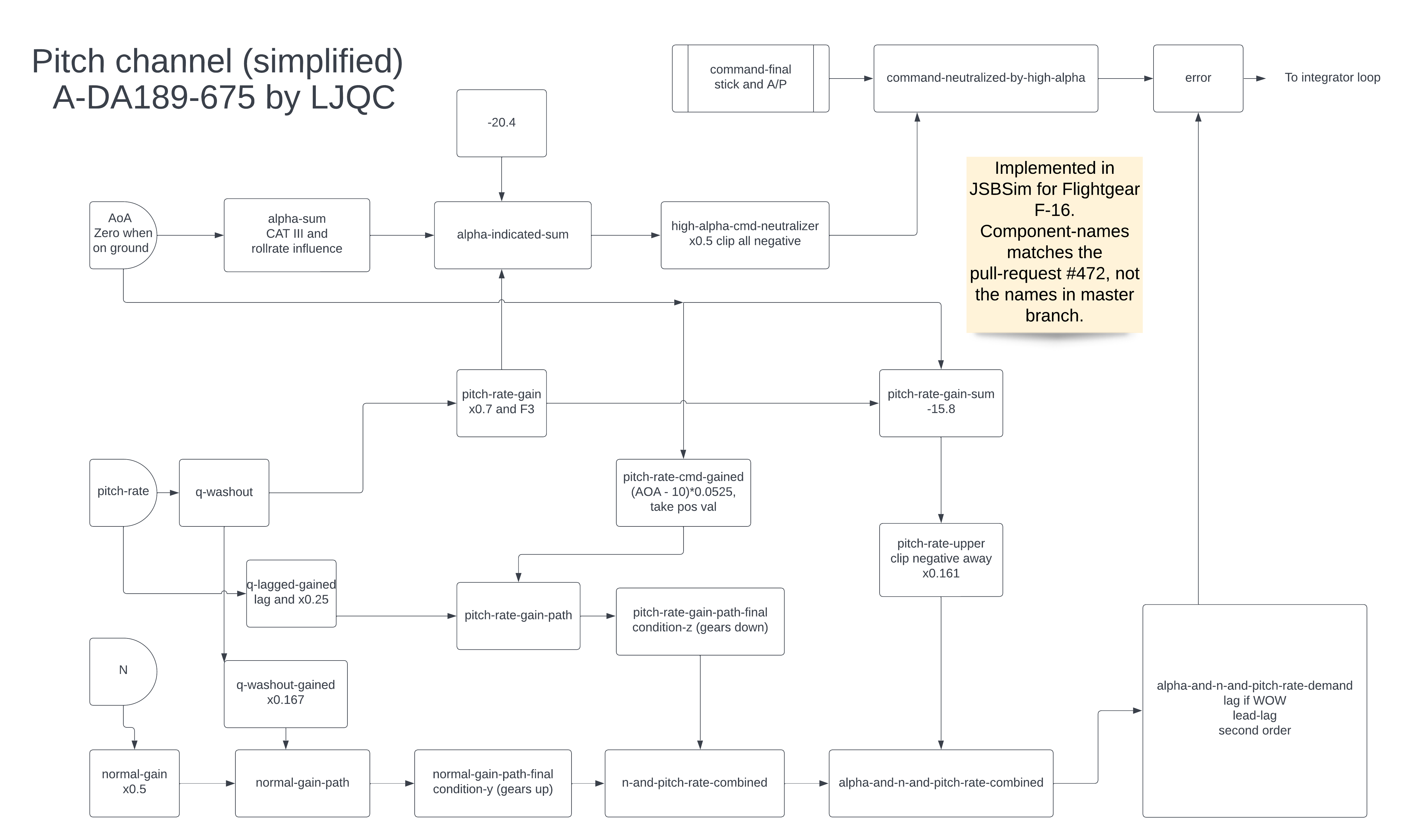

I made a diagram of some of the new changes by LJQC, maybe it will help you a bit if you don't decide to go with TP-1538:

For now its disabled, it will be alot of work to get up-to-date.

It should show range. There is apparently VS and VSR modes depending on version of apg-68. VS shows speed vertically, and VSR shows range. VSR at least do show range...
