*F.Fab*: nominal dimensions *F.SilkS*: `0.12mm` offset from *F.Fab*, as done in DE122-XX-XX *F.CrtYd*: `1mm` from either the center of the pin or the edge of *F.Fab* *Cmts.User*: Actual active area...
Hi, I've added the arduino MKR 1010. The symbol should be the same for all the MKR series, but i don't have the other boards to check. Matching footprint: https://github.com/KiCad/kicad-footprints/pull/1957...

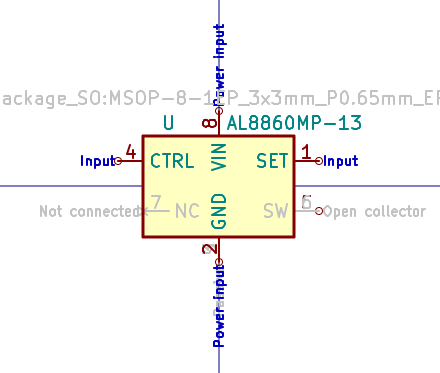

Added these two variants of the same LED driver IC. Datasheet: https://www.diodes.com/assets/Datasheets/AL8860.pdf AL8860WT-7:  AL8860MP-13:  --- All contributions to the kicad library must follow the [KiCad library convention](http://kicad-pcb.org/libraries/klc/) Thanks...
Footprint PR: https://github.com/KiCad/kicad-footprints/pull/2423 Datasheet: https://www.tme.eu/Document/a8ad3d6d1be7f7b544cda7e86ae7bac8/DE152.pdf  --- ## :warning: Deprecation warning In preparation for the KiCad v6 release this repository will be locked down on Sept 1, 2020. No new...
Same as https://github.com/KiCad/kicad-symbols/pull/2932 but for DE119. Display is the same except for the triangle, which is removed from this version. Footprint: https://github.com/KiCad/kicad-footprints/pull/2424 DS: https://www.display-elektronik.de/filter/DE119-RS-20_635.pdf  --- ## :warning: Deprecation warning...
PR #41 highlighted the need for AXI snippets. @Bochlin provided a starting point for the requirements of such snippets. Their comment is reported below, and this issue is the place...
Printing in the for of 123E45 and 123E-4 should be possible with a 7 segment LCD
Dynamic precision when calling `print(float num)` should be implemented, **so that not always 3 is assumed**, but the most significant part is privileged. Currently, if you don't specify the precision...
Using ICP1 allows a much more reliable timer reading, since it uses dedicated hardware to store the timer value instead of calling a software interrupt. An interrupt is called anyways,...
Adding an I2C display connector for an oled display may be a good idea. It can be useful for showing buffer state, mode or CPM
