Results 7 comments of Nirav Patel

Yubikey type module

The community is a good place to discuss ideas for Expansion Cards: https://community.frame.work/c/developer-program/expansion-card/90

Create WQFN-20-1EP_3x3mm_P0.4mm_EP1.8x1.8mm_ThermalVias

I believe this footprint is correct despite the Travis CI errors.

Create WQFN-20-1EP_3x3mm_P0.4mm_EP1.8x1.8mm_ThermalVias

Apologies. I no longer have time availability to work on these PRs. On Tue, Sep 22, 2020 at 10:12 AM Joel wrote: > @eclecticc you need to use the generator...

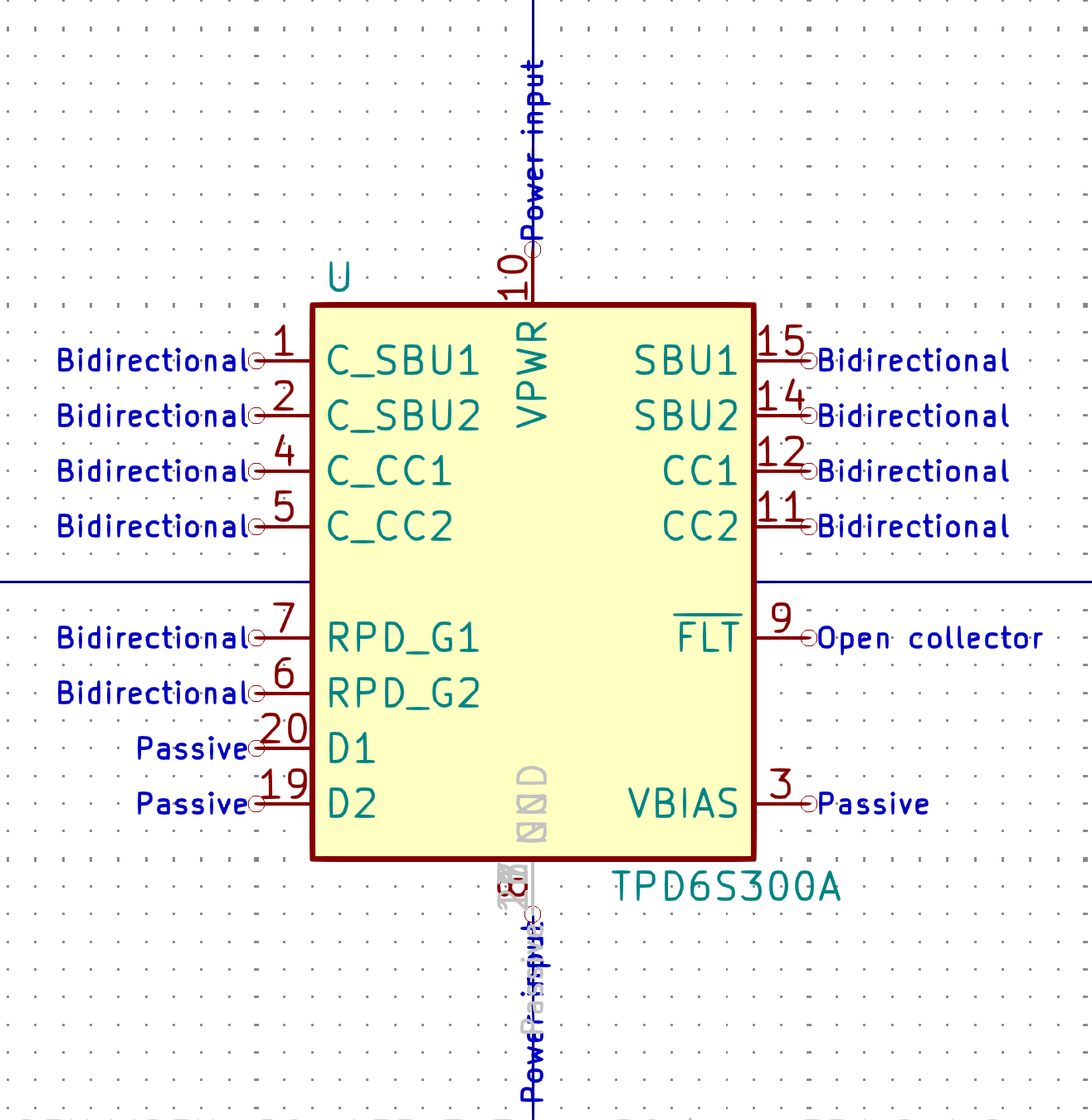

Create TPD6S300A

Note that the NC pins are bidirectional rather than passives because TI calls them out that way in the datasheet and notes that they need to be connected to ground.

Create TPD6S300A

Updated ![image](https://user-images.githubusercontent.com/28994301/70862675-883b0400-1f82-11ea-8a35-b9c57c0f18a5.png)

Create TPD6S300A

Footprint at https://github.com/KiCad/kicad-footprints/pull/1992

Create TPS22976

Footprint is at https://github.com/KiCad/kicad-footprints/pull/1987
