I am trying to model a Vishay/Dale CP0003 resistor (https://www.vishay.com/docs/30213/cp.pdf) using the following cq_parameters.py entry: ``` 'CP0003': Params( body_color_key = 'white body', pin_color_key = 'metal grey pins', l = 22.22,...
Fixes https://github.com/pointhi/kicad-footprint-generator/issues/420 Because IPC tells us there are differences in the body sizes, not all chip parts should result in the same footprints. This generates unique footprints for each part...
As mentioned at https://github.com/pointhi/kicad-footprint-generator/pull/604#issuecomment-700885439, I broke custom names that used the pincount. This fixes that. At least, the `test_hidden_deleted_pins.yaml` footprints still generate with the correct names and `soic.yaml` runs cleanly...
Fixes https://github.com/pointhi/kicad-footprint-generator/issues/421. Branched from #438. **Merge that PR first!** This adds a parameter to support IPC density settings. If the user does not enter a value for the density, nominal...
Pretty straightforward. Just one small change to the generator script, otherwise just putting in the new size info and datasheet links. Footprint PR: https://github.com/KiCad/kicad-footprints/pull/2200

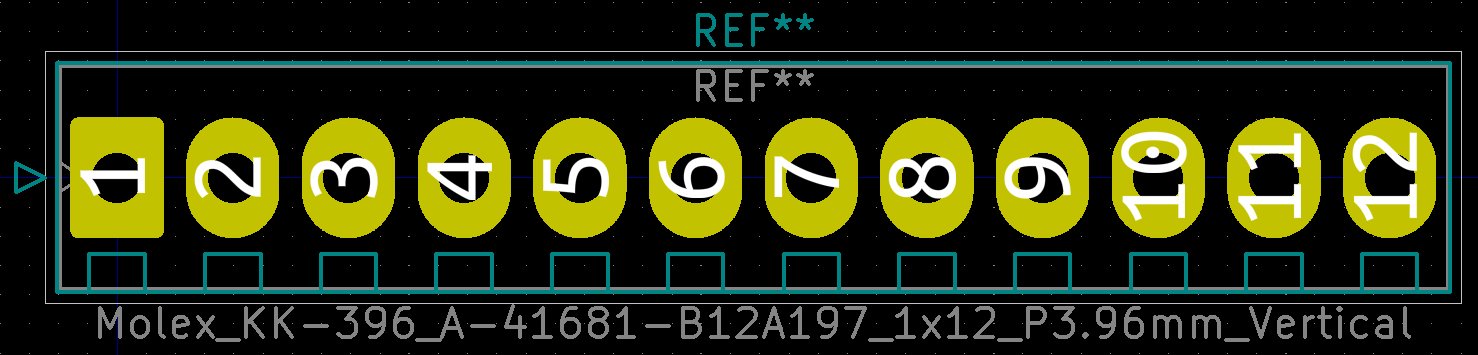

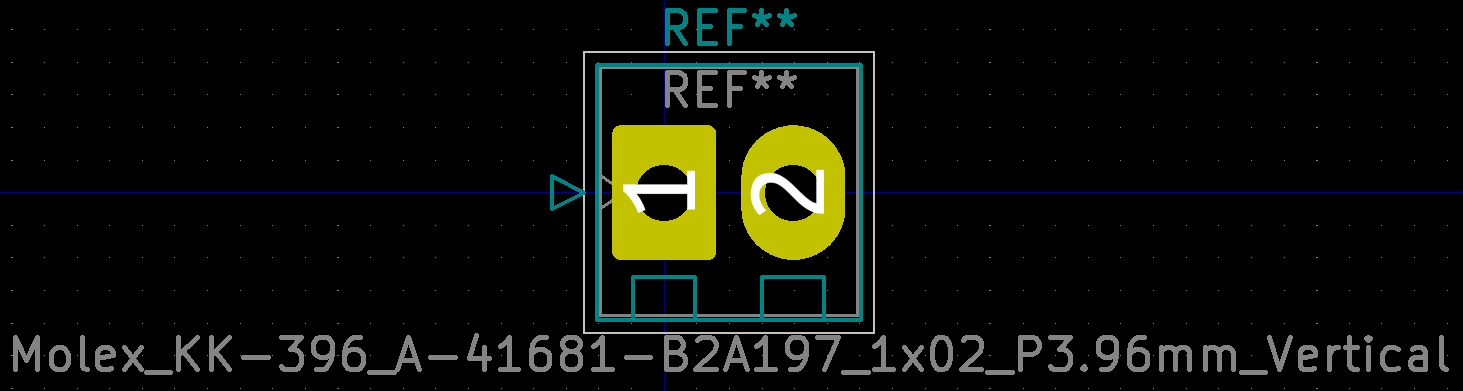

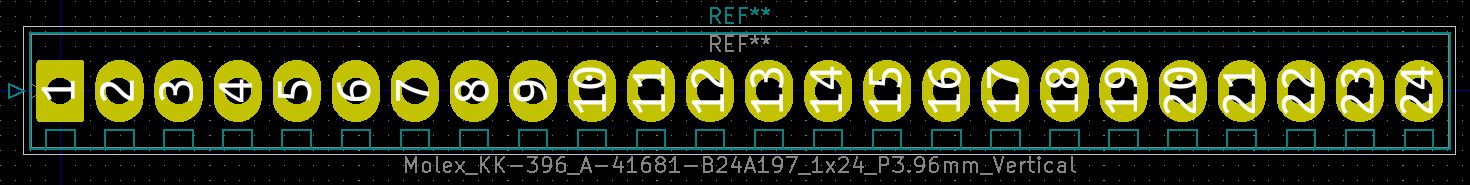

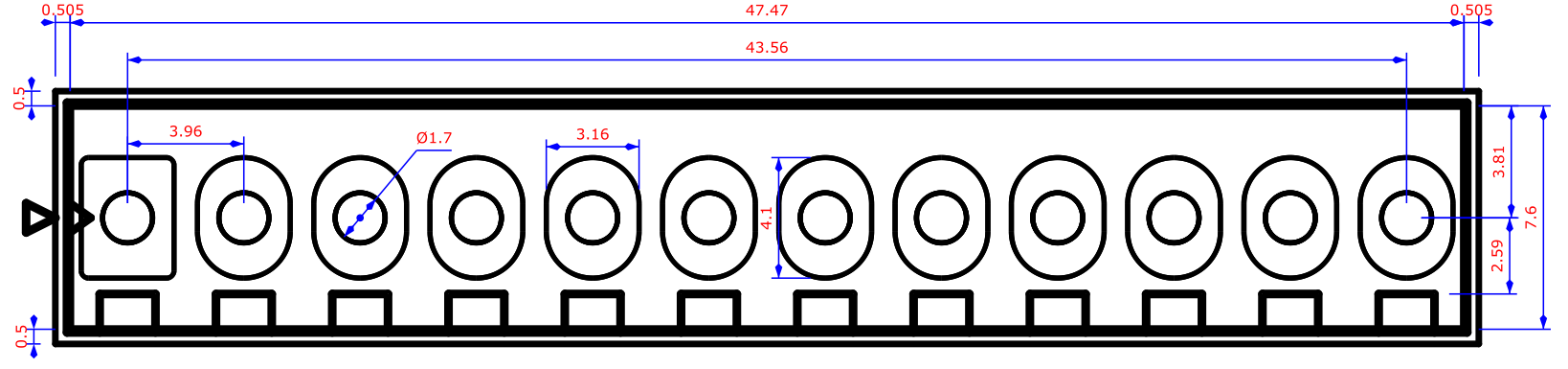

https://www.molex.com/pdm_docs/sd/026487095_sd.pdf    Dimensioned drawing of 12-pin footprint:  A few notes: 1. Based off the existing KK 396 THT top script, which sadly doesn't include the MPN series...

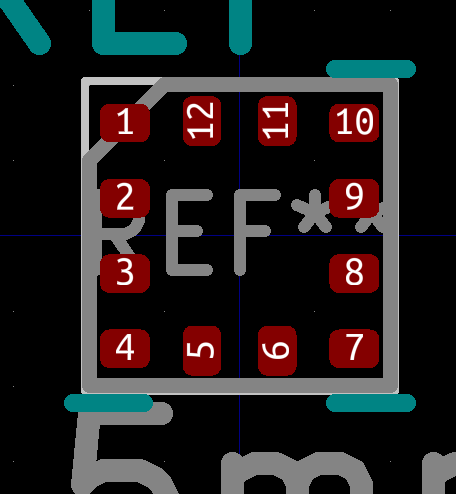

https://www.st.com/resource/en/datasheet/lis2hh12.pdf @poeschlr When I run the generator I get a footprint like this:  1. The courtyard isn't outside the body. Is this a known issue? Or did I do...
@poeschlr 1. From the "Connectors for Specific Functions" section of http://kicad-pcb.org/libraries/klc/F3.6/, I think the last example there should start with `SD_`, right? `SD_` is the `[Function]` and then `microSD` would...
@poeschlr If you read the IPC-7351 "Land Pattern Naming Convention Notes", it specifies the following: - All dimensions are in Metric Units - All Lead Span and Height numbers go...
