Bane Stojkovic issues

Results 7 issues of


                                            Bane Stojkovic

SVG renders solid black shapes

No matter what I do, all I get are black shapes. Here's my code below. Due to the nature of my project, I need to embed the SVG file, so...

Guitar pot enhancements

more options for potentiometers such as push/pull, push/push, concentric, blend/balance, etc

HAM-related component requests

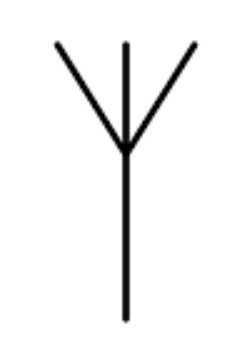

Antenna ![image](https://user-images.githubusercontent.com/11462281/234591787-e87996f3-49c9-4327-8684-0badd20e104d.png) Variable cap ![image](https://user-images.githubusercontent.com/11462281/234591850-07ce7506-b727-4e79-8b6c-2481a397d5d4.png) Trimmer cap ![image](https://user-images.githubusercontent.com/11462281/234591886-3ccf3db2-20cb-47eb-98e0-5cfef149f3af.png) RF choke ![image](https://user-images.githubusercontent.com/11462281/234591937-e715b9b8-d69d-4092-aa2b-5f9dbae5cf1e.png) transistor with circle ![image](https://user-images.githubusercontent.com/11462281/234591994-53d21da5-c81a-4214-9acd-cf3cbbc8e2b8.png) earphones ![image](https://user-images.githubusercontent.com/11462281/234592179-a04a0161-a897-4f9b-babe-f55400ffaf4a.png) speaker ![image](https://user-images.githubusercontent.com/11462281/234592221-7de76fd3-8a57-4ff5-ac57-f0524fcad10f.png)

Highlight connected terminals of switches in different positions

In order to help with understanding how each switch type works in all the various positions, add the following properties to each switch type: - "Highlight" with three options -...

Priority-Low

feature-request

Improve solder pad component

- no hole option - rectangular shape - explicit dimensions - add angle of rotation - add plated vs non-plated (done) keep it backwards compatible

Priority-Low

feature-request

Complexity-Medium

Mouse click registers with an Y-axis offset in fullscreen

Started happening with Java 17 update on a Mac https://github.com/user-attachments/assets/0761d8cc-2193-4a0e-b5f1-bcf68f998621 https://github.com/user-attachments/assets/3b8cba7a-7d1c-4973-b5c6-e894cb8f3cb6

bug

CNC export support

support for CNC tools: export to DXF, layer by layer. If I design a chassis and a board in DIYLC, need to export a chassis design and a board file...

feature-request

Complexity-High
