[dump.txt](https://github.com/OpenTabletDriver/OpenTabletDriver/files/8505695/dump.txt)

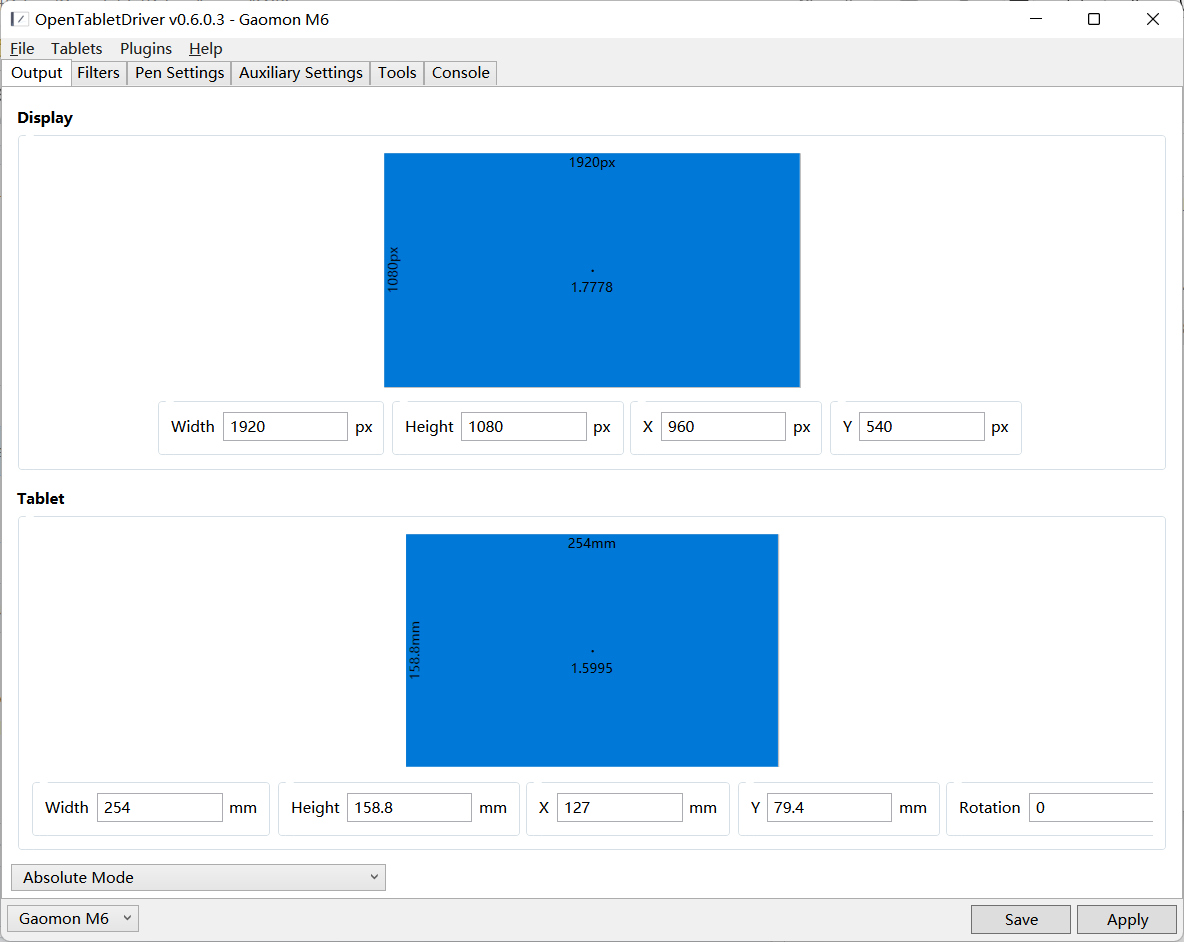

![image](https://user-images.githubusercontent.com/54050160/163811033-0c44397f-f42c-43a1-8891-aeac1f565863.png) tablet detected

- Position: ![image](https://user-images.githubusercontent.com/54050160/163811926-830679d8-9ae7-42fd-82cd-419c7fe2cced.png) - Both pen buttons work well as expected - Get a max pressure of 8191 when pushed hard against the surface - The purchasing page of this...

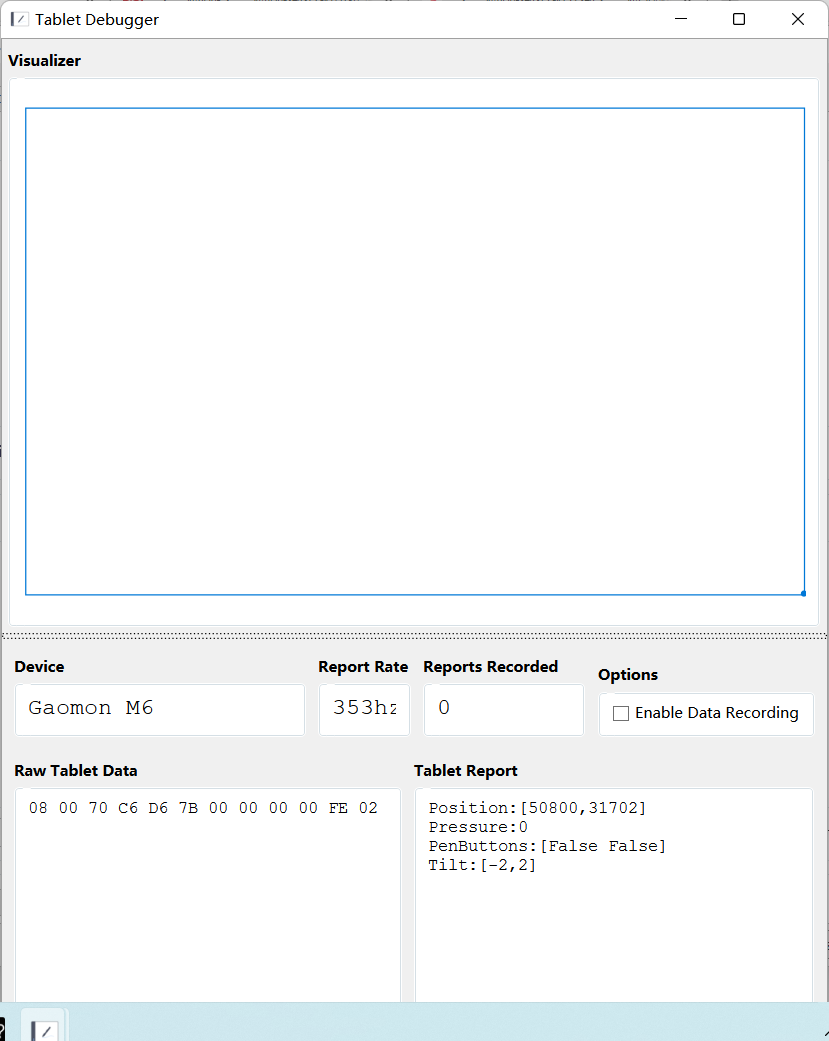

Everything works perfectly except buttons ![image](https://user-images.githubusercontent.com/54050160/163813915-a9710255-1492-4dd3-9d54-e642ac017442.png) 12 out of 13 aux buttons are working, 1 missing the touch wheel isn't working properly and outputs some combination of buttons when touched....

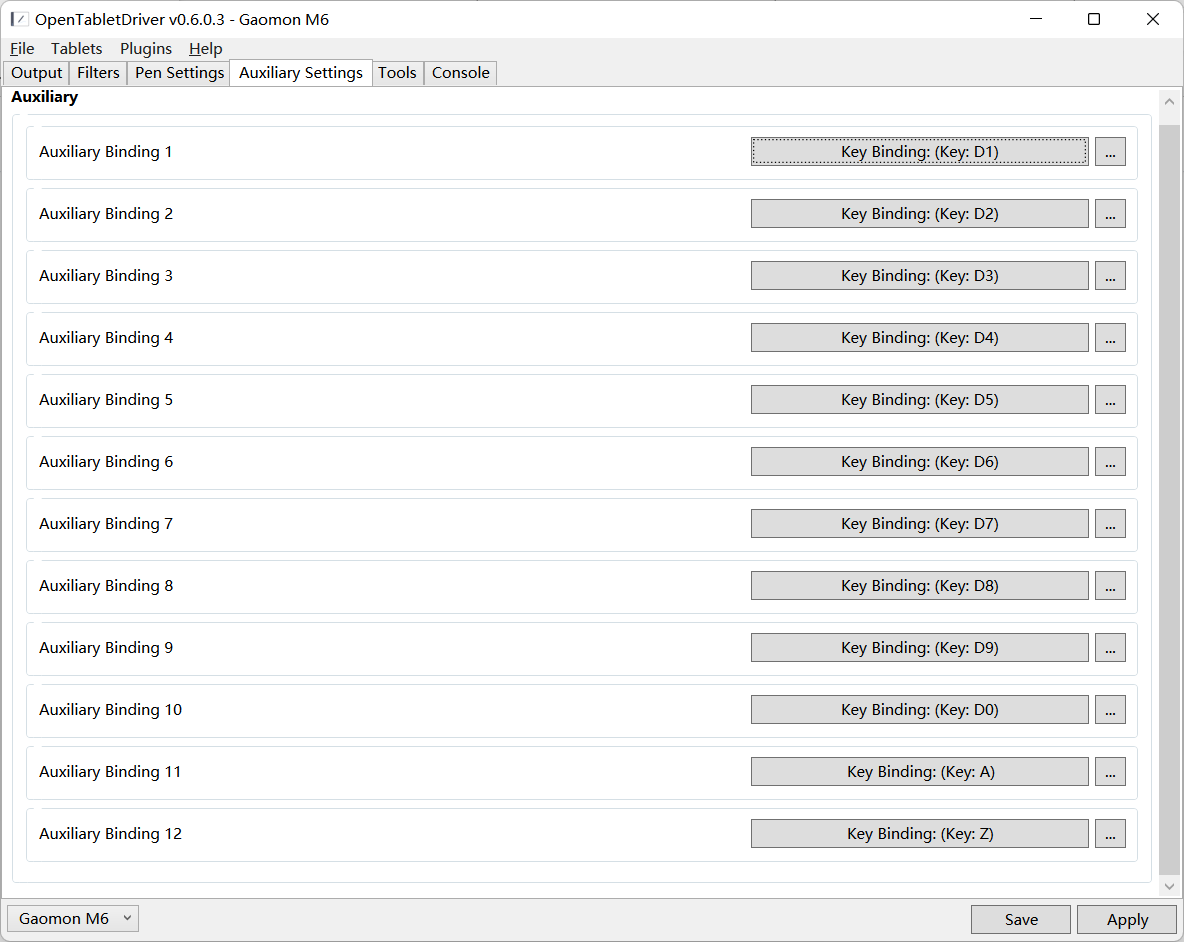

the missing aux button isn't shown in the auxiliary button setting tab there is only 12 shown ![image](https://user-images.githubusercontent.com/54050160/163814948-cbba36d0-6a6c-4d87-a0d6-d2c18adcee73.png)

The wheel doesn't output data saying whether it's rotating or not Instead, it split itself into 12 different parts, with every part occupies 30 degrees on the wheel These parts...

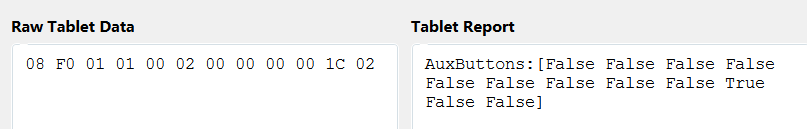

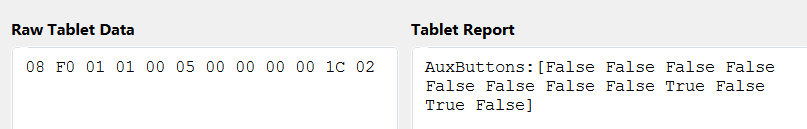

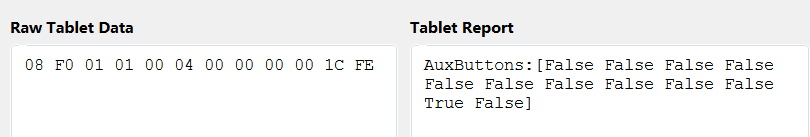

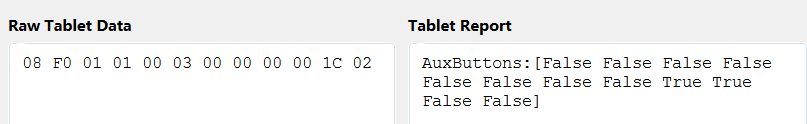

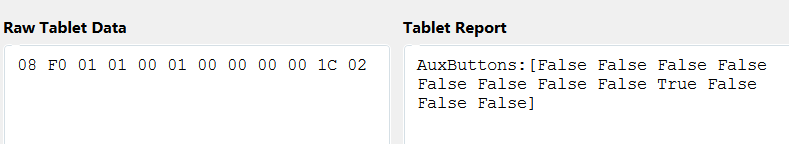

When touching part 1: ![image](https://user-images.githubusercontent.com/54050160/163823576-59a0b07f-78d1-4077-8b46-1b27d3608c1a.png) part 2: ![image](https://user-images.githubusercontent.com/54050160/163823626-15ce1626-a56f-48bb-b0b5-90a47c4db3db.png) part 3: ![image](https://user-images.githubusercontent.com/54050160/163823676-e5a2bf55-d29a-4184-9abd-2a8da0547f37.png) part 4: ![image](https://user-images.githubusercontent.com/54050160/163823820-b693a62a-f66f-4f1a-97ce-d038407782ea.png) part 5: ![image](https://user-images.githubusercontent.com/54050160/163823962-e25d4d71-4d8a-498b-a890-b22f700fd79d.png) are these data enough? I found that the 6th byte in the raw...

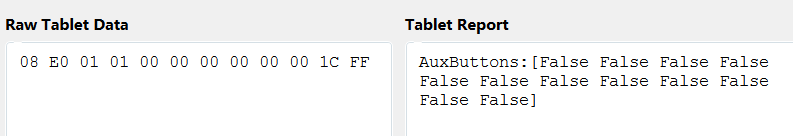

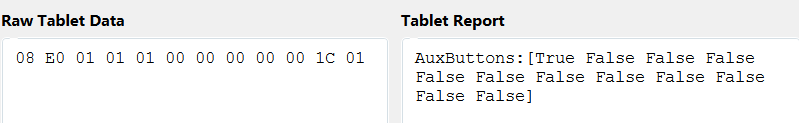

not clicked: ![image](https://user-images.githubusercontent.com/54050160/163824673-dee92ce2-5be6-4eb9-b1bf-a957c0eac350.png) clicked: ![image](https://user-images.githubusercontent.com/54050160/163824878-186bb784-2268-48a2-b295-f9ad0550dad1.png) it should be noticed that the last byte in the raw data changes between 01 and FF at a constant pace (about 2Hz) when the...

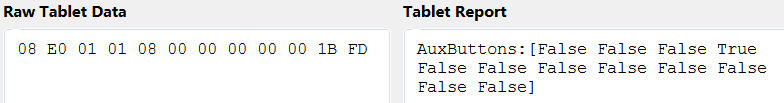

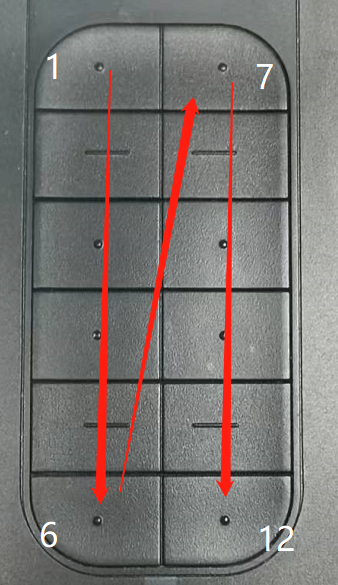

Wheel Center Button: ![image](https://user-images.githubusercontent.com/54050160/163826794-a9a92236-61b0-44a9-b778-e4305464d192.png) 12 buttons below the wheel, counting from the topleft corner, downwards to the bottomright corner ![image](https://user-images.githubusercontent.com/54050160/163827171-b4fcec3a-6dd7-4b06-ba00-407f445cd909.png) - Button 1: ![image](https://user-images.githubusercontent.com/54050160/163827216-5d2da8bc-8690-4070-881a-af16d32769f3.png) - Button 2: ![image](https://user-images.githubusercontent.com/54050160/163827278-af693185-eb39-4fa1-a66a-829c845b85ab.png) - Button...

Like before, the last byte constantly changes when the button is hold I guess it's an action of "forced refresh", and it may be ignored
