[BUG]: Haven texture leather_red_02 fails to load

[Victorlouisdg]

The following line does not create a new material and does not load the texture:

bproc.api.loader.load_haven_mat(haven_textures_folder, ["leather_red_02"])

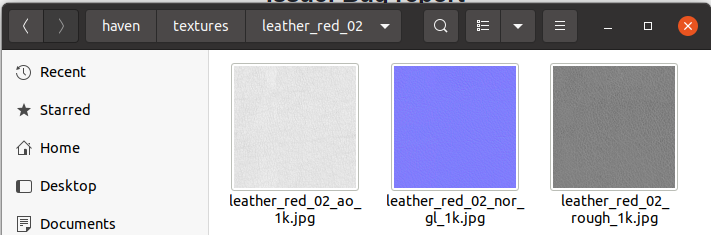

The reason is that the no color base texture was downloaded:

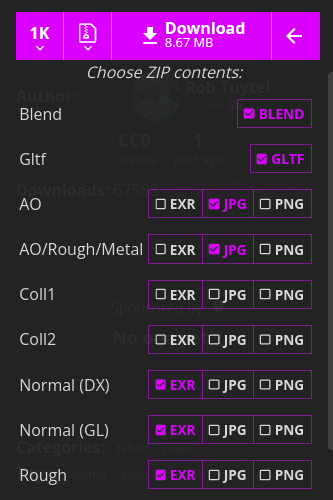

When manually downloading the texture from Haven, the issue becomes apparent:

This texture has two color variations, with names Coll1 and Coll2, which are not downloaded by the download_texture()

Possible solution:

• add Coll1 and Coll2 to keys to be downloaded
• check for _coll1_ in load_haven_mat() as well

[themasterlink]

Maybe we should make two different materials in such cases, that we have one copy with Coll1 and one copy with Coll2. That way both materials could been used.

[Victorlouisdg]

Initially I had the same idea as you, but now I think I'd prefer a solution where this is handled by the HavenMaterialLoader.

When the loader encounters a folder with several color variations, it would then create Blender materials for all of them, e.g:

• leather_red_02_coll1
• leather_red_02_coll2

Another benefit of handling this with the loader is that it saves disk space, because we don't need to duplicate the other textures maps.

[Victorlouisdg]

I just realised that maybe you already meant that we should handle this during loading.

I'll try to implement a solution that:

• Downloads the color variations into a single folder
• Creates multiple Blender materials when loading a texture folder with several variations

Also, the names I suggested above are bad, because on the thrid line here, the material would not be found:

texture_name = "leather_red_02"
load_haven_mat(haven_folder, texture_name)
material = bpy.data.materials[texture_name]

Now I'm thinking we should load all the variations with the name leather_red_02, and Blender will automatically name the second material leather_red_02.001.
