Aqara 2 channel relay not working as expected

[leonardpitzu]

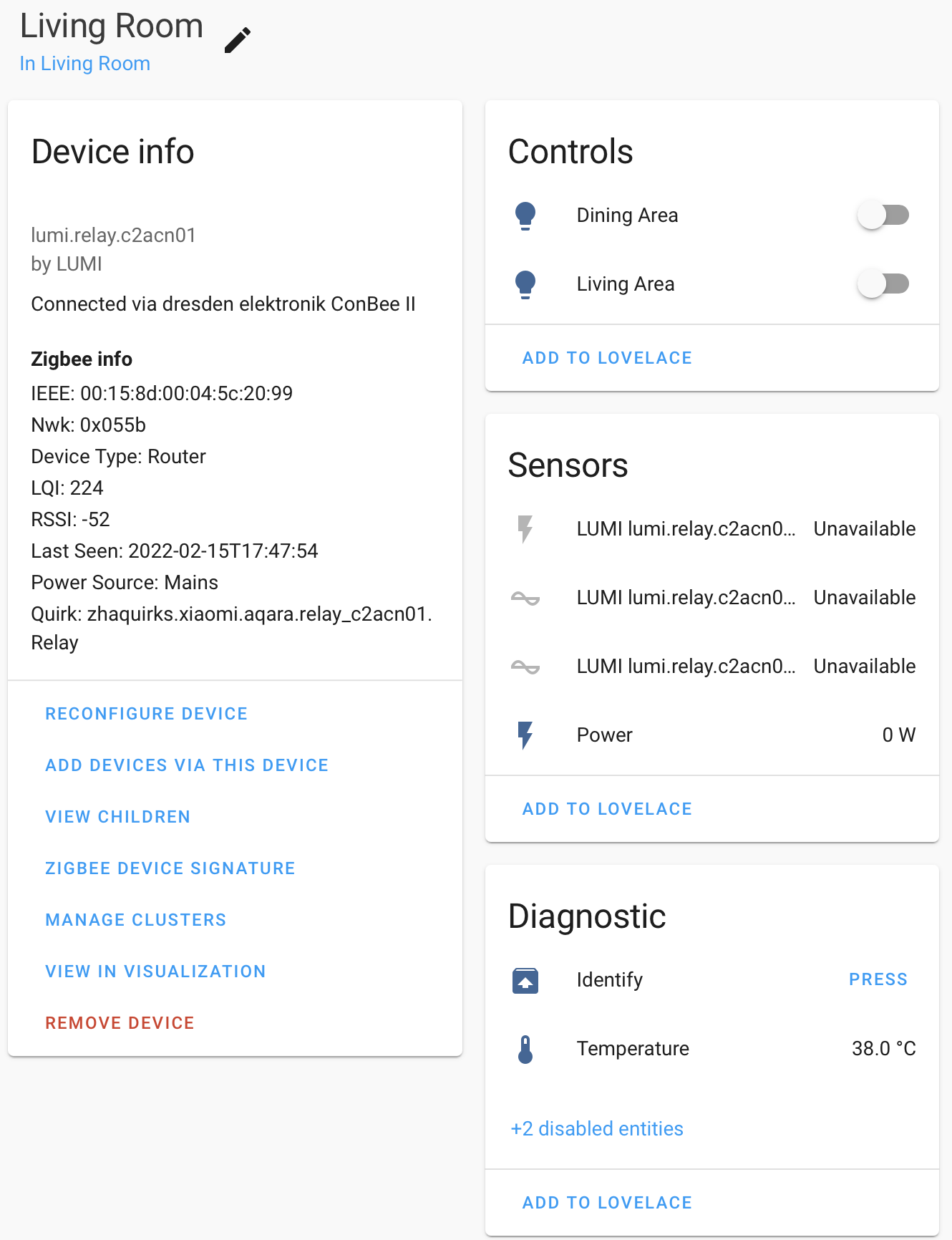

I own quite a few Aqara relays that i have built into the walls of my home. I used deconz and it worked quite OK but i had to ditch it for some reasons and switched to native HA (ZHA). I can switch the relay and it works as expected but power and energy are missing.

device signature: { "node_descriptor": "NodeDescriptor(logical_type=<LogicalType.Router: 1>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.Freq2400MHz: 8>, mac_capability_flags=<MACCapabilityFlags.AllocateAddress|RxOnWhenIdle|MainsPowered|FullFunctionDevice: 142>, manufacturer_code=4151, maximum_buffer_size=127, maximum_incoming_transfer_size=100, server_mask=0, maximum_outgoing_transfer_size=100, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=True, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=False, *is_full_function_device=True, *is_mains_powered=True, *is_receiver_on_when_idle=True, *is_router=True, *is_security_capable=False)", "endpoints": { "1": { "profile_id": 260, "device_type": "0x0101", "in_clusters": [ "0x0000", "0x0001", "0x0002", "0x0003", "0x0004", "0x0005", "0x0006", "0x000a", "0x000c", "0x0010", "0x0b04" ], "out_clusters": [ "0x000a", "0x0019" ] }, "2": { "profile_id": 260, "device_type": "0x0101", "in_clusters": [ "0x0004", "0x0005", "0x0006", "0x0010" ], "out_clusters": [] } }, "manufacturer": "LUMI", "model": "lumi.relay.c2acn01", "class": "zhaquirks.xiaomi.aqara.relay_c2acn01.Relay" }

[Hedda]

Any high-level issues with devices such as this really belong in the repository for "ZHA Device Handlers” instead of here in zigpy repository which is only for low-level issues:

https://github.com/zigpy/zha-device-handlers/issues

https://github.com/zigpy/zha-device-handlers/blob/dev/README.md

Home Assistant's ZHA integration provides some information about how/why quirks are used and points people to that project:

https://www.home-assistant.io/integrations/zha/#zha-exception-and-deviation-handling

https://www.home-assistant.io/integrations/zha/#reporting-issues

https://www.home-assistant.io/integrations/zha/#debug-logging

ZHA EXCEPTION AND DEVIATION HANDLING

The ZHA implementation in Home Assistant relies on a library called “ZHA Device Handlers” to resolve issues with Zigbee devices that do not fully conform with the Zigbee standards. The few devices that deviate from the Zigbee specifications set by the Zigbee Alliance may therefore require proper bug reports with debug logs from users to assistant the developers in writing custom ZHA Device Handlers for all of a device functions to work properly with the ZHA integration.

Such a custom “ZHA Device Handler” are Python scripts that internally are also referred to as a “quirk” because they fix “quirks”, like deviations from the standard specifications. ZHA Device Handles do this by transparently, acting as a translator, translating and converting non-compliant device messages and instead present them to the application as coming from a virtual compliant device. These ZHA Device Handlers for Home Assistant can thus be used to parse custom messages to and from Zigbee devices. The ZHA Device Handlers that are made can then be reused by all users in future versions of Home Assistant.

The custom quirks implementations for zigpy implemented as ZHA Device Handlers for Home Assistant are a similar concept to that of Hub-connected Device Handlers for the SmartThings Classics platform as well as that of Zigbee-Herdsman Converters (formerly Zigbee-Shepherd Converters) as used by Zigbee2mqtt, meaning they are each virtual representations of a physical device that expose additional functionality that is not provided out-of-the-box by the existing integration between these platforms.

Reporting issues

When reporting issues, please provide the following information in addition to information requested by issue template:

1. Debug logs for the issue, see debug logging
2. Model of Zigbee radio being used
3. If issue is related to a specific Zigbee device, provide device Zigbee signature. Signature is available at Configuration -> Devices & Services -> Zigbee Home Automation (click Configure) -> Devices (pick your device) -> Zigbee Device Signature

Debug logging

To enable debug logging for ZHA component and radio libraries, add the following logger configuration to configuration.yaml:

logger:
  default: info
  logs:
    homeassistant.core: debug
    homeassistant.components.zha: debug
    bellows.zigbee.application: debug
    bellows.ezsp: debug
    zigpy: debug
    zigpy_deconz.zigbee.application: debug
    zigpy_deconz.api: debug
    zigpy_xbee.zigbee.application: debug
    zigpy_xbee.api: debug
    zigpy_zigate: debug
    zigpy_znp: debug
    zhaquirks: debug

PS: Also, for ZHA general end-user community support, see here -> https://community.home-assistant.io/c/configuration/zha/48

[Hedda]

@leonardpitzu can this https://github.com/zigpy/zigpy/issues/919 maybe be closed now bin favour of https://github.com/zigpy/zha-device-handlers/issues/1382 so no need to keep both open?

[Hedda]

@leonardpitzu Will you please consider closing this issue under the zigpy repository yourself?

Again high-level issues with device compatibility problems such as those you mention should be reported as issue to repository for "ZHA Device Handlers” (a.k.a. "zha-quirks") instead of here in zigpy library repository which is only for low-level Zigbee issues:

https://github.com/zigpy/zha-device-handlers/issues

https://github.com/zigpy/zha-device-handlers/blob/dev/README.md

If test now and still have problem then open an issue there -> https://github.com/zigpy/zha-device-handlers/issues/new/choose
