Extend cutouts into space between PCBs

[sauttefk]

Prerequisites

• [X] I have read the documentation and the proposed feature is not implemented.

Description

If a PCB has a cutout on its edge, the cutout should extend into the space between the PCBs (backbone) and not end at the v-cut line.

Unpanelized:

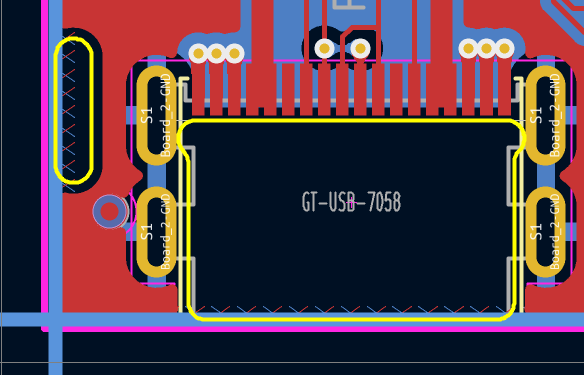

Current behaviour:

Expected behaviour:

[yaqwsx]

Could you share the unpanelized design? I am wondering why is there a V-cut going through an internal cutout. If there was an external cutout, it shouldn't have a closing edge on the left.

[sauttefk]

kikit-cutout-problem.kicad_pcb.zip

kikit panelize
--layout 'hspace: 5mm; vspace: 5mm; rows: 2; cols: 2'
--source 'tolerance: 15mm'
--tabs 'type: full'
--cuts 'type: vcuts'
--framing 'type: frame; width: 5mm'
--post 'millradius: 0.5mm'
~/kikit-cutout-problem.kicad_pcb panel.kicad_pcb

[yaqwsx]

Now I understand - therefore, this is a feature request for the full tab style. Other tab styles are not affected. This definitely makes sense and it is something I will consider implementing.

[yaqwsx]

This is now implemented in 19f7f17

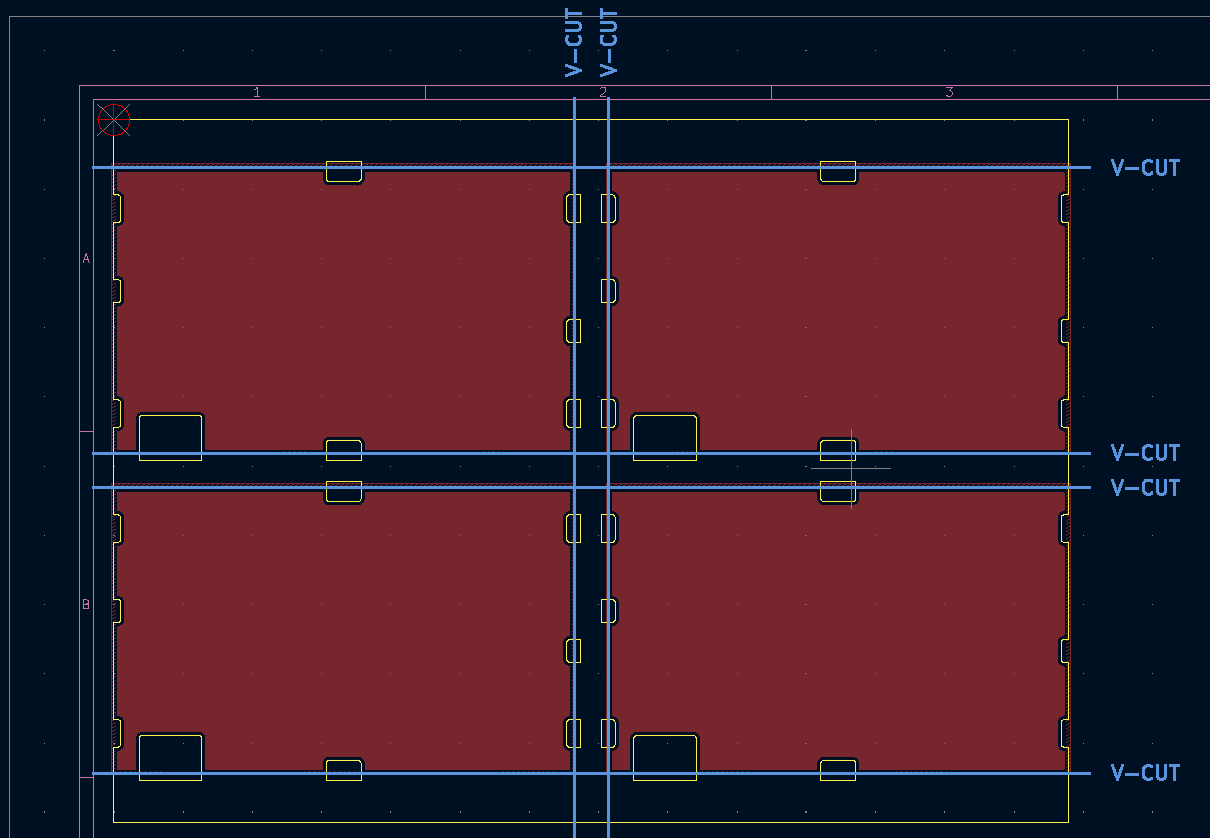

For the design you submitted, it generates:
