Some details about render_obj.

[ZZy129326999]

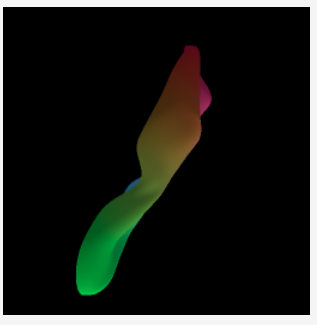

Hello, may I ask you about the code details of render_obj. I used SoftRas' camera_mode='look_at' to generate images from individual perspectives, but I can't use 'projection' to generate images because they are all pure black. How can I improve the code? Thank you very much! Above image is 'look_at' mode.

[ZZy129326999]

I adjusted the orig_size in projection mode, it seems to have some effect? But I'm still curious about what you did to render the image directly?

[song-wx]

Hello, may I ask you about the code details of render_obj. I used SoftRas' camera_mode='look_at' to generate images from individual perspectives, but I can't use 'projection' to generate images because they are all pure black. How can I improve the code? Thank you very much! Above image is 'look_at' mode.

Hello, do you solve this problem? I also have such a pure black error in 'projection' mode

[xmeng525]

Hi there, The pure black might be caused by the improper setting of the camera. You may want to tune the parameters of the camera to fit it to the [-1, 1] camera space.

[song-wx]

Hi there, The pure black might be caused by the improper setting of the camera. You may want to tune the parameters of the camera to fit it to the [-1, 1] camera space.

@xmeng525 Many thanks for your kind response! I have tried tuning the camera parameters but only succeeded in rendering a rarely small part of the object at the corner of the image. It seems the camera is always in a weird position. Cuz the latest version of SoftRas has removed the ‘SoftRenderer’ function you used to render the images. I try your code in the previous commit of SoftRas (btw I also tried to fit your code to the latest SoftRas but still got the same error). Thus I am not sure if the error is due to the varied version of SoftRas or your code. Would you mind checking your code? Thanks for your time!
