ReinforcingBar flat representation.

Open leonardorojo opened this issue 5 years ago • 3 comments

The rebars visualization in some directions shows flat representation. This issue doesn't happen in the precompiled version of Xbim Explorer.

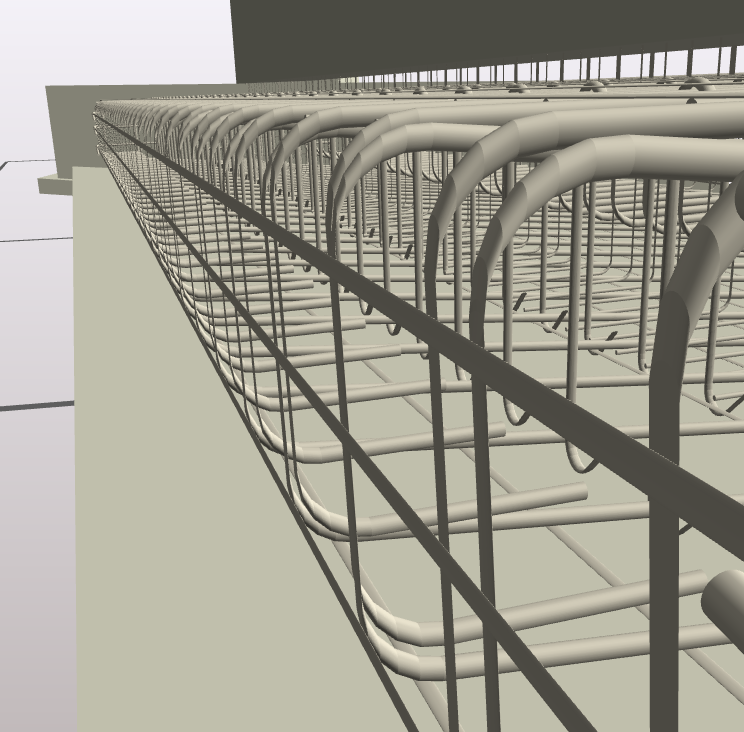

flat bars

Apr 12 '20 15:04 leonardorojo

You'll have to provide a bit more information before anyone can take a look.

Which versions of Xplorer worked? Which versions don't? (it sounds like you may have built Xplorer yourself - if so, which branch?)

Are you able to share the model?

Apr 13 '20 09:04 andyward

Yes, I've built XbimXplorer master branch. You can find the model in the following link https://www.dropbox.com/sh/b3uiz4d3b7nxxz1/AABYnnMhOZA3HjlwsC0sbpHfa?dl=0

Apr 14 '20 10:04 leonardorojo

Confirmed in current develop. It's probably a Geometry issue, I'll see how to log it properly.

Attached reduced repro file.

Geometry.WindowsUI.146.MinumumRepro.ifc.zip

Apr 15 '20 15:04 CBenghi
