Timing Diagram Lines misaligned with phase offset

[rmfield]

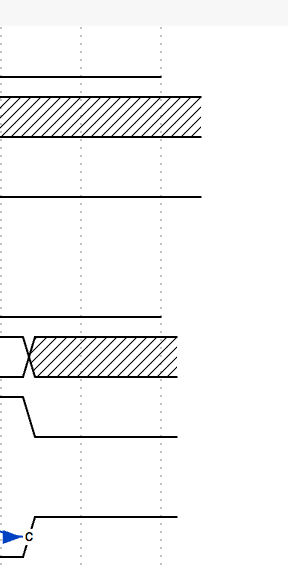

If you apply a phase shift to any of the signals in your timing diagram then the ending lines on the right do not align.

[drom]

@rmfield that is correct. When you shift lane to the left, the lane gets shorter. The gap on the right indicates the fact, that you have not provided any information to fill it. That is why it is empty.

[rmfield]

@drom Understood. However, there does not seem to be a way to fill the gap such that all waveforms align. It doesn't look too bad with 0.5 phase shift, but if you use other values and have many waveforms, it can start to look messy.

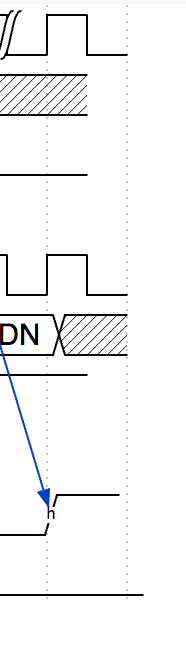

Option 1:

Option 2:

I think truncating overhanging waveforms would be better than leaving them mismatched.

[hofstee]

I'd also second the option to just be able to truncate some stuff off the start and end. The lines at the start and the end can't be aligned to the edges.
