Reported Caches Capacity Value ?

[centminmod]

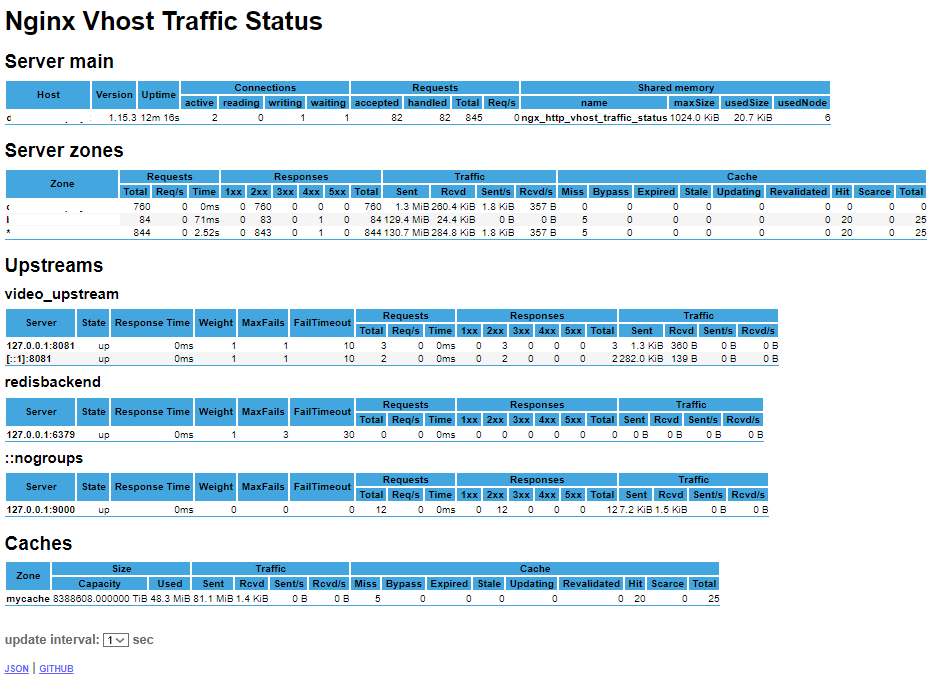

Hi i am trying to understand what determines the Caches' reported Capacity value ? Mine is reporting quite high at 8388608 TiB if I am reading that correctly ?

I have configured sliced byte-range caching https://www.nginx.com/blog/smart-efficient-byte-range-caching-nginx/ with

proxy_cache_path /tmp/mycache keys_zone=mycache:256m;

Nginx configuration

nginx -V
nginx version: nginx/1.15.3 (020918-174629)
built by gcc 8.2.1 20180824 (GCC)
built with OpenSSL 1.1.0 (compatible; BoringSSL) (running with BoringSSL)
TLS SNI support enabled

configure arguments: --with-ld-opt='-Wl,-E -L/usr/local/zlib-cf/lib -L/opt/boringssl/.openssl/lib -lcrypto -lssl -L/usr/local/lib -lrt -ljemalloc -Wl,-z,relro -Wl,-rpath,/usr/local/zlib-cf/lib:/opt/boringssl/.openssl/lib:/usr/local/lib' --with-cc-opt='-I/opt/boringssl/.openssl/include -I/usr/local/zlib-cf/include -I/usr/local/include -m64 -march=native -DTCP_FASTOPEN=23 -g -O3 -fstack-protector-strong -flto -fuse-ld=gold --param=ssp-buffer-size=4 -Wformat -Werror=format-security -Wimplicit-fallthrough=0 -fcode-hoisting -Wno-cast-function-type -Wp,-D_FORTIFY_SOURCE=2 -Wno-deprecated-declarations' --sbin-path=/usr/local/sbin/nginx --conf-path=/usr/local/nginx/conf/nginx.conf --build=020918-174629 --with-compat --with-http_stub_status_module --with-http_secure_link_module --with-http_flv_module --with-http_mp4_module --add-module=../nginx-rtmp-module --add-dynamic-module=../nginx-module-vts --with-libatomic --with-http_gzip_static_module --add-dynamic-module=../ngx_brotli --with-http_sub_module --with-http_addition_module --with-http_image_filter_module=dynamic --with-http_geoip_module --with-stream_geoip_module --with-stream_realip_module --with-stream_ssl_preread_module --with-threads --with-stream=dynamic --with-stream_ssl_module --with-http_slice_module --with-http_realip_module --add-dynamic-module=../ngx-fancyindex-0.4.2 --add-module=../ngx_cache_purge-2.4.2 --add-dynamic-module=../ngx_devel_kit-0.3.0 --add-dynamic-module=../set-misc-nginx-module-0.32 --add-dynamic-module=../echo-nginx-module-0.61 --add-module=../redis2-nginx-module-0.15 --add-module=../ngx_http_redis-0.3.7 --add-module=../memc-nginx-module-0.18 --add-module=../srcache-nginx-module-0.31 --add-dynamic-module=../headers-more-nginx-module-0.33 --with-pcre-jit --with-http_ssl_module --with-http_v2_module

[vozlt]

@centminmod I fixed it. Commit: https://github.com/vozlt/nginx-module-vts/commit/549cc4d0d31b8bea5319c8564917875d03f105e1 FYI. the way to get cahce information in vts module

[vozlt]

@ninetian I have restored it to its original state.(It is keys_zone size.) I will take a look again. commit: https://github.com/vozlt/nginx-module-vts/commit/203bc5bf2d9a2cbf30e7b84313011d8a0adea191

[vozlt]

@centminmod I added additional information about cacheZones. Commit: 91bdb14
