OLED firmware restarts continuously

Open jsbjx opened this issue 4 years ago • 13 comments

BrewPiLess.v4.2a4.4m2m.bin BrewPiLess.v4.2a4.oled.newui.4m2m.bin

There are two types of firmware. The same motherboard. The LCD version is normal but the display lacks characters after a few hours). The OLED version keeps restarting. what is the reason?

Turn on the iSpindel power switch. The OLED board will restart continuously. Turn off the iSpindel power switch, it will not restart.

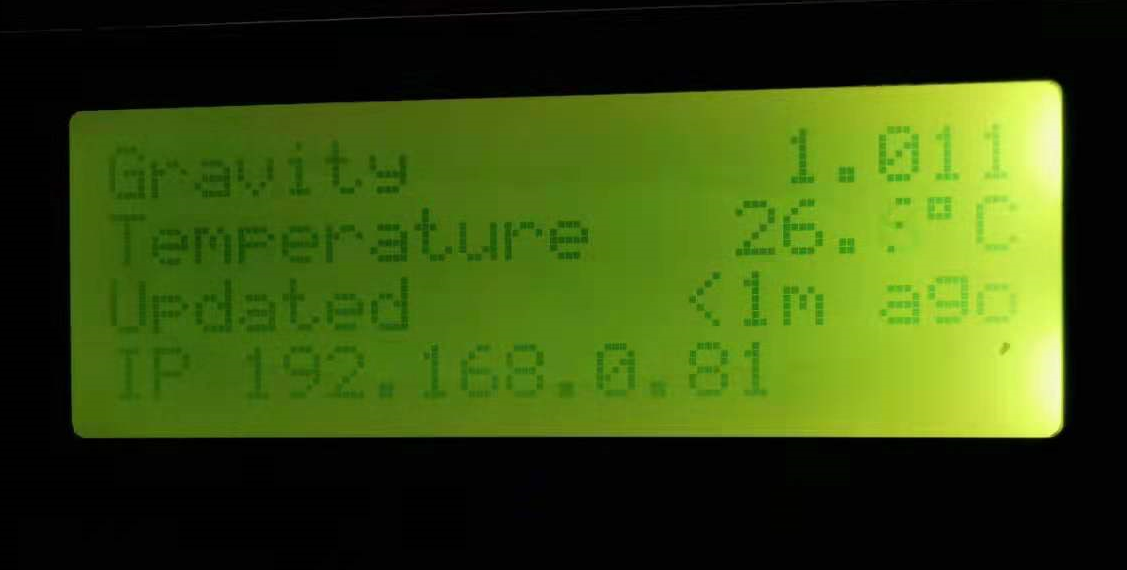

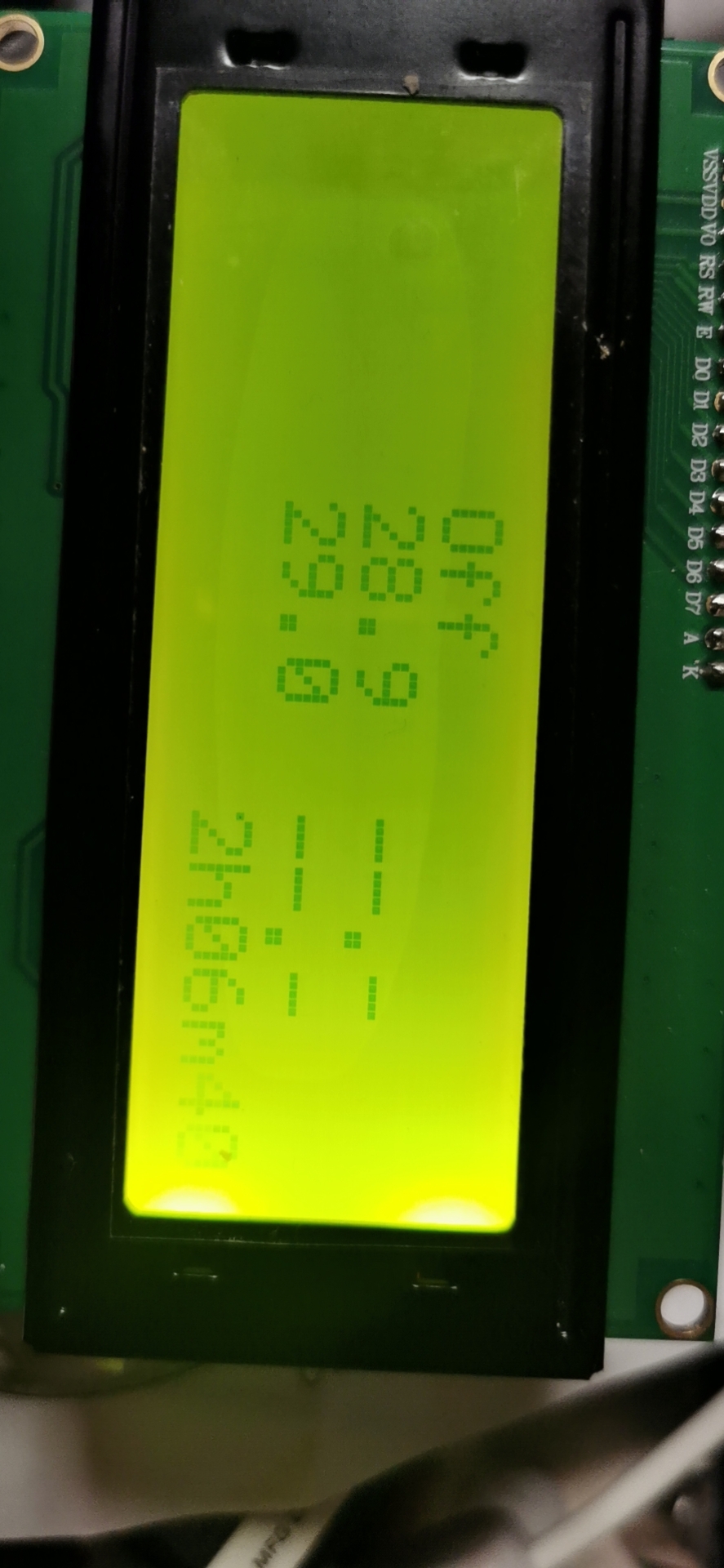

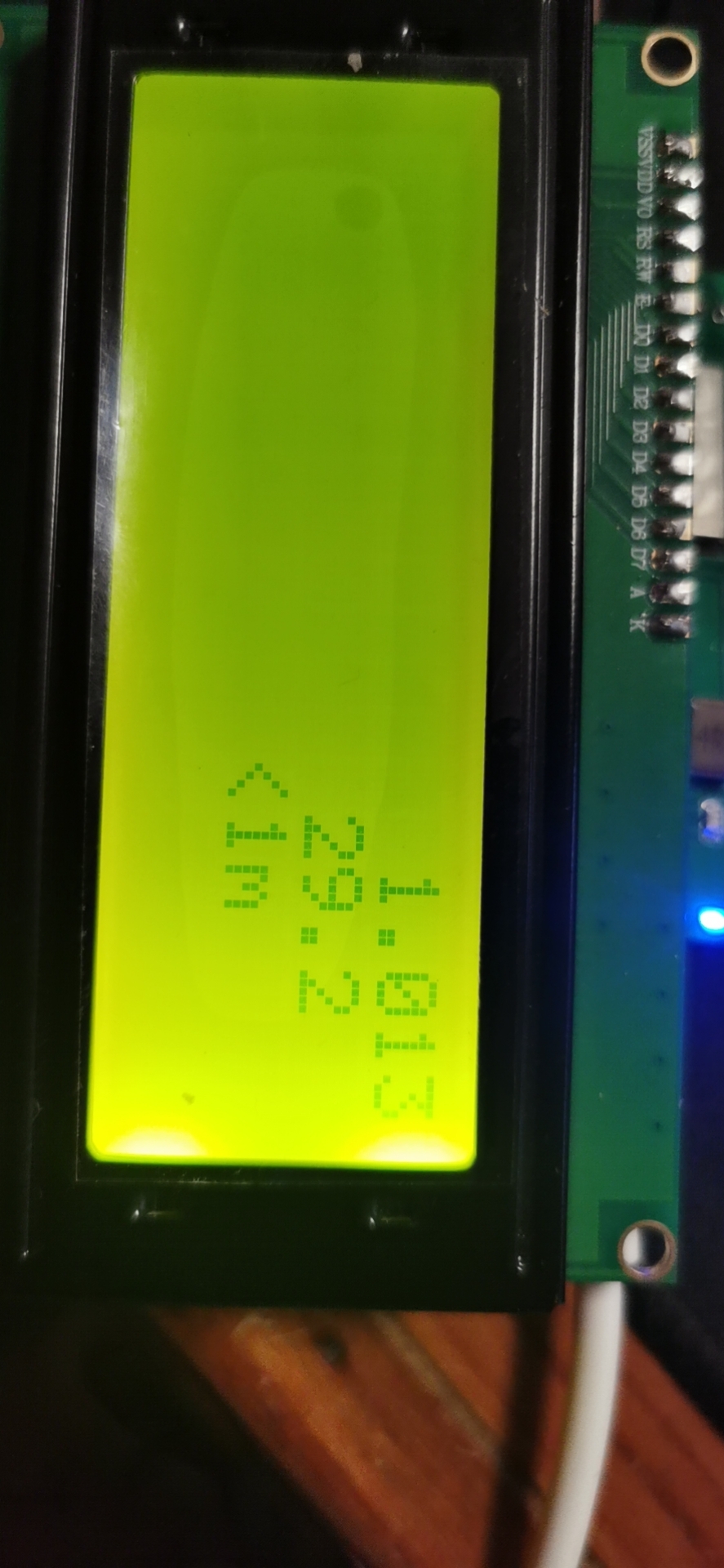

9d9c94e153980c4337ddf403d5a1c53 c9d832bac2e1d1e916c925b72c90be5

55f6e91635a218b1661759055be7f93 dd2c910af531282404fff728f1ca847

https://user-images.githubusercontent.com/32890201/124131999-f1299480-dab2-11eb-9204-574998b478ed.mp4

jsbjx avatar Jul 01 '21 13:07 jsbjx

The cycling LCD display is under verifying and development. I have tested it on OLED while all my OLED LCDs are broken.

vitotai avatar Jul 03 '21 03:07 vitotai

Hello, I can provide the hardware you need for your experiment for free, including the experiment board of ESP8266 and ESP32, and also provide the display screen. How can I mail it to you?

jsbjx avatar Jul 05 '21 11:07 jsbjx

Thank you, but what I need is time. I am hunting an issue of frozen display right now. It hasn't happened since I adding some debugging code a week ago. The issue of your LCD is strange, I can't reproduce it, either.

vitotai avatar Jul 06 '21 03:07 vitotai

The OLED issue can be reproduced without hooking OLED. It seems that updating LCD takes too long to be done in HTTP session. I've made modification. Please try a5.

vitotai avatar Jul 06 '21 08:07 vitotai

a5 where? Please send a link, thank you!

jsbjx avatar Jul 06 '21 09:07 jsbjx

https://github.com/vitotai/BrewPiLess/tree/4.2pre

Building and pushing take some time to finish.

vitotai avatar Jul 07 '21 03:07 vitotai

Tested A5 8266 Bin and no restart phenomenon

jsbjx avatar Jul 07 '21 12:07 jsbjx

1 2 3 4 These are the four display states of OLED. The bottom row is scrolled. It is recommended to fix the time display on the first page and the IP display on the second page. So there are only 4 lines on the second page, and one line of voltage display is added.

jsbjx avatar Jul 07 '21 13:07 jsbjx

5 6 There is only one Beer temperature sensor in the hardware setting, set Beer Set 20. Fridge temp:30 Fridge Set:10 These two are automatically generated?

jsbjx avatar Jul 07 '21 13:07 jsbjx

5 6 There is only one Beer temperature sensor in the hardware setting, set Beer Set 20. Fridge temp:30 Fridge Set:10 These two are automatically generated?

Can you send me a bin with version 4.2 for oled and wemos d1 mini? I can't comple it.

prosenbaum91 avatar Nov 03 '21 09:11 prosenbaum91

5 6 硬件设置里只有一个啤酒温度传感器,设置Beer Set 20。Fridge temp:30 Fridge Set:10 这两个是自动生成的?

你能给我寄一个 oled 和 wemos d1 mini 的 4.2 版本的 bin 吗?我无法完成它。

Don't use this software anymore. many problems. I have given up.

jsbjx avatar Nov 03 '21 11:11 jsbjx

I have a problem with version without oled too. What version is stable? I have countinousely reboot.

prosenbaum91 avatar Nov 03 '21 11:11 prosenbaum91

Here the same thing is happening when I use ESP32. With ESP8266 it works as normal.

gumazza avatar Dec 20 '21 11:12 gumazza
