HTML overlay component expects viewport prop

[biniyam17]

Describe the bug

HTML Overlay component is typed for optional viewport but internal logic relies on viewport.

Actual Result

<HtmlOverlay> <HtmlOverlayItem coordinates={coordinates}>{title}</HtmlOverlayItem> </HtmlOverlay> This code is from the docs produces the following error Uncaught TypeError: Cannot read property 'project' of undefined which is from html-overlay.tsx.

Expected Result

Expected html overlay to not produce error and show title on deck gl map.

Reproduce Steps

Add HTML Overlay without viewport value passed as a child of any deck gl layer. i.e. <DeckGL initialViewState={initialViewState} controller={true}> <StaticMap mapboxApiAccessToken={MAPBOX_ACCESS_TOKEN} /> <HtmlOverlay> <HtmlOverlayItem coordinates={coordinates}>{title}</HtmlOverlayItem> </HtmlOverlay> </DeckGL> Verify if browser crashes / error is caught.

Possible fixes

The code that is messing up is getCoords(coordinates: number[]): [number, number] { const pos = this.props.viewport.project(coordinates); if (!pos) return [-1, -1]; return pos; } Is it possible to add optional chaining so it reads this.props?.viewport.project(coordinates) considering the viewport prop is typed as optional in the HTML Overlay class.

To Do List

[biniyam17]

Upon further investigation, it seems the issue is from the typescript migration where all the props for HTMLOverlay were marked as optional. See https://github.com/uber/nebula.gl/pull/377/files

[biniyam17]

I was able to get around this issue by taking out the HTML Overlay from my render and just rendering the HTMLOverlayItem. However, this does feel like a hack because according to the official documentation HtmlOverlayItem must be direct children of HtmlOverlay or HtmlClusterOverlay.

[bishoym]

@biniyam17 any chance you could elaborate on how you got HtmlOverlayItem working independently of its required parent?

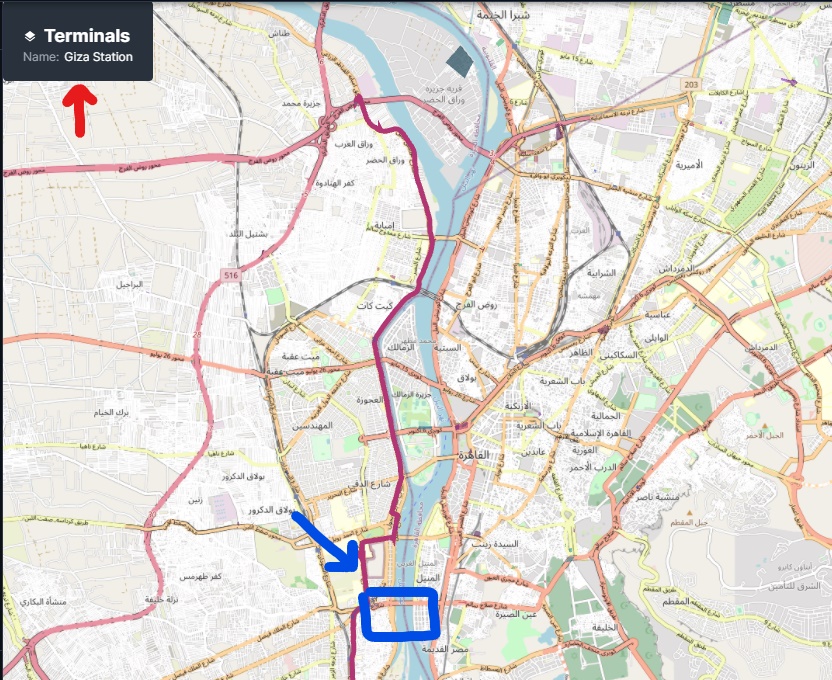

Without HtmlOverlay, my text becomes incorrectly positioned (sticks to the top-left corner of the map container element).

Putting HtmlOverlay and its HtmlOverlayItem children directly within DeckGL's children works as expected.

<DeckGL  //...deckGLprops>
        <StaticMap mapboxApiAccessToken={MAPBOX_ACCESS_TOKEN} />
        <HtmlOverlay>
          <HtmlOverlayItem
            style={{ background: "red", padding: 4, color: "white" }}
            coordinates={[-122.43, 37.775]}
          >
            Text sample
          </HtmlOverlayItem>
        </HtmlOverlay>
 </DeckGL>

The second I try to move it out to a custom component, I get the error you described in the original post.

<DeckGL  //...deckGLprops>
        <StaticMap mapboxApiAccessToken={MAPBOX_ACCESS_TOKEN} />
        <LabelsController /> // this breaks with the "Cannot read property 'project' of undefined" error
</DeckGL>

Any ideas as to why this behaviour is occurring? I'm on @nebula.gl/overlays: "0.21.1"

[makeupsomething]

This should work as a solution

<DeckGL  //...deckGLprops>
        <StaticMap mapboxApiAccessToken={MAPBOX_ACCESS_TOKEN} />
        {({ x, y, width, height, viewState, viewport }) => (
	    <LabelsController viewport={viewport}/>
        )}
</DeckGL>

Then in the LabelsController component just extract viewport from the props and pass it into <HtmlOverlay />
