FormattedString tracking value – what does it refer to?

[frankrolf]

It seems to be neither

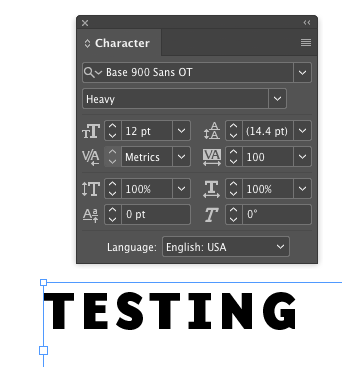

• an absolute value based on the em square (InDesign)

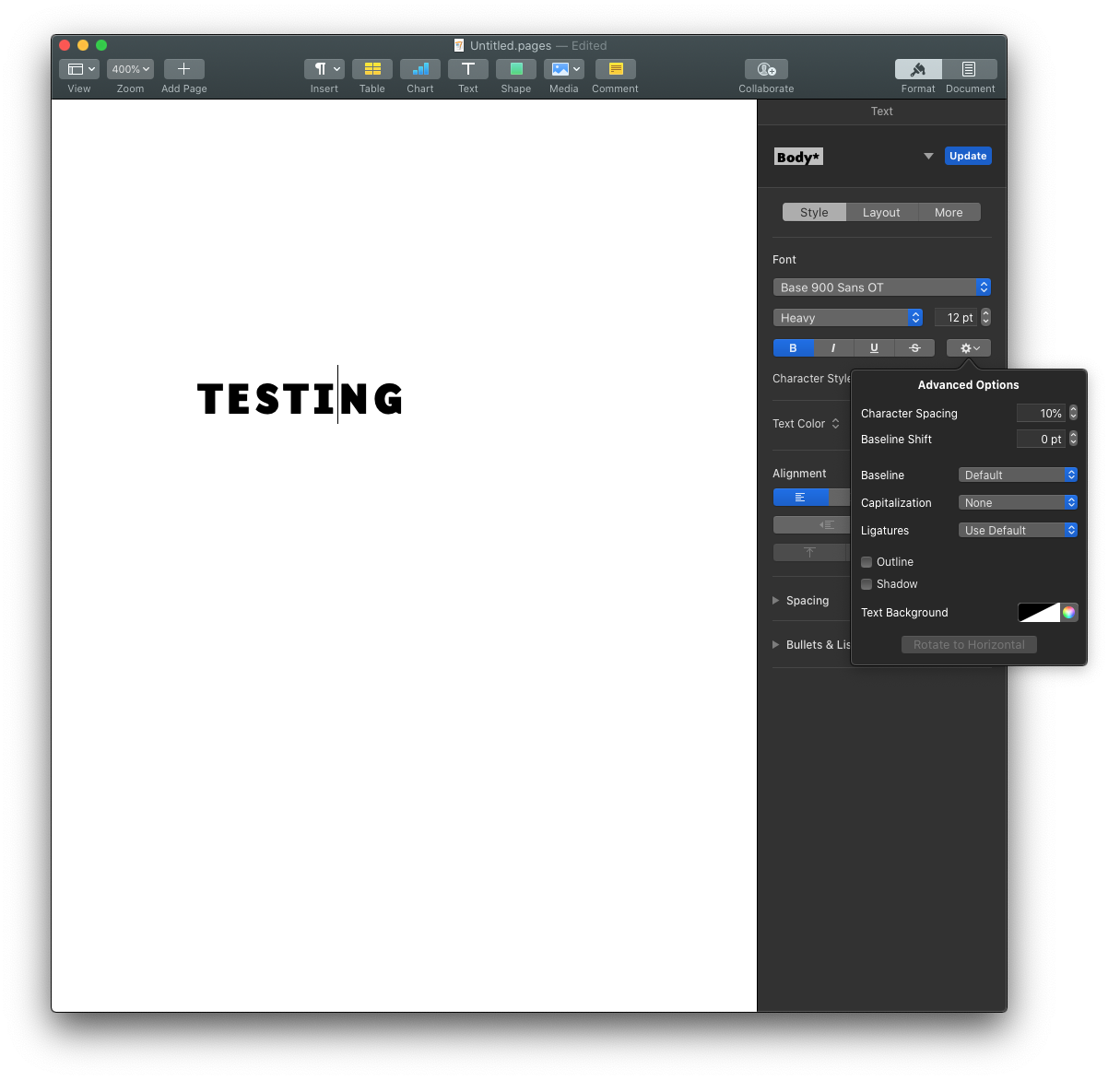

• a percentage (of what?) (Pages)

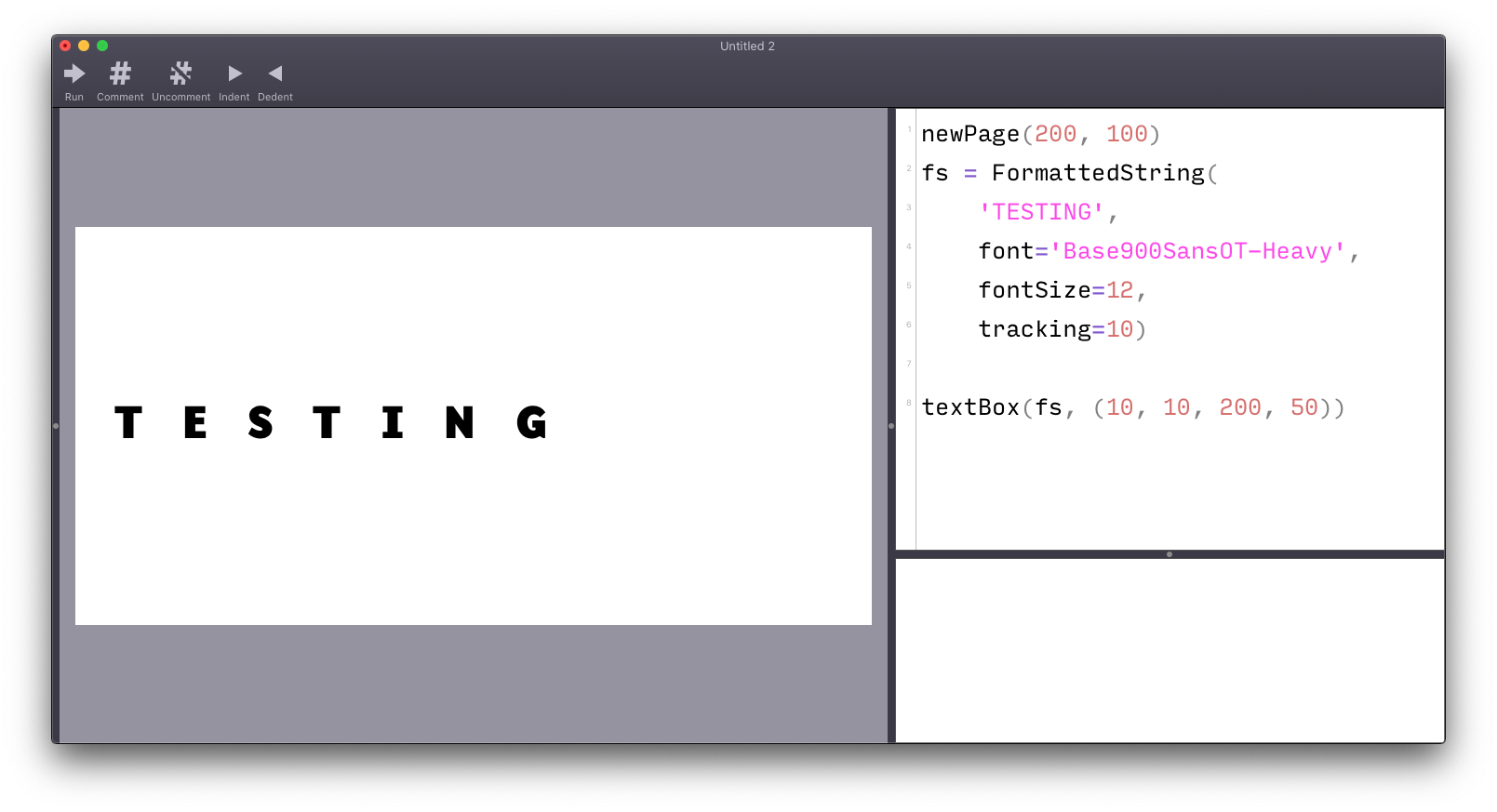

• instead:

newPage(200, 100)
fs = FormattedString(
    'TESTING',
    font='Base900SansOT-Heavy',
    fontSize=12,
    tracking=10)

textBox(fs, (10, 10, 200, 50))

[folengo]

That's setting NSKernAttributeName which is about kerning. There are subtle but important differences between this and tracking.

[justvanrossum]

It's an absolute number of points to be added in-between the letters.

If you want Adobe-style 1/1000 tracking, calculate based on your point size:

pointSize = 20

trackingUnits = 100

newPage(200, 100)
fs = FormattedString(
    'TESTING',
    font='Helvetica',
    fontSize=pointSize,
    tracking=pointSize*trackingUnits/1000)

textBox(fs, (10, 10, 200, 50))

[justvanrossum]

@folengo: kCTTrackingAttributeName has only been available since 10.12. We still support 10.10. It was not us who confused tracking and kerning, but Apple :)

That said, we could have made our public API a bit more sensible.

[frankrolf]

Thanks @justvanrossum !
