suptitle is truncated

[arminus]

Calplot version 0.1.7.2 / Windows 10:

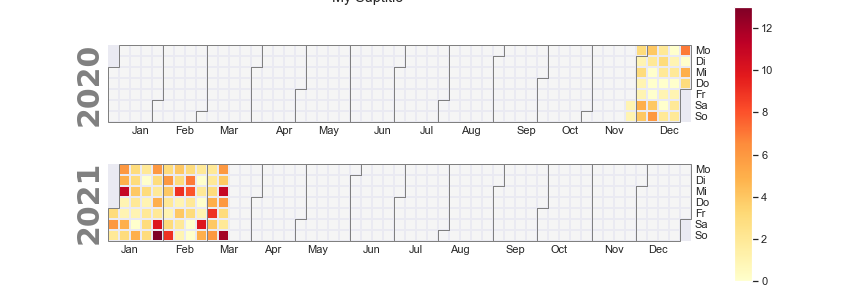

Using a suptitle for a plot truncates it at the top:

This is the code I use:

fig, ax = calplot.calplot(dfYear.squeeze(), cmap='YlOrRd', tight_layout=False, suptitle='My Suptitle', figsize=(12,4), daylabels= ['Mo', 'Di', 'Mi', 'Do', 'Fr', 'Sa', 'So'])
fig.patch.set_facecolor('xkcd:white')
fig.savefig(f'{img_path}/JahresBelegung.png')

(changing the figsize or tight_layout True/False has no effect)

What's strange: When I visualize the same plot directly in VSCode's Jupyter notebook, the suptitle is not truncated?

[tomkwok]

Update to the latest version 0.1.7.3. Your problem should now be fixed.

Furthermore, you can now specify suptitle parameters in suptitle_kws argument for calplot() to get your desired suptitle location. For example:

calplot.calplot(dataframe, suptitle_kws={'x': 0.5, 'y': 1.0})

[arminus]

Thanks for the quick response.

I see no difference unless I specify your suptitle_kws (not sure if it's intended that way) and there is 0 padding between the upper border of the suptitle and the upper edge of the canvas (all other sides are padded "better")?

[apiszcz]

I am seeing truncation on the left and top.

[apiszcz]

By changing the plot size I can correct the left side issue, drawing the title manually with PIL.

[tomkwok]

In my testing I configured matplotlib to output SVG so for now text alignments should work best in SVG output.

[apiszcz]

thought about this, but have not tried, thank you!

On Tue, Aug 3, 2021 at 10:32 AM Tom @.***> wrote:

In my testing I configured matplotlib to output SVG so for now text alignments should work best in SVG output.
