[BUG][ADL]: maxim 98373 speaker pop sound when switching audio output device

Open macchian opened this issue 3 years ago • 11 comments

Describe the bug 98373 speaker pop sound occurred on upstream adl-004-drop-stable and main branch as well.

experiment:

  1. bypass all smart amp DSM, lib module and binary.
  2. moving FE SSP stop sequence before BE amp shutdown.

both still have pop sound.

To Reproduce

  1. plug in headset
  2. playing music on Youtube.com.
  3. switching audio devices by CRAS UI
  4. speaker pop suddenly when switching audio routing path back to speaker.

Reproduction Rate 100%

Expected behavior no pop sound.

Environment

  1. Branch name and commit hash of the 2 repositories: sof (firmware/topology) and linux (kernel driver).

    • Kernel: 5.10
    • SOF: upstream adl-004-drop-stable, main branch

  2. Name of the topology file

    • Topology: sof-adl-max98373-nau8825.tplg

  3. Name of the platform(s) on which the bug is observed.

    • Platform: ADL

Screenshots or console output attachment. kernel logs. sof-logger trace logs.

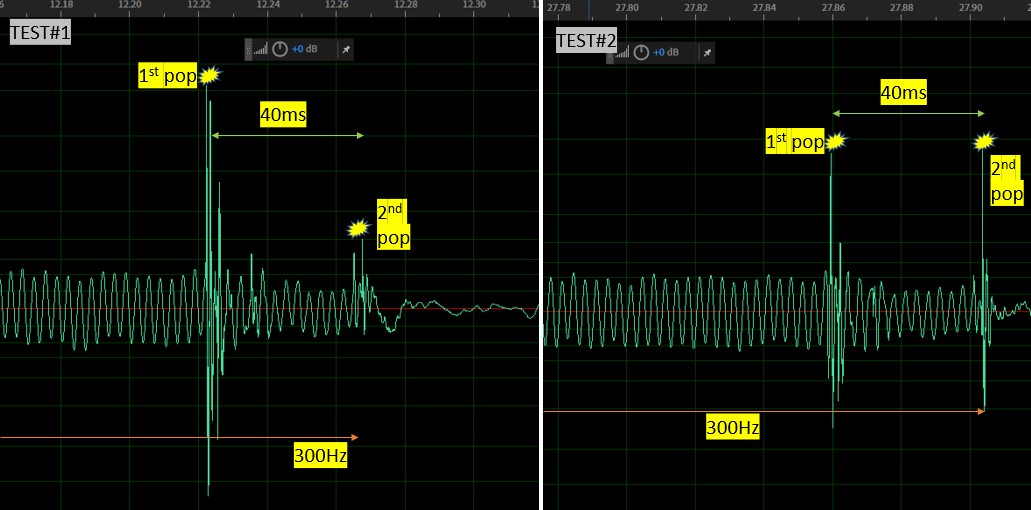

  1. 300Hz pop noise capture
  2. trace logs
  3. dmesg
  4. pop noise.wav

macchian avatar Oct 07 '22 04:10 macchian

dmesg_pop.txt 300Hz_pop_noise sof_trace_trace.log

macchian avatar Oct 07 '22 05:10 macchian

Noise_without_DSM.zip

macchian avatar Oct 07 '22 05:10 macchian

RanderWang, need your advices.

macchian avatar Oct 07 '22 05:10 macchian

@lgirdwood, @mwasko, pop also be reproduced on main branch, any comments?

macchian avatar Oct 11 '22 03:10 macchian

@macchian your dmesg log seems wrong, it contains major errors:

[    5.034902] sof-audio-pci-intel-tgl 0000:00:1f.3: error: ipc error for 0x30010000 size 20
[    5.034907] sof-audio-pci-intel-tgl 0000:00:1f.3: error: failed to load widget CODEC_ADAPTER1.0
[    5.035022] sof-audio-pci-intel-tgl 0000:00:1f.3: error: tplg component load failed -22
[    5.035031] sof-audio-pci-intel-tgl 0000:00:1f.3: error: failed to load DSP topology -22
[    5.035034] sof-audio-pci-intel-tgl 0000:00:1f.3: ASoC: error at snd_soc_component_probe on 0000:00:1f.3: -22
[    5.035060] sof_nau8825 adl_max98373_nau8825: ASoC: failed to instantiate card -22
[    5.035140] sof_nau8825: probe of adl_max98373_nau8825 failed with error -22

plbossart avatar Oct 12 '22 17:10 plbossart

@macchian we need to experiment with simpler setups at the hw: device level, i.e. without CRAS in the picture

Suggestions: a) play on headset, stop 10s, play on amp, and check if there is any pop. b) play on the amp while playing on the headset c) try to play on the headset, wait 500ms and play on the amp with a script to simulate a switch.

plbossart avatar Oct 12 '22 17:10 plbossart

a) play on headset, stop 10s, play on amp, and check if there is any pop.

my bad... wrong file. reattached the correct one. dmesg_pop.txt

macchian avatar Oct 13 '22 04:10 macchian

@macchian we need to experiment with simpler setups at the hw: device level, i.e. without CRAS in the picture

Suggestions: a) play on headset, stop 10s, play on amp, and check if there is any pop. b) play on the amp while playing on the headset c) try to play on the headset, wait 500ms and play on the amp with a script to simulate a switch.

@plbossart Thanks for your advices! As you mentioned, I write a script spk_switch_on_off.sh and gen a 1k_sine_48k_16bits_60s.wav 1k_sine_48k_16bits_60s.zip

spk_switch_on_off.zip

The script is playing 1k sine wav in background and every 500ms switching speaker(-D hw:0,0) to headphone (-D hw:0,1) repeatedly.

Summarize test result below:

a) play on headset, stop 10s, play on amp, and check if there is any pop.

  • Speaker still has pop but not every time.

b) play on the amp while playing on the headset c) try to play on the headset, wait 500ms and play on the amp with a script to simulate a switch.

  • Speaker and headphone have pop during every on/off switching.

macchian avatar Oct 13 '22 10:10 macchian

@macchian It's not likely to be SOF FW or driver issue, as the firmware and driver are not really involved in switching endpoints. It's more likely to be a codec or machine driver or UCM issue.

mengdonglin avatar Oct 14 '22 07:10 mengdonglin

Hi @mengdonglin , From Maxim's debugging results, it looks like not relevant to codec or DSM issue. Because the experiments below still hear the pop sound. There is 300Hz signal producing. (see attachment file pop picture) Is it a possible way by eq-iir reducing it?

Currently it reproduces on TGL and ADL/RPL, I believe MTL should as well. Could you suggest further method to fix it?

Maxim's test:

  1. bypass DSM algo, the pop still occurs.

  2. Keep the codec amp pin power always On , the pop exists.

  3. I also modified the FE SSP stop sequence before BE amp shutdown. The sequence ensures the i2s data stop before codec amp shutdown. In this case, pop can hear.

macchian avatar Oct 17 '22 04:10 macchian

If you have a pop on the headset, then DSM is not involved. It's likely the codec driver that doesn't do the right thing. And sure enough, it's the nau8825 that's used. That's a new variant that hasn't been used before....

plbossart avatar Oct 18 '22 14:10 plbossart

@macchian do you still see the pops when switching speakers / headphones when playing silence ? aplay -f dat /dev/zero

lgirdwood avatar Oct 19 '22 16:10 lgirdwood

@macchian do you still see the pops when switching speakers / headphones when playing silence ? aplay -f dat /dev/zero

@lgirdwood I test the silence playback. The silence result is no pop sound on 98373 amp when switching headphone to speaker repeatedly. Furthermore I test another ADL device with 98390 amp. It’s no pop either playing 1k or silence.

macchian avatar Oct 20 '22 09:10 macchian

@macchian interesting result. Is there any difference in the DAI configuration (clocks, TDM, etc) and/or support for DSM between the device w/ 98373 (pops) and the device w/ 98390 (no pops). Can you please point us to the topologies?

plbossart avatar Oct 20 '22 18:10 plbossart

@macchian interesting result. Is there any difference in the DAI configuration (clocks, TDM, etc) and/or support for DSM between the device w/ 98373 (pops) and the device w/ 98390 (no pops). Can you please point us to the topologies?

Share the dai diffs between information.

98373: 8ch tdm with 2ch playback(stereo speakers) + 8ch capture(echo ref+dsm slots)

98390: 4ch tdm with 2ch playback (stereo speakers). no DSM.

Note:

  1. pop reproduced by dsm_pass.
  2. enabled SSP_CC_BCLK_ES on 98373, still has pop.

98373 -> SSP_CONFIG(DSP_B, SSP_CLOCK(mclk, SSP_MCLK, codec_mclk_in), SSP_CLOCK(bclk, 12288000, codec_slave), SSP_CLOCK(fsync, 48000, codec_slave), SSP_TDM(8, 32, 15, 255), SSP_CONFIG_DATA(SSP, SMART_SSP_INDEX, 32, 0, SMART_SSP_QUIRK)))

https://github.com/thesofproject/sof/blob/73a413a38fc24a9763ac55df9ebb528219c5d139/tools/topology/topology1/sof-smart-amplifier.m4#L240

98390 -> CODEC, MAX98390', SSP_CONFIG(DSP_B, SSP_CLOCK(mclk, 19200000, codec_mclk_in), SSP_CLOCK(bclk, 6144000, codec_slave), SSP_CLOCK(fsync, 48000, codec_slave), SSP_TDM(4, 32, 3, 15), SSP_CONFIG_DATA(SSP, SPK_SSP_INDEX, 32)))',

https://github.com/thesofproject/sof/blob/73a413a38fc24a9763ac55df9ebb528219c5d139/tools/topology/topology1/sof-tgl-max98357a-rt5682.m4#L442

macchian avatar Oct 21 '22 09:10 macchian

Humm, maybe a red-herring but the use of 12.288 MHz could be a problem, depending on the hardware layout. It's been a problem before and that could explain difference between hardware skus.

@macchian can you remind me why we are using 8 slots for the capture? we've got two amplifiers, so do we really need 4 slots for each?

plbossart avatar Oct 21 '22 15:10 plbossart

dmesg_pop.txt 300Hz_pop_noise sof_trace_trace.log

@macchian @plbossart one other thing here is the 40ms gap between pops and the magnitude of the pops.

@macchian some more things to check.

  1. Can you check the CRAS buffer/period size. 40ms is way too long for FW inject pops as it will only have a < 10ms internally.

  2. What is the size of the pop in mV ? The scale of the pops is a lot bigger than the signal i.e. invalid/stale data being replayed would be at the same volume.

  3. Can you capture the pop L & R channels individually with different scope probes. Do the pops align in time domain and magnitude ?

  4. Does the pop magnitude vary with HW codec or Amp volume ? i.e. do you see the spike playing silence at max HW volume. Use the scope for this as a small mV pop may not be audible.

lgirdwood avatar Oct 24 '22 11:10 lgirdwood

ASoC have simple infrastructure to test and debug pop noise generated by codecs along the path when the DAPM widget got changed. It is injecting delays between register writes and one can watch dmesg -w and listen for pop noise to narrow down it's source.

echo 1000 > /sys/kernel/debug/asoc/name-of-the-sound-card/dapm_pop_time will inject 1 second delay between register writes.

ujfalusi avatar Oct 24 '22 13:10 ujfalusi

@plbossart ,

@macchian can you remind me why we are using 8 slots for the capture?

  • The VI data capture 8 slots set for maximum 4 x speakers.

we've got two amplifiers, so do we really need 4 slots for each?

  • Because the identical sof-smart-amplifier.m4 topology supports 2 or 4 speakers SKUs. Therefore the configuration here has been set maximum 4 speakers settings.

Besides, the patch history mentioned: commit 97377c3757e9889597fb4c43d2fa7aef05a0f06e

This commit changes SSP bclk rate from 9600000 to
12288000 ind ssp container to 32 bits order to fix
glitch issue.

macchian avatar Oct 26 '22 08:10 macchian

@macchian any update on tests 1, 2, 3 or 4 above ? Results from any of them would be useful info to consider now whilst others are in progress.

lgirdwood avatar Oct 26 '22 10:10 lgirdwood

@macchian and the DAPM pop test is easy to do when time permits :)

lgirdwood avatar Oct 26 '22 10:10 lgirdwood

ASoC have simple infrastructure to test and debug pop noise generated by codecs along the path when the DAPM widget got changed. It is injecting delays between register writes and one can watch dmesg -w and listen for pop noise to narrow down it's source.

Environment configuration: 1. // set 5s to observe the pop sound starting from where. #echo 5000 > /sys/kernel/debug/asoc/sof-nau8825/dapm_pop_time

#aplay -D hw:0,0 -f dat 1k_sine_48k_16bits_60s.wav

My observation:

  • The pop occurs when ctrl+c stopped the aplay command. However I'm not certainly sure the pop point at which specific queue behavior, I capture the video recording file FYR. There are some interrupted sound at playback beginning and ending. But it should be as expected due to 5s long queuing.

file too large, I will share the internal private one drive link.

In the meanwhile, I attach another video recording file by delay '1' for comparison. #echo 1 > /sys/kernel/debug/asoc/sof-nau8825/dapm_pop_time

In this case, pop occurs when stopping aplay.

just a thought, is there an AGC function in dsp can limit the pop ?

macchian avatar Oct 26 '22 12:10 macchian

Thanks @macchian - difficult to tell which part is popping from the video.

I've looked at the pops on audacity, we always have 2 pops on and the gap is variable 30 - 40 ms. The important thing is that the audio is correct between pops and the sine wave peaks still align before and after pops.

@macchian this looks like the pop is introduced by the AMP powering ON/OFF otherwise the sine wave would come out of alignment after the first pop. Please check the with the AMP provider the correct ON/OFF programming sequence with any delays. We may be misaligned here,

lgirdwood avatar Oct 26 '22 12:10 lgirdwood

@lgirdwood Can we enable loopback mode? https://github.com/thesofproject/sof/blob/73a413a38fc24a9763ac55df9ebb528219c5d139/tools/topology/topology1/sof-smart-amplifier.m4#L244 Set SMART_SSP_QUIRK in the topology can enable loopback mode, am I right?

bardliao avatar Oct 27 '22 05:10 bardliao

It seems smart amp topology doesn't support LBM. So, I edit nocodec topology to fit the product to test loopback mode. https://github.com/bardliao/sof/commit/f1ea06a847ac3e8a8549402b64a9d07adaac70f2 The loopback wav looks pretty good to me.

loop.zip

Note that the I2S format between the smart amp topology and the nocodec topology are different. Nocodec:

DAI_CONFIG(SSP, SSP1_IDX, 7, SSP1-Codec,
           SSP_CONFIG(I2S, SSP_CLOCK(mclk, 38400000, codec_mclk_in),
                      SSP_CLOCK(bclk, 2400000, codec_slave),
                      SSP_CLOCK(fsync, 48000, codec_slave),
                      SSP_TDM(2, 25, 3, 3),
                      SSP_CONFIG_DATA(SSP, SSP1_IDX, 24, 0, SSP_QUIRK_LBM, 0,
                                      eval(SSP_CC_MCLK_ES | SSP_CC_BCLK_ES))))

Smart amp:

DAI_CONFIG(SSP, SMART_SSP_INDEX, SMART_BE_ID, SMART_SSP_NAME,
        SSP_CONFIG(DSP_B, SSP_CLOCK(mclk, SSP_MCLK, codec_mclk_in),
                      SSP_CLOCK(bclk, 12288000, codec_slave),
                      SSP_CLOCK(fsync, 48000, codec_slave),
                      SSP_TDM(8, 32, 15, 255),
                      SSP_CONFIG_DATA(SSP, SMART_SSP_INDEX, 32, 0, SMART_SSP_QUIRK)))

I tried to use the same I2S format, but I will get IPC error when I start the capture PCM.

bardliao avatar Oct 27 '22 09:10 bardliao

BTW, If someone can probe the I2S pins physically with a logic analyzer to get the audio data from I2S pins directly, it would be
a better way to clarify where is the pop from.

bardliao avatar Oct 27 '22 10:10 bardliao

I can hear pop noise when speaker playback starts AND stops. And I also hear obvious pop noise when headphone playback stops. The test wav is 1K_0dB.zip

bardliao avatar Oct 27 '22 10:10 bardliao

@bardliao, can you isolate the pop with dapm_pop_time of 2 seconds? Does the codec have Mute switch on headset, speaker? Does toggling it produces pop noise as well?

ujfalusi avatar Oct 27 '22 12:10 ujfalusi

@ujfalusi @lgirdwood @macchian I am pretty sure the pop is from the codec itself after doing some experiment. There are two speaker codecs (left and right) in the device. And a pop is generated when a speaker is started and stopped. That's why we can hear two pops when speaker playback starts and two pops when speaker playback stops. If I set dapm_pop_time = 2sec, there are some "da" "da" sound in the transition stage. Below is the dmesg tested with dapm_pop_time = 2000, I added some empty line when I hear pop.

[Apr22 14:02] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms
[  +2.028752] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms
[  +2.050928] max98373 i2c-MX98373:00: pop test : Queue Right HiFi Playback: reg=0xffffffff, 0x0/0x0
[  +0.000046] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue Smart Amplifier Playback 0: reg=0xffffffff, 0x0/0x0
[  +0.000023] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue PCM0P: reg=0xffffffff, 0x1/0x0
[  +0.000020] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SSP1.OUT: reg=0xffffffff, 0x1/0x0
[  +0.000022] max98373 i2c-MX98373:00: pop test : Queue Right BE_OUT: reg=0xffffffff, 0x0/0x0
[  +0.000022] max98373 i2c-MX98373:00: pop test : Queue Right DAI Sel Mux: reg=0xffffffff, 0x1/0x1
[  +0.000020] max98373 i2c-MX98373:00: pop test : Queue Right Amp Enable: reg=0x202b, 0x1/0x1
[  +0.000021] max98373 i2c-MX98373:00: pop test : Applying 0x1/0x1 to 202b in 2000ms
[  +2.057783] max98373 i2c-MX98373:00: pop test : Right Amp Enable POST_PMU
[  +0.032544] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.0: reg=0xffffffff, 0x1/0x0
[  +0.000025] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SMART_AMP1.0: reg=0xffffffff, 0x1/0x0
[  +0.000010] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.1: reg=0xffffffff, 0x1/0x0
[  +0.000015] sof_nau8825 adl_max98373_nau8825: pop test : Queue Right Spk: reg=0xffffffff, 0x0/0x0
[  +0.000203] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms





[  +2.002763] max98373 i2c-MX98373:01: pop test : Queue Left HiFi Playback: reg=0xffffffff, 0x0/0x0
[  +0.000027] max98373 i2c-MX98373:01: pop test : Queue Left BE_OUT: reg=0xffffffff, 0x0/0x0
[  +0.000011] max98373 i2c-MX98373:01: pop test : Queue Left DAI Sel Mux: reg=0xffffffff, 0x1/0x1
[  +0.000012] max98373 i2c-MX98373:01: pop test : Queue Left Amp Enable: reg=0x202b, 0x1/0x1
[  +0.000012] max98373 i2c-MX98373:01: pop test : Applying 0x1/0x1 to 202b in 2000ms
[  +2.060351] max98373 i2c-MX98373:01: pop test : Left Amp Enable POST_PMU
[  +0.032063] sof_nau8825 adl_max98373_nau8825: pop test : Queue Left Spk: reg=0xffffffff, 0x0/0x0
[  +0.000335] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms





[  +5.758428] sof_nau8825 adl_max98373_nau8825: pop test : Queue Right Spk: reg=0xffffffff, 0x0/0x0
[  +0.000030] max98373 i2c-MX98373:00: pop test : Queue Right Amp Enable: reg=0x202b, 0x0/0x1
[  +0.000012] max98373 i2c-MX98373:00: pop test : Applying 0x0/0x1 to 202b in 2000ms





[  +2.017122] max98373 i2c-MX98373:00: pop test : Right Amp Enable POST_PMD
[  +0.032060] max98373 i2c-MX98373:00: pop test : Queue Right BE_OUT: reg=0xffffffff, 0x0/0x0
[  +0.000027] max98373 i2c-MX98373:00: pop test : Queue Right DAI Sel Mux: reg=0xffffffff, 0x0/0x1
[  +0.000010] max98373 i2c-MX98373:00: pop test : Queue Right HiFi Playback: reg=0xffffffff, 0x0/0x0
[  +0.000280] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms
[  +2.004029] sof_nau8825 adl_max98373_nau8825: pop test : Queue Left Spk: reg=0xffffffff, 0x0/0x0
[  +0.000028] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.0: reg=0xffffffff, 0x0/0x0
[  +0.000009] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SMART_AMP1.0: reg=0xffffffff, 0x0/0x0
[  +0.000009] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.1: reg=0xffffffff, 0x0/0x0
[  +0.000014] max98373 i2c-MX98373:01: pop test : Queue Left Amp Enable: reg=0x202b, 0x0/0x1
[  +0.000010] max98373 i2c-MX98373:01: pop test : Applying 0x0/0x1 to 202b in 2000ms
[  +2.059528] max98373 i2c-MX98373:01: pop test : Left Amp Enable POST_PMD
[  +0.032118] max98373 i2c-MX98373:01: pop test : Queue Left BE_OUT: reg=0xffffffff, 0x0/0x0
[  +0.000025] max98373 i2c-MX98373:01: pop test : Queue Left DAI Sel Mux: reg=0xffffffff, 0x0/0x1
[  +0.000010] max98373 i2c-MX98373:01: pop test : Queue Left HiFi Playback: reg=0xffffffff, 0x0/0x0
[  +0.000012] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue Smart Amplifier Playback 0: reg=0xffffffff, 0x0/0x0
[  +0.000008] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue PCM0P: reg=0xffffffff, 0x0/0x0
[  +0.000008] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SSP1.OUT: reg=0xffffffff, 0x0/0x0
[  +0.000267] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms


[  +2.006744] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 2000ms

There is no single mute switch for speaker, but we have "Spk Switch" that can enable/disable Speakers. controls.txt And I can hear the pop when I set amixer -c0 cset name='Left Spk Switch' 0 and amixer -c0 cset name='Left Spk Switch' 1 during playback is running. However, there is no "da" "da" noise when I switch "Spk Switch" on or off. Below is the dmesg when I switch 'Left Spk Switch'.

[  +9.274429] max98373 i2c-MX98373:01: pop test : Queue Left HiFi Playback: reg=0xffffffff, 0x0/0x0
[  +0.000028] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue Smart Amplifier Playback 0: reg=0xffffffff, 0x0/0x0
[  +0.000009] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue PCM0P: reg=0xffffffff, 0x1/0x0
[  +0.000007] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SSP1.OUT: reg=0xffffffff, 0x1/0x0
[  +0.000009] max98373 i2c-MX98373:01: pop test : Queue Left BE_OUT: reg=0xffffffff, 0x0/0x0
[  +0.000008] max98373 i2c-MX98373:01: pop test : Queue Left DAI Sel Mux: reg=0xffffffff, 0x1/0x1
[  +0.000008] max98373 i2c-MX98373:01: pop test : Queue Left Amp Enable: reg=0x202b, 0x1/0x1
[  +0.000008] max98373 i2c-MX98373:01: pop test : Applying 0x1/0x1 to 202b in 1000ms
[  +1.060734] max98373 i2c-MX98373:01: pop test : Left Amp Enable POST_PMU
[  +0.032465] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.0: reg=0xffffffff, 0x1/0x0
[  +0.000026] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SMART_AMP1.0: reg=0xffffffff, 0x1/0x0
[  +0.000009] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.1: reg=0xffffffff, 0x1/0x0
[  +0.000014] sof_nau8825 adl_max98373_nau8825: pop test : Queue Left Spk: reg=0xffffffff, 0x0/0x0
[  +0.000278] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 1000ms





[  +9.379184] sof_nau8825 adl_max98373_nau8825: pop test : Queue Left Spk: reg=0xffffffff, 0x0/0x0
[  +0.000012] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.0: reg=0xffffffff, 0x0/0x0
[  +0.000001] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SMART_AMP1.0: reg=0xffffffff, 0x0/0x0
[  +0.000002] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue BUF1.1: reg=0xffffffff, 0x0/0x0
[  +0.000002] max98373 i2c-MX98373:01: pop test : Queue Left Amp Enable: reg=0x202b, 0x0/0x1
[  +0.000002] max98373 i2c-MX98373:01: pop test : Applying 0x0/0x1 to 202b in 1000ms
[  +1.020111] max98373 i2c-MX98373:01: pop test : Left Amp Enable POST_PMD
[  +0.032485] max98373 i2c-MX98373:01: pop test : Queue Left BE_OUT: reg=0xffffffff, 0x0/0x0
[  +0.000043] max98373 i2c-MX98373:01: pop test : Queue Left DAI Sel Mux: reg=0xffffffff, 0x0/0x1
[  +0.000022] max98373 i2c-MX98373:01: pop test : Queue Left HiFi Playback: reg=0xffffffff, 0x0/0x0
[  +0.000027] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue Smart Amplifier Playback 0: reg=0xffffffff, 0x0/0x0
[  +0.000017] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue PCM0P: reg=0xffffffff, 0x0/0x0
[  +0.000017] sof-audio-pci-intel-tgl 0000:00:1f.3: pop test : Queue SSP1.OUT: reg=0xffffffff, 0x0/0x0
[  +0.000267] sof_nau8825 adl_max98373_nau8825: DAPM sequencing finished, waiting 1000ms

Intel Audio DSP doesn't know user is switching the "Spk Switch", so, the audio data is consistent. It implies that the pop is generated when the codec is doing the enabling/disabling process. Like Queue Left Amp Enable: reg=0x202b, 0x1/0x1 Queue Left Amp Enable: reg=0x202b, 0x0/0x1

bardliao avatar Oct 28 '22 02:10 bardliao

Hi @mengdonglin , From Maxim's debugging results, it looks like not relevant to codec or DSM issue. Because the experiments below still hear the pop sound. There is 300Hz signal producing. (see attachment file pop picture) Is it a possible way by eq-iir reducing it?

Currently it reproduces on TGL and ADL/RPL, I believe MTL should as well. Could you suggest further method to fix it?

Maxim's test:

  1. bypass DSM algo, the pop still occurs.
  2. Keep the codec amp pin power always On , the pop exists.

@macchian Do you know if they do anything to prevent the codec driver from accessing the codec registers? For example, let regcache_cache_only be always true, or use the dummy codec driver instead of max98373 codec driver. If they didn't do that, the codec driver will still act as usual, and it didn't prove the pop is not from the enabling/disabling process.

  1. I also modified the FE SSP stop sequence before BE amp shutdown. The sequence ensures the i2s data stop before codec amp shutdown. In this case, pop can hear.

bardliao avatar Oct 28 '22 10:10 bardliao
