Bad SVG generation with markdown newlines

[mrtryhard]

Summary

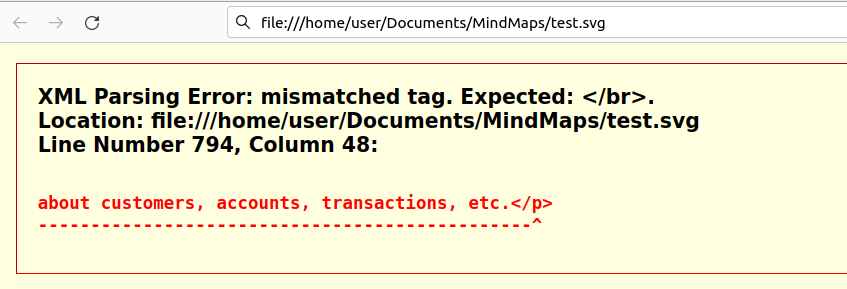

OS: Ubuntu 22.04 Browser: Firefox 107.0 D2 cli version: v0.0.13 Error: When compiling a node with markdown inside, it will create an invalid SVG file. See below. XML Parsing Error: mismatched tag. Expected: </br>.

Expected result

1. Either a compiler error if new lines are not supported

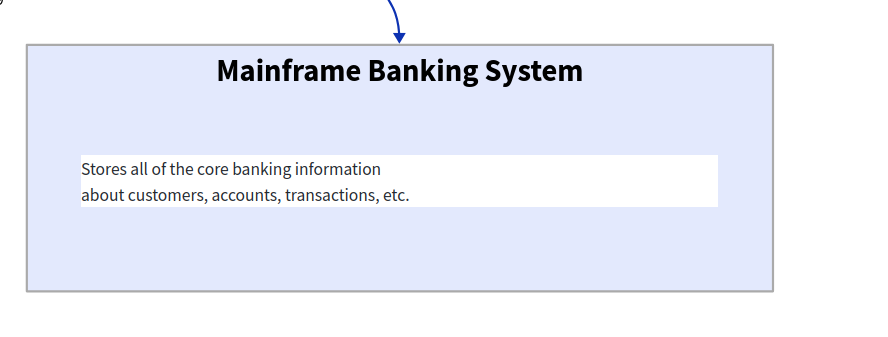

2. Or the following image:

Note

It requires 2 things to produce a working SVG:

1. Replace <br> with <br />
2. The height on the foreignObject should be adjusted (from 24 to 48 in my case)

Code to reproduce

d2 file.d2 file.svg

mainframe: Mainframe Banking System {
  explanation: |md
  Stores all of the core banking information
  about customers, accounts, transactions, etc.
  |
  style: {
    stroke: "#aaaaaa"
  }
}

[alixander]

thank you for the 💯 bug report
