Improving the properties of the control measure symbols (point)
The properties of the symbols for control measure symbols for point objects should be improved, since not all amplifiers can be filled in according to 2525c or 2525d:

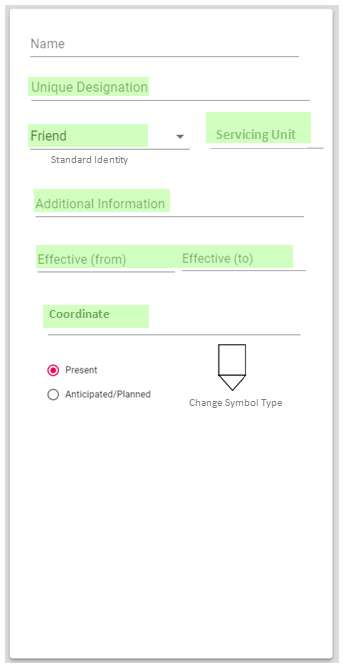

Proposal for the content and structure of the property window (named "CM - Point") for control measure point symbols:
Remarks:
The green marked amplifiers correspond to the specifications according to 2525d.
"Servicing Unit" means the unit responsible for the operation of the point.
The amplifier "Hostile (Enemy)" is not necessary in my opinion, because "Hostile" can be defined by the standard identity.
The amplifier "Direction of Movement" is not necessary here. The direction of movement is shown in the examples of the point symbol (field "Q"), but these make no sense here and are not shown in the overview of the amplifiers for point symbols (Table H-II, page 390) in 2525d.
The symbol icon (field "A") is already defined when the basic symbol is selected.
The Icon "Change Symbol Type" is used to change the "basic symbol" within the control measure point symbols without the user having to create a new symbol and thus discard the previous entries.
The amplifier "Offset location indicator" must be enabled when the symbol is displayed on the map:
