"Operational Condition" is wrong for the units settings

Open harrywipperfuerth opened this issue 6 years ago • 0 comments

In the settings for units it is possible to select "Operational Conditions":

SC_Settings_Units_OpCond_1

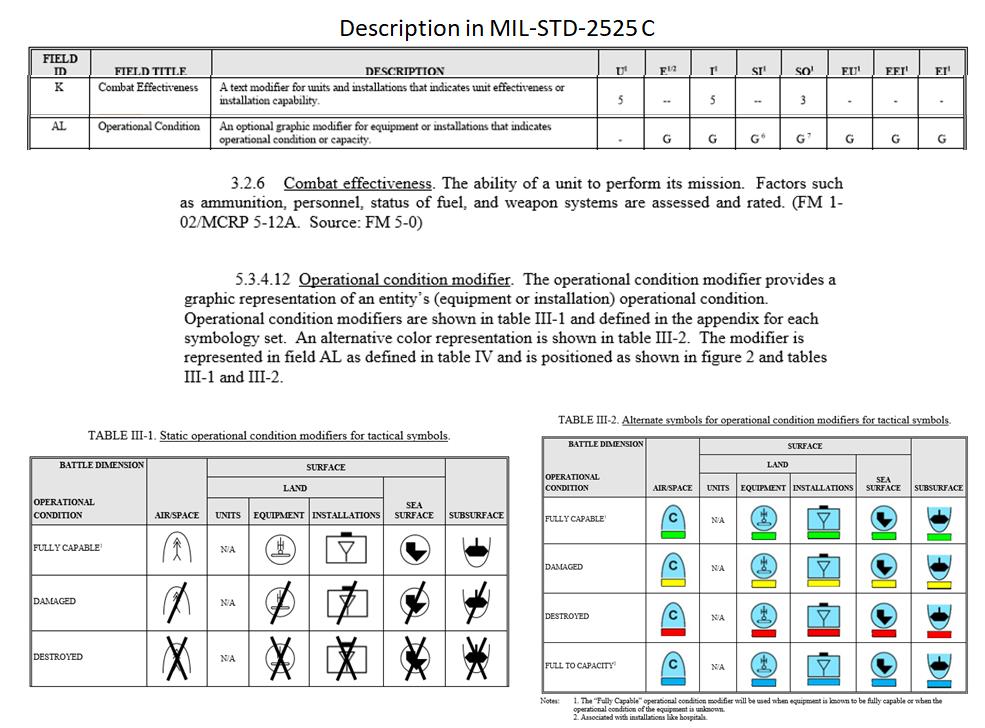

According to MIL-STD-2525c, the field "Operational Condition" is not provided for units. For units (and installations) the field "Combat Effectiveness" can be selected (this is not selectable in the settings for the unit currently):

SC_Settings_Units_OpCond_2_2525c

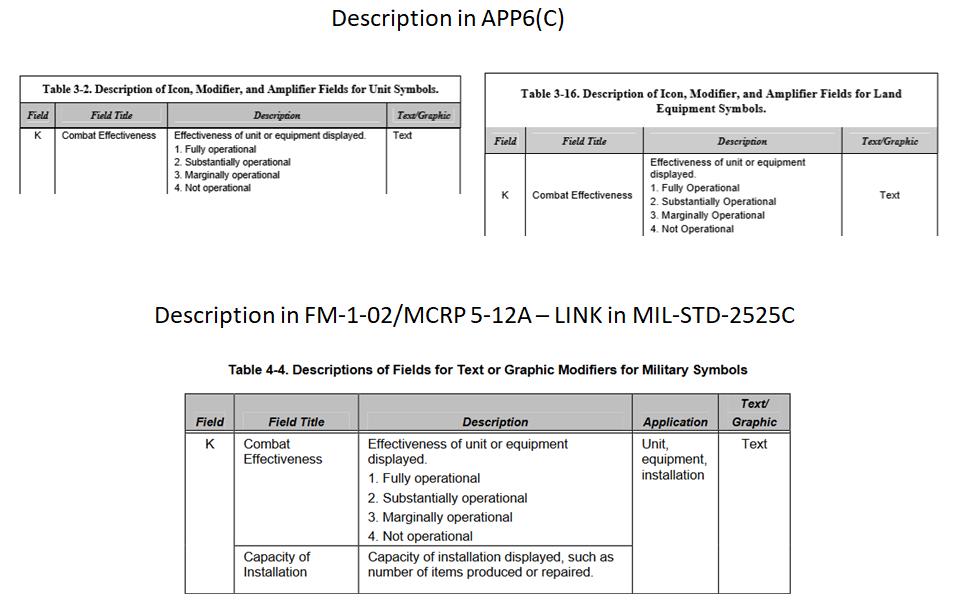

According to APP6(C) and FM-1-02/MCRP 5-12A (referred to in MIL-STD-2525C for combat effectiveness) it is also applicable for equipments (unlike MIL-STD-2525C):

SC_Settings_Units_OpCond_2_App6c_FM102

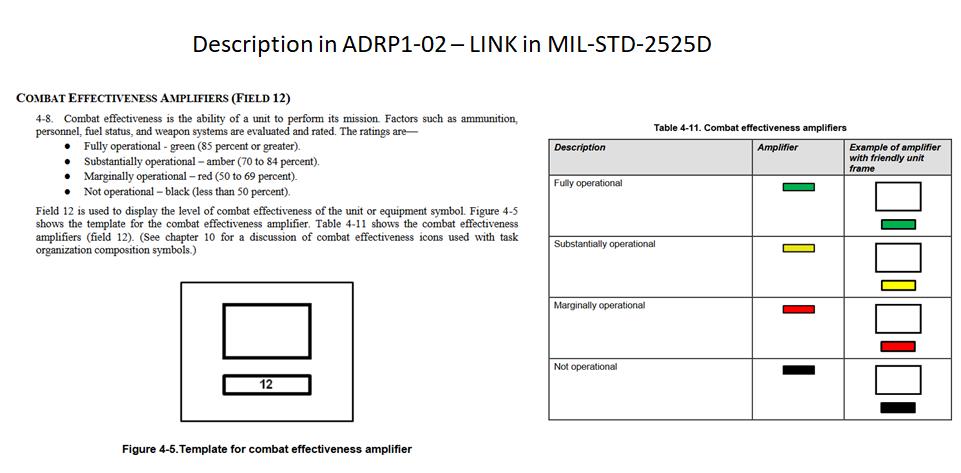

According to MIL-STD-2525D, combat effectiveness refers to ADRP 1-02. In this, combat effectiveness is described as follows:

SC_Settings_Units_OpCond_2_adrp102

harrywipperfuerth avatar Oct 21 '19 19:10 harrywipperfuerth
