Superslicer 2.5.59.0 Arachne generator gaps in perimeters/walls
What happened?

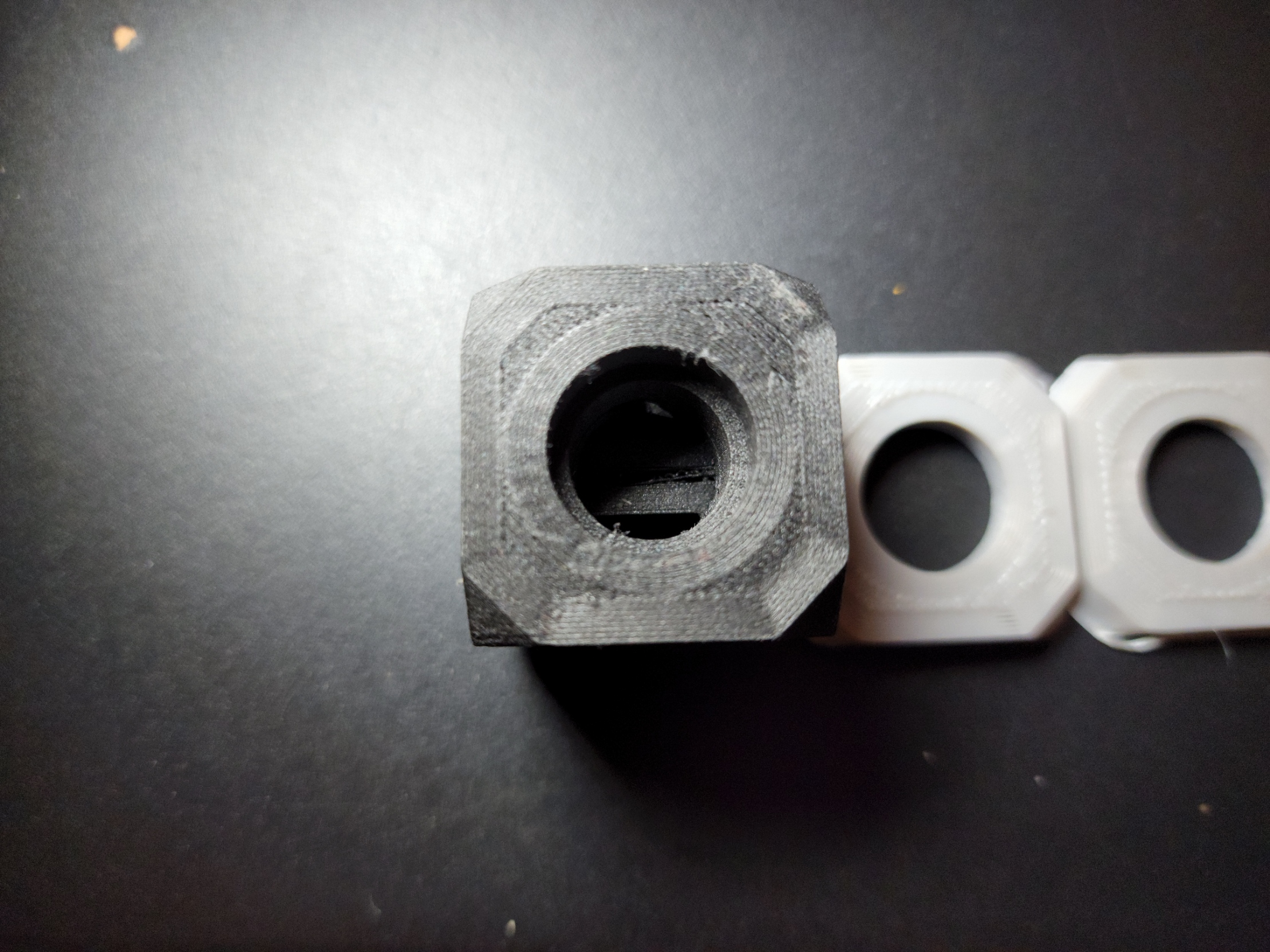

i am getting gaps in-between walls/perimeters , more pronounced near angle'd sections
Project file & How to reproduce
Superslicer 2.5.59.0 Arachne generator :
This image is using cura 5.2.1 with arachne
i tried a few settings like wall thickness, top flow rate etc but nothing seemed to change
Version
2.5.59.0
Operating system
windows 10
Printer model
No response
Yep, PS does this too with some models. Its why I think the PS implementation isn't ready to be made the default like they have done.
It looks like typical pressure advance configuration issue. Too high pressure advance causes such gaps in corners. Or is it also visible in gcode?
Checking the grams of filament used when slicing with classic vs arachne perimeters generally shows a significant reduction with arachne. This seems to corroborate the under-extrusion people are observing.
Checking the grams of filament used when slicing with classic vs arachne perimeters generally shows a significant reduction with arachne. This seems to corroborate the under-extrusion people are observing.

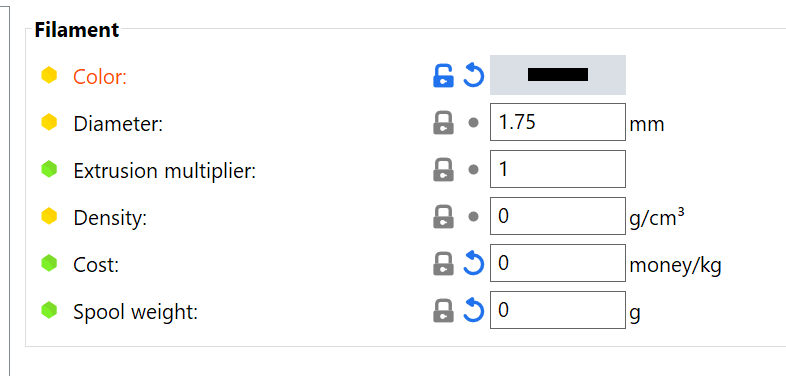

oh what, i will turn it off and try is it the last 2 values in this section ? i set the values to 0 now. i was using actual values before.
