CORS request is forbidden
Description I'm using 2020.0.3 version of Gateway. When I'm trying to send the POST request to gateway the preflight request works correctly but the main POST method is forbidden.
Configurations
application.yml spring: application: name: gateway-service config: activate: on-profile: default import: configserver:http://localhost:8088?fail-fast=true&max-attempts=3&max-interval=1500&multiplier=1.2&initial-interval=1100
server: port: 8082
gateway-service.yml server: port: 8082 shutdown: graceful
spring: main: banner-mode: off lifecycle: timeout-per-shutdown-phase: 60s zipkin: kafka: topic: zipkin sender: type: KAFKA kafka: bootstrap-servers: http://localhost:9092, http://localhost:9093, http://localhost:9094 listener: missing-topics-fatal: false thymeleaf: enabled: false cloud: gateway: globalcors: corsConfigurations: '[/]': allowedOrigins: - "*" allowedMethods: - POST - PUT - OPTIONS routes: - id: notification-service uri: http://localhost:8083 predicates: - Path=/api/notifications/ - Header=X-CSRF-TOKEN, [0-9a-fA-F]{8}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{12} filters: - name: NotificationPreFilter - name: NotificationPostFilter
logging: level: org.springframework: info org.springframework.cloud: info com.api.gateway.demo: info
NotificationPreFilter.kt
/** @author Vadzim_Kavalkou */ @Component class NotificationPreFilter : AbstractGatewayFilterFactory<NotificationPreFilter.Config>(Config::class.java) {
private val logger = LoggerFactory.getLogger(javaClass)
class Config
override fun apply(config: Config?) =
GatewayFilter { exchange: ServerWebExchange?, chain: GatewayFilterChain ->
chain.filter(exchange).then(Mono.fromRunnable { logger.info("[GATEWAY] Request with [ TraceId = ${exchange?.request?.headers?.get("X-Cloud-Trace-Context")}] and [CSRF token = ${exchange?.request?.headers?.get("X-CSRF-TOKEN")}] pre handling.") })
}
} `
NotificationPostFilter.kt `/** @author Vadzim_Kavalkou */ @Component class NotificationPostFilter : AbstractGatewayFilterFactory<NotificationPostFilter.Config>(Config::class.java) {
private val logger = LoggerFactory.getLogger(javaClass)
class Config
override fun apply(config: Config?): GatewayFilter {
return GatewayFilter { exchange: ServerWebExchange?, chain: GatewayFilterChain ->
chain.filter(exchange)
.then(Mono.fromRunnable {
logger.info("[GATEWAY] Post filter")
when (exchange?.response?.statusCode) {
HttpStatus.NO_CONTENT -> exchange.response.headers["post-filter"] =
mutableListOf(UUID.randomUUID().toString())
else -> logger.warn("[GATEWAY] Something went wrong. Response status is [${exchange?.response?.statusCode}]")
}
})
}
}
}`

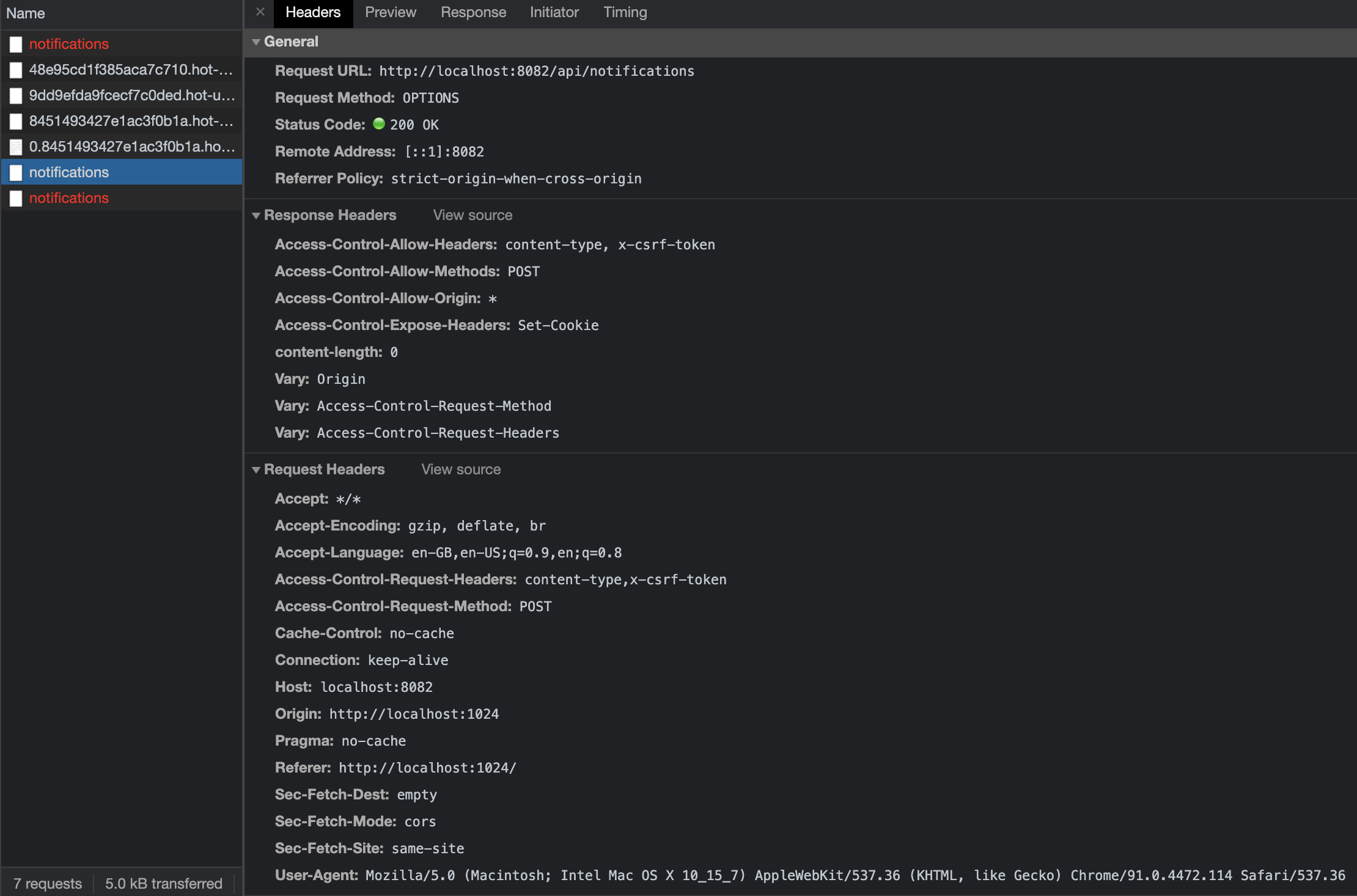

Preflight request:
Post method invocation:
Can you provide a complete, minimal, verifiable sample that reproduces the problem? It should be available as a GitHub (or similar) project or attached to this issue as a zip file.
@tony-clarke-amdocs https://github.com/fragaLY/notification - the project https://github.com/fragaLY/notification-configs - the configs
Is this the minimal sample that reproduces the problem? Is there a unit test that you can add that will illustrate the issue?
Yes, you can easily reproduce it by just replacing the default config ( application.yml) with the config from configs (gateway-service.yml).
There are no tests. It was smoke testing for PoC.
I spent 20 minutes trying to work with this git repository, but I have to time box it. Looking at the screen shoots things look correct. I suggest you turn on trace logging for package: org.springframework.web.cors.reactive. It does log the reason why it rejects the request. Alternatively, you can look at the unit test here and try to determine any differences.
@tony-clarke-amdocs
This is the output with trace:
18:02:39.214 [reactor-http-nio-2] TRACE o.s.w.s.a.HttpWebHandlerAdapter - [c199e2e5-1, L:/0:0:0:0:0:0:0:1:8082 - R:/0:0:0:0:0:0:0:1:58608] HTTP OPTIONS "/api/notifications", headers={masked} 18:02:39.219 [reactor-http-nio-2] DEBUG o.s.c.s.i.web.TraceWebFilter - Received a request to uri [/api/notifications] 18:02:39.222 [reactor-http-nio-2] TRACE o.s.b.f.s.DefaultListableBeanFactory - Returning cached instance of singleton bean 'braveSpanFromContextRetriever' 18:02:39.231 [reactor-http-nio-2] DEBUG o.s.c.s.i.web.TraceWebFilter - Handled receive of span RealSpan(1132e1c04c8eede6/1132e1c04c8eede6) 18:02:39.233 [reactor-http-nio-2] TRACE o.s.c.g.f.WeightCalculatorWebFilter - Weights attr: {} 18:02:39.251 [reactor-http-nio-2] TRACE o.s.c.g.h.p.PathRoutePredicateFactory - Pattern "/api/notifications/**" matches against value "/api/notifications" 18:02:39.252 [reactor-http-nio-2] TRACE o.s.c.g.h.RoutePredicateHandlerMapping - No RouteDefinition found for [Exchange: OPTIONS http://localhost:8082/api/notifications] 18:02:39.252 [reactor-http-nio-2] DEBUG o.s.w.r.h.SimpleUrlHandlerMapping - [c199e2e5-1, L:/0:0:0:0:0:0:0:1:8082 - R:/0:0:0:0:0:0:0:1:58608] Mapped to ResourceWebHandler ["classpath:/META-INF/resources/", "classpath:/resources/", "classpath:/static/", "classpath:/public/"] 18:02:39.253 [reactor-http-nio-2] DEBUG o.s.c.s.i.web.TraceWebFilter - Adding a class tag with value [ResourceWebHandler] to a span RealSpan(1132e1c04c8eede6/1132e1c04c8eede6) 18:02:39.261 [reactor-http-nio-2] DEBUG o.s.c.s.i.web.TraceWebFilter - Handled send of RealSpan(1132e1c04c8eede6/1132e1c04c8eede6) 18:02:39.261 [reactor-http-nio-2] TRACE o.s.w.s.a.HttpWebHandlerAdapter - [c199e2e5-1, L:/0:0:0:0:0:0:0:1:8082 - R:/0:0:0:0:0:0:0:1:58608] Completed 403 FORBIDDEN, headers={masked} 18:02:39.264 [reactor-http-nio-2] TRACE o.s.h.s.r.ReactorHttpHandlerAdapter - [c199e2e5-1, L:/0:0:0:0:0:0:0:1:8082 - R:/0:0:0:0:0:0:0:1:58608] Handling completed
As I can see even preflight doesn't work correctly. I did no changes due to vacation from the previous time.
@fragaLY But none of those logs are coming from org.springframework.web.cors.reactive.DefaultCorsProcessor. Is it possible that the actual target URI implementation is raising the 403?
It could be. I will try to investigate it. We can close the current issue. If I will have additional information I will reopen.
@fragaLY Maybe you can refer to this: https://github.com/spring-cloud/spring-cloud-gateway/issues/2472#issuecomment-1233659197
If you would like us to look at this issue, please provide the requested information. If the information is not provided within the next 7 days this issue will be closed.
Closing due to lack of requested feedback. If you would like us to look at this issue, please provide the requested information and we will re-open the issue.
