Cannot decode barcodes which are not padded

[ihabunek]

I noticed that barcodes which don't have any padding cannot be decoded. I'm using the following code to test:

import sys
from PIL import Image
from pdf417decoder import PDF417Decoder

image = Image.open(sys.argv[1])
decoder = PDF417Decoder(image)

if decoder.decode() > 0:
    decoded = decoder.barcode_data_index_to_string(0)
    print(decoded)
else:
    print("cannot decode")

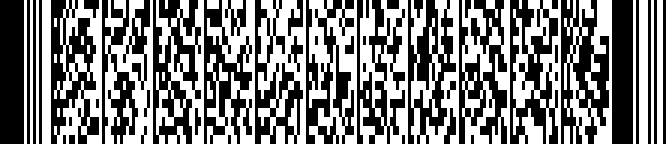

The following image cannot be decoded:

While the following image can:

Images are the same, except that second image has 1px of white padding around the barcode, while the first image touches the image borders.

[jboarman]

Hi Ivan, would you be open to submitting a pull request that adds a 1px border to incoming images to resolve this issue?

We'll merge your PR and can release an update that has that fix incorporated.

[kwcckw]

I added the padding here : https://github.com/sparkfish/pdf417decoder/pull/7

Looks like the left most of the image need to have single white line , otherwise the start-stop signature won't be detected and hence no barcode will be detected.

[esnosy]

This should be closed then right?

[kwcckw]

This should be closed then right?

It should be resolved, did you facing any problem with it?

[esnosy]

I didn't I was just researching and found the open issue, and I think I found a commit or a pull request somewhere that fixes it

On Wed, Dec 6, 2023, 9:50 AM Kok Wei @.***> wrote:

This should be closed then right?

It should be resolved, did you facing any problem with it?

— Reply to this email directly, view it on GitHub https://github.com/sparkfish/pdf417decoder/issues/6#issuecomment-1842274960, or unsubscribe https://github.com/notifications/unsubscribe-auth/AGC6KLMX7KADTWP42BOJLGDYIAPVDAVCNFSM52PCXUP2U5DIOJSWCZC7NNSXTN2JONZXKZKDN5WW2ZLOOQ5TCOBUGIZDONBZGYYA . You are receiving this because you commented.Message ID: @.***>

[kwcckw]

Yes, this pull request should be merged now: https://github.com/sparkfish/pdf417decoder/pull/7

[esnosy]

Yes, this pull request should be merged now: https://github.com/sparkfish/pdf417decoder/pull/7

Awesome, let's close this issue then 🙏
