Envoy will send requests to a closed connection
Gloo Edge Version
1.11.x (latest stable)
Kubernetes Version
1.22.x
Describe the bug

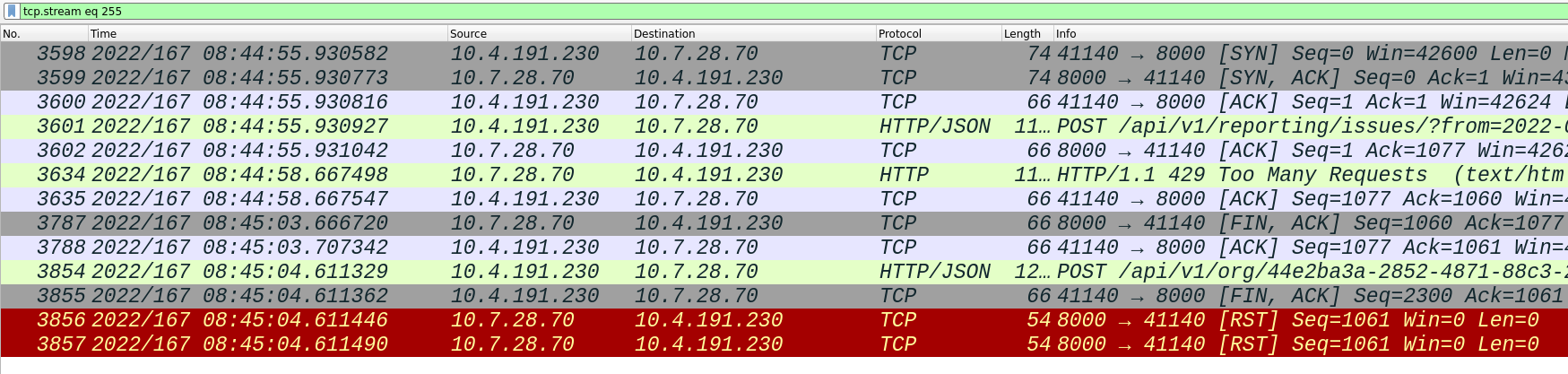

With an http1 upstream envoy will ACK a FIN, but send a request anyways shortly after.
Possible regression of: https://github.com/envoyproxy/envoy/issues/6190
Customer Details:
https://solo-io.slack.com/archives/G01MKQQ0Q3W/p1655824554856459 https://solo-io.slack.com/archives/G01MKQQ0Q3W/p1655824122208049
Steps to reproduce the bug
-
Install Gloo Edge
-
deploy test app
apiVersion: apps/v1
kind: Deployment
metadata:
name: expressapp
namespace: gloo-system
labels:
app: expressapp
spec:
replicas: 1
selector:
matchLabels:
app: expressapp
template:
metadata:
labels:
app: expressapp
spec:
containers:
- name: expressapp
image: kevinshelaga/expressapp:latest
ports:
- containerPort: 3000
---
apiVersion: v1
kind: Service
metadata:
name: expressapp-service
namespace: gloo-system
spec:
selector:
app: expressapp
ports:
- protocol: TCP
port: 3000
targetPort: 3000
type: ClusterIP
- create VS
apiVersion: gateway.solo.io/v1
kind: VirtualService
metadata:
name: default-http
namespace: gloo-system
spec:
virtualHost:
domains:
- "*"
routes:
- matchers:
- prefix: /
routeAction:
single:
upstream:
name: "gloo-system-expressapp-service-3000"
namespace: gloo-system
- run k6 test
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://YOUR-GWP-IP:80"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status == 503) {
console.error(res.body);
}
}
Results: (going direct to service this does not happen)
ERRO[0010] upstream connect error or disconnect/reset before headers. reset reason: connection termination source=console
ERRO[0030] upstream connect error or disconnect/reset before headers. reset reason: connection termination source=console
ERRO[0055] upstream connect error or disconnect/reset before headers. reset reason: connection termination source=console
ERRO[0055] upstream connect error or disconnect/reset before headers. reset reason: connection termination source=console
running (1m00.7s), 000/100 VUs, 1200 complete and 0 interrupted iterations
default ✓ [======================================] 100 VUs 1m0s
✗ is status 503
↳ 0% — ✓ 4 / ✗ 1196
{"responseFlags":"UC","remoteAddress":"192.168.59.115:9988","modifiedPath":"/","xForwardedFor":null,"upstreamName":"gloo-system-expressapp-service-3000_gloo-system","systemTime":"2022-06-27T14:20:13.903Z","site":null,"httpMethod":"GET","apiKey":null,"userName":null,"path":"/","clientDuration":1,"filterState":null,"responseCode":503,"targetDuration":null,"protocol":"HTTP/1.1","requestId":"98efe19f-baba-450a-9080-87c739736474"}
Expected Behavior
Envoy should open a new connection before sending a request
Additional Context
Customer issue with express apps
It appears this is an upstream bug that has existed for quite some time. All versions I tested from 1.24 back to 1.17 exhibited the errant behavior. The following is the reproduction I performed based on Kevin's steps above.
I have used the following yaml to create a testing environment which has demonstrated that this issue occurs under the following conditions:
- when using Edge and vanilla Envoy, but not nginx or direct requests
- when using an ExpressJS upstream, but not a Go upstream (see kevinshelaga/expressapp or bohanon/echo-server-express (source) for the Express applications used and bohanon/echo-server (source) for the Go application used)
- when using the testing tool k6 (but not hey)
Point 3 is probably irrelevant and possibly point 2 as well, but I found it interesting that it only was occurring with Express apps.
The testing yaml below can be applied to a fresh cluster with Gloo Edge installed to set up the test upstreams, a virtual service for Edge to route to them, and basic nginx/envoy proxies to route to them as well. The k6 tool can be installed via brew install k6 or see here for alternate methods.
6647-proxies.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: echo-server-express
namespace: gloo-system
labels:
app: echo-server-express
spec:
replicas: 1
selector:
matchLabels:
app: echo-server-express
template:
metadata:
labels:
app: echo-server-express
spec:
containers:
- name: echo-server-express
image: bohanon/echo-server-express:latest
ports:
- containerPort: 3000
---
apiVersion: v1
kind: Service
metadata:
name: echo-server-express-service
namespace: gloo-system
spec:
selector:
app: echo-server-express
ports:
- protocol: TCP
port: 3000
targetPort: 3000
type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: echo-server
namespace: gloo-system
labels:
app: echo-server
spec:
replicas: 1
selector:
matchLabels:
app: echo-server
template:
metadata:
labels:
app: echo-server
spec:
containers:
- name: echo-server
image: bohanon/echo-server:latest
ports:
- containerPort: 9999
---
apiVersion: v1
kind: Service
metadata:
name: echo-server-service
namespace: gloo-system
spec:
selector:
app: echo-server
ports:
- protocol: TCP
port: 9999
targetPort: 9999
type: ClusterIP
---
apiVersion: gateway.solo.io/v1
kind: VirtualService
metadata:
name: default-http
namespace: gloo-system
spec:
virtualHost:
domains:
- "*"
routes:
- matchers:
- prefix: /express
routeAction:
single:
upstream:
name: "gloo-system-echo-server-express-service-3000"
namespace: gloo-system
options:
prefixRewrite: '/'
- matchers:
- prefix: /go
routeAction:
single:
upstream:
name: "gloo-system-echo-server-service-9999"
namespace: gloo-system
options:
prefixRewrite: '/'
---
apiVersion: v1
kind: ConfigMap
metadata:
name: nginx-conf
namespace: gloo-system
data:
nginx.conf: |
user nginx;
worker_processes 3;
error_log /var/log/nginx/error.log;
events {
worker_connections 10240;
}
http {
log_format main
'remote_addr:$remote_addr\t'
'time_local:$time_local\t'
'method:$request_method\t'
'uri:$request_uri\t'
'host:$host\t'
'status:$status\t'
'bytes_sent:$body_bytes_sent\t'
'referer:$http_referer\t'
'useragent:$http_user_agent\t'
'forwardedfor:$http_x_forwarded_for\t'
'request_time:$request_time';
access_log /var/log/nginx/access.log main;
include /etc/nginx/virtualhost/virtualhost.conf;
}
virtualhost.conf: |
server {
resolver 10.96.0.10 valid=10s;
listen 8081 default_server;
root /usr/local/app;
access_log /var/log/nginx/app.access_log main;
error_log /var/log/nginx/app.error_log;
location /go {
set $gosvc "echo-server-service.gloo-system.svc.cluster.local:9999";
rewrite /go / break;
proxy_pass http://$gosvc;
proxy_http_version 1.1;
}
location /express {
set $expresssvc "echo-server-express-service.gloo-system.svc.cluster.local:3000";
rewrite /express / break;
proxy_pass http://$expresssvc;
proxy_http_version 1.1;
}
}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx
namespace: gloo-system
labels:
app: nginx
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
ports:
- containerPort: 8081
volumeMounts:
- mountPath: /etc/nginx
readOnly: true
name: nginx-conf
volumes:
- name: nginx-conf
configMap:
name: nginx-conf
items:
- key: nginx.conf
path: nginx.conf
- key: virtualhost.conf
path: virtualhost/virtualhost.conf
---
apiVersion: v1
kind: Service
metadata:
name: nginx-service
namespace: gloo-system
spec:
selector:
app: nginx
ports:
- protocol: TCP
port: 8081
targetPort: 8081
type: ClusterIP
---
apiVersion: v1
kind: ConfigMap
metadata:
name: raw-envoy-config
namespace: gloo-system
data:
envoy.yaml: |
static_resources:
listeners:
- address:
socket_address:
address: 0.0.0.0
port_value: 19000
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
codec_type: auto
stat_prefix: ingress_http
route_config:
name: local_route
virtual_hosts:
- name: backend
domains:
- "*"
routes:
- match:
prefix: "/"
route:
cluster: service
http_filters:
- name: envoy.filters.http.router
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
- address:
socket_address:
address: 0.0.0.0
port_value: 8082
filter_chains:
- filters:
- name: envoy.filters.network.http_connection_manager
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
codec_type: auto
stat_prefix: ingress_http
route_config:
name: local_route
virtual_hosts:
- name: backend
domains:
- "*"
routes:
- match:
prefix: "/go"
route:
cluster: echo-server
prefix_rewrite: "/"
- match:
prefix: "/express"
route:
cluster: echo-server-express
prefix_rewrite: "/"
http_filters:
- name: envoy.filters.http.router
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
clusters:
- name: service
connect_timeout: 0.25s
type: strict_dns
lb_policy: round_robin
load_assignment:
cluster_name: service
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: 127.0.0.1
port_value: 19001
- name: echo-server-express
connect_timeout: 0.25s
type: strict_dns
lb_policy: round_robin
load_assignment:
cluster_name: echo-server-express
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: echo-server-express-service.gloo-system.svc.cluster.local
port_value: 3000
- name: echo-server
connect_timeout: 0.25s
type: strict_dns
lb_policy: round_robin
load_assignment:
cluster_name: echo-server
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: echo-server-service.gloo-system.svc.cluster.local
port_value: 9999
admin:
access_log_path: "/dev/null"
address:
socket_address:
address: 0.0.0.0
port_value: 19001
---
kind: Deployment
apiVersion: apps/v1
metadata:
name: vanilla-envoy
namespace: gloo-system
labels:
app: vanilla-envoy
spec:
replicas: 1
selector:
matchLabels:
app: vanilla-envoy
template:
metadata:
labels:
app: vanilla-envoy
spec:
containers:
- name: envoy
image: envoyproxy/envoy:v1.23.2
ports:
- containerPort: 8082
securityContext:
runAsUser: 1111
volumeMounts:
- readOnly: true
mountPath: /config
name: proxy-config
args:
- "envoy"
- "--config-path"
- "/config/envoy.yaml"
- "--log-level"
- "debug"
volumes:
- name: proxy-config
configMap:
name: raw-envoy-config
---
apiVersion: v1
kind: Service
metadata:
name: vanilla-envoy
namespace: gloo-system
spec:
selector:
app: vanilla-envoy
ports:
- protocol: TCP
port: 8082
targetPort: 8082
type: ClusterIP
Ports need to be forwarded with (in separate shells)
kubectl port-forward -n gloo-system deploy/vanilla-envoy 8082:8082
kubectl port-forward -n gloo-system deploy/nginx 8081:8081
kubectl port-forward -n gloo-system deploy/gateway-proxy 8080:8080
kubectl port-forward -n gloo-system deploy/nginx 8081:8081
kubectl port-forward -n gloo-system deploy/echo-server-express 3000:3000
kubectl port-forward -n gloo-system deploy/echo-server 9999:9999
The following are k6 scripts that can be run to count how many times a 503 is received over 1200 requests (100 virtual users each making a request every 5 seconds for 60 seconds).
k6 run path/to/test/script.js
k6 scripts
6647-k6-express-direct.js
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://localhost:3000"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status == 503) {
console.error(res.body);
}
}
6647-k6-express-nginx.js
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://localhost:8081/express"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status == 503) {
console.error(res.body);
}
}
6647-k6-express-vanilla.js
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://localhost:8082/express"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status == 503) {
console.error(res.body);
}
}
6647-k6-express-edge.js
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://localhost:8080/express"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status == 503) {
console.error(res.body);
}
}
6647-k6-go-direct.js
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://localhost:9999"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status === 503) {
console.error(res.body);
}
}
6647-k6-go-edge.js
import http from "k6/http";
import { sleep } from "k6";
import { check } from "k6";
export const options = {
vus: 100,
duration: "60s",
};
export default function () {
const res = http.get(
"http://localhost:8080/go"
);
sleep(5);
check(res, {
"is status 503": (r) => r.status === 503,
});
if (res.status === 503) {
console.error(res.body);
}
}
@yuval-k Is there anything in here that rings any bells? @nfuden mentioned you had experience with similar bugs in upstream.
@kevin-shelaga I have created upstream bug-report issue envoyproxy/envoy#23625. Please let us know how to prioritize the further investigation into the upstream bug.
In October, we presented a resolution to this issue whereby we injected a Connection: Close header to requests to the upstream in hopes that this would help resolve the intermittent 503s. The customer is concerned about the performance implications of never re-using connections. As we have learned from investigation, this is not a bug with Envoy, rather this is caused by improperly behaving upstream servers which fail to send a Connection: Close header in their response to Envoy even when they terminate the connection immediately after. Because the server failed to inform Envoy it would be closing the connection, Envoy allows that connection to be reassigned. The request to which the connection was reassigned then sees the connection be reset when the server finally sends the FIN.
In short, the workaround that was proposed in October and the one I propose below are not workarounds for a bug in Envoy, rather these are workarounds for a poorly behaving upstream server. Envoy will not reassign the connection if the server responds with the Connection: Close header.
It is possible to attempt to mitigate this by configuring retries in Gloo Edge using a retryOn value of reset.
Here is a link to a comment about the race condition when reusing connections with a poorly behaving upstream
I have communicated that this is an issue with the underlying frameworks to the customers and unfortunately there is nothing envoy can do to fix the issue. The prescribed workaround to apply the connection close header is the best approach to resolve any 503s.
