Include the "Fold a wall of MS" and "Create bend on solids" tutorials

Open ceremcem opened this issue 5 years ago • 4 comments

"Fold a wall of Metal Sheet" and "Create bend on solids" tutorials should be included or linked in the README of this repo. As an example, I'm struggling to find my way out to use them.

  • Question/answer form of "Fold a wall of MS": https://forum.freecadweb.org/viewtopic.php?t=45519#p389955 (does not work for me)

ceremcem avatar Jul 09 '20 07:07 ceremcem

Agree. @jaisekjames , do you have any tutorials on these functions?

shaise avatar Jul 09 '20 07:07 shaise

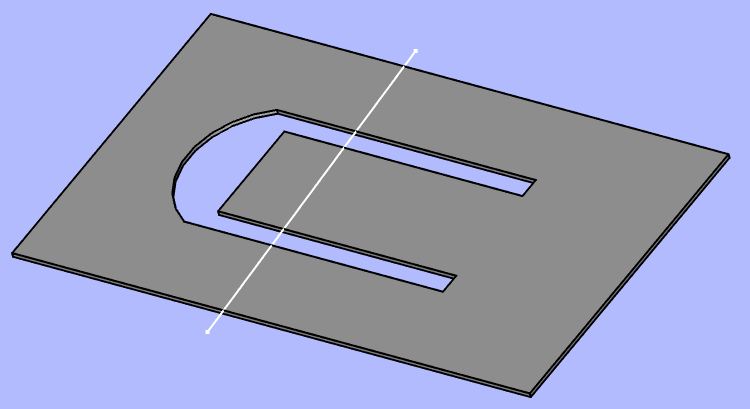

First draw a line in sketch [ length more than face ] on face need to bend. Fold ex 1

Then select face & sketch together, click on folding icon [ due to some issue, green face selection is not capturing in my screenshot.] Fold ex 3

It will be folded. Fold ex 4

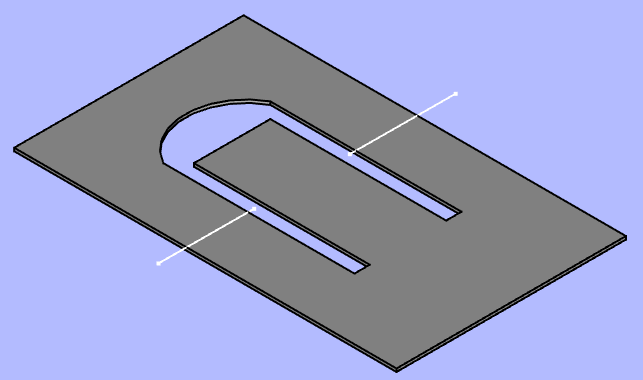

In case in two line in sketch[co-linear], it will create fold only where line is resent Fold ex 5

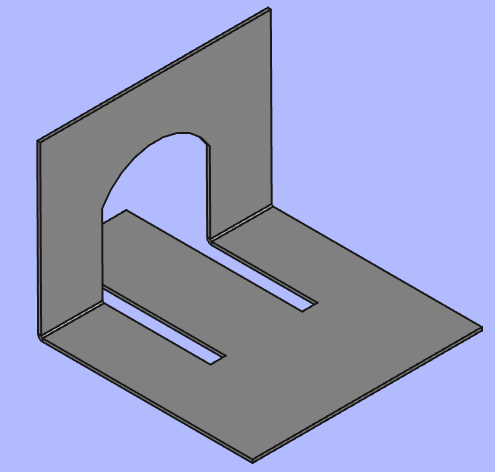

Folded view Fold ex 6

jaisekjames avatar Dec 23 '20 07:12 jaisekjames

bump

luzpaz avatar Apr 27 '21 13:04 luzpaz

Anyone game to add this to the README?

luzpaz avatar Aug 27 '21 11:08 luzpaz
