scottbez1
Motor out of stock
Not a major issue as you've said you've got several others on the way for testing, but the link to the motor you used is now out of stock: AliExpress
3215 ptz as keywords for search will get you similar listings, hard coded links are subject to link rot, I would avoid them
Yeah, I'm hoping this is just a temporary out of stock issue, but the seller actually has another listing that looks essentially identical (though a tiny bit more expensive) and is still in stock (for now) - https://www.aliexpress.com/item/4001356858801.html
I've ordered a handful of those myself and will confirm whether they're the same in ~2 weeks when they arrive :stuck_out_tongue: Probably worth snagging a few now regardless since they're pretty cheap.
I prefer hard-coded AliExpress links, because of scam sellers (so I like to find a reliable one and stick with that) and also I've been burned by different sellers sending different quality products under the same part number before -- for my splitflap project, I have an entire page dedicated to finding good 28byj-48 stepper motors among the sea of bad clones.
My fear is that they may just be selling off "new old stock" from some short-lived product and the motors are not actively being manufactured any longer, in which case the interest in this project could quickly consume what's available. :crossed_fingers: Hopefully that's not the case though, as there are basically zero other cheap options for hollow shaft BLDC motors with low KV and zero cogging torque that I could find...
Your update on March 24th seems quite discouraging, does this mean the project is dead? Seems like one of the coolest ones I've seen in ages.
It gets worse, the other listing that @scottbez1 linked to is gone now too. I had an order for a couple of those and that order was simply cancelled earlier this morning, so that double listing seems to have been an oversight. The motors from that seller (and two other sellers as well) that looked similar by had wires running through the hollow shaft already, those have also been removed. Well not removed, I created two orders from separate sellers last night and both of those items have been changed into a completely different item. I haven't been able to find a replacement motor yet.
I'm not sure what other motors @scottbez1 has bought to test, but I would love to know. It would be very helpful to know which motors we should avoid specifically.
Responding from my phone, so pardon the brevity.
I don't want to call the project dead quite so soon, but it's certainly not looking very good at all...
Regarding other motors, I basically ordered every single small BLDC from that AliExpress seller (which is most of the cheap motors I could find on AliExpress in general) and there's not good news there, unfortunately. All of the other hollow-shaft motors had noticeable or substantial cogging, making them poor candidates.
I'll follow up with more details when I have some time this weekend, including a list of all the motors I've personally checked.
I certainly wouldn't call it dead in the water, just needs some adjustments for a more widely available motor. I'm tempted to grab a more common 2804 or maybe 2204. Lots of varieties though and not a whole lot that either have an diametrical magnet or room for one.
Responding from my phone, so pardon the brevity. I don't want to call the project dead quite so soon, but it's certainly not looking very good at all... Regarding other motors, I basically ordered every single small BLDC from that AliExpress seller (which is most of the cheap motors I could find on AliExpress in general) and there's not good news there, unfortunately. All of the other hollow-shaft motors had noticeable or substantial cogging, making them poor candidates. I'll follow up with more details when I have some time this weekend, including a list of all the motors I've personally checked.
You mention cheap, is it a prerequisite that it is really cheap or are there other motors that might fit the bill but are more expensive?
@scottbez1 would be helpful to know what sort of BLDC motor you're using at the moment. From what I understand the majority of cogging is a result of the type and size of magnets used in the rotating part. In an effort to generate as much torque as possible, most manufacturers opt for neodymium magnets which are significantly more powerful compared to ferrite magnets.
I don't know a lot about motors, but I did find this: https://store.cubemars.com/ from a company called Tmotors ( https://uav-en.tmotor.com/). Again, no idea if the specs match anything you need.
On Fri, Mar 25, 2022 at 8:13 PM C44Supra @.***> wrote:
@scottbez1 https://github.com/scottbez1 would be helpful to know what sort of BLDC motor you're using at the moment. From what I understand the majority of cogging is a result of the type and size of magnets used in the rotating part. In an effort to generate as much torque as possible, most manufacturers opt for neodymium magnets which are significantly more powerful compared to ferrite magnets.
— Reply to this email directly, view it on GitHub https://github.com/scottbez1/smartknob/issues/16#issuecomment-1079353992, or unsubscribe https://github.com/notifications/unsubscribe-auth/AASRRDS6FBEX7P6DGKDRB7DVBYF37ANCNFSM5QUFZCKQ . You are receiving this because you are subscribed to this thread.Message ID: @.***>
Seconding what @C44Supra said, perhaps logging here the specs of your currently best-performing motor so the group can help hunt down a replacement, especially once the AliExpress pages disappear. I'm thinking these are important: Critical dimensions, Kv, electrical specs (ex. maybe max torque can indicate something else useful), keywords. Others?
In the future, the move is probably a redesign for the more common outrunner motors on hobby RC websites. Considering tackling part of this myself.
It looks like newegg has the motor but only with a slipring installed. removing that wouldnt be a problem, but the 50$ pricetag is. i think the best way going forward would be using a standard gimbal motor and putting on a diametrical ringmagnet from mcmastercarr or so. something like those 2804, 2805or 3413 look more common and could propably be used
@LeonBentrup that listing on Newegg is from a chinese reseller as well. It was listed by at least 3 different vendors on AliExpress but all three have removed the exact same listings at the same time. I'd say there's good chance it's one and the same vendor, just active under a couple of different names. That said, I did get a reply from the AliExpress seller earlier today:
Sorry to tell you that we can't send this item out. A local buyer picked all this item a few days ago and our workmate forget to remind us to end this listing. We contacted several suppliers and they don't have this item in stock. And also can't give sure reply when the item will be available. But we have the other similar item in our shop,could you please check it meet your need or not?
The other item they are referring to is https://www.aliexpress.com/item/1005003751799249.html It looks somewhat similar but is missing the diametrical magnet. There's also not enough shaft protruding to stick a magnet onto so that would be a no good either.
It's also quite problematic that their motor numbers seem to reference the outer diameter and height of the entire motor, where as other suppliers generally reference the internal dimensions of the actual motor parts. The 3413 for instance is pretty much the same as a 2804.
I did "some" looking around on AliBaba last night / this morning ( / what day is it again?), and found a supplier that has a motor that shows potential. They're not too expensive, have a 7mm diameter protruding shaft on the bottom and looks to be good design. I've contacted them and are waiting for a reply with more data about that specific motor.
A quick search on Amazon led me to some 10x3x7 (outer diameter x thickness x inner diameter) diametric magnets. I think thinner ones would work, too, though.
@C44Supra Does it have to to be a motor with a stick out shaft? for example the mks servo42 just uses superglue and two of those are running fine on my 3d printer. its not a hollow shaft there but those cheap 2804 look like you could glue it on there directly. Sticking a 6mm rod with some paper(to not glue the rod in there) down the hollow shaft you could even get it centered pretty good. and since its not turning with 2000 rpm i wouldnt be afraid of the glue giving up
@LeonBentrup it'd have to stick out of the bearing at least a little bit, otherwise there's nothing to glue onto without interfering with the motor. I was considering that too. The motor you linked to is a 20-24V BLDC motor though, I haven't dug into the schematics too far just yet, but I suspect the motor in the current design is driven at 5V, which would likely not be very impressive to a 24V motor. The motor I linked to earlier would probably be a safer bet (a 3413), but I'm somewhat hesitant to place an order with that vendor again, considering it took him 10 days to just cancel my order with zero feedback.
@C44Supra the linked motor was just an example but thanks to usb c even 20V isnt a problem. the pcbs look quit empty so there should be enough space for a ip2721 or ap33771 to get what ever usb-c pd voltage you want just with the IC and some resistors and buck it down to the 3.3v the esp32 needs.
And looking at the linked motor you could propably get away with glueing a 8x6x3 magnet directly on to it. but you could also print a little spacer and glue it in to get the stickout. or use a off the shelf 6x0.5mm steel pipe. this would propably be the simplest solution assuming you dont need the full 6mm space in there. even the 5mm should be enough for spi,power, rst and backlight.
@LeonBentrup USB-C could indeed provide higher voltages. However the TMC6300 driver only does up to 11V so you'd likely have to account for that too. Not too hard, but something to keep in mind.
@C44Supra And there could be a problem. at the moment you cant really get any normal to high power BLDC ICs. i looked at most of the common ones for other projects. But with USB-C PD you could also get 9V which is also the lowest voltage a 3S LiPo should get. so BLDCs that work with 3S batterys should also work with that. that also makes it possibile to still use a linear regulator cause it only needs to drop 5.7Vx I and not 16.7Vx I when using 20V which is basicly impossible without a heatsink.
For motors that would mean you could use a standard t-motor GB2208 but those are pretty thick but propably have a good availability. or something like those MiTooT/Flycat/whatEverRandomName 2805 motors. I also found this "Lidar" motor but this also looks proprietary so there is a chance it coudl be out of stock after a few hundred sales again.
3D printed BLDC motors exist. Could we design the perfect one for this project?
I shot a message to Carl at Flexar to see if there's any opportunities here.
Some specs and photo from the inside of the original motor in case it's helpful identifying an alternative:
(for reference, the diametric magnet is a ceramic ring and appears to have been glued onto the rotor, so leverage is not the best way to remove it in one piece... :grimacing: but it's necessary to remove to access the retaining ring)
- 32mm OD, 5.9mm ID
- 14 poles (7 pole-pairs)
- 12 slots
- U-V coil resistance of ~8 ohms
- essentially zero cogging torque (this is a very rare attribute from testing a bunch of small "gimbal" motors)
- according to original product listing, 3280RPM at 12V, or 273KV (this is untested, but does match the expectation for a gimbal motor to have a low KV rating)
@scottbez1 Ok this is starting to make sense. Those look like compressed ferrite material, which will have a lower flux density than the little bar neodymium magnets, and so lower max torque output but also lower cogging torque. I think.
Searching for this might be challenging. Maybe looking for motors with lower than normal max torque hints toward ferrite magnets?
Other motors I tested previously and decided against:
On the left:
- 34.5mm OD, 4.9mm ID
- U-V resistance somewhere around 30 ohms
- too much cogging torque
- poor internal construction - solder or wire was rubbing against rotor internally
On the right:
- 34mm OD, 6mm ID
- U-V resistance ~9.5 ohms
- too much cogging torque
But even if those motors did fit the bill, I think they still wouldn't be a good option since they'd likely go out of stock immediately as well. I think the challenge will be to find a good motor (hollow shaft, low cogging, low kv) that's still actively manufactured rather than leftover "new old stock" like these.
That would indeed be a ferrite magnet in the rotor. Usually manufacturers put neodymium magnets in instead to increase motor torque at the cost of top speed. I'd say it's probably hard to determine which type of magnet a motor contains if you don't have a clear visual of it or take it apart.
The last motor you added a screenshot of lists the neodymium magnet type in the title at least (NdFeB). That said, even if it was a ferrite magnet I wouldn't trust that particular seller to deliver anything. Was the board as is able to drive the 20-24V motor at all?
In other news, the manufacturer I've been in touch with has only sent me dimensional drawings so far. Still waiting to hear back what sort of magnets and arrangement there is in the motor.
Did someone wrote the manufacture of the original link for the motor why all these listings got taken down? Maybe they could tell or provide a clear data cheat to manufacture them. But I think that they are only the sellers.
@18Markus1984 see one of my earlier replies. They claim that a local buyer bought out their entire lot of motors and someone just forgot to pull down the listing.
I'd say it's probably hard to determine which type of magnet a motor contains if you don't have a clear visual of it or take it apart.
@C44Supra Could a starting point for trying to identify motors with ferrite magnetics be to look for ones of a certain size that have a significantly lower maximum torque than others? Just applying this as a pre-filter to try and narrow down on options quicker.
Possibly. The original motor listing didn't have a torque spec, so no reference there. But you can obviously compare different motors to each other, significantly lower torque ratings could mean ferrite magnets. Or typos. Or intentional misrepresentation. AliExpress / eBay and genuine parts specifications generally don't go hand in hand unfortunately 😆
@18Markus1984 see one of my earlier replies. They claim that a local buyer bought out their entire lot of motors and someone just forgot to pull down the listing.
Hi, @C44Supra do you have any contact information of the seller? It will be easier for me to talk to them from here China.
@stanlee-1024 The seller that had the original motors used for the project? That seller can be found via the link in 2nd reply in this thread. (or just this link: https://www.aliexpress.com/item/4001356858801.html). I wouldn't waste my time on that seller to be honest, they simply resell overstock items it seems.
The manufacturer I'm talking with hasn't provided anything tangible yet either, I'm still assessing what they're actually offering. Once I know more I'll share, but in the meantime I'll reach out to a couple of other manufacturers.
What about this one, the KV is lower, but many of the other specs seems right, perhabs search for gimbal replacement motors, they might be more reliable to maintain a stock. https://www.alibaba.com/product-detail/Flashhobby-GBM2606-90T-brushless-DC-motor_1600077006273.html?spm=a2700.galleryofferlist.normal_offer.d_title.5c6f2b85BJtKN2
Lower KV shouldn't really be much of an issue as the project doesn't need the knob to turn at high speed by itself. Even then, at 120KV it'd still be capable of roughly 600RPM at 5V. This particular motor only has a 4mm shaft though, not sure how they stuck the magnet on the shaft.
That said, the torque seems a bit high at "450 grams", that could indicate neodymium magnets and therefor excessive cogging.
There is a more widely available GBM2804H-100T, which is slightly larger in diameter but has a 6.5mm shaft bore. No clue what sort of magnets either have though, I will be trying to get in touch with some suppliers to see if they can provide any additional information beyond what is listed in the product listings.
Let us know who you talk to and what you find out from them @C44Supra (hopefully we can avoid having everyone spamming the same suppliers and asking all the same questions, so thanks for taking the lead on that)!
I will reach out to the supplier @flambert860 linked to get some more info and potentially order samples from them, but if there are any other motors that seem promising let me know (either post to this issue or email me directly at [email protected]) and I would be happy to order a bunch of different samples and share any findings.

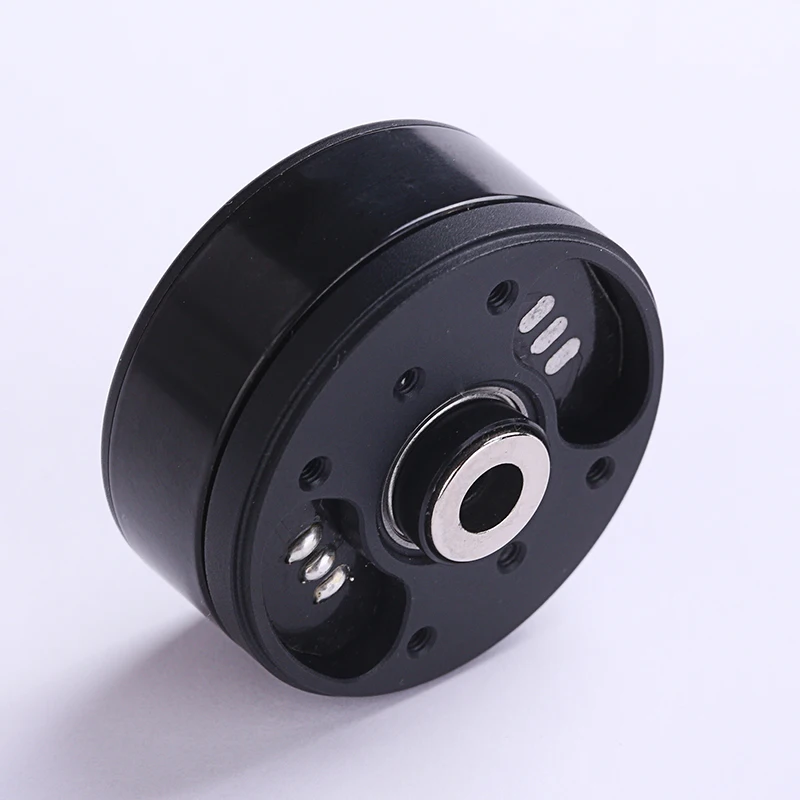

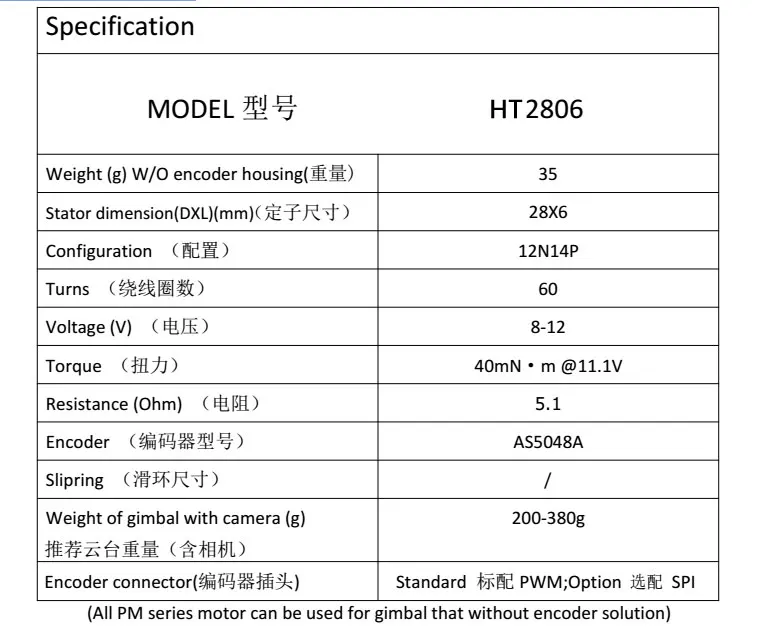

How about HT2804/HT2806 . $10 without encoder on taobao
Seal enclosure to prevent dust and dirt contamination Hollow shafts are used for slipring or wiring Specifications: Copper wire (OD) 0.21mm, prewound 60 times. interface resistance is 5.1 ohm Motor size: 34.6mm (OD) * 18.3mm (height) Stator dimensions 28 mm (OD) x 4 mm (height) Hollow shaft diameter 4.5 mm configuration 12 n14p camera weighs 100-300 grams
Just heard back from one manufacturer. Apparently the C2804A / C2804B / E2804 (and similar ones) all use neodymium magnets. They're looking into options for ferrite magnets, but that's likely going to be a custom production with a custom price tag (in other words: expensive).
Would it be possible to actively drive the motor out of the cogging detents using the encoder inputs? Perhaps adding "viscosity" to the feel of the knob would also be an option?
Or find a motor that uses much smaller neodym magnets than normal? We just want lower flux density per pole, I think it doesn't actually matter what kind of magnet it is... maybe.
I think the best solution would be to find a popurlar gimbal where the motor fit the specs, then there should be plenty of replacement parts
I'm waiting on sample pricing for the GBM2606 (though I'm worried that the smaller ID may be too small to accommodate a 3d-printed riser) and GBM2608 (wide enough ID but overall taller), along with a quote for a small initial batch. It sounds like they can make them with either individual neodymium magnets or a "magnet ring" for less cogging, so I'm inquiring about getting them made with the ferrite magnet ring.
There would still be the issue of adding a diametric magnet, but one possibility would be to mount it onto the top of the rotor and move the MT6701 sensor onto the screen PCB instead of the base PCB. The magnet could be inset into the rotor spacer (it's 1.8mm thick on top, IIRC) to avoid increasing the height too much.
Or a potential alternative would be using 2 thin circular magnets (like 4x1mm) with one facing up and the other facing down to create a diametric magnetic field slightly above them, like so:
(that's from an earlier prototype before I found the 3215 motor with built-in diametric ring)
Random thought -- is there something out there like old hard drive motors that have a huge surplus second hand market, and this could be redesigned around? I know old HDD BLDC motors have extremely low cogging and my guess is that you could find lots of old drives around for cheap.
I found the same motor on Lazada, although it is $9 USD, which is a bit more expensive and possibly would go out of stock quick as well. https://www.lazada.sg/products/micro-mini-32mm-hollow-shaft-brushless-ptz-motor-aperture-6mm-for-small-uav-brushless-gimbal-motor-handheld-camera-gimbal-i2117859748-s11989139490.html?spm=a2o42.searchlist.list.33.68087f8fAZyb85&search=1
Edit: They included a SKU and Model number, which possibly could help with tracking down another supplier if they are correct.
SKU: 2117859748_SGAMZ-11989139490 Model #: 1005001384349991-154137-1
Has anyone looked at the JD-Power Motor manufacturer? This motor looks pretty close http://www.jdpowersky.com/en/p-info.aspx?cid=1&id=46 and this one http://www.jdpowersky.com/en/p-info.aspx?cid=1&id=49 They have an array of models and sizes.
They have an Alibaba store located here https://jdpowersky.en.alibaba.com/productgrouplist-803362553/Flat_outrunner_gimbal_Series.html?spm=a2700.shop_plgr.98.3 Here is one of the listings I was looking at. https://www.alibaba.com/product-detail/JD-power-DC-3514C-2804-hollow_60489120691.html?spm=a2700.shop_plgr.41413.37.95ae517fSFGbWm
I have been loosely following the project so I am not sure if I missed something about these that is significant or would not work. It looks like the DC-3514C is 1mm larger in diameter. ~6.5mm shaft. 16mm thick. (dimension diagram in first link.) What do you guys think?
EDIT: I found some specs for the DC-3514C in an ebay listing.
Brand:JD-power Model Number:2804/DC-3514C Motor Size:3514mm Stator Size:284mm Configuration:12N14P Voltage Range :10~36V Torque:max0.7kgf-cm Motor KV:200rpm/V Color:black Weight:40g
I have been taking a look at HDD motors. Every image of the inside of an HDD motor that I have seen uses the same (or a similar) magnet material that is inside of the original motor design.
It may be possible to drill out a hollow shaft from the motor. However, most HDD motors are quite wide and there are many many designs. Its just an idea I thought I would throw out there. Motors from a 2.5" HDD might work but I don't know if they can make enough torque to be useful. I will take apart a 2.5" drive later and see how big the motor is compared to the original motor shown above.
@PixelGalaxxyy The first section of the model number is the item number of the original motor on AliExpress. The rest of the numbers, combined or in chunks don't show up on google in any relevant way.
I'd say it's very likely that this is either the same seller, or this seller bought their stock from the seller that the original motor for this project was bought from.
@jtsfour I've been in touch with a number of vendors on AliBaba over the past few days. So far, every single 2804 motor has neodymium magnets. The 2804 style motor is being sold in a variety of configurations (4mm hollow shaft, 6.5mm hollow shaft, solid shaft, with and without shaft protruding from the bottom, etc.). The "Changzhou Belmont Intelligent Motion Co., Ltd" representative told me that all their motors (anything starting with BM and then a model number) have neodymium magnets and are to be considered finished designs where ferrite rings are not a customization option. The same representative works for "Changzhou Mcmaster Electrics Co., Ltd" as well. Considering their motor model number start with BMM, it's very likely just a proxy.
I'm still waiting for a response from "Shenzhen Two Ant Technology Co., Ltd.". Supposedly they have a ferrite ring magnet motor, but I'm waiting for a photo of the rotor and said magnet.
@mzhboy that is another one of the motors I've been looking at. If I remember correctly, a visually similar motor is available from a number of manufacturers on AliBaba, with and without the encoder. All of them tend to be up there in terms of price. I'll engage with a few of them tomorrow to see what I can dig up.
@jtsfour @dsamarin1 HDD motors are probably the easiest source of low cogging motors. All the disks I have dissected over the past few years have had integrated motors, where the stator is part of the lower part of the aluminum housing. If you can find one small enough and can get it removed from the remainder of the housing you could very likely use it for this project. However, these motors have very low torque, which is good for cogging, but bad for the actual feedback loop. Plus you'd still have to modify the shaft and a good chunk of the plastic components of this project.
I might just post an RFQ in the next couple of days. Might be a faster option.
@C44Supra
Thanks for the input. I was just now doing some digging into the magnets. What if we standardized around a motor design even with neodymium magnets (Like the 2804). Couldn't we just remove the Neodymium magnets from the rotor and replace it with a Ferrite Ring of our own specifications? How are these magnets installed? Could we use a heat gun and pull them?
I found this magnet supplier that does custom multipolar ferrite rings. Maybe this could be an easier option over finding motors that have been specifically built weaker and cheaper. We could use a small crowdsource and buy a couple thousand and use them collectively.
https://www.hsmagnets.com/product/customized-radial-multipole-ferrite-rotor-magnets/
I am not an engineer. Maybe someone with more experience could weigh in on this thought?
@jtsfour
That would certainly be an option. I don't have any motors on hand just yet, but I suspect the magnets are being glued in, likely with a two part epoxy of sorts. The likelyhood of removing the magnets without destroying them or the rotor itself are likely slim to none.
That said, you may be on to something. I'll ask the manufacturers if they'd be willing to sell motors without magnets in the rotor at all.
Multipolar ring magnets can be found in all shapes and sizes on Alibaba as well. Finding one that fits the bill might be a bit of a challenge though.
I have a "Power Motor GBM2804R 2804 Gimbal Motor with Aluminum case /Slipring /AS5048A Magnetic Encoder for camera stabilizer" on order for something else, but I'll try it out and see what it is like beforehand.
Just for the heck of it, I submitted an Alibaba RFQ with the details and photos of the existing motors (32mm rotor, 6mm ID, 14P12N, etc), just in case the original manufacturer is still around and can easily spin up production of it again, or in case another manufacturer is able to produce an identical product. Certainly would be nice if it can be found and avoid the need to redesign the mechanics. Probably unlikely, but figured it's worth a shot.
I've ordered some samples of the 2608 with ferrite ring magnet (from "Flash Hobby" Huizhou Feishun Technology), asking for a couple 5 ohm and a couple with 8 ohm windings to see how they compare.
Apparently there weren't readily available ferrite ring magnets for the 2606 size, so they will not make samples of that size for now.
Samples will ship via DHL Express, so depending on how long manufacturing takes I would hope to have them within a few weeks to evaluate them.
A big thank you to all the GitHub sponsors for helping fund experimentation like this! :heart:
If you're interested in eventually purchasing a motor (still a long way away and motor still TBD) - can you fill out this quick anonymous survey so I can get a sense of total interest quantity, geographical distribution, and pricing? To somewhat set expectations, based on what I'm seeing I would guess that it will cost somewhere between US$25-50 per motor retail unless we can find something suitable that's already being widely manufactured and distributed, unfortunately...
And of course let me know if you find other interesting motors or suppliers and I am happy to place more sample orders!
@jtsfour thanks for pointing out DC-3514C earlier. The JD-power contact just reached out to me from my RFQ mentioning that DC-3514C and DC-3515C are both similar to what I was looking for. It looks like DC-3515C has a "ring magnet", so I'm looking into ordering samples of that one - they also confirmed it has lower cogging than 3514C.
(oddly they show the 3515C with a non-hollow shaft and a gear/sprocket on their website, but it sounds like it is available with a hollow shaft as well)
They are offering the option to add the diametric magnet to the bottom, so I'm planning to order a couple samples with the magnet and a couple without. They will be 5.4ohm coils. I will update this post as I get more info about these motors/samples.
Edit: sample order placed 2022-04-05 for 2 motors with encoder magnet and 2 motors without.
Reposting for continued visibility: If you are interested in purchasing motors, help me understand general interest/quantities by filling out this quick motor survey (and thanks to the 27 of you who have already filled it out!).
you may be able to do anti-cogging in the software. there are some threads on the simpleFOC forum about how to do this. I think any "gimbal" type motor would work well. My original test was using a 2204 motor, but I found an amazing deal on 10 used BGM5208-200 motors. They both worked well with simpleFOC. If you really really want true cogless you should search for "slotless" however I didn't see any hollow shaft slotless motors on ali. the more poles the better so that may be another parameter to search on.
I've found an interesting website of a reseller. They can produce customized motors in bulk, for cheap. Maybe they'll go as far es producing motors with ferrite magnet rings instead of neodym ... I'll drop the link, maybe someone wants to look into that ¯_(ツ)_/¯
https://www.starselectron.com/se-bldc-e2804-ptz-motor-camera-motor/
https://www.made-in-china.com/
@scottbez1 I'm not too sure what motor is needed, maybe this site helps.
How about a spotless & frameless motor? Loads of space then for the printed shaft. I need to have a looks around for financially viable options
https://www.thingap.com/standard-products-slotless-frameless-brushless-bldc-high-torque-to-weight-ratio-large-through-hole-motor/
Has anyone already looked at this motor? https://www.aliexpress.com/item/1005003645403776.html Looks very similar construction, only problem I see is the 240 degree rotation limit.
The original motor is also in stock here, it's another distributor so it might not be in stock for long. I've ordered one and will report back if it actually arrives.
https://gbr.grandado.com/products/micro-mini-32mm-hollow-shaft-brushless-ptz-motor-aperture-6mm-for-small-uav-brushless-gimbal-motor-handheld-camera-gimbal?gclid=CjwKCAjwi6WSBhA-EiwA6Niok49qBVjhUWv4ciKbsTjD6yXHCEdTRbQOHq_k5nJFHh707kAINS8joxoCepIQAvD_BwE&variant=UHJvZHVjdFZhcmlhbnQ6NjM0MjIxNzg
Has anyone already looked at this motor? https://www.aliexpress.com/item/1005003645403776.html Looks very similar construction, only problem I see is the 240 degree rotation limit.
It looks like they've done a lot of damage to get the, "what's inside" photos. If it can be opened without damage that rotation stop should be easy to deal with.
Has anyone already looked at this motor? https://www.aliexpress.com/item/1005003645403776.html Looks very similar construction, only problem I see is the 240 degree rotation limit.
I have purchased from this "Esinou Store" before. I had a positive experience with them, but they appear to mostly sell overstock/other misc motors, so I would imagine continued interest will deplete the stock.
Maybe a good idea to start up a compatibility table with product/part numbers? That way people can add motors they know work along with a video in the pr to make sure its fully functional? (Run through a suite of tests)
@tascord yeah, we can make a compatibility table once some compatible motors are found... that remains the challenge at the moment...
The VAST majority of readily available BLDC gimbal motors exhibit cogging, which prevents smooth rotation and limits the usefulness of software-defined detents since you're fighting those hardware magnetic detents. (There's maybe a possibility of applying anti-cogging in software as @jschoch mentioned, though most of what I've seen has been cogging compensation for a driven motor rather than an externally actuated motor that is sitting "idle", and it would also greatly complicate the code and calibration procedure).
Here's a photo of the cheap BLDC motors from AliExpress I've tested and have confirmed all of these exhibit cogging (not all of them are hollow core, as I was also looking for motors to make a screenless haptic dial)
So for now the hunt continues with zero compatible motors confirmed so far, and it is still looking like we may have to get some motors custom manufactured for this. Most of the sub-US$10 motors on AliExpress etc are likely to be overstock rather than actively manufactured, so even if one of those was confirmed to work, it's very likely it would go out of stock nearly instantly like the original motor.
Reposting for continued visibility: If you are interested in purchasing motors, help me understand general interest/quantities by filling out this quick motor survey (and thanks to the 146 of you across 30 countries who have already filled it out!).
I'm wondering if anyone has looked into whether CD drive motors or motors for the mirror in laser printers would work, or whether some manufacturer could produce variations on one for this. The ones I have seen produce close to nil cogging, and look like the construction is much simpler than the gimbal motors.
Alternatively, I see there are motors like this: https://www.aliexpress.com/item/1005002796883765.html
I wonder if this, plus a belt perhaps, could be useful.
@scottbez1 Any commonalities in those motors that you've detected? I'm thinking about number of poles/winding configuration, magnet dimensions, DC resistance.....
Hello I'm following the project since the YouTube video upload. I'm more a machinist than electronic engineer or whatever. Taking into account all efforts you make to find a supplier and the product seems to not be standard ( so it will always be stopped one day or another). As it has already been suggested maybe put the same amount of effort into a 3d printed model with an open source design. As you do not required high speed or high torque, I assume this would not be complicated to design. You can select the magnet you want, number of windings and wind size. Also, this would allow you to reduce the number of parts needed as the rotor would also be the outside of the knob for example
I hope this project will be available because I have a lot of use for this.
Hi，by contacting the saler in Chinese, I've known that they would produce the same motor* as @scottbez1 mentioned for new with the price of 60CNY($9.5), and the quantity larger, price cheap. *https://www.aliexpress.com/item/1005001384349991.html
If there is something I can do for you as I am live in China and easier get in touch with those factory, please contact me, and i am glad to help.
Hi，by contacting the saler in Chinese, I've known that they would produce the same motor* as @scottbez1 mentioned for new with the price of 60CNY($9.5), and the quantity larger, price cheap. *https://www.aliexpress.com/item/1005001384349991.html
If there is something I can do for you as I am live in China and easier get in touch with those factory, please contact me, and i am glad to help.
did they mention when it will be back in stock again?
Hi，by contacting the saler in Chinese, I've known that they would produce the same motor* as @scottbez1 mentioned for new with the price of 60CNY($9.5), and the quantity larger, price cheap. *https://www.aliexpress.com/item/1005001384349991.html If there is something I can do for you as I am live in China and easier get in touch with those factory, please contact me, and i am glad to help.
did they mention when it will be back in stock again?
They told me that those motors with low price were produced before and now out of stock. To purchase more, we need a make-to-order production, with a specific MOQ
@caoge12138 Can you share more info, or contact me [email protected] to discuss this seller further?
I would love to order samples to confirm quality (and potentially test some different windings if they offer that option), and get more info on MOQ and production capability. And to clarify, is this exactly the same manufacturer as the original motors, or is this just a motor manufacturer claiming they can build a motor that looks like the original? And is that $9.50 a wholesale price (bulk to a single buyer) or retail?
Based on the survey there's immediate interest to purchase >1400 motors if they're less than US$10 retail, so if a seller is willing to front the money to get them manufactured and then sell them retail on AliExpress, they would have no problem selling a LOT of them at that price - this is the best case for everyone and I think they will sell the most this way.
If it's wholesale only, that makes things a lot more complicated and means retail prices will be substantially higher (to account for additional shipping, import taxes, distribution costs and overhead) and therefore they will sell a lot fewer; in that case it is not much different than the other quotes I'm seeing for custom motors.
@paulsvc I like the idea of a 3d printed motor. I don't personally have the skills or time to work on that, but if anyone else can experiment with it I'm open to the idea if it works.
A 3D printed motor could work, but that would also mean you'd have to wind your own stator. I'm also not 100% on how a motor would hold up in terms of temperature to be honest. Windings get warm even when just in lower percentage duty cycle. I'd imagine that if a motor was held in a certain position while trying to return to a different position, that that would lead to hot windings and melty stators.
So while a fully 3D printed motor might not be the cleverest idea, a partially printed one might work. If you remove the rotor / bell and then replace that with a 3D printed version that holds a ferrite magnet, that should work. You'd still have to install a shaft and bearing though. Something to think about.
@scottbez1 i am definately in on this for at least 20 motors. at the lower price, if it got below 5, I would be in for probably around 50. I filled out the survey.
I don't know a lot about motors, but I did find this: https://store.cubemars.com/ from a company called Tmotors ( https://uav-en.tmotor.com/). Again, no idea if the specs match anything you need. … On Fri, Mar 25, 2022 at 8:13 PM C44Supra @.> wrote: @scottbez1 https://github.com/scottbez1 would be helpful to know what sort of BLDC motor you're using at the moment. From what I understand the majority of cogging is a result of the type and size of magnets used in the rotating part. In an effort to generate as much torque as possible, most manufacturers opt for neodymium magnets which are significantly more powerful compared to ferrite magnets. — Reply to this email directly, view it on GitHub <#16 (comment)>, or unsubscribe https://github.com/notifications/unsubscribe-auth/AASRRDS6FBEX7P6DGKDRB7DVBYF37ANCNFSM5QUFZCKQ . You are receiving this because you are subscribed to this thread.Message ID: @.>
T motors have a good reputation, in their GB line they say that the motors have little cogging, but I found a video on youtube where you can see that they are using neodymium magnets
https://store.tmotor.com/goods.php?id=447
https://www.youtube.com/watch?v=L2cAk3b6w3o
Sent a message to the seller of this https://www.newegg.com/p/298-00HJ-001V2?Item=9SIAUXBH9W9177. Hopefully, it leads to something.
Another option is to modify the housing and design to accept a widely used motor with similar characteristics.
@caoge12138 Can you share more info, or contact me [email protected] to discuss this seller further?
I would love to order samples to confirm quality (and potentially test some different windings if they offer that option), and get more info on MOQ and production capability. And to clarify, is this exactly the same manufacturer as the original motors, or is this just a motor manufacturer claiming they can build a motor that looks like the original? And is that $9.50 a wholesale price (bulk to a single buyer) or retail?
Based on the survey there's immediate interest to purchase >1400 motors if they're less than US$10 retail, so if a seller is willing to front the money to get them manufactured and then sell them retail on AliExpress, they would have no problem selling a LOT of them at that price - this is the best case for everyone and I think they will sell the most this way.
If it's wholesale only, that makes things a lot more complicated and means retail prices will be substantially higher (to account for additional shipping, import taxes, distribution costs and overhead) and therefore they will sell a lot fewer; in that case it is not much different than the other quotes I'm seeing for custom motors.
@paulsvc I like the idea of a 3d printed motor. I don't personally have the skills or time to work on that, but if anyone else can experiment with it I'm open to the idea if it works.
I've mailed you, I have talk with the factory, the MOQ is 500qcs, and after my self-isolate of Covid-19, I will try to visit the facotory for further detail
Found this as a possible replacement motor
I tried, but the current from the PCB board is not enough to power this motor.
@caoge12138 Can you share more info, or contact me [email protected] to discuss this seller further? I would love to order samples to confirm quality (and potentially test some different windings if they offer that option), and get more info on MOQ and production capability. And to clarify, is this exactly the same manufacturer as the original motors, or is this just a motor manufacturer claiming they can build a motor that looks like the original? And is that $9.50 a wholesale price (bulk to a single buyer) or retail? Based on the survey there's immediate interest to purchase >1400 motors if they're less than US$10 retail, so if a seller is willing to front the money to get them manufactured and then sell them retail on AliExpress, they would have no problem selling a LOT of them at that price - this is the best case for everyone and I think they will sell the most this way. If it's wholesale only, that makes things a lot more complicated and means retail prices will be substantially higher (to account for additional shipping, import taxes, distribution costs and overhead) and therefore they will sell a lot fewer; in that case it is not much different than the other quotes I'm seeing for custom motors. @paulsvc I like the idea of a 3d printed motor. I don't personally have the skills or time to work on that, but if anyone else can experiment with it I'm open to the idea if it works.
I've mailed you, I have talk with the factory, the MOQ is 500qcs, and after my self-isolate of Covid-19, I will try to visit the facotory for further detail
I like this smart knob very much, and I continue to pay attention to the shortage of motors. I am in Zhuhai, Guangdong.
Did anyone look into the feasibillity of so called 'frameless' motors? as I read before, there is little torque required so mounting on 3d printed parts is feasible. Some challanges, allignment and price https://www.alliedmotion.com/brushless-motors/brushless-direct-drive-torque-motors/megaflux-frameless-direct-drive-torque-motors/
Frameless motors are straightforward enough, however you will need a bearing arrangement built into your assembly to use them, and they often need to be paired with a 3rd party resolver or encoder. Slotless, frameless motors would probably be the ideal type of motor for this application. Some reputable manufacturers are Portescap and Celera motion (there are several other German and Swiss manufacturers that have product lines as well). I don't think you will find a European made motor for under $50/unit, and lead times are a real issue these days. If you pursue frameless motors I would look at T-motor, as they have a good reputation, but they aren't slotless so there will be some cogging.
I do think that one particular type of slotless motor, the axial flux ones with the six flat coils without any metal in them, could be an interesting solution in the long term for this application.
I would assume they are not particularly difficult to manufacture, and in low quantities, perhaps the coils found pre wound somewhere as inductors and a commodity bearing and magnet found.
If the original motor is indeed able to be manufactured again, that would probably be the best short term path.
I'm a total novice when it comes to projects like these, but has anyone tried an anti-cogging algorithm on a cheaper BLDC motor yet? I came across this video that seems pretty promising for this exact purpose.
Could we potentially get away with using a cheaper, more readily available motor if we only apply this "inverted cogging" technique?
Instead of using a hollow shaft motor, why not mount the knob to two captured bearings and then drive the knob with gears instead of directly off the motor. Think of an internal gear on the inside of the knob with a small spur gear on an offset mounted motor. This would:
- Give you much better resolution (more steps per rotation of the knob thanks to gearing)
- Give you more motor options since you aren't limited to hollow shaft motors
- Provide more internal room for supports and wire runs.
- Knob mount would be more secure
These should all be commercial off the shelf parts that wouldn't add too much complexity or cost. My only concern would be with "buzzing" the motor since this would probably wear down the gears quickly. I can draw it up in CAD if I'm not doing a good job describing what I mean.
T motors have a good reputation, in their GB line they say that the motors have little cogging, but I found a video on youtube where you can see that they are using neodymium magnets
https://store.tmotor.com/goods.php?id=447
https://www.youtube.com/watch?v=L2cAk3b6w3o
I have a GB36-1 which has pretty minimal cogging torque except for one spot in the rotation where it's slightly more noticeable (still quite small), but at $40 that's a steep price for a motor for this kind of thing.
LDO seems like the perfect company to contact about this. They are a major OEM in 3D printing, and already actively support a number of open source hardware projects with custom hardware, distributed through a worldwide network of vendors. Motors are one of their primary product lines.
I'd be happy to submit an MOQ RFP for the original SKU if that'll get us the results quicker; committing to resell without profit (up to a standard half pallet), adding only shipping costs and applicable taxes if the community here would be interested.
Catch is I don't see a listing for this SKU on Alibaba, so it'd be useful if someone with factory contact would email [email protected]
I have found the supplier of this motor，They have been producing steadily, but recently there has been no order from the demander, so they have not carried out production， http://www.wanzhida.cn/Products/otem3215bldc.html However, batch orders are required before production.
structure：
I'm so interested in this project that I'm experimenting！
This is the only github issue im subscribed to, and im very happy and amazed at how much good stuff is happening here!
@Liu-jingyu-CN wow, thanks so much for finding and sharing that - it's very promising. I can't find any Alibaba/AliExpress presence for that manufacturer, so I've reach out via email to see if they will produce motors and if they have any existing distribution partner (and shared some of the survey info regarding overall demand - currently >2000 pieces if the retail price is below US$10).
I also asked about purchasing some sample motors (so I can confirm that these are in fact the right motor).
Will share any updates as they happen.
Separately, my JD Power DC-3515C samples are shipping soon (should be FedEx IP).
Reposting for continued visibility: If you are interested in purchasing motors, help me understand general interest/quantities by filling out this quick motor survey (and thanks to the 290 of you across 41 countries who have already filled it out!).
@Liu-jingyu-CN wow, thanks so much for finding and sharing that - it's very promising. I can't find any Alibaba/AliExpress presence for that manufacturer, so I've reach out via email to see if they will produce motors and if they have any existing distribution partner (and shared some of the survey info regarding overall demand - currently >2000 pieces if the retail price is below US$10).
I also asked about purchasing some sample motors (so I can confirm that these are in fact the right motor).
Will share any updates as they happen.
Separately, my JD Power DC-3515C samples are shipping soon (should be FedEx IP).
Reposting for continued visibility: If you are interested in purchasing motors, help me understand general interest/quantities by filling out this quick motor survey (and thanks to the 290 of you across 41 countries who have already filled it out!).
This is the Alibaba page of this manufacturer https://wanzhida.1688.com/
@Liu-jingyu-CN哇，非常感谢您发现和分享它——它非常有前途。我找不到该制造商的任何阿里巴巴/全球速卖通业务，所以我通过电子邮件联系，看看他们是否会生产电机以及他们是否有任何现有的分销合作伙伴（并分享了一些关于总体需求的调查信息——目前如果零售价低于 10 美元，则 >2000 件）。
我还询问了购买一些样品电机的问题（所以我可以确认这些实际上是正确的电机）。
将在发生时分享任何更新。
另外，我的 JD Power DC-3515C 样品即将发货（应该是 FedEx IP）。
转发以获得持续可见性：如果您有兴趣购买电机，请通过填写此快速电机调查帮助我了解一般兴趣/数量（感谢 41 个国家/地区的 290 位已经填写的用户！）。
This is the contact information of the sales staff of this motor [email protected] The name ：lily zhang Hopefully this will help everyone
@scottbez1 my university had a project going about these kind of knobs, they made quite some documentation and even a GUI editor to change the haptic response of knobs like this, you might want to take a look at the hardware section for more premium options :) https://docs.feelix.xyz/hardware-support/hardware
That seems off topic for this issue thread, may I suggest a different forum for that information?
On Tue, Apr 12, 2022, 2:47 PM Diede van Marle @.***> wrote:
@scottbez1 https://github.com/scottbez1 my university had a project going about these kind of knobs, they made quite some documentation and even a GUI editor to change the haptic response of knobs like this, you might want to take a look at the hardware section for more premium options :) https://docs.feelix.xyz/hardware-support/hardware
— Reply to this email directly, view it on GitHub https://github.com/scottbez1/smartknob/issues/16#issuecomment-1097088149, or unsubscribe https://github.com/notifications/unsubscribe-auth/ABFIK5GGCBBKZ336N32K4NTVEXANPANCNFSM5QUFZCKQ . You are receiving this because you commented.Message ID: @.***>
@Liu-jingyu-CN wow, thanks so much for finding and sharing that - it's very promising. I can't find any Alibaba/AliExpress presence for that manufacturer, so I've reach out via email to see if they will produce motors and if they have any existing distribution partner (and shared some of the survey info regarding overall demand - currently >2000 pieces if the retail price is below US$10).
I also asked about purchasing some sample motors (so I can confirm that these are in fact the right motor).
Will share any updates as they happen.
Separately, my JD Power DC-3515C samples are shipping soon (should be FedEx IP).
Reposting for continued visibility: If you are interested in purchasing motors, help me understand general interest/quantities by filling out this quick motor survey (and thanks to the 290 of you across 41 countries who have already filled it out!).
The Yuzhi tech has also contacted me that they are producing samples and will spent about 20 days, seems their original factory is Wanzhida(unconfirmed), as they have lower MOQ and lower price, and most importantly they owned an Aliexpress store, I will reply in this issue if the samples are the same as the Wanzhida's 3215.
I used the GM4008H motor with feelix and am feeling some cogging sadly :(
@scottbez1 Did you get your DC-3515C's yet? Mine just arrived and I can confirm that, while pricey, they are near zero cogging.
Just found this project yesterday through a link in PlatformIO. Then this morning I was reviewing my orders with AliExpress and I noticed a few links to these:
https://www.aliexpress.com/item/1005001968864724.html?spm=a2g0o.order_detail.0.0.54faf19cE1Qssi&gps-id=pcOrderDetail&scm=1007.38956.276740.0&scm_id=1007.38956.276740.0&scm-url=1007.38956.276740.0&pvid=7ce731b3-aaec-420b-a845-df501f8f5d11&_t=gps-id:pcOrderDetail,scm-url:1007.38956.276740.0,pvid:7ce731b3-aaec-420b-a845-df501f8f5d11,tpp_buckets:668%232846%238107%231934&pdp_ext_f=%257B%2522sku_id%2522%253A%252212000018267338478%2522%252C%2522sceneId%2522%253A%252228956%2522%257D&pdp_pi=-1%253B2.69%253B-1%253B-1%2540salePrice%253BUSD%253Brecommend-recommend
https://www.aliexpress.com/item/1005002533090215.html?spm=a2g0o.order_detail.0.0.54faf19cE1Qssi&gps-id=pcOrderDetail&scm=1007.38956.276740.0&scm_id=1007.38956.276740.0&scm-url=1007.38956.276740.0&pvid=e5b606f4-2d0a-4b1f-aa62-273d367646f7&_t=gps-id:pcOrderDetail,scm-url:1007.38956.276740.0,pvid:e5b606f4-2d0a-4b1f-aa62-273d367646f7,tpp_buckets:668%232846%238107%231934&pdp_ext_f=%257B%2522sku_id%2522%253A%252212000021029586847%2522%252C%2522sceneId%2522%253A%252228956%2522%257D&pdp_pi=-1%253B1.81%253B-1%253B-1%2540salePrice%253BUSD%253Brecommend-recommend
https://www.aliexpress.com/item/1005002533090215.html?spm=a2g0o.order_detail.0.0.54faf19cE1Qssi&gps-id=pcOrderDetail&scm=1007.38956.276740.0&scm_id=1007.38956.276740.0&scm-url=1007.38956.276740.0&pvid=a2b5ef5c-f304-4926-adcf-b2325ff733da&_t=gps-id:pcOrderDetail,scm-url:1007.38956.276740.0,pvid:a2b5ef5c-f304-4926-adcf-b2325ff733da,tpp_buckets:668%232846%238107%231934&pdp_ext_f=%257B%2522sku_id%2522%253A%252212000021029586847%2522%252C%2522sceneId%2522%253A%252228956%2522%257D&pdp_pi=-1%253B1.81%253B-1%253B-1%2540salePrice%253BUSD%253Brecommend-recommend
I hope one of those is helpful.
@C44Supra My DC-3515C samples are in the US but will likely be a few more days until they get to me. Glad to hear they have low cogging.
@cgriffin Thanks for the suggestions, but I believe those are going to have too much cogging - see https://github.com/scottbez1/smartknob/issues/16#issuecomment-1080893204
@caoge12138 so you've ordered samples from both Wanzhida directly and Yuzhi (which you think is ordering from Wanzhida?) and will compare those samples?
Thanks for the reply. Never heard of Cogging torque. Having read the Wikipedia page on it is see that would be an important metric. Seems like there would be a difficult balance between free running and the power to make an end stop or effective “detent".
On Apr 14, 2022, at 8:37 AM, Scott Bezek @.***> wrote:
@C44Supra https://github.com/C44Supra My DC-3515C samples are in the US but will likely be a few more days until they get to me. Glad to hear they have low cogging.
@cgriffin https://github.com/cgriffin Thanks for the suggestions, but I believe those are going to have too much cogging - see #16 (comment) https://github.com/scottbez1/smartknob/issues/16#issuecomment-1080893204 — Reply to this email directly, view it on GitHub https://github.com/scottbez1/smartknob/issues/16#issuecomment-1099310471, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAFIUWPDON6KPTOX6LEW5O3VFA3SVANCNFSM5QUFZCKQ. You are receiving this because you were mentioned.
@scottbez1 Absolutely, but it will spent a few days as I am locked in Shanghai for Covid now.
Just found this project yesterday through a link in PlatformIO. Then this morning I was reviewing my orders with AliExpress and I noticed a few links to these:
https://www.aliexpress.com/item/1005001968864724.html?spm=a2g0o.order_detail.0.0.54faf19cE1Qssi&gps-id=pcOrderDetail&scm=1007.38956.276740.0&scm_id=1007.38956.276740.0&scm-url=1007.38956.276740.0&pvid=7ce731b3-aaec-420b-a845-df501f8f5d11&_t=gps-id:pcOrderDetail,scm-url:1007.38956.276740.0,pvid:7ce731b3-aaec-420b-a845-df501f8f5d11,tpp_buckets:668%232846%238107%231934&pdp_ext_f=%257B%2522sku_id%2522%253A%252212000018267338478%2522%252C%2522sceneId%2522%253A%252228956%2522%257D&pdp_pi=-1%253B2.69%253B-1%253B-1%2540salePrice%253BUSD%253Brecommend-recommend
https://www.aliexpress.com/item/1005002533090215.html?spm=a2g0o.order_detail.0.0.54faf19cE1Qssi&gps-id=pcOrderDetail&scm=1007.38956.276740.0&scm_id=1007.38956.276740.0&scm-url=1007.38956.276740.0&pvid=e5b606f4-2d0a-4b1f-aa62-273d367646f7&_t=gps-id:pcOrderDetail,scm-url:1007.38956.276740.0,pvid:e5b606f4-2d0a-4b1f-aa62-273d367646f7,tpp_buckets:668%232846%238107%231934&pdp_ext_f=%257B%2522sku_id%2522%253A%252212000021029586847%2522%252C%2522sceneId%2522%253A%252228956%2522%257D&pdp_pi=-1%253B1.81%253B-1%253B-1%2540salePrice%253BUSD%253Brecommend-recommend
https://www.aliexpress.com/item/1005002533090215.html?spm=a2g0o.order_detail.0.0.54faf19cE1Qssi&gps-id=pcOrderDetail&scm=1007.38956.276740.0&scm_id=1007.38956.276740.0&scm-url=1007.38956.276740.0&pvid=a2b5ef5c-f304-4926-adcf-b2325ff733da&_t=gps-id:pcOrderDetail,scm-url:1007.38956.276740.0,pvid:a2b5ef5c-f304-4926-adcf-b2325ff733da,tpp_buckets:668%232846%238107%231934&pdp_ext_f=%257B%2522sku_id%2522%253A%252212000021029586847%2522%252C%2522sceneId%2522%253A%252228956%2522%257D&pdp_pi=-1%253B1.81%253B-1%253B-1%2540salePrice%253BUSD%253Brecommend-recommend
I hope one of those is helpful.
Even if they don't have cogging, they don't have a diametric magnet. Could we adapt one?
