References are not draggable in an array with other types on Sanity V3 in Next.js app

[jasonbarone]

Describe the bug

Reference types are not draggable when they're inside of an array with other types on Sanity V3 in Next.js app.

To Reproduce

Steps to reproduce the behavior:

1. Use Sanity Studio v3 in a Next.js app
2. Create a Sanity schema that contains an array type:

export const Modules = {
  name: "modules",
  type: "array",
  title: "Modules",
  of: [

    { type: "module-test" },
    { type: "module-another-test" },
    {
      name: "shared-module",
      title: "Shared Module",
      type: "reference",
      to: [{ type: "shared-module" }],
    },
  ],
};

export default Modules;

4. Place this array into a document schema.
5. The reference type will not be draggable..

Expected behavior

Reference types should be draggable like the others.

Screenshots

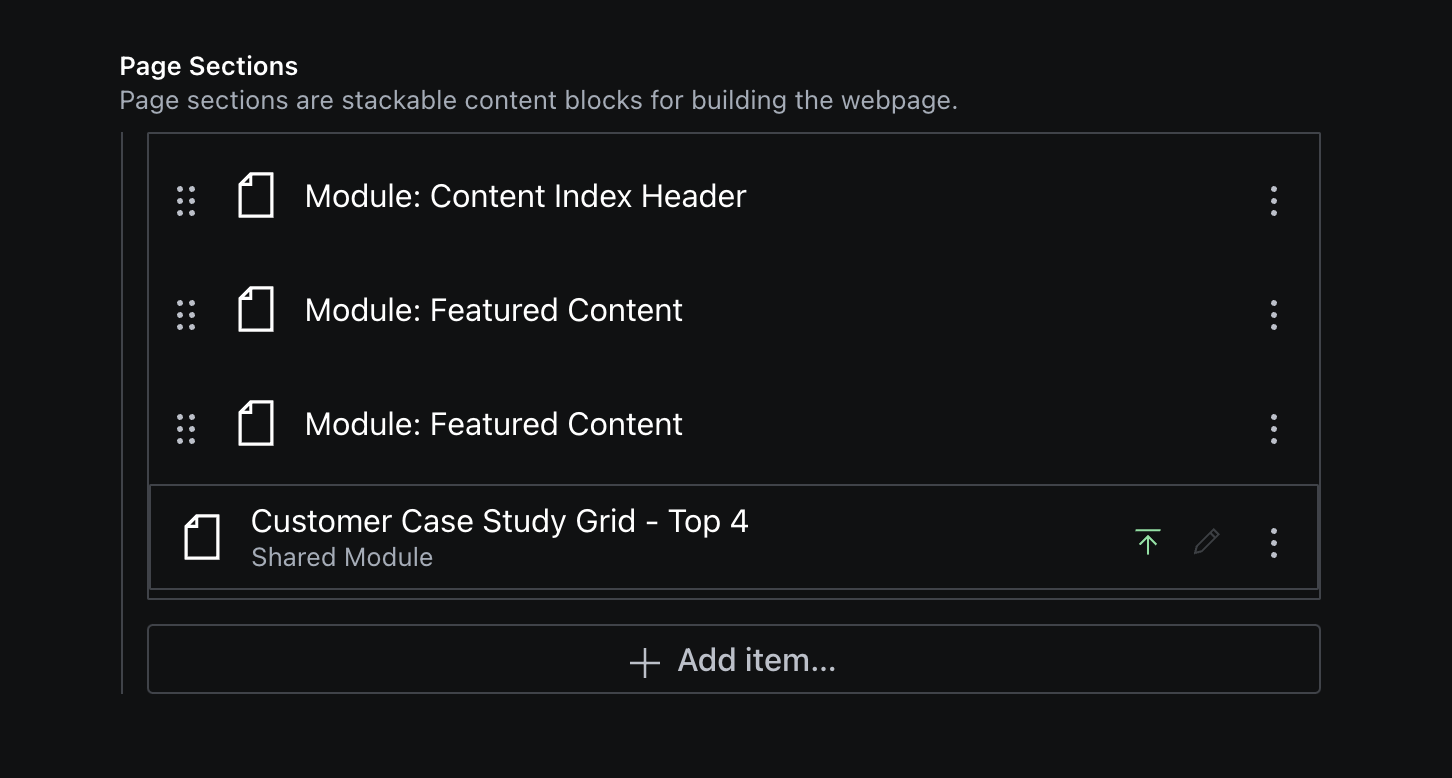

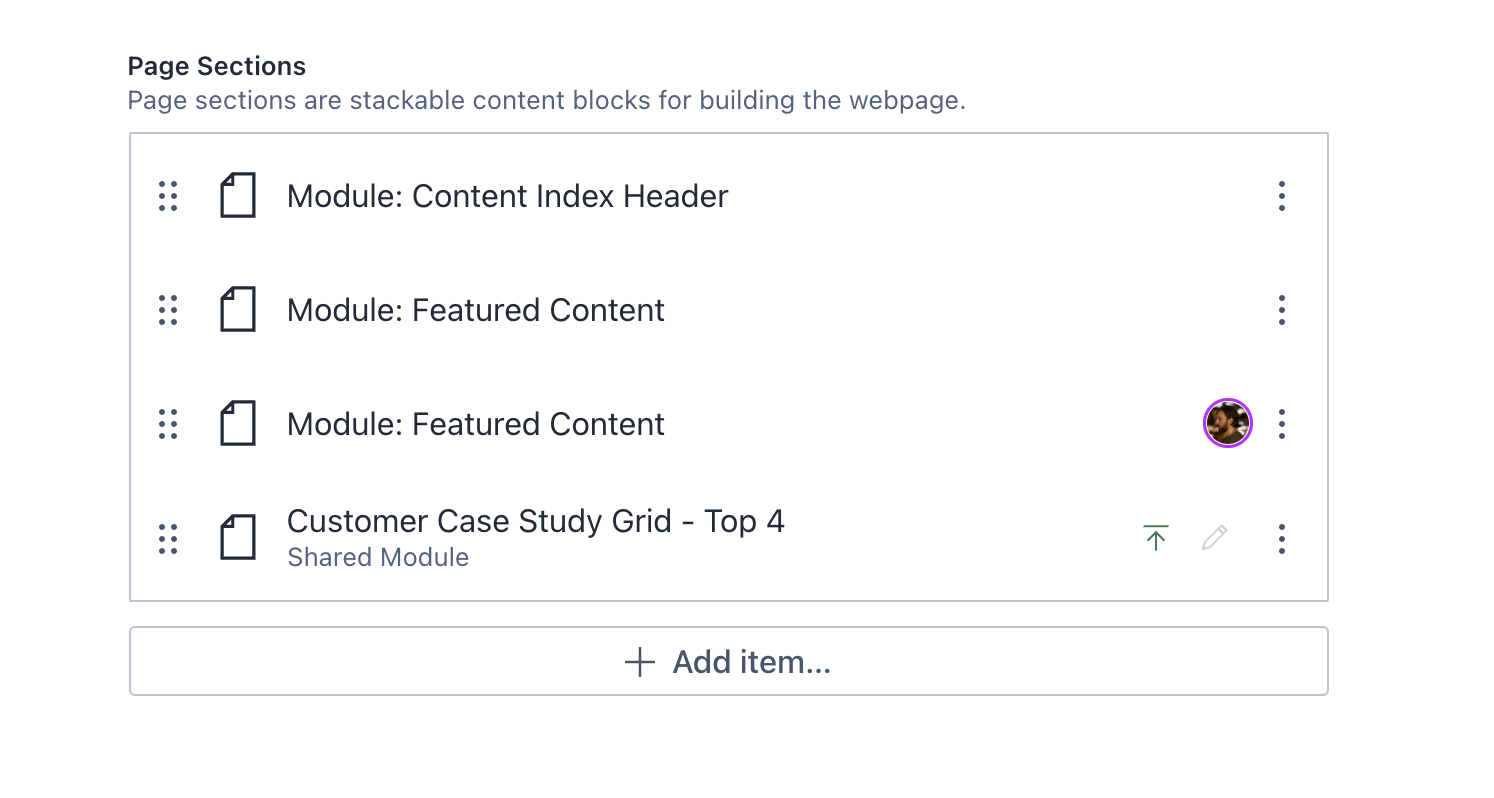

First image is Sanity Studio V2. In the last image, the reference will not display the draggable indicator and will not be draggable.

Which versions of Sanity are you using?

"sanity": "^3.0.0-dev-preview.9",

What operating system are you using?

MacOS latest.

Which versions of Node.js / npm are you running?

node 16.13.1 npm 8.1.2

[fabien]

I’m having the same issue. I Just wanted to add that the UI looks a bit off for reference items (white-space, border).

[xanderjl]

I'm still experiencing the same behavior when using array of references

[jaydanurwin]

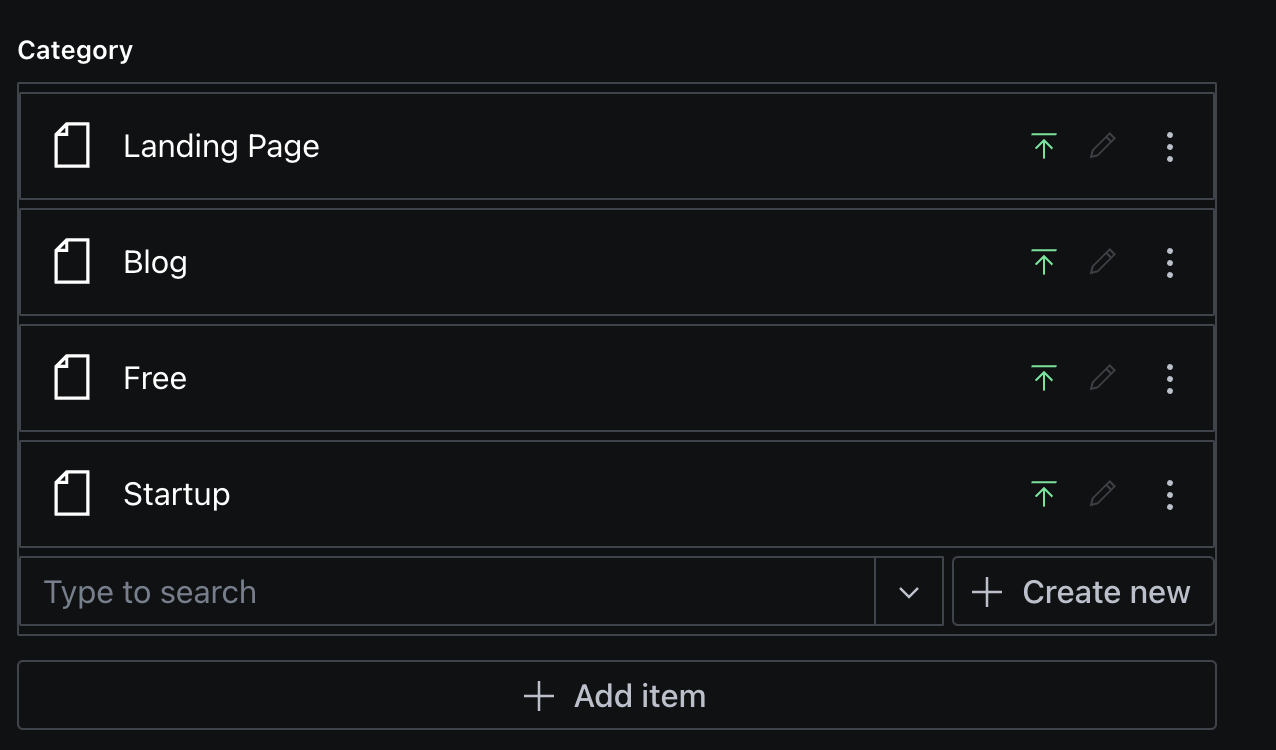

I'm having this issue as well and I just have an array of references to one type of reference not even multiple types.

  {
      name: 'categories',
      title: 'Category',
      type: 'array',
      of: [
        {
          type: 'reference',
          to: [
            {
              type: 'templateCategory',
            },
          ],
        },
      ],
    },

[bjoerge]

This should be fixed in the latest rc.
