[TDThread.FCMacro] Feature Request: Read thread information from hole

[ToniTen]

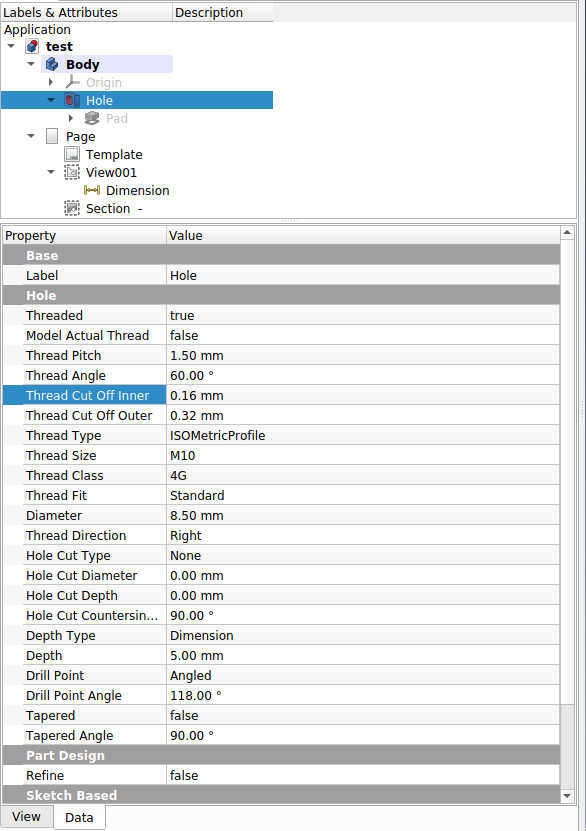

Currently, your macro always puts M16 on the label for the dimension. However, if the hole was made with the appropriate tool (part design/hole) it can contain the information on the thread:

I'm not familiar enough with FreeCAD macros to know how to access the value, but from the GUI, assuming the hole operation is names Hole, you can access it from <<Hole>>.ThreadSize. You also get a boolean <<Hole>>.Threaded to know if it's threaded and so if the value for ThreadSize is meaningful.

[reox]

Yes, the macro needs some reworking... But is this not already somehow implemented in TD itself? I just noticed that there are now these extensions: https://wiki.freecadweb.org/TechDraw_Workbench#Extensions
