`insert_dp` for adding additional pipes (similar to `replace_dp` and `remove_dp`)

[josiahls]

🚀 The feature

Building on dataloader2.graph.replace_dp add a insert_dp possibly insert_dpg (insert a sub graph) functions to insert datapipes into an existing template.

Motivation, pitch

I want to be able to add a single or a graph of datapipes without replacing the existing datapipes.

My practical example is making a dqn multi-processing friendly async dqn

A default dqn agent has the following pipeline:

agent = AgentBase(model)
agent = StepFieldSelector(agent,field='state')
agent = SimpleModelRunner(agent,device=device)
agent = ArgMaxer(agent)
selector = EpsilonSelector(agent,min_epsilon=min_epsilon,max_epsilon=max_epsilon,max_steps=max_steps,device=device)
if logger_bases is not None: agent = EpsilonCollector(selector,logger_bases)
agent = ArgMaxer(agent,only_idx=True)
agent = NumpyConverter(agent)
agent = PyPrimativeConverter(agent)
agent = AgentHead(agent)

I want to make the tempalte / base dqn agent capable of syncing a model across spawn processes. So we insert a data pipe to sync the model.

agent = AgentBase(model)
agent = StepFieldSelector(agent,field='state')
#### agent = ModelSubscriber(agent,device=device) <- insert a pipe before the `SimpleModelRunner` pipe ####
agent = SimpleModelRunner(agent,device=device)
agent = ArgMaxer(agent)
selector = EpsilonSelector(agent,min_epsilon=min_epsilon,max_epsilon=max_epsilon,max_steps=max_steps,device=device)
if logger_bases is not None: agent = EpsilonCollector(selector,logger_bases)
agent = ArgMaxer(agent,only_idx=True)
agent = NumpyConverter(agent)
agent = PyPrimativeConverter(agent)
agent = AgentHead(agent)

Alternatives

Option 1

Add if statements / modify the template to contain most extensions, kind of like the EpsilonCollector I have above.

Option 2

Modify replace_db to support replacing a dp with a DataPipeGraph. So we would do something like:

agent_sub = ModelSubscriber(find_dps(agent,StepFieldSelector)[0],device=device)
agent_sub = SimpleModelRunner(agent_sub,device=device)

replace_db(agent,SimpleModelRunner,agent_sub)

Additional context

Not super tested, but the implementation below I think can allow for inserting a DataPipe or an entire isolated DataPipeGraph

# I have a PassThroughIterPipe that acts as a location that the insert code can definitively know that
# it can reassign
class PassThroughIterPipe(dp.iter.IterDataPipe):
    def __init__(self,source_datapipe): self.source_datapipe = source_datapipe
    def __iter__(self): return (o for o in self.source_datapipe)

def find_dp(graph: DataPipeGraph, dp_type: Type[DataPipe]) -> DataPipe:
    pipes = find_dps(graph,dp_type)
    if len(pipes)==1: return pipes[0]
    elif len(pipes)>1:
        found_ids = set([id(pipe) for pipe in pipes])
        if len(found_ids)>1:
            warn(f"""There are {len(pipes)} pipes of type {dp_type}. If this is intended,
                     please use `find_dps` directly. Returning first instance.""")
        return pipes[0]
    else:
        raise LookupError(f'Unable to find {dp_type} starting at {graph}')

find_dp.__doc__ = "Returns a single `DataPipe` as opposed to `find_dps`.\n"+find_dps.__doc__

def _insert_dp(recv_dp, send_graph: DataPipeGraph, old_dp: DataPipe, new_dp: DataPipe) -> None:
    old_dp_id = id(old_dp)
    for send_id in send_graph:
        if send_id == old_dp_id:
            # We do the same as replace_dp here by switching recv_dp to new_dp
            _assign_attr(recv_dp, old_dp, new_dp, inner_dp=True)

            # Replace the last datapipe in new_dp with the old_dp
            final_datapipe = find_dp(traverse(new_dp),PassThroughIterPipe)
            # But now we switch new_dp from the place holder pipe PassThroughIterPipe, to old_dp thus
            # not breaking the chain. Havent tested if this works for whole graphs as new_dp
            _assign_attr(new_dp, final_datapipe, old_dp, inner_dp=True)
            # new_dp.source_datapipe
        else:
            send_dp, sub_send_graph = send_graph[send_id]
            _insert_dp(send_dp, sub_send_graph, old_dp, new_dp)

def insert_dp(graph: DataPipeGraph, on_datapipe: DataPipe, insert_datapipe: DataPipe) -> DataPipeGraph:
    r"""
    Given the graph of DataPipe generated by ``traverse`` function and the ``on_datapipe`` DataPipe to be reconnected and
    the new ``insert_datapipe`` DataPipe to be inserted after ``on_datapipe``,
    return the new graph of DataPipe.
    """
    assert len(graph) == 1

    # Check if `on_datapipe` is that the head of the graph
    # If so, we `insert_datapipe`
    if id(on_datapipe) in graph:
        graph = traverse(insert_datapipe, only_datapipe=True)

    final_datapipe = list(graph.values())[0][0]

    for recv_dp, send_graph in graph.values():
        _insert_dp(recv_dp, send_graph, on_datapipe, insert_datapipe)

    return traverse(final_datapipe, only_datapipe=True)

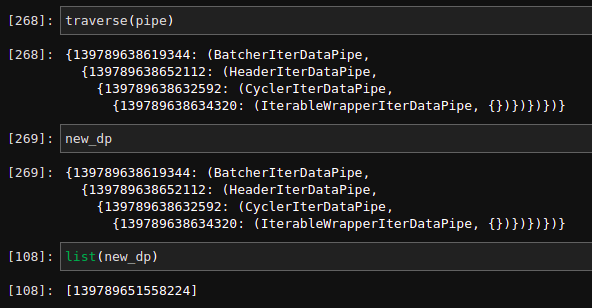

With the test being:

it_pipe = dp.iter.IterableWrapper([1,2,3,4,5,6])
pipe = it_pipe.cycle(count=2)
pipe = pipe.batch(batch_size=2)

new_dp = insert_dp(
    traverse(pipe,only_datapipe=True),
    find_dp(traverse(pipe,only_datapipe=True),dp.iter.Cycler),
    dp.iter.Header(PassThroughIterPipe([]),limit=4)
)

[ejguan]

Thanks for taking explore of torchdata.

IIUC, you want to insert a DataPipe between two DataPipes. Let's say you want to insert DataPipe C between A and B. Original Graph: A -> B Expected New Graph: A -> C -> B

Does this DataPipe accept an argument of DataPipe? And, the PassThroughDataPipe is used as a placeholder to construct DataPipe C. I guess the intention is not to get DataPipe A. However, we need to find DataPipe A anyways for the insert_dp function, I don't see the benefit of having a PassThroughDataPipe. Please correct me if I am wrong.

Your proposed approach:

• First, get instance of DataPipe A
• Second, construct DataPipe C with PassThrough (graph: PassThrough -> C)
• Third, insert C after A. (replace PassThrough by A and then replace A by C)

For the option 2:

• First, get instance of DataPipe A
• Second, construct DataPipe C with A (graph: A -> C)
• Third, replace A by C in the original graph (A -> B ===> A -> C -> B)

[josiahls]

@ejguan I think you understand what im trying to do.

I did go ahead and implemented a practical example that ill attach below.

Does this DataPipe accept an argument of DataPipe? And, the PassThroughDataPipe
is used as a placeholder to construct DataPipe C. I guess the intention is not to get
DataPipe A. However, we need to find DataPipe A anyways for the insert_dp function,
I don't see the benefit of having a PassThroughDataPipe. Please correct me if I am wrong.

I think you're right actually, but the new pipe needs to be a function to avoid the need for a PassThrough (sub_graph)

I'm realizing that I can get the same behavior using pure replace_dp:

pipe = A(range(10))
pipe = B(pipe)

test_eq(list(pipe),range(10))
traverse(pipe)
# {140090589776784: (B, {140090589776848: (A, {})})}

new_dp = replace_dp(
    traverse(pipe,only_datapipe=True),
    find_dp(traverse(pipe,only_datapipe=True),A),
    C(find_dp(traverse(pipe,only_datapipe=True),A))
)
new_dp
# {140090589776784: (B, {140090589778448: (C, {140090589776848: (A, {})})})}

pipe = A(range(10))
pipe = B(pipe)

test_eq(list(pipe),range(10))
traverse(pipe)
# {140090589780944: (B, {140090589779664: (A, {})})}

def sub_graph(pipe):
    pipe = C(pipe)
    pipe = D(pipe)
    pipe = E(pipe)
    return pipe

new_dp = replace_dp(
    traverse(pipe,only_datapipe=True),
    find_dp(traverse(pipe,only_datapipe=True),A),
    sub_graph(find_dp(traverse(pipe,only_datapipe=True),A)) # I can even insert sections of pipes
)

new_dp
# {140090589780944: (B,
#  {140090589796432: (E,
#    {140090589796368: (D,
#      {140090589796112: (C, {140090589779664: (A, {})})})})})}

So maybe instead of a function in torchdata, this would instead of a documentation thing. I think a bunch of users will be interested in "insert" behaviors.

[ejguan]

So maybe instead of a function in torchdata, this would instead of a documentation thing. I think a bunch of users will be interested in "insert" behaviors.

Sounds like a reasonable request. Do you want to open a PR to append it to the in-line doc here?

I will open another issue regarding our online doc.

[josiahls]

@ejguan I'm happy to! I'll try to get a pr made later this week hopefully
