https://fccid.io/2AQ3F  https://fccid.io/2AQ3F-CGG1/Internal-Photos/Internal-Photos-3990168 "Qingping Temp & RH M" has this certificate. But in reality, others are produced and sold. https://github.com/pvvx/ATC_MiThermometer/issues/41#issuecomment-812803456
@bolovanos For a PC, there is a firmware option via a USB-COM adapter in the Chrome explorer. https://github.com/pvvx/ATC_MiThermometer#the-usb-com-adapter-writes-the-firmware-in-explorer-web-version https://pvvx.github.io/ATC_MiThermometer/USBCOMFlashTx.html Only the TX adapter output and SWS pin SoC TLSR825x are...
FTDI is not suitable for Telink S-Wire emulation... CH430, CH340c, Prolific PL-2303HX, ...
A, B and C are fine. In some cases, either a reset signal or a power on is required. These signals are taken from the adapter's DTR or RTS pins....
What is the level of RSSI? At default settings, the data is updated every 10 seconds. ESP32 doesn't work well with BLE... In Home Assistant with "Bluetooth Low Energy Monitor"...
> I hope this will change when ESPHome will switch from arduino to esp-idf framework - it's already available for ESP32-C3modules. It is technically impossible to get stability on the...

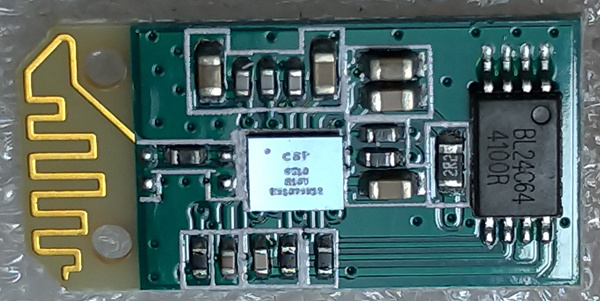

> So, you don't use a ESP32 board at all? But just a BT usb dongle to receive the signals? Yes. BT4.0 usb dongle: [CSR8510 A10](https://github.com/pvvx/ATC_MiThermometer/issues/156#issuecomment-1061444290) ...
I've had several [CGPR1](https://pvvx.github.io/CGPR1/)s running for several months now and haven't found any required additions or changes. They work in Qingping mode and fully meet my needs. Consumption in the...

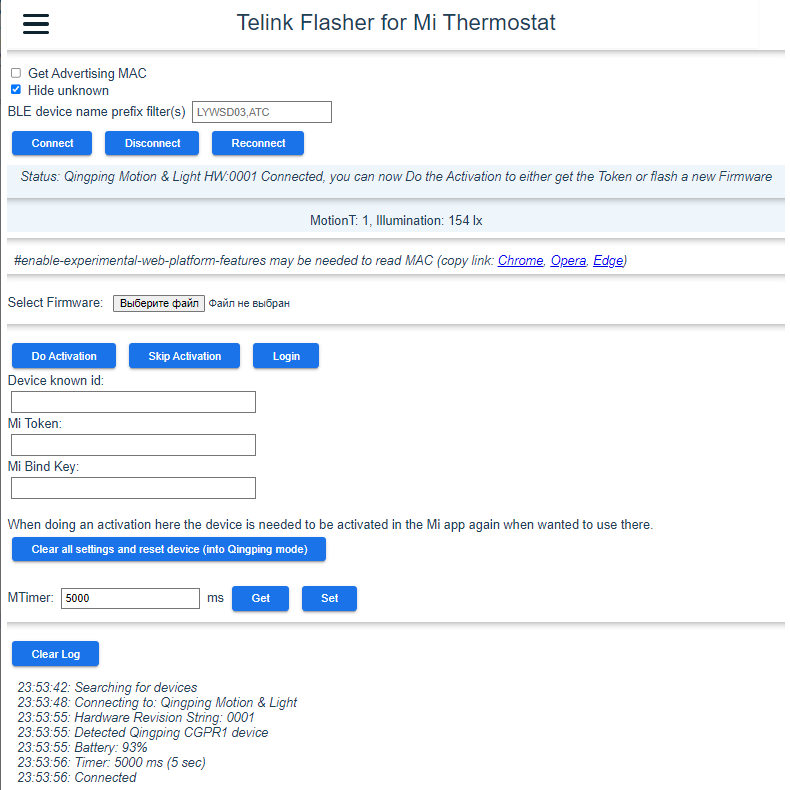

> Did you find or created any tutorial on that? Connect CGPR1:  https://github.com/pvvx/pvvx.github.io/blob/master/ATC_MiThermometer/TelinkMiFlasher.html#L570 Qingping / ClearGrass Advertisement: https://github.com/pvvx/pvvx.github.io/blob/master/ATC_MiThermometer/TelinkMiFlasher.html#L402
You can install the binkey encryption key in TelinkMiFlasher. The sensor will switch to MiHome ([Mijia](https://github.com/pvvx/ATC_MiThermometer/tree/master/InfoMijiaBLE)) mode.
