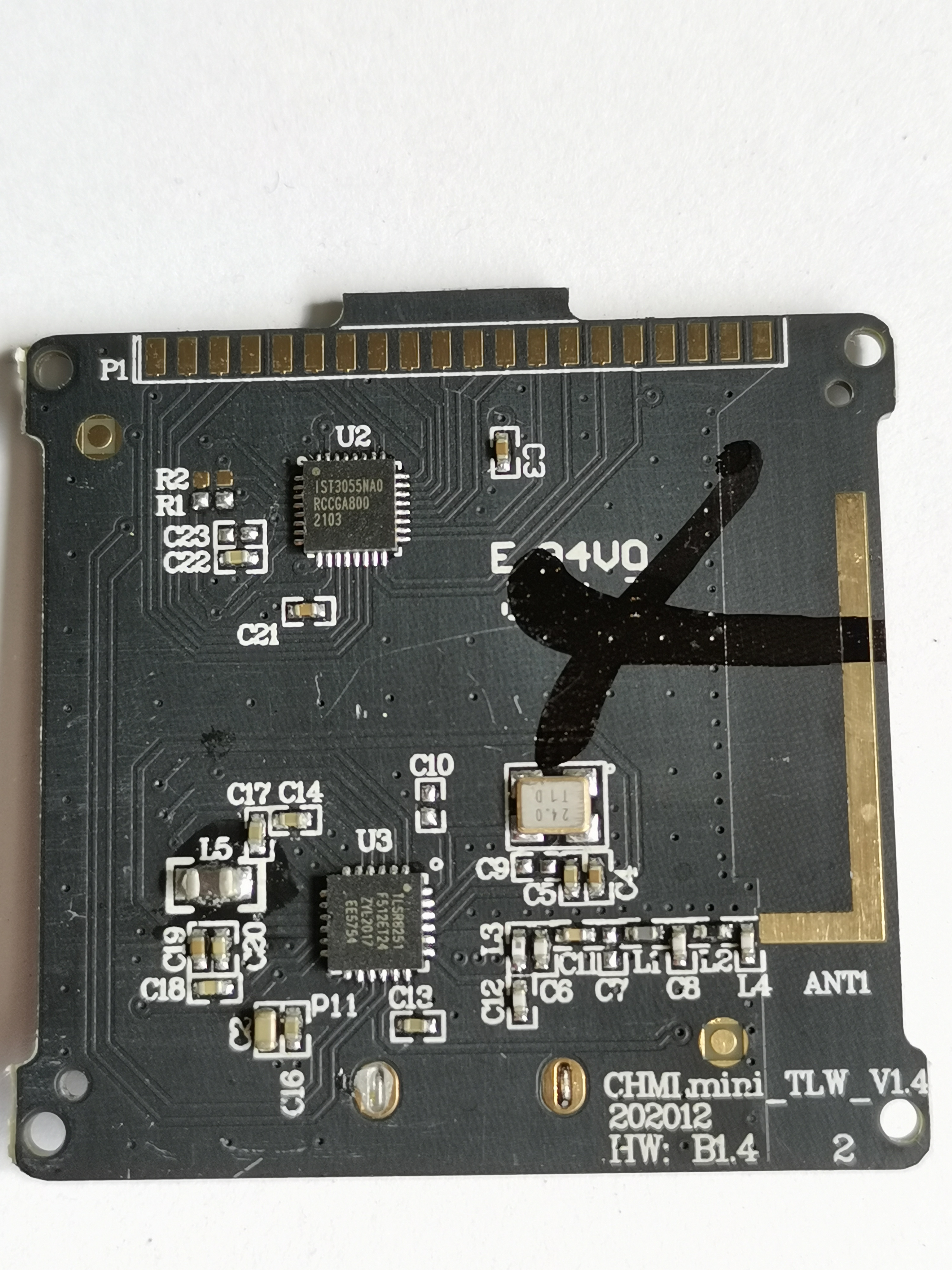

Can't flash firmware on B1.4 version
Status: LYWSD03MMC HW:0000 Connected, you can now Do the Activation to either get the Token or flash a new Firmware
11:19:03: Searching for devices 11:19:10: Connecting to: LYWSD03MMC 11:19:13: Hardware Revision String: 0000 11:19:13: Detected Mi device 11:19:13: Connected 11:19:49: Activating now, please wait... 11:19:53: Registration successfull 11:19:53: Send Login, please wait... 11:19:53: Received device infos are correct 11:19:54: Login successfull
I'm downloading the firmware bin and then uploaded to the device.
That's working.
12:06:50: Searching for devices 12:06:54: Connecting to: LYWSD03MMC 12:06:59: Hardware Revision String: 0000 12:06:59: Detected Mi device 12:06:59: Connected 12:07:06: Activating now, please wait... 12:07:10: Registration successfull 12:07:10: Send Login, please wait... 12:07:10: Received device infos are correct 12:07:10: Login successfull 12:08:01: File: ATC_v37d.bin 12:08:01: File size: 67252 bytes 12:08:01: Count: 4204 12:08:03: Start DFU 12:08:55: Update done after 51.5 seconds 12:09:01: Disconnected. 12:09:45: Reconnect 12:09:53: Hardware Revision String: B1.4 12:09:53: Detected custom Firmware 12:09:56: Hardware Version: LYWSD03MMC B1.4, Software Version: 3.7, Sensor: SHTC3 12:09:56: Custom config: [5, 96, 0, 0, 40, 4, 169, 124, 49, 128, 60] 12:10:15: Send new DevTime ok 12:10:16: Device Date: 2022-08-18 12:10:15.000 12:10:21: New custom config: [5, 96, 0, 0, 40, 4, 169, 124, 49, 128, 60] 12:10:21: Settings 55056000002804A97C31803C was send successful 12:10:21: Hardware Version: LYWSD03MMC B1.4, Software Version: 3.7, Sensor: SHTC3 12:10:21: Custom config: [5, 96, 0, 0, 40, 4, 169, 124, 49, 128, 60]
There is no selection for the firmware. only a selection for a file.
This means that this firmware version from the manufacturer does not support identification.
Hi, I had the same issue and uploaded the custom release firmware manually - after that, detection works. It would be nice to either show a hint in the Flasher, and/or add a note to the readme explaining this issue (https://github.com/pvvx/ATC_MiThermometer/blob/master/README.md?plain=1#L69 and https://github.com/pvvx/ATC_MiThermometer/blob/master/README.md?plain=1#L109).
After I click "Do activation" the log shows "Activating now, please wait..." and the display of the device changes. After 4 seconds it says "Disconnected." in the log. Any ideas?
Edit: ok, now it worked after like 20 retries. I was able to flash the firmware successfully. However, I'm not able to connect to the device any more. After 5 retries it stops. Tried it 20 times with no success. Is the device broken now?
@pvvx Maybe this helps to solve the problem: I had the same problem with 5 failed connects every time before I flashed the firmware. But right after the 5th try it said something with "B1.4" and it connected. So the 6th try was always successful. This doesn't happen any more after I flashed the firmware.
