Organic support not supporting all areas that fit the overhang threshold value

[sandertu]

trafficstars

Description of the bug

Seemingly the organic support style dosent correctly follow the overhang threshold value.

What i expected was that when overhang threshold value is set that all overhangs that fit that criteria would be supported with maybe a cm or two of spacing between the supports. Currently it seems to only connect to "internal"/"domed" overhangs. (first print with organic supports)

Areas marked with red circles will never get organic supports in the model without painting on supports no matter what the overhang threshold is.

Switching to snug will show what areas i expect to be supported but organic ignores all of the outer areas. (almost like it is ignoring the wrong ones)

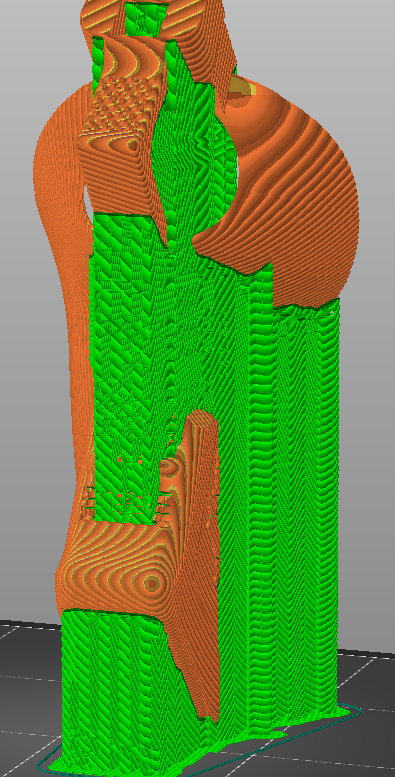

Snug for comparison

Project file & How to reproduce

chewey_glk-17_right_grip.zip

To recreate. *Set a value for overhang threshold that would support large external areas. *Use organic support. *See few supports. *Switch to snug. *See a lot more areas being supported.

Checklist of files included above

• [X] Project file
• [X] Screenshot

Version of PrusaSlicer

PrusaSlicer-2.6.0-alpha3+win64-202302031521

Operating system

WIN 10

Printer model

Prusa mini+
