Measure Tool does not recognize edge of a hole as circle

[stefan-am]

trafficstars

Description of the bug

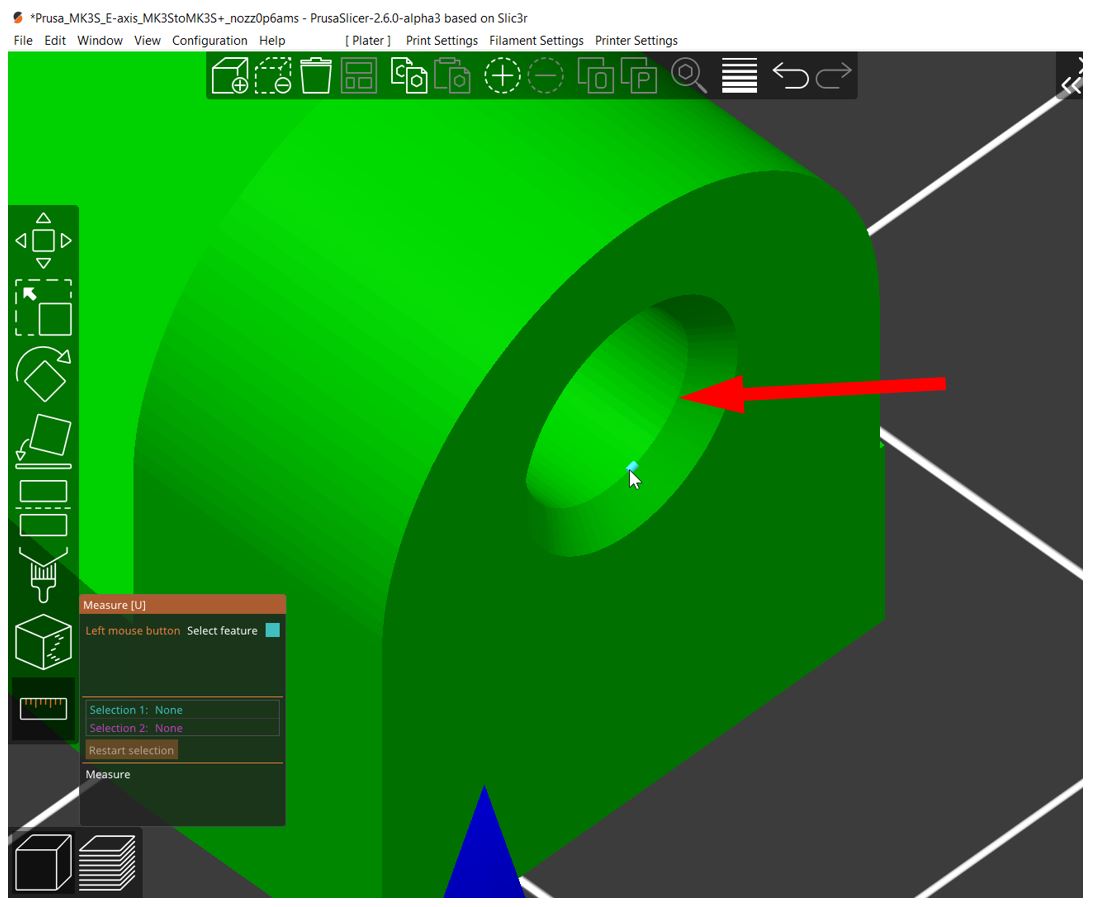

In the attached example, the measure tool does not recognize the edge - marked with the red arrow - as a circle. So one cannot measure the diameter of the hole. On other edges it works fine! measuretool_bug.zip

Project file & How to reproduce

Open project file, select the object, select the measure tool and move the cursor over the edge. The tool does not recognize the edge as circle.

Checklist of files included above

• [X] Project file
• [X] Screenshot

Version of PrusaSlicer

Version 2.6.0-alpha3+win64

Operating system

Windows 10 (build 19045), 64-bit edition

Printer model

Original MK3S

[kubispe1]

Hi, circle geometry detection of these chamfered holes seems more challenging. Reproducible. I am attaching also my example. Body2_chamfer.zip
