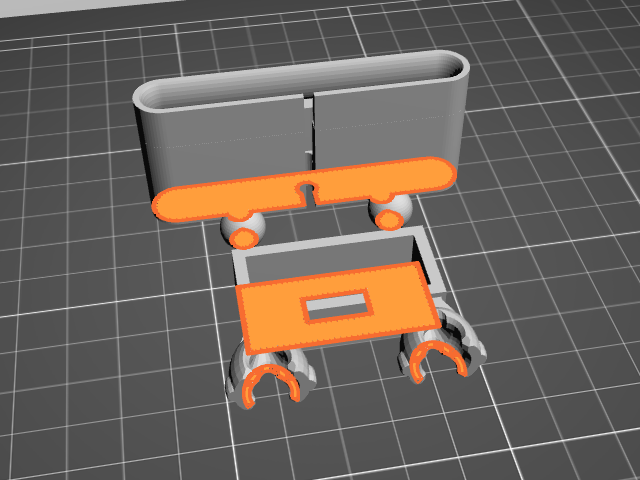

Extruder moves quickly over small objects, removing them from bed
Extruder moves quickly over small objects, removing them from the bed, resulting in a mess.
It should go around the printed objects instead, especially small ones.
Example STL and GCODE attached.
In Slic3r, this seems to be Print Settings -> Layers and perimeter -> Avoid crossing perimeters but this is not sufficient. Printing this with supports worked, but PrusaControl did not show a warning that supports should be used.
Also we have the Z-hop enabled by default, so the extruder is supposed to skip over these warping objects.
The "Avoid crossing perimeters" feature in Slic3r is not very good as of now, it often extends the travel paths too much, leading not only to extended print times, but it may also have adverse effects on print quality due to extruder leakage for some materials.
On Tue, Jul 18, 2017 at 12:07 AM, probonopd [email protected] wrote:
In Slic3r, this seems to be Print Settings -> Layers and perimeter -> Avoid crossing perimeters
— You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub https://github.com/prusa3d/PrusaControl/issues/28#issuecomment-315899313, or mute the thread https://github.com/notifications/unsubscribe-auth/AFj5I_gLJl1BQm63bIGyoYbHKQ5MNxGcks5sO9skgaJpZM4OaZH8 .
As bubnikv said, z-hop is on to avoid collisions on objects.
The Brim settings would be good to turn on for this print.
We are working on improving the auto analysis for cases such as this one.
