Supported field types in Volto

[pbauer]

This is a summary of some issues:

• Some default field-types are not are not serialized by plone.restapi (schema.Time, schema.Timedelta, schema.Dict).
• Some fields are not properly implemented yet (RelationChoice).
• Some fields are not working properly (list or set with value_type=schema.Choice, see #952)
• directives.widget() is ignored in volto

In https://training.plone.org/5/mastering-plone/dexterity_reference.html all schema-fields are documented for Plone 5.

For Plone 6 with Volto the same is done in plone/training/blob/9f9a6dc4e347c43aadc524a6dbb68e8ca2a802db/mastering-plone/dexterity_reference.rst (you can see the screenshots there)

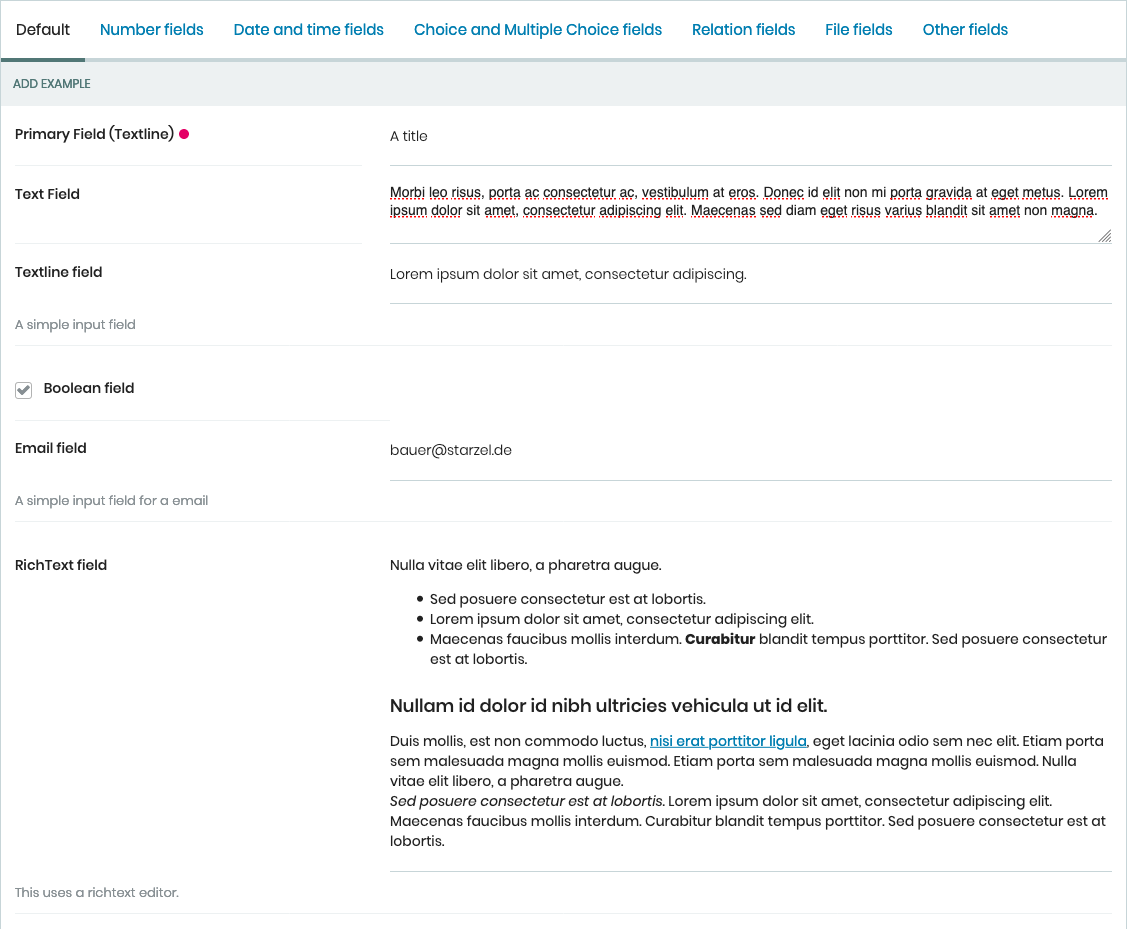

Here are the screenshots in Volto: Default Fields:

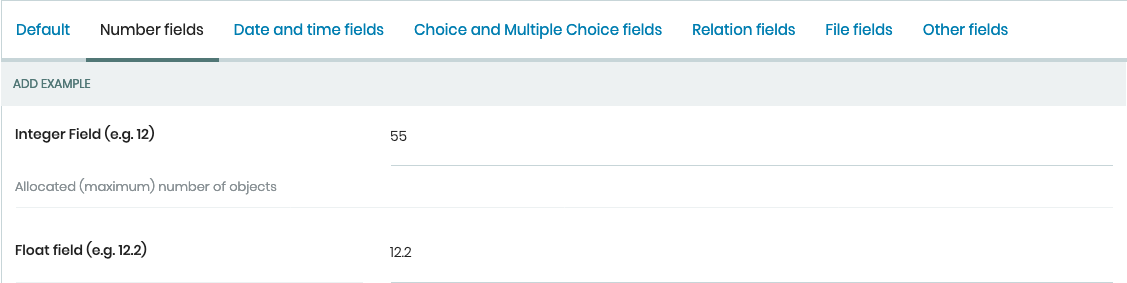

Number Fields:

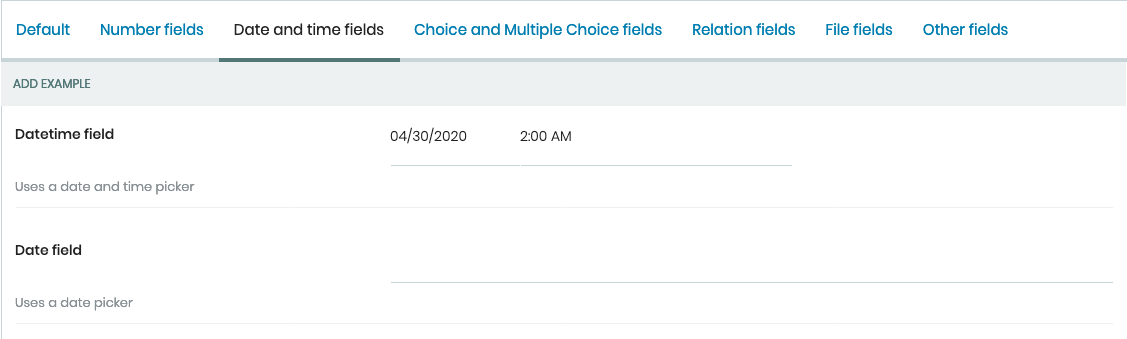

Datetime Fields

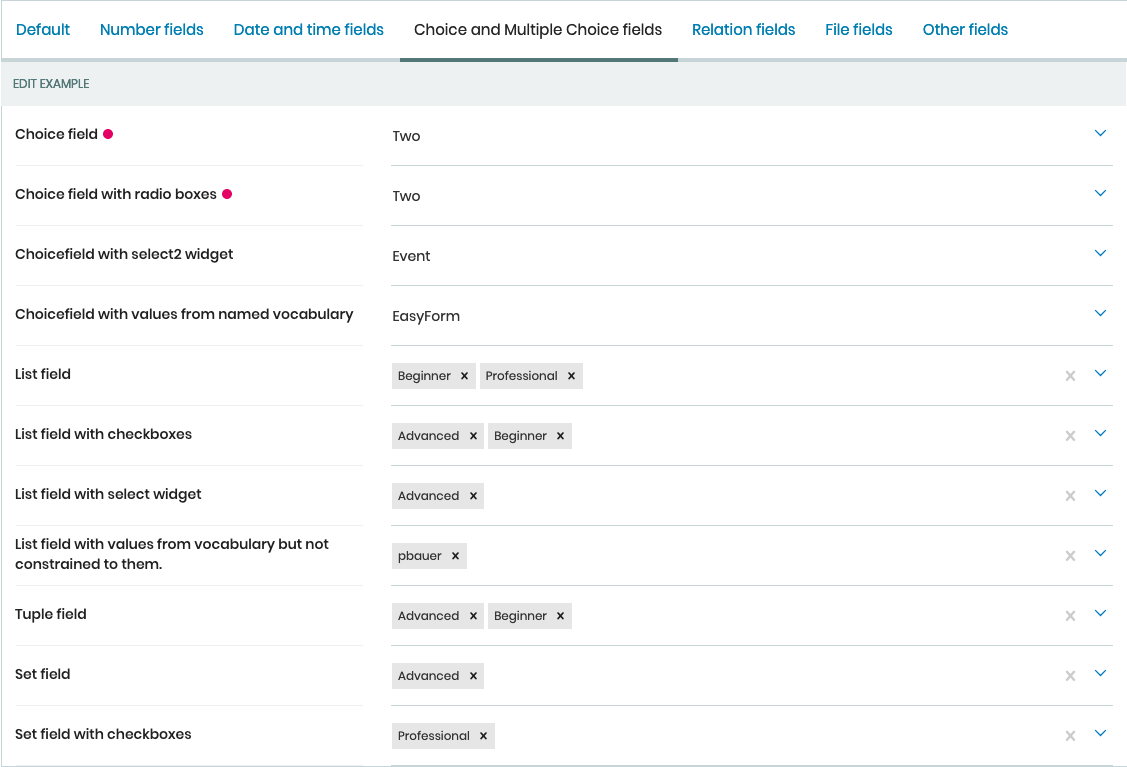

Choice and Multiple Choice Fields

Relation Fields

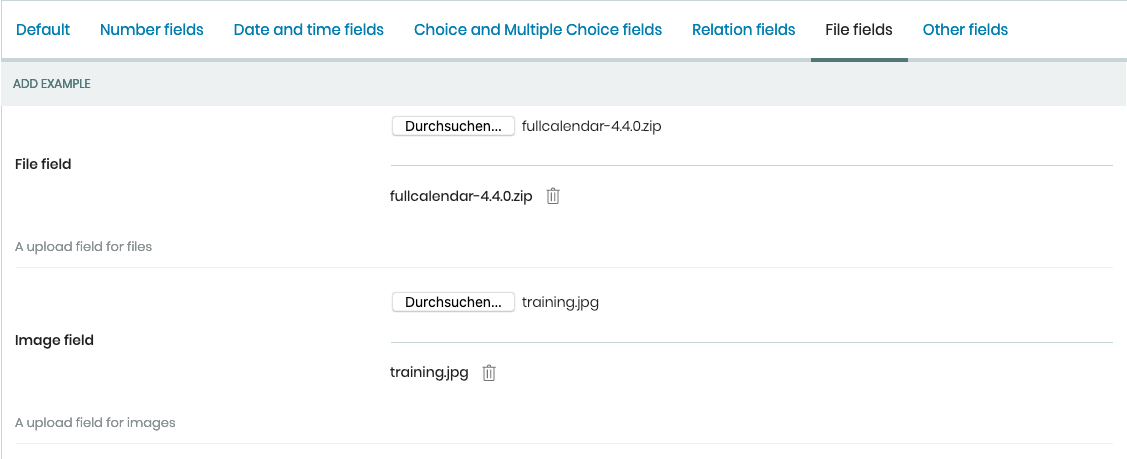

File fields

Other fields

To try yourself: https://github.com/collective/ploneconf.site/tree/demo_all_fields has the example type with all fields.

Here is the example schema:

# -*- coding: utf-8 -*-
# from plone.app.multilingual.browser.interfaces import make_relation_root_path
from plone.app.textfield import RichText
from plone.app.z3cform.widget import AjaxSelectFieldWidget
from plone.app.z3cform.widget import RelatedItemsFieldWidget
from plone.app.z3cform.widget import SelectFieldWidget
from plone.autoform import directives
from plone.dexterity.content import Container
from plone.namedfile.field import NamedBlobFile
from plone.namedfile.field import NamedBlobImage
from plone.schema.email import Email
from plone.supermodel import model
from plone.supermodel.directives import fieldset
from plone.supermodel.directives import primary
from ploneconf.site import _
from z3c.form.browser.checkbox import CheckBoxFieldWidget
from z3c.form.browser.radio import RadioFieldWidget
from z3c.relationfield.schema import Relation
from z3c.relationfield.schema import RelationChoice
from z3c.relationfield.schema import RelationList
from zope import schema
from zope.interface import implementer


class IExample(model.Schema):
    """Dexterity-Schema with all field-types."""

    # The most used fields
    # textline, text, bool, richtext, email

    fieldset(
        'numberfields',
        label=u'Number fields',
        fields=('int_field', 'float_field'),
    )

    fieldset(
        'datetimefields',
        label=u'Date and time fields',
        fields=('datetime_field', 'date_field',),
    )

    fieldset(
        'choicefields',
        label=u'Choice and Multiple Choice fields',
        fields=(
            'choice_field',
            'choice_field_radio',
            'choice_field_select',
            'choice_field_voc',
            'list_field',
            'list_field_checkbox',
            'list_field_select',
            'list_field_voc_unconstrained',
            'tuple_field',
            'set_field',
            'set_field_checkbox',
        ),
    )

    fieldset(
        'relationfields',
        label=u'Relation fields',
        fields=(
            'relationchoice_field',
            'relationlist_field',
        ),
    )

    fieldset(
        'filefields',
        label=u'File fields',
        fields=('file_field', 'image_field'),
    )

    fieldset(
        'otherfields',
        label=u'Other fields',
        fields=(
            'uri_field',
            'sourcetext_field',
            'ascii_field',
            'bytesline_field',
            'asciiline_field',
            'pythonidentifier_field',
            'dottedname_field',
            ),
    )

    primary('title')
    title = schema.TextLine(
        title=u'Primary Field (Textline)',
        required=True,
        )

    text_field = schema.Text(
        title=u'Text Field',
        required=False,
        missing_value=u'',
    )

    textline_field = schema.TextLine(
        title=u'Textline field',
        description=u'A simple input field',
        required=False,
        )

    bool_field = schema.Bool(
        title=u'Boolean field',
        required=False,
    )

    choice_field = schema.Choice(
        title=u'Choice field',
        values=[u'One', u'Two', u'Three'],
        required=True,
        )

    directives.widget(choice_field_radio=RadioFieldWidget)
    choice_field_radio = schema.Choice(
        title=u'Choice field with radio boxes',
        values=[u'One', u'Two', u'Three'],
        required=True,
        )

    choice_field_voc = schema.Choice(
        title=u'Choicefield with values from named vocabulary',
        vocabulary='plone.app.vocabularies.PortalTypes',
        required=False,
        )

    directives.widget(choice_field_select=SelectFieldWidget)
    choice_field_select = schema.Choice(
        title=u'Choicefield with select2 widget',
        vocabulary='plone.app.vocabularies.PortalTypes',
        required=False,
        )

    list_field = schema.List(
        title=u'List field',
        value_type=schema.Choice(
            values=[u'Beginner', u'Advanced', u'Professional'],
            ),
        required=False,
        missing_value=[],
        )

    directives.widget(list_field_checkbox=CheckBoxFieldWidget)
    list_field_checkbox = schema.List(
        title=u'List field with checkboxes',
        value_type=schema.Choice(
            values=[u'Beginner', u'Advanced', u'Professional'],
            ),
        required=False,
        missing_value=[],
        )

    directives.widget(list_field_select=SelectFieldWidget)
    list_field_select = schema.List(
        title=u'List field with select widget',
        value_type=schema.Choice(
            values=[u'Beginner', u'Advanced', u'Professional'],
            ),
        required=False,
        missing_value=[],
        )

    list_field_voc_unconstrained = schema.List(
        title=u'List field with values from vocabulary but not constrained to them.',
        value_type=schema.TextLine(),
        required=False,
        missing_value=[],
        )
    directives.widget(
        'list_field_voc_unconstrained',
        AjaxSelectFieldWidget,
        vocabulary='plone.app.vocabularies.Users'
    )


    tuple_field = schema.Tuple(
        title=u'Tuple field',
        value_type=schema.Choice(
            values=[u'Beginner', u'Advanced', u'Professional'],
            ),
        required=False,
        missing_value=(),
        )

    set_field = schema.Set(
        title=u'Set field',
        value_type=schema.Choice(
            values=[u'Beginner', u'Advanced', u'Professional'],
            ),
        required=False,
        missing_value={},
        )

    directives.widget(set_field_checkbox=CheckBoxFieldWidget)
    set_field_checkbox = schema.Set(
        title=u'Set field with checkboxes',
        value_type=schema.Choice(
            values=[u'Beginner', u'Advanced', u'Professional'],
            ),
        required=False,
        missing_value={},
        )

    # File fields
    image_field = NamedBlobImage(
        title=u'Image field',
        description=u'A upload field for images',
        required=False,
        )

    file_field = NamedBlobFile(
        title=u'File field',
        description=u'A upload field for files',
        required=False,
        )

    # Date and Time fields
    datetime_field = schema.Datetime(
        title=u'Datetime field',
        description=u'Uses a date and time picker',
        required=False,
    )

    date_field = schema.Date(
        title=u'Date field',
        description=u'Uses a date picker',
        required=False,
    )

    # not supported in Volto
    # time_field = schema.Time(
    #     title=u'Time field',
    #     required=False,
    #     )

    # not supported in Volto
    # timedelta_field = schema.Timedelta(
    #     title=u'Timedelta field',
    #     required=False,
    #     )

    # Relation Fields
    relationchoice_field = RelationChoice(
        title=u"Relationchoice field",
        vocabulary='plone.app.vocabularies.Catalog',
        required=False,
    )
    directives.widget(
        "relationchoice_field",
        RelatedItemsFieldWidget,
        pattern_options={
            "selectableTypes": ["Document"],
            # "basePath": make_relation_root_path,
        },
    )

    relationlist_field = RelationList(
        title=u"Relationlist Field",
        default=[],
        value_type=RelationChoice(vocabulary='plone.app.vocabularies.Catalog'),
        required=False,
        missing_value=[],
    )
    directives.widget(
        "relationlist_field",
        RelatedItemsFieldWidget,
        vocabulary='plone.app.vocabularies.Catalog',
        pattern_options={
            "selectableTypes": ["Document"],
            # "basePath": make_relation_root_path,
        },
    )

    # Number fields
    int_field = schema.Int(
        title=u"Integer Field (e.g. 12)",
        description=u"Allocated (maximum) number of objects",
        required=False,
    )

    float_field = schema.Float(
        title=u"Float field (e.g. 12.2)",
        required=False,
    )

    # Text fields
    email_field = Email(
        title=u'Email field',
        description=u'A simple input field for a email',
        required=False,
        )

    uri_field = schema.URI(
        title=u'URI field',
        description=u'A simple input field for a URLs',
        required=False,
        )

    richtext_field = RichText(
        title=u'RichText field',
        description=u'This uses a richtext editor.',
        max_length=2000,
        required=False,
        )

    sourcetext_field = schema.SourceText(
        title=u'SourceText field',
        required=False,
        )

    ascii_field = schema.ASCII(
        title=u'ASCII field',
        required=False,
        )

    bytesline_field = schema.BytesLine(
        title=u'BytesLine field',
        required=False,
        )

    asciiline_field = schema.ASCIILine(
        title=u'ASCIILine field',
        required=False,
        )

    pythonidentifier_field = schema.PythonIdentifier(
        title=u'PythonIdentifier field',
        required=False,
        )

    dottedname_field = schema.DottedName(
        title=u'DottedName field',
        required=False,
        )

    # not supported in Volto
    # dict_field = schema.Dict(
    #     title=u'Dict field',
    #     required=False,
    #     key_type = schema.TextLine(
    #         title=u'Key',
    #         required=False,
    #         ),
    #     value_type = schema.TextLine(
    #         title=u'Value',
    #         required=False,
    #         ),
    #     )

    # not supported in Volto
    # dict_field_with_choice = schema.Dict(
    #     title=u'Dict field with key and value as choice',
    #     required=False,
    #     key_type = schema.Choice(
    #         title=u'Key',
    #         values=[u'One', u'Two', u'Three'],
    #         required=False,
    #         ),
    #     value_type = schema.Set(
    #         title=u'Value',
    #         value_type=schema.Choice(
    #             values=[u'Beginner', u'Advanced', u'Professional'],
    #             ),
    #         required=False,
    #         missing_value={},
    #         ),
    #     )

@implementer(IExample)
class Example(Container):
    """Example instance class"""

[avoinea]

@pbauer Some improvements on the way https://github.com/plone/volto/pull/1454

[singularity713]

is this issue solved?
