Show/Hide Container or Click to Expand

[takumade]

Is there an option to expand and collapse container or I am dreaming

1. Expand shows all the components
2. Collapse hides all the components

Been searching for that and I cant find that anywhere

[Potherca]

Not sure if this is what you mean, but as described in the "Hide attributes, methods..." section of the PlantUML Class Diagram manual, the hide attribute allows hiding elements.

As C4 PlantUML adds "stereotypes" (which look like <<foo>>) to elements, these can be used to hide elements of a specific type.

The following elements could be hidden:

• <<boundary>>
• <<container>>
• <<person>>
• <<system>>
• <<external_person>>
• <<external_system>>
• <<external_container>>

(besides using hide rectangle or hide database)

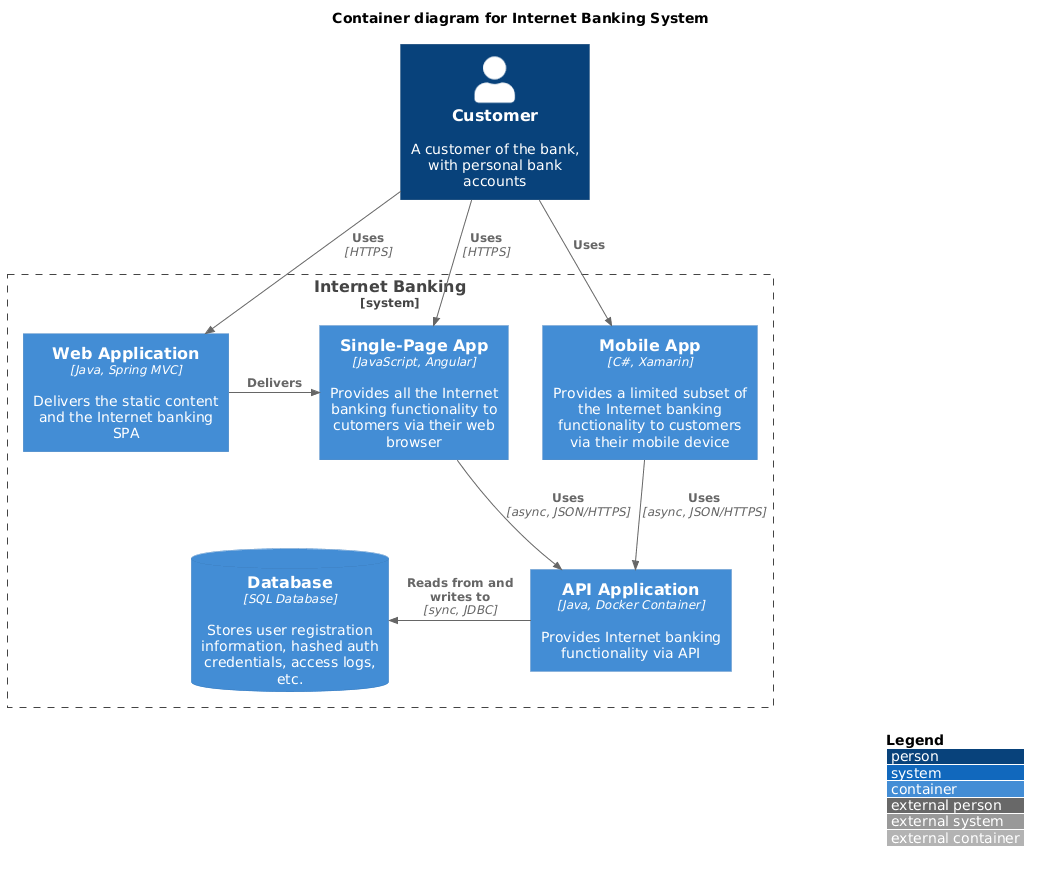

To give you an idea, using the Container diagram for Internet Banking System as example.

Going through each element in turn, we get:

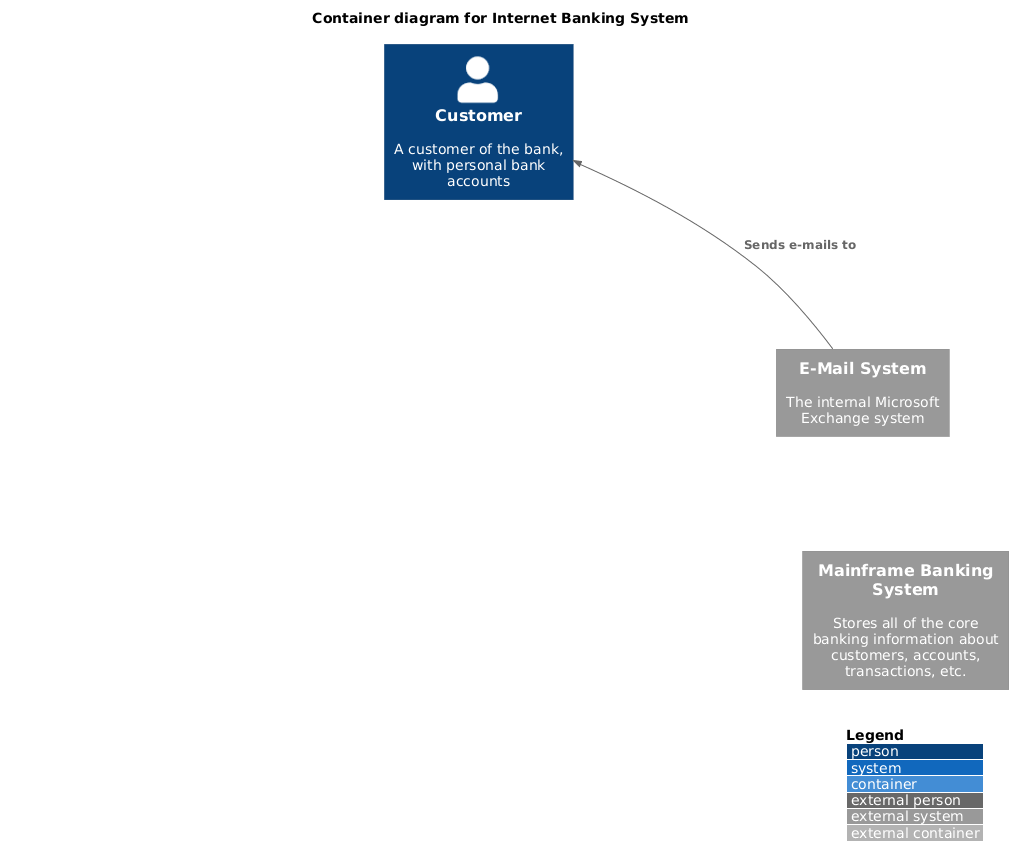

hide <<boundary>>

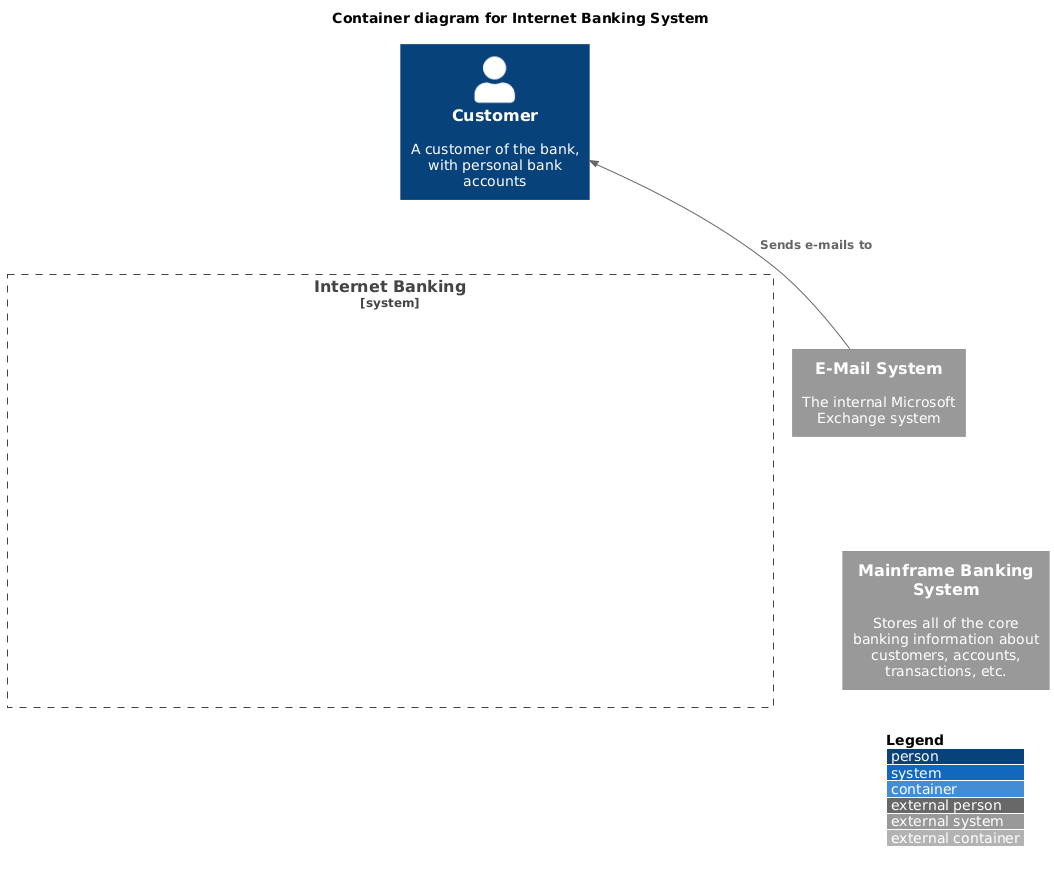

hide <<container>>
hide <<person>>
hide <<external_system>>
