InstaTemp: A temperature monitoring app!

Open emccarroll opened this issue 6 years ago • 1 comments

Submission description

I have wanted to create a mobile UI for a temperature monitoring project of mine for a while now and I thought a Carousel View would be perfect. I was also inspired by kphillpotts's use of SkiaSharp and figured I'd try that out as well. *Note no monkeys were harmed making this app

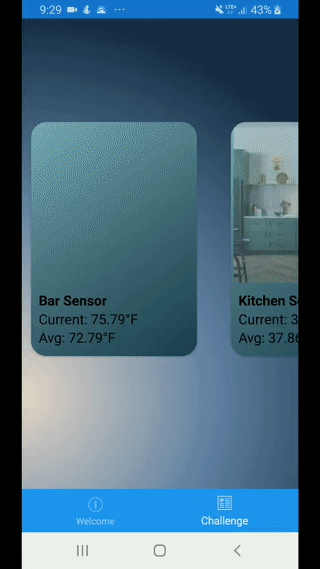

challenge2

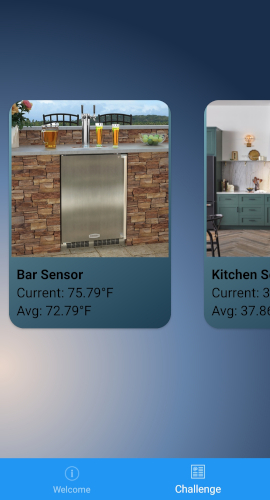

20190924_230504

What went well

I was able to easily add in the carousel view and populate it through data bindings.

What didn't go well

Initially I found it difficult to use PeekAreaInsets and the Carousel Item's padding in order to get the distance between objects how I wanted. Perhaps having a Carousel Item spacing property on the Carousel View would make it easier to implement?

I wasn't able to keep the size of my Carousel Items consistent across phones with different screen widths. This is probably because I put everything into Grids with Non Explicit Height/Width Constraints(I only used * , 4* , 2* etc).

I had issues merging my commits because my clone was behind the main branch due to cloning early on.

Missing or desired things

Carousel Item Spacing Property(Explanation Above)

Anything else

I love <3 swag!

emccarroll avatar Sep 25 '19 03:09 emccarroll

To set the spacing between objects use ItemSpacing:

<CarouselView PeekAreaInsets="30"
                      Position="2"
                      ItemTemplate="{DataTemplate views:CityBoxTemplate}"
                      ItemsSource="{Binding Cities}"
                      Grid.Row="1">
            <CarouselView.ItemsLayout>
                <LinearItemsLayout Orientation="Horizontal"
                                   SnapPointsType="MandatorySingle"
                                   SnapPointsAlignment="Center"
                                   ItemSpacing="8"/>
            </CarouselView.ItemsLayout>
        </CarouselView>

davidortinau avatar Sep 25 '19 21:09 davidortinau
