Lessons learned & ORY Oathkeeper NextGen
First of all, thank you for using ORY Oathkeeper and placing trust in us! This issue's purpose is to discuss structural changes to ORY Oathkeeper.
ORY Oathkeeper is used in production at many companies, handling tons of traffic every day. As such, we naturally receive a lot of bug reports and pull requests. Let's take a look at areas of improvement. Some of these changes will not be backwards compatible, which is why we want you to discuss them with us!
All of the listed changes are breaking changes, which is why it is important to get your feedback! When giving feedback, please keep in mind that we want to build the best product possible for you! This sometimes includes breaking things to move forward :)
Non-Goals
Before we start I want to define some non-goals. One of the non-goals is to implement an "identity-aware" proxy like Pomerium. The reason for that is that we don't want to have user interfaces in Oathkeeper itself. It will be possible (in future versions) to get what Pomerium does (plus a ton more) by combining ORY Oathkeeper and ORY Kratos. If an identity-aware proxy is all that's needed, Pomerium is also probably the better choice!
Support negative lookahead
Neither glob nor regex currently support negative lookahead, but it is quite important to support them as it allows for much easier rule definition. See also https://www.linuxjournal.com/content/bash-extended-globbing
More Proxies
https://github.com/ory/oathkeeper/pull/265
Logging
This release aims to better support debugging by adding a lot of debug logs. We understand that debugging ORY Oathkeeper is time-consuming and frustrating and we want to provide the best tooling possible to fix that!
This is a non-breaking change.
Error Handling
The error handling is quite complex to understand, configure, and debug. The following config is a real-world example:
errors:
fallback:
- json
handlers:
redirect:
enabled: true
config:
to: http://127.0.0.1:4455/auth/login
when:
-
error:
- unauthorized
- forbidden
request:
header:
accept:
- text/html
json:
enabled: true
config:
verbose: true
All it does is return JSON unless the a real user using a browser is making the request, in which case we redirect. We need something better!
These change will not be backwards compatible.
Redirect
One thing we can improve is to decide what to do based on the accept header. If it includes application/json, we return JSON (what else would we return?). If it includes
text/html we show an HTML error.
To redirect the browser on error, we could define something like:
errors:
browser:
when:
unauthorized:
redirect_to: http://127.0.0.1:4455/auth/login
# forbidden
# ...
This works per-route. It might still be cool to redirect based on content-type - maybe we want to redirect to another application/json endpoint?
errors:
browser:
when:
unauthorized:
redirect_to: http://127.0.0.1:4455/auth/login
# forbidden
request:
accepts:
- application/json
contentType:
- application/json
Todo: Actually the old logic makes more sense because we can have multiple WHENs with an OR. The question is, how likely is it that we have one rule for all eventuality?
Custom HTML Errors
We could allow custom HTML error pages using Go Templates:
errors:
browser:
when:
unauthorized:
use_template: file://to/mytemplate.html.gotmpl
# forbidden
# ...
The template has access to the error and maybe AuthenticationSession and can return any valid HTML:
<html>
<!-- ... -->
</html>
Custom JSON Errors
We could allow custom JSON errors using JsonNet:
errors:
json:
when:
unauthorized:
response: file://to/error.jsonnet
# forbidden
# ...
With a JsonNet file like:
// Edit me!
{
{"message": "go away", "code": ctx.error.code}
}
AuthenticationSession
The AuthenticationSession has grown in scope. It contains more and more fields which are sometimes even used as "temporary storage" or something that can be modified over the lifetime of a request. This was not the struct's intention and it's thus time to think of a better way of solving this.
We want to solve that by first renaming AuthenticationSession to RequestContext with the following layout:
{
"subject": "12345", // This is the "user" / "service account" / "..." that made the request.
"request": {
"headers": {
"authorization": "...",
"host": "...",
"user-agent": "...",
}, // The original HTTP Request Headers
"method": "GET", // Or post, put, ...
"path": "/foo/bar?foo=bar"
"match": {/*...*/} // Regex Capture groups
},
"response": {
"headers": {
"x-custom-header": "1234"
}
}
}
This context is available in all JsonNet definitions (see sections below) as the global variable ctx.
Go Templates (Breaking Change)
Go Templates are not great for building JSON. While this is readable
mutators:
id_token:
enabled: true
config:
issuer_url: http://127.0.0.1:4455/
jwks_url: file:///etc/config/oathkeeper/id_token.jwks.json
claims: |
{
"session": {{ .Extra | toJson }}
}
it becomes much less readable and hard to debug - especially with nested objects. As hinted in other issues (#423) JsonNet is a good alternative here:
mutators:
id_token:
enabled: true
config:
issuer_url: http://127.0.0.1:4455/
jwks_url: file:///etc/config/oathkeeper/id_token.jwks.json
claims: |
{ "session": ctx.extra, "user": ctx.subject /* , ... */ }
With JsonNet one could also extract values from extra. Because JsonNet is often loaded from file, we should also be able to specify a file location to load the JsonNet code from:
mutators:
id_token:
enabled: true
config:
issuer_url: http://127.0.0.1:4455/
jwks_url: file:///etc/config/oathkeeper/id_token.jwks.json
claims: file://...
# claims: https://...
JsonNet has many cool features and no sideeffects or security implications. It supports linting, formatting, and we can even provide a test framework. They're much better and easier to use!
Authenticators
cookie_session (Breaking Change)
Instead of using extra_form and subject_from with weird JsonPaths
cookie_session:
enabled: true
config:
check_session_url: http://kratos:4433/sessions/whoami
preserve_path: true
extra_from: "@this"
subject_from: "identity.id"
only:
- ory_kratos_session
let's just use JsonNet
cookie_session:
enabled: true
config:
check_session_url: http://kratos:4433/sessions/whoami
response:
parse: |
{ "subject": response.sub, "extra", response }
# parse: file:// ...
only:
- ory_kratos_session
Because we're already changing the config, we also want to improve the config layout for preserving paths and the original HTTP method:
cookie_session:
enabled: true
config:
request:
preserve:
method: true # Otherwise this becomes a GET request, see https://github.com/ory/kratos/issues/270
path: true
headers: |
{
Authorization: ctx.subject
}
Authorizers
remote_json
This authorizer makes a remote rpc call with a JSON body and expects 403 or 200. Currently, the config is as follows:
remote_json:
enabled: true
config:
remote: https://...
payload: |
{ "some": "go template {{.Subject}}" }
Besides switching to JsonNet support instead of Go Templates, we want to improve the way the request is made by making it possible to also define custom headers:
cookie_session:
enabled: true
config:
remote: https://...
request:
body: |
{ user: ctx.subject }
headers: |
{
Authorization: ctx.subject
}
remote
This authorizer makes a remote rpc call and pipes through the body. It expects 403 or 200. Currently, the config is as follows:
remote_json:
enabled: true
config:
remote: https://...
headers:
SomeHeader: "go template {{.Subject}}"
Besides switching to JsonNet support instead of Go Templates, we want to improve the way the request is made by making it possible to also define custom headers:
cookie_session:
enabled: true
config:
remote: https://...
request:
body: |
{ user: ctx.subject }
headers: |
{
Authorization: ctx.subject
}
keto_engine_acp_ory (Breaking Change)
This release will remove the authorizer. You should use remote_json instead:
Mutators
header
Right now the header mutator is configured with Go Templates like so (example):
mutators:
header:
enabled: true
config:
headers:
X-User-Id: {{ .Subject }}
This will stay very similar but the value is no longer a Go Template but instead a JsonNet. You can get the above by doing:
mutators:
header:
enabled: true
config:
headers:
X-User-Id: ctx.subject
cookie
Right now the cookie mutator is configured with Go Templates like so (example):
mutators:
cookie:
enabled: true
config:
cookies:
myUserAsCookie: {{ .Subject }}
This will stay very similar but the value is no longer a Go Template but instead a JsonNet. You can get the above by doing:
mutators:
cookie:
enabled: true
config:
cookies:
X-User-Id: ctx.subject
This allows you to also use more sophisticated means in the future, such as singing the cookie value.
id_token
The claims config no longer accepts Go Templates but instead uses JsonNet and loads files from file/https sources:
mutators:
id_token:
enabled: true
config:
claims: |
{ "session": ctx.extra, "user": ctx.subject /* , ... */ }
# claims: https://...
# claims: https://...
mutator
Will be removed, see Hydration
Hydration
The hydrator mutator has been added with the intention of making calls to other services and fetching data (e.g. from Stripe). These don't really mutate the response, but add extra data to the AuthenticationSession.

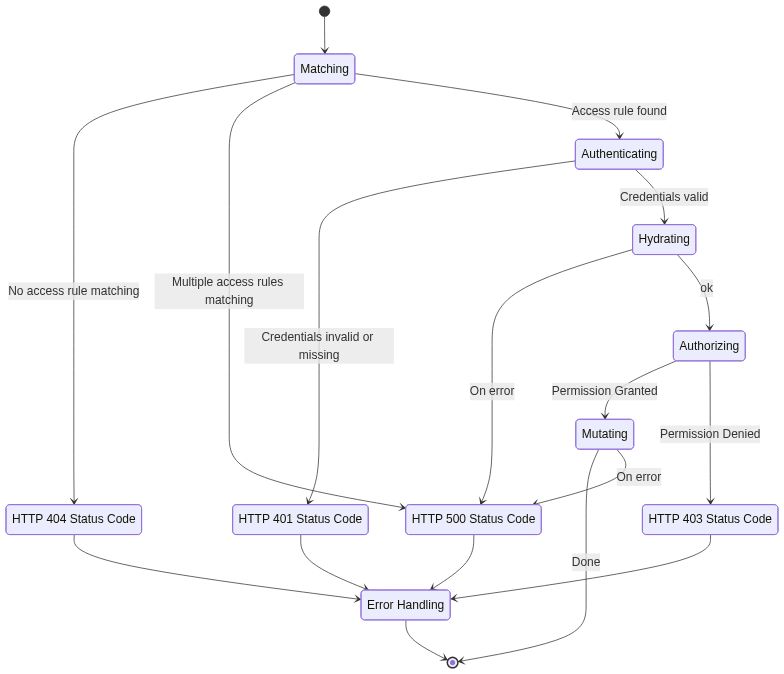

To fix this, the general idea is to add another step to the pipeline called "Hydration". The steps are now:
- Check if request can be authenticated (using e.g. oauth2 token introspection)
- Hydrate the RequestContext (new! here you can make e.g. HTTP calls to fetch additional user info)
- Check if the request is authorized (you can use the additional user info here!!)
- Mutate the request (e.g. add id_token)
Instead of using handlers here we think a good idea would be to write JsonNet instead:
hydrator: file://...
The JsonNet gets an extra function called http_request which allows us to make an http request somewhere if needed:
// here is some jsonnet code that makes an HTTP call somewhere. probably is only going to work with JSON requests.
Alternatively, this also has handlers but I'm not sure if that's actually that useful as we always want to transform the RequestContext.
Caching
Caching is a hard problem and even more so in Ory Oathkeeper. Besides a CVE it has lead to several PRs:
- Add caching to components who do not have it
- Improve caching key flexibility
- Add Redis
- ...
Another interesting thinking is:
Thank you. I am unsure though wether I can agree here. I think it points to a deeper issue though which is manifesting in this pr: It is not possible to define the cache key reliably. Actually, one would probably like to define the cache key themselves (e.g. subject + scope) to make the system more efficient. For example, the AuthSession might contain vital info such as a "permissions" array. Yet, it may also contain a counter or timestamp which is changing for most of the requests - invalidating the cache if included.
We are still not there yet with a new concept for Ory Oathkeeper, but I think this is a very interesting problem that could very well warrant a realignment on Ory Oathkeeper which would be to make access control at the reverse proxy as efficient and flexible as possible.
I think this too could benefit from JsonNet, as JsonNet is typable, lintable, and can produce errors (go templating fulfills none of these properties).
Unfortunately, for this PR in particular, I don't think the current implementation can be accepted because it still bears too many risks and this particular type of issue has already caused a CVE in Ory Oathkeeper which is why I am so hyper-sensible about this topic: https://github.com/ory/oathkeeper/security/advisories/GHSA-qvp4-rpmr-xwrr
https://github.com/ory/oathkeeper/pull/885#discussion_r779336841
So I think this is a sweetspot for this project. Making access control powerful to configure, whlie also very efficient.
Most of the changes are regarding JsonNet. Personally I think it's a win for readability. When I first encountered Go template I was certainly faced a lot of frustrations.
I liked the idea of removing keto_engine_acp_ory gives us a lot of room to add any arbitrary data.
I'm little confused between the differences between remote_json and remote authorizes. In the JsonNet they look identical so won't be better to have only one?
Remote passes the request through as-is, and remote_json allows you to modify the request body but it's required that it's json!
I, personally, don’t want to add UI to Oathkeeper because it’s hard to keep track the changes.
Logging: Will you add capability to debug the jsonnet output when request comes to Oathkeeper (log jsonnet output stdout)?
Hydrator: Will you allow to use additional info to be used in the mutators (e.g. add additional data to jwt created by id_token)? Allow the hydrator to add extra data and pass to next mutator is a useful feature, I have a use case that need to add extra data (role info) to the jwt created by id_token mutator, so it’s good to have ability to make a http request somewhere (to our authz service in my case) to enrich the RequestContext and then enrich the jwt by using data from RequestContext.
Logging: Will you add capability to debug the jsonnet output when request comes to Oathkeeper (log jsonnet output stdout)?
Yes!
Hydrator: Will you allow to use additional info to be used in the mutators (e.g. add additional data to jwt created by id_token)? Allow the hydrator to add extra data and pass to next mutator is a useful feature, I have a use case that need to add extra data (role info) to the jwt created by id_token mutator, so it’s good to have ability to make a http request somewhere (to our authz service in my case) to enrich the RequestContext and then enrich the jwt by using data from RequestContext.
Yes!
Regarding the custom json error, I had created a thread on the forum some time ago, so I'm pretty happy with this announcement :grinning:.
A while ago, I was thinking of a new authenticator which would work a bit like your remote authorizer.
In this authenticator you'll tell oathkeeper how to extract the token from the request (http header, query param, post multipart, cookie, ...) and then oathkeeper will query an url set in the configuration (either global or per rules) and will pass the extracted token in the query. The external service will have to respond a 200 OK and a json with the subject in it. This could allow us to implement our own introspection service.
Hey,
Great update, looking forward to Jsonnet instead of Go-templates. remote/remote_json over the specific keta integration makes so much sense too.
I'm particularly interested in your non-goal though (sorry!).
It will be possible (in future versions) to get what Pomerium does (plus a ton more) by combining ORY Oathkeeper and ORY Kratos.
I personally wouldn't compare Oathkeeper+Kratos to pomerium, and am glad to see that the scope of these two services is a superset of Pomerium. I think the key differentiator is the Mutator paradigm, i think it's crucial in maintaining different security domains when dealing with application ingress.
Anyway, I'm wondering if i can help get there, I have some time to contribute too (with a bit of guidance).
I'm specifically interested in the pervasive nature of the beyond-corp definition of front-end infrastructure, and how Kratos and Oathkeeper can achieve that. I like the /sessions/whoami endpoint in Kratos, and i think offloading the session management to a different system significantly lowers the operational overhead for oathkeeper, and given it's on the critical path we need to keep it simple.
I'm wondering how you plan on introducing this support in Oathkeeper + Kratos and if you're looking for help?
Cheers!
Most of these changes would not affect how we use Oathkeeper or at least only introduce trivial changes needed to the configuration. I think it sounds like you are heading in a good direction and think that the switch to Jsonnet is welcome!
Hey thank you for your insightful comment! So this actually is already possible - check out the guide for combining ORY Oathkeeper with ORY Kratos over here: https://www.ory.sh/kratos/docs/guides/zero-trust-iap-proxy-identity-access-proxy
Hey thank you for your insightful comment!
No worries! I've been following the project for a while now, and finally, have time to play to see what the project(s) can do.
check out the guide for combining ORY Oathkeeper with ORY Kratos over here: https://www.ory.sh/kratos/docs/guides/zero-trust-iap-proxy-identity-access-proxy
So this is the guide I used to play around with above. The guide works, but it's not clear how i evolve that configuration for what I'm looking for:
- The burden of authentication lies with SecureApp+Kratos, not oathkeeper
- Let's say I wanted to take secureApp and used it for user management and hosted it at, accounts.mydomain.com.
- If I then wanted to deploy my application to myapp.mydomain.com behind oathkeeper, say, and rely on the users stored in Kratos (managed via accounts.myapp.com), how could i do this today? I don't think it's possible without myapp integrating with Kratos? That is I can't rely on oathkeeper to ensure my users are authenticated prior to ingressing the traffic to myapp.
I could be missing something here though as I'm still digging. Also, if there's a better place to discuss this, let me know (don't want to clog up this issue unless this is the right place)
Can't wait to see this happening! I agree the switch to JsonNet will make everything easier to configure.
If I can add something, I'd like to see error_handlers have computed URL and access to request e.g. redirect to something like: /login?origin={{request.url}}
Ah yeah that makes sense, this could be used for ?return_to right?
We still have two issues left I think:
- The error handling right now is pretty strong, it has a lot of potential uses. But it's hard to configure. Maybe we could provide a high-level and low-level config? I think the current proposal doesn't really catch all the nuances. An alternative would obviously be something with JsonNet but let's not overdo it with the library :)
- There are issues where someone wants to use basic and bearer authorization for example, or two introspection authenticators. I think we should allow this, as it's currently not really possible.
Ah yeah that makes sense, this could be used for
?return_toright?
You hit the point!
We still have two issues left I think:
- The error handling right now is pretty strong, it has a lot of potential uses. But it's hard to configure. Maybe we could provide a high-level and low-level config? I think the current proposal doesn't really catch all the nuances. An alternative would obviously be something with JsonNet but let's not overdo it with the library :)
Yes as often with flexibility comes complexity, so probably the 2 configs will be the good approach: i.e. 95% of use cases covered with high level, 100% with low level (to say low level is a superset of high level)
- There are issues where someone wants to use basic and bearer authorization for example, or two introspection authenticators. I think we should allow this, as it's currently not really possible.
So somewhat chaining multiple authN (with rules like sufficient/required) and/or authZ (with similar rules)?
Yeah so right now we don't allow alternatives, so if one authenticator validates bearer token than that's the only one allowed to validate the bearer token. I think we can fix this on a code-level though with some intelligent grouping of authenticators.
Maybe it's also just too complicated regarding errors, and we just try it easy for now and introduce more flexibility as people ask for it.
Should we consider https://github.com/ory/oathkeeper/issues/461 in some way for this diagram?
Sorry for asking but have the hydrator and new pipeline been implemented in next-gen branch ?
Not yet
On 4. Sep 2020, at 10:19, toanguyen [email protected] wrote:
Sorry for asking but have the hydrator and new flow been implemented in next-gen branch ?
— You are receiving this because you authored the thread. Reply to this email directly, view it on GitHub, or unsubscribe.
We have an application Kavach which supports many to many relationships between organisations and users. And we have some other applications which use Kavach for user info and multi organisation support. We create keto policies where the subject contains kavach user id and not kratos subject.
Policy Example:
{
id: orgs:${org_id}:admins
subjects: [${kavach_user_id}]
resources: [resources:${org_id}:<.*>]
actions: [actions:${org_id}:<.*>]
effect: allow
}
By using a Hydrator mutator we are adding kavach user id as X-User header but all mutators run after the authorizer. So we are not able to use the remote Authorizer. So that’s why we have to write keto policy check logic in our apps and not in Oathkeeper.
Is there any way we can configure the flow of the different Handlers for example we want to run Mutators(specifically Hydrator) before the Authorizer?
Check out https://github.com/ory/oathkeeper/issues/441#issuecomment-665581211 - would that pipeline solve your woes?
yeah that pipeline logic will solve our problem.
Hydrator will use AuthenticationSession or RequestContext any update on that?
We'll probably end up with a context object which is mutable by all parts of the pipeline!
Could we add some flexibility to the whole hydrator mechanism - with making it possible to be before (and after) each step (authentication, authorization and mutation)? For example to rule would be like this:
"id": "asdf",
"version": "v0.36.0-beta.4",
"upstream": {
"url": "wherever"
},
"match": {
"url": "http://awesomeapp.com/awesomness",
"methods": [
"GET"
]
},
"hydrators":[
"handler": "hydrator1",
"config": {
"api": {
"url": "http://hydrator1.com"
}
}
],
"authenticators": [
{
"handler": "oauth2_introspection",
"config": {
"required_scope": [
"openid",
"offline"
]
}
],
"hydrators":[
"handler": "hydrator2",
"config": {
"api": {
"url": "http://hydrator2.com"
}
}
],
"authorizer": {
"handler": "allow"
},
"mutators": [
{
"handler": "header",
"config": {
"headers": {
"X-User": "{{ print .Subject }}"
}
}
}
]
},```
Thank you for the idea! I think we would probably need some smart way of doing this without increasing configuration bloat by too much. Maybe a custom codable pipeline using JsonNet?
We're using Oathkeeper more and more where I work (ModusBox), and getting ready to expand that use considerably as part of a centralized IAM setup for hosted customer APIs, and while we can get existing Oathkeeper to do what we need we're particularly interested in some of the JSonnet mechanisms planned for NextGen, both because they're more flexible in ways we'd be able to take advantage of and because we've got a lot of expertise in JSonnet (we used it as the basis for an open source data transformation platform, DataSonnet).
I know you don't give out timelines, so I've got a somewhat different question: how can we help, particularly around JSonnet support? We don't have extensive resources to deploy but I could definitely spend a modest portion of my time on features we know we'd use.
The best option would be to come up with a proposal for JsonNet implementation - particularly around the config schema and how you plan (or not) to keep backwards compatibility.
It's been a while since we opened this issue, it's still on our list, but we just don't have anyone dedicated to maintaining larger changes and refactorings in the oathkeeper codebase...
I could work up a proposal like that. Very loosely, where I'd be inclined to start would be a new mutator under the existing approach that works similar to the new Hydrator proposal in the description. That would be a test bed for incorporating Jsonnet generally, plus provide some useful and flexible new capabilities pretty quickly. I'll see about writing something up with more detail
I think that makes sense! I was also thinking if we should use JsonNet as a programming language so add some custom builtin functions such as making HTTP calls. However, I'm not sure if that's a good idea really as JsonNet is really not a programming language as it's difficult to test. My idea was a bit like this (pseudo code!):
local jwt = import "authenticators.jwt.jsonnet"
local cc = import "authenticators.client_credentials.jsonnet"
function (request, ctx) {
local session = jwt(request)
if !session
session = cc(request)
end
// do the same stuff for authorizers
{
upstream: {
header: {
X-User-Id: session.sub,
X-Auth-Signature: sign(session.sub),
}
}
}
}
But yeah I think it will be pretty difficult for people to get into this syntax.
An alternative to that would be a JavaScript VM which more or less does the same thing, but here again, the problem is most likely one of testing. To enable testing with this approach, what we would need would be something like this:
# test.yml
rule: path/to/rule.jsonnet
input:
url: ....
method: ...
headers:
Authorization: ...
mock:
authenticator:
jwt:
success: true
session: ...
expect:
response:
...
But yeah I'm not sure if this overcomplicates things. However, we've seen in the past that people want more and more and more customizations for the individual flows, adding flags and configs everywhere. Maybe this is a better approach?
Another alternative would be to use the traefik way of https://github.com/traefik/yaegi which is Go code and probably easier to learn and write than jsonnet. We could still use jsonnet transformations though for some things (e.g. request body modification).
