[FEATURE] Dashboards List Extensibility & Integrate Observability Apps/Panels/EventAnalytics

[pjfitzgibbons]

Is your feature request related to a problem? Please describe.

As a Plugin Developer/Implementer, I would like a way to add my own "dashboard items" to be appended to the default list of Dashboards provided by CoreSystem. "Dashboard Items" are kinds of core-apps that are alike to "dashboards" - for instance Observability Panels.

Describe the solution you'd like

Dashboards List widget (part of ./plugins/dashboards module) will be enhanced to include a registry of plugin "list providers" that will be queried and their results aggregated to the main displayed list.

A registerListProvider function will be returned on DashboardPlugin.setup(), making it available to other plugins when "dashboards" is referenced from CoreSetup input params.

In preparation for this modification, the Dashboard-List widget, currently implemented as an Angular Directive, will be re-written into a React Component. The extension modifications will then be built upon the newly written React Component. The <dashboard-list ...> directive and it's props will be matched exactly in the new implementation.

Describe alternatives you've considered

Option 2 : Extend feature onto current Angular Directive widget This option is feasible, though would require work to enhance the <dashboard-list> directive and it's content to include content and metadata from external sources, as well as new UX columns to display "dashboard type" to user.
In light of the larger OpenSearch-Dashboards project to refactor all Angular code into React Components, it seems to be a more efficient choice to perform that conversion as a pre-requisite to this task.

Option 3 : Save "items" to be displayed by Dashboard-List into central SavedObjects store, which is exposed to every Plugin through CoreSetup.savedObjects. Concerns/issues : storage of "new" object-types/object-shapes into savedObjects requires migration of the dataType in core? If this is true, how can migrations and proper API's be implemented in OSD-core to provide this in an apppriate timeframe to support release of this feature (Dashboard-List Extensibility) by approved deadline - Aug 31, 2022

Additional context

[joshuarrrr]

I strongly favor Option 3 here, particularly because this is the solution already implemented by the visualizations app for this exact use case: to include the saved objects of other plugins that register themselves as "aliases" of a visualization saved object. I'd rather first keep the behavior consistent across the two core apps and then later refactor or re-architect them together.

As an example, here's what it looks like to register a visualization alias (in the public/plugin setup method):

visualizations.registerAlias({
      name: PLUGIN_ID,
      title: PLUGIN_NAME,
      description: DESCRIPTION,
      icon: ICON,
      aliasApp: PLUGIN_ID,
      aliasPath: '#/',
      appExtensions: {
        visualizations: {
          docTypes: [PLUGIN_ID],
          toListItem: ({ id, attributes }) => ({
            description: attributes?.description,
            editApp: PLUGIN_ID,
            editUrl: `${EDIT_PATH}/${encodeURIComponent(id)}`,
            icon: ICON,
            id,
            savedObjectType: SAVED_OBJECT,
            title: attributes?.title,
            typeTitle: PLUGIN_NAME,
          }),
        },
      },
    });

I'm not sure I follow the concern about adding new saved object types - migrations would not be necessary in that case.

[elfisher]

From the gif it looks like this would link out to a different page based on the type. Is there a reason for this? Could we be consistent since they are all dashboards?

[anirudha]

we could structure the crums / accordingly to maintain consistency

[pjfitzgibbons]

@elfisher @anirudha I believe the intention of this feature is to allow plugins to expose their objects onto the "front page" of OSD, which would be the Dashboards List. We are not recommending or requiring the plugin author modify their plugin to appear as-if it were part of OSD-Core proper; instead we allow the plugin to maintain it's own breadcrumb scheme as they wish. The integrated OSD Dashboards List then indicates the plugin-type of the listing entry, and the link to that entry brings the user to that plugin's own environment.

Plugins currently are self-contained within their own private page-hierarchy and breadcrumb scheme. We do not break that wall with this feature.

[pjfitzgibbons]

I strongly favor Option 3 here, particularly because this is the solution already implemented by the visualizations app for this exact use case: to include the saved objects of other plugins that register themselves as "aliases" of a visualization saved object. I'd rather first keep the behavior consistent across the two core apps and then later refactor or re-architect them together.

I'm not sure I follow the concern about adding new saved object types - migrations would not be necessary in that case.

@joshuarrrr The migrations issue would be this : current Plugin's objects are pre-existing in the system. This feature, along with a plugin's update to utilize this feature, would require the plugin to "migrate" existing objects to create the vis-alias records. This ultimately creates two-sources-of-truth to the Plugin for their objects. I doubt we could cleanly assume a one-time-migration would be correct or complete for any Plugin.

The chosen solution, as written, turns the source-of-truth toward the plugin author - any time the Dashboards List is rendered, the object queries any registered plugins for their list items - the Dashboards List regards each plugin as its own source-of-truth and behaves appropriately with the given list-result from each plugin.

This solution has its flexibility in decoupling the plugin's list-items from the OSD-Core and from the OS backend. Each Plugin can determine on its own how and where to store its metadata about the integrated list-objects.

[ashwin-pc]

@pjfitzgibbons @joshuarrrr I think you are both talking about the same feature. visualizations.registerAlias is similar to what @pjfitzgibbons is proposing here. except that he is proposing that we inrtoduce two new interfaces from dashboards:

1. service to register list providers (Since plugins will have their own lists)
2. service to register new create dashboard providers

@pjfitzgibbons I think this makes sense functionally, however do we have mocks for how this should look since as you said this affects the "front page" of Dashboards. If not @KrooshalUX @kgcreative do you think this UX/flow makes sense? I wonder if we should have some sort of grouping/filtering ability too? since this could introduce a lot of new list items when combined.

[pjfitzgibbons]

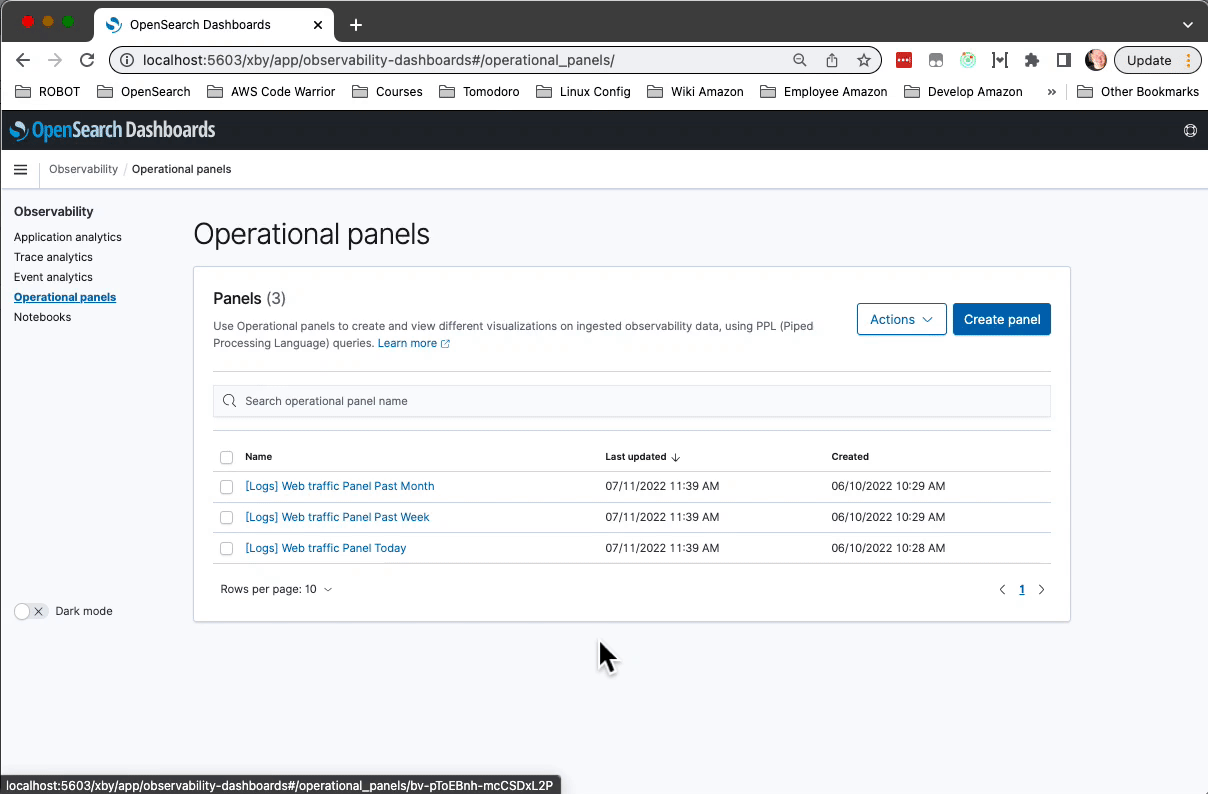

@ashwin-pc The mock-up we have is the animated gif at the description of (this) issue.

The dashboard list is by default paged, and the filter() method on Dashboard(legacy) Ng component has been updated to include the Type and Description columns, so Search is more like an "uber search" and quickly filters the list to desired items.

I'd like to hear if you feel there are pre-existing features for Dashboards List that I've missed? If you're considering future-looking features as a response to this mod, I would like to hear how they might be grouped into P0/P1. We are wanting to target 2.5 for this change and the release schedule clock is running.

[ashwin-pc]

@pjfitzgibbons I dont think you have missed any feature. Just wanted to make sure that someone from the dashboard ux has seen this mock and has no concerns with it. We've had a few projects get quite far into development only to realize that it fundamentally broke some assumptions about how the Dashboards UX was supposed to function, so I just want to make sure we caught that (if any) UX concerns earlier.

And yes, and forward looking features can definitely be incorporated as P1. My callout about categorization was because we are going to increase the number of list items with this change which will have an impact on the users UX. Just want to make sure we thought about it.

[zengyan-amazon]

I'd also like this feature to be throughly reviewed by UX and product as well. @kgcreative @ahopp

this current experience makes user feel trace analytics and OSD dashboards are separate applications, e.g. the link to a different app location, and the different dashboards creation experience make them feels complete different and separate. thus having trace analytics listed in the Dashboards list, and integrate the create button makes the experience weird to me.

I think we should consider making the integration and experience more integrated and seamless.

[kgcreative]

I've reviewed and am aligned with this as a first step. I agree that we need better integration in the fullness of time, however, this is the first step for bringing these (and other) applications in. We will likely see a bit more variance before these all start aligning in a more seamless way

[vagimeli]

@pjfitzgibbons Can we sync on this issue so that I can better understand the documentation need, use case, and audience?
