Support for Seiren Emote
Device Info
- Name: Razer Seiren Emote
- Product Number: RZ19-03060100-R3M1
- Model Number: RZ19-0306
Device Information
lsusb
Bus 001 Device 004: ID 1532:0524 Razer USA, Ltd Razer Seiren Emote
Couldn't open device, some information will be missing
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 1.10
bDeviceClass 0
bDeviceSubClass 0
bDeviceProtocol 0
bMaxPacketSize0 16
idVendor 0x1532 Razer USA, Ltd
idProduct 0x0524
bcdDevice 1.00
iManufacturer 1
iProduct 2
iSerial 3
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0121
bNumInterfaces 4
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 1 Control Device
bInterfaceProtocol 0
iInterface 0
AudioControl Interface Descriptor:
bLength 10
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdADC 1.00
wTotalLength 0x006a
bInCollection 2
baInterfaceNr(0) 1
baInterfaceNr(1) 2
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bNrChannels 2
wChannelConfig 0x0003
Left Front (L)
Right Front (R)
iChannelNames 0
iTerminal 0
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 2
wTerminalType 0x0201 Microphone
bAssocTerminal 0
bNrChannels 2
wChannelConfig 0x0003
Left Front (L)
Right Front (R)
iChannelNames 0
iTerminal 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 6
wTerminalType 0x0301 Speaker
bAssocTerminal 0
bSourceID 9
iTerminal 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 7
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 8
iTerminal 0
AudioControl Interface Descriptor:
bLength 7
bDescriptorType 36
bDescriptorSubtype 5 (SELECTOR_UNIT)
bUnitID 8
bNrInPins 1
baSourceID(0) 10
iSelector 0
AudioControl Interface Descriptor:
bLength 13
bDescriptorType 36
bDescriptorSubtype 6 (FEATURE_UNIT)
bUnitID 9
bSourceID 15
bControlSize 2
bmaControls(0) 0x0001
Mute Control
bmaControls(1) 0x0002
Volume Control
bmaControls(2) 0x0002
Volume Control
iFeature 0
AudioControl Interface Descriptor:
bLength 10
bDescriptorType 36
bDescriptorSubtype 6 (FEATURE_UNIT)
bUnitID 10
bSourceID 2
bControlSize 1
bmaControls(0) 0x41
Mute Control
Automatic Gain Control
bmaControls(1) 0x02
Volume Control
bmaControls(2) 0x02
Volume Control
iFeature 0
AudioControl Interface Descriptor:
bLength 10
bDescriptorType 36
bDescriptorSubtype 6 (FEATURE_UNIT)
bUnitID 13
bSourceID 2
bControlSize 1
bmaControls(0) 0x01
Mute Control
bmaControls(1) 0x02
Volume Control
bmaControls(2) 0x02
Volume Control
iFeature 0
AudioControl Interface Descriptor:
bLength 14
bDescriptorType 36
bDescriptorSubtype 4 (MIXER_UNIT)
bUnitID 15
bNrInPins 2
baSourceID(0) 1
baSourceID(1) 13
bNrChannels 2
wChannelConfig 0x0003
Left Front (L)
Right Front (R)
iChannelNames 0
bmControls(0) 0x00
iMixer 0
Warning: Junk at end of descriptor (1 bytes):
00
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 0
AudioStreaming Interface Descriptor:
bLength 7
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 1
bDelay 1 frames
wFormatTag 0x0001 PCM
AudioStreaming Interface Descriptor:
bLength 29
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bNrChannels 2
bSubframeSize 2
bBitResolution 16
bSamFreqType 7 Discrete
tSamFreq[ 0] 8000
tSamFreq[ 1] 11025
tSamFreq[ 2] 16000
tSamFreq[ 3] 22050
tSamFreq[ 4] 32000
tSamFreq[ 5] 44100
tSamFreq[ 6] 48000
Endpoint Descriptor:
bLength 9
bDescriptorType 5
bEndpointAddress 0x01 EP 1 OUT
bmAttributes 13
Transfer Type Isochronous
Synch Type Synchronous
Usage Type Data
wMaxPacketSize 0x00c8 1x 200 bytes
bInterval 1
bRefresh 0
bSynchAddress 0
AudioStreaming Endpoint Descriptor:
bLength 7
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x01
Sampling Frequency
bLockDelayUnits 0 Undefined
wLockDelay 0x0000
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 0
AudioStreaming Interface Descriptor:
bLength 7
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 7
bDelay 1 frames
wFormatTag 0x0001 PCM
AudioStreaming Interface Descriptor:
bLength 29
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bNrChannels 2
bSubframeSize 2
bBitResolution 16
bSamFreqType 7 Discrete
tSamFreq[ 0] 8000
tSamFreq[ 1] 11025
tSamFreq[ 2] 16000
tSamFreq[ 3] 22050
tSamFreq[ 4] 32000
tSamFreq[ 5] 44100
tSamFreq[ 6] 48000
Endpoint Descriptor:
bLength 9
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x00c8 1x 200 bytes
bInterval 1
bRefresh 0
bSynchAddress 0
AudioStreaming Endpoint Descriptor:
bLength 7
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x01
Sampling Frequency
bLockDelayUnits 0 Undefined
wLockDelay 0x0000
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 0
bInterfaceProtocol 0
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.00
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 104
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x87 EP 7 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0010 1x 16 bytes
bInterval 2
Bus 001 Device 003: ID 1532:0f1b Razer USA, Ltd Razer Seiren Emote
Couldn't open device, some information will be missing
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 0
bDeviceSubClass 0
bDeviceProtocol 0
bMaxPacketSize0 64
idVendor 0x1532 Razer USA, Ltd
idProduct 0x0f1b
bcdDevice 2.00
iManufacturer 1
iProduct 2
iSerial 0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x001b
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 0
bInterfaceProtocol 0
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 2.00
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 22
Report Descriptors:
** UNAVAILABLE **
ls -lah /dev/input/by-id/
total 0
drwxr-xr-x 2 root root 100 nov 12 20:58 .
drwxr-xr-x 4 root root 340 nov 12 20:58 ..
lrwxrwxrwx 1 root root 9 nov 12 20:58 usb-Razer_Inc_Razer_Seiren_Emote_242003L02800055-event-if03 -> ../event7
Packet Captures

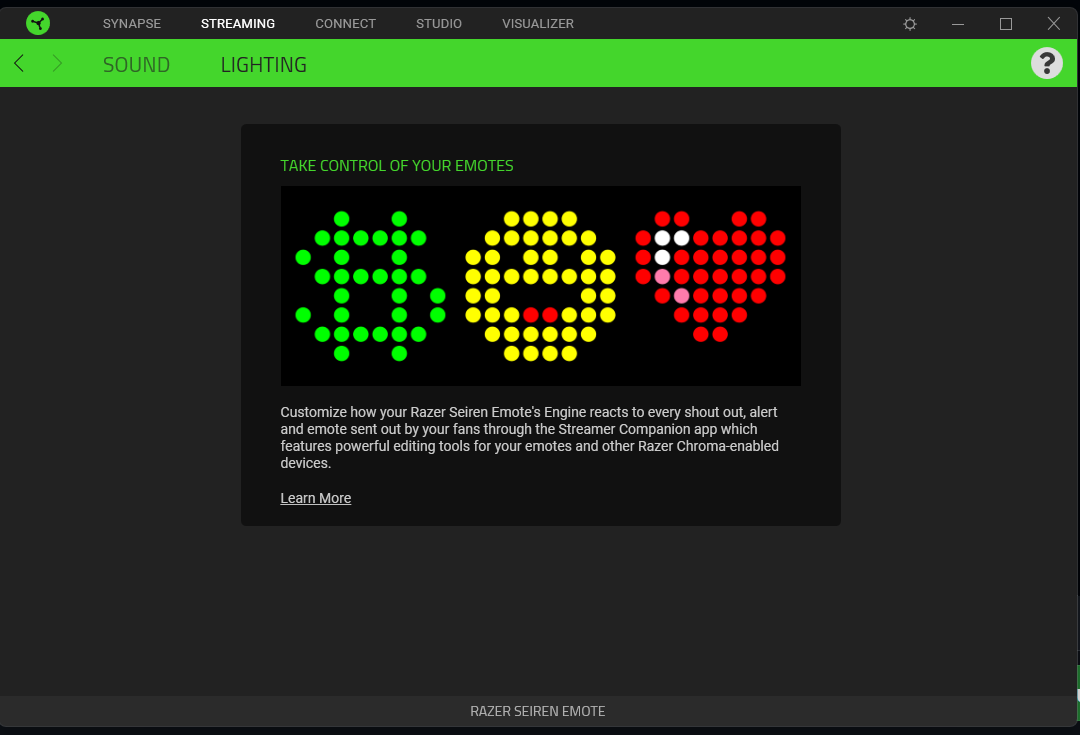

Synapse Screenshots

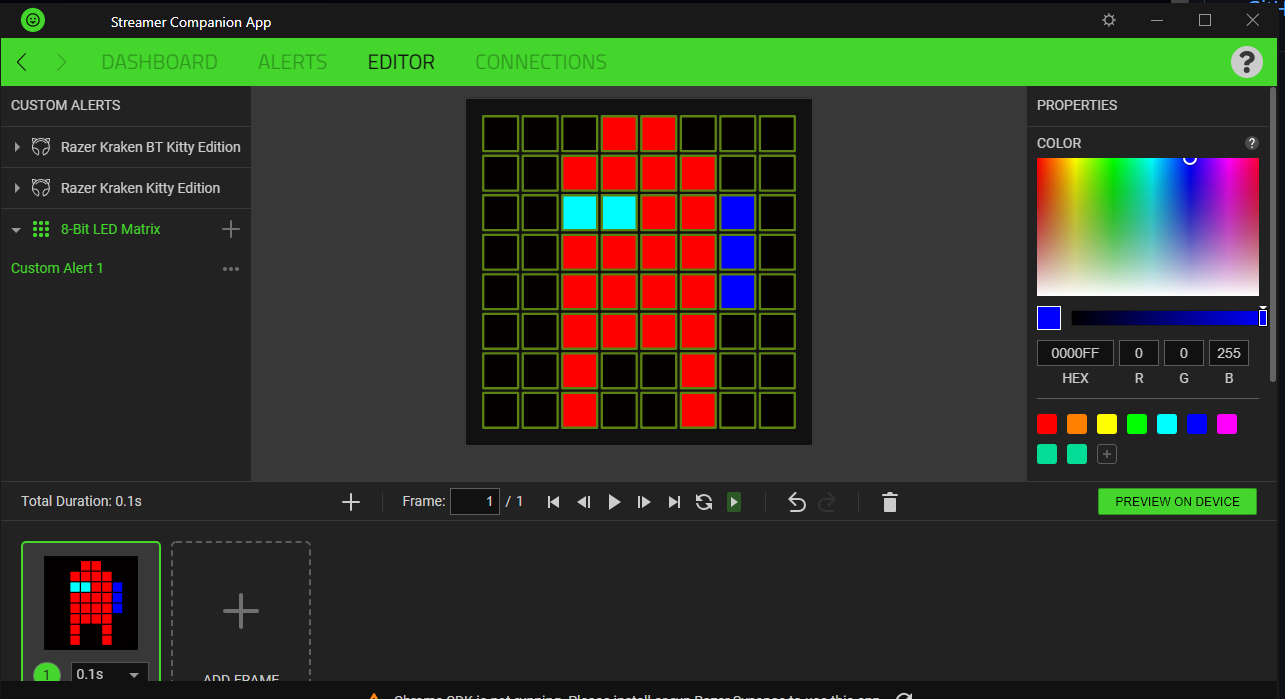

Streamer Companion Screenshots
Thanks for the pcaps. The device uses 0x0c transaction ID in the driver and has MATRIX_DIMS = [4, 16] in the daemon
If you could work on this, you can follow recent device support commits for razeraccessory driver https://github.com/openrazer/openrazer/commits/master/driver/razeraccessory_driver.c and replicate that.
