Support for PICOOC S1 Pro
Hi together, I really like my PICOOC S1 Pro, but the App is a disaster. The only way for export data is saving a JPG of the report. I recorded some BT traffic and also the openScale debug log file. I had a first look at the data with Wireshark, but I didn't find the weight values. Maybe someone with more experience can help?
Scale name
PICOOC S1 Pro
https://eu.picooc.com/en/product-s1pro.php
Log Files
User settings in the vendor app for all four measurements:
jacob male Feb/10/1989 180 cm Germany (Region) White/Caucasian
No Fitness level was asked
Measurement 1:
BT Snoop Log: btsnoop_hci_1.log
Measured true values: measurement1.txt

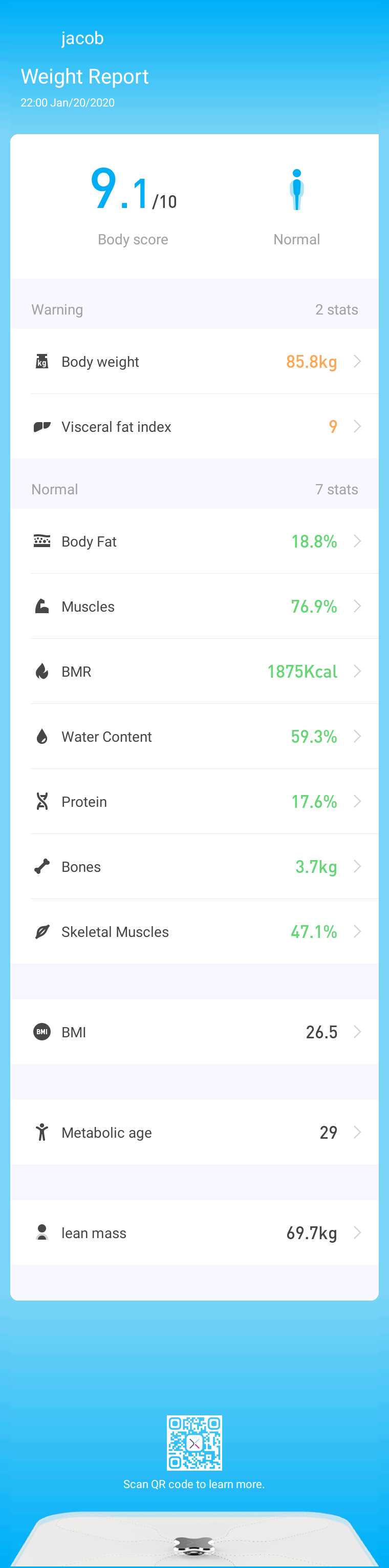

Screenshot: measurement1
Measurement 2:
BT Snoop Log: measurement2.txt
Measured true values: btsnoop_hci_2.log

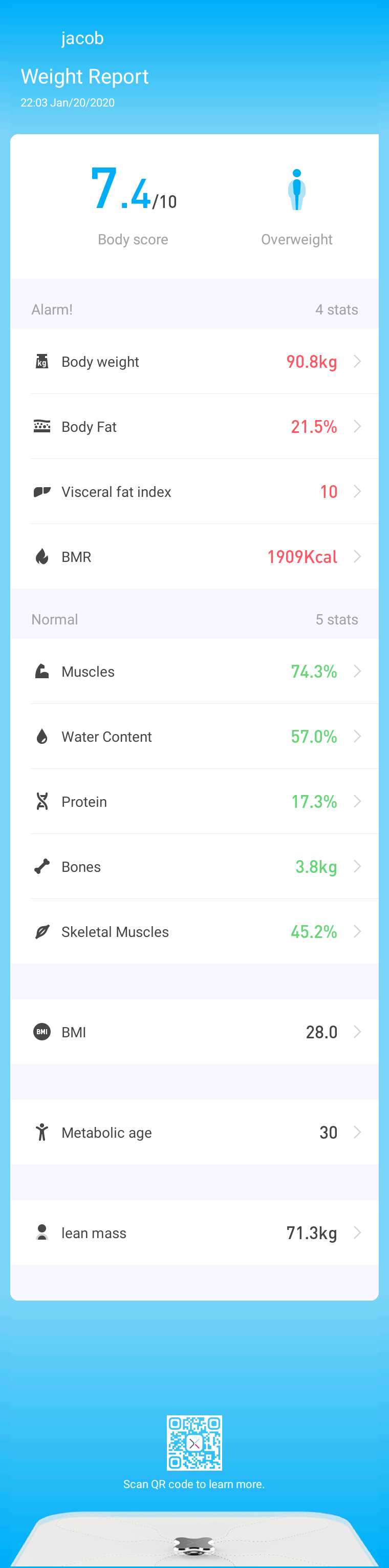

Screenshot: measurement2
Measurement 3:
BT Snoop Log: measurement3.txt
Measured true values: btsnoop_hci_3.log

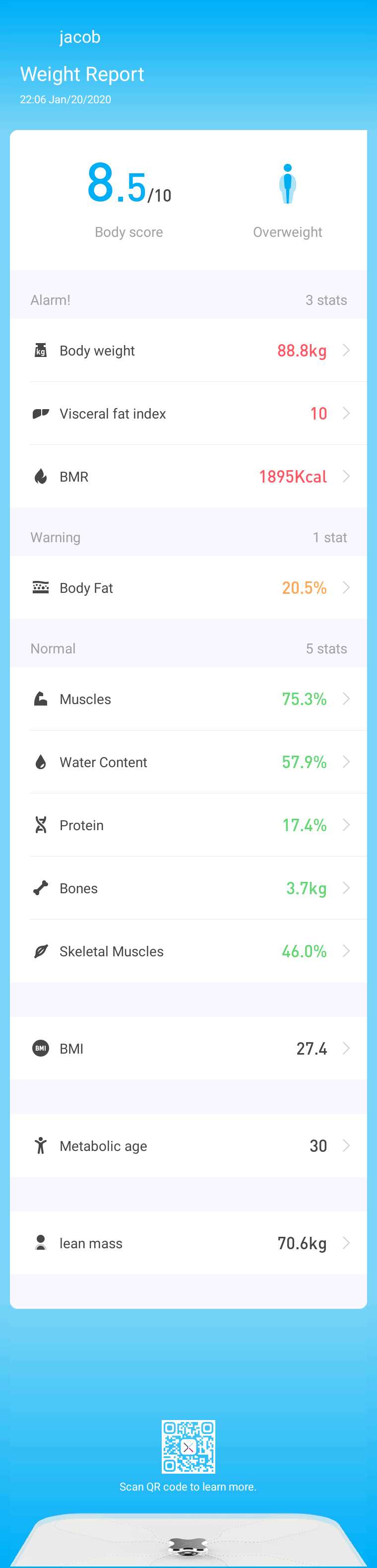

Screenshot: measurement3
Measurement 4:
BT Snoop Log: measurement4.txt
Measured true values:btsnoop_hci_4.log
Screenshot: measurement4
openScale debug log file
openScale_2020-01-20_22-29.txt
All data in one zip: PICOOC_S1.zip
Okay, ich found the date and the weight in the BT data. The scale sends data to the receiver via handle 0x0012 in the format 390a5e2614fe06b40f8c, (taken from the four measurements 1). I found the following format:
columns
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
39 0a 5e 26 14 fe 06 b4 0f 8c
39 0a 5e 26 15 ad 07 18 0f be
39 0a 5e 26 16 52 06 f0 0f aa
39 0a 5e 26 16 e8 06 ce 0f c8`
col 3 - 6 [date]:
5e 26 14 fe = Mo, 20 Januar 2020 22:00:46 +0100
5e 26 15 ad = Mo, 20 Januar 2020 22:03:41 +0100
5e 26 16 52 = Mo, 20 Januar 2020 22:06:26 +0100
5e 26 16 e8 = Mo, 20 Januar 2020 22:08:56 +0100
Format: UNIX 32bit hex value big endian
col 7 & 8
[weight]
06 b4 1716 /20 = 85.8
07 18 1816 /20 = 90.8
06 f0 1776 /20 = 88.8
06 ce 1742 /20 = 87.1
I don't know what the other columns are for, but maybe someone of you has an idea.
From my experience the first two column are mostly the command handles. The last column could be a XOR checksum or with column 9 and 10 the impedance value!?
The body measurements are done in the vendors app. Unfortunately in a .so library.
Based on the openScale debug log file, to me it seems that this scale and the mini variant, see #401, have the same protocol. I also own the mini scale and I wonder what else needs to be done to support this scale. How can I help?
It's looking like a dead end to me. When the calculations are done in the app and the .so library cannot be opened, I have no clue how to proceed.
Just a naive question, but based on the research done by @pililac above, would it make sense to offer "partial support" for this scale, by recording only the weight and not the other (calculated) body measurements?
I've decompiled the Picooc apk and found out the following peace of code. It contains the logic how they parse the byte array and get weight and impedance values, I hope it might help:
BTBleForBroadcasDevice.java
at the line 242 there is the calculation from byte array that gets weight value. Also I can find other calculations, seems that they are not under .so file. Also the code seems not obfuscated so it might be possible to get all the required values.
I've decompiled the Picooc apk and found out the following peace of code. It contains the logic how they parse the byte array and get weight and impedance values, I hope it might help:
Looks like that piece of code is for "PICOOC-W" and "PICOOC-L" scales. These scales broadcast measurements without the need of first writing timestamp to characteristic. For Mini, S1 Pro, and other "PICOOC-TWO-LETTERS" devices the parsing logic is in BTBle.displayData, and impedance calculations are in WeightingDirect class (no native library is involved by the looks of it)
