Deinterlacing "Bottom Frame First" footage in Double Framerate yields incorrect output
Operating System Info
Windows 10
Other OS
No response
OBS Studio Version
27.2.1
OBS Studio Version (Other)
No response
OBS Studio Log URL
https://obsproject.com/logs/XatW6D21UZ_tunCz
OBS Studio Crash Log URL
No response
Expected Behavior

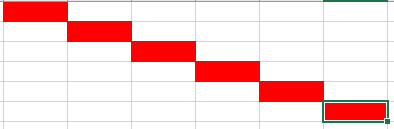

Sets of fields should be reconstructed in their appropriate frames, constructing the first set of fields in every odd frame, and the second set of fields in every even frame. This results in smooth video output with every frame in order, represented by the pattern of 1, 2, 3, 4, 5, 6, [...].
This would match the existing working OBS behavior when "Top Fields First" footage is deinterlaced in "Top Fields First" mode.
https://user-images.githubusercontent.com/11812575/156069727-a23ffc5b-bfc7-40cd-a7f8-4376223009c6.mp4
Current Behavior

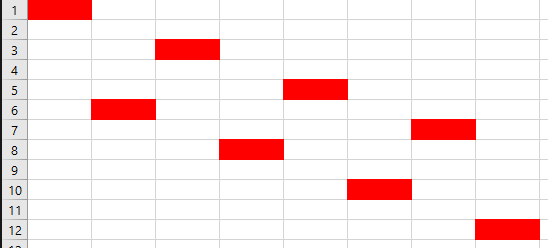

In the video output, top fields are delayed by 6 frames while bottom frames are constructed properly, resulting in a jerky video constructed out of order in the pattern of 1, 6, 3, 8, 5, 10, [...]
https://user-images.githubusercontent.com/11812575/156070214-fe5a290e-9591-4f11-a307-64e6dd4c9d61.mp4
Steps to Reproduce
- Add an input source that contains video content that is interlaced using the "Bottom Field First" method
- Enable the Deinterlacing using Blend 2x, Linear 2x or Yadif 2x
- Set the Deinterlacing mode to "Bottom Field First"
- Watch the video output
Anything else we should know?

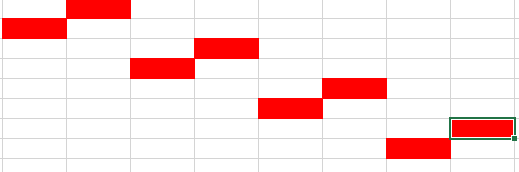

If a "Top Fields First" video were to be properly deinterlaced with "Bottom Fields First", and vice versa, then the second set of fields should be constructed one frame behind, leading to a mildly jerky video output. This is expected behavior, and not the behavior currently achieved with this bug.
https://user-images.githubusercontent.com/11812575/156070765-bb9e33e8-ffc1-4d74-8f77-e7c7602adaac.mp4
https://user-images.githubusercontent.com/11812575/156070243-0939d936-c4e2-4d9c-b8df-61edb971ef80.mp4
Agree! It really annoys me as well. I can't double the output framerate in OBS and it cause wrong output frame order
