Dynamic code preview rendering for vue components

[visini]

Recently storybook added support for dynamic rendering of code preview for vue components.

See this pull request: https://github.com/storybookjs/storybook/pull/12812

Instead of

(arg, { argTypes }) => ({
  components: { MyButton },
  props: Object.keys(argTypes),
  template: '<MyButton v-bind="$props" />',
})

... the code preview dynamically generates a code snippet (see example in pull request above). Example:

<template>
  <my-button rounded color="#f00">A Button with rounded edges</my-button>
</template>

See @storybook/vue demo: https://storybookjs.netlify.app/vue-kitchen-sink/?path=/docs/addon-controls--rounded (Storybook 6.1.11)

Looking forward to support for this via @nuxtjs/storybook!

[atinux]

Any chance you can make a PR about it?

[visini]

As I suspected, it's a more complex issue than I thought, and not simply related to @storybook/vue version.

Unfortunately I don't believe I'm the right person to take this on, my knowledge of Vue and Nuxt very limited and barely managed to track down the things that follow. I spent a few hours digging around in storybook docs vue source and manually tried to find which parts of the code are connected with this added functionality. Here's my investigation so far:

I cloned this repo and modified playground/components/MyButton.stories.js:

import MyButton from "./MyButton";
export default {
  title: "Button",
  component: MyButton,
  argTypes: {
    rounded: { control: "boolean" },
  },
};

export const Template = (arg, { argTypes }) => ({
  components: { MyButton },
  props: Object.keys(argTypes),
  template: '<MyButton v-bind="$props">123</MyButton>',
});

export const Primary = Template.bind({});
Primary.args = {
  label: "Primary",
  rounded: true,
};

Then, I investigated within sourceDecorator.js from storybook docs addon vue code – I saw console errors from this specific file:

See this specific file and code segment (error occurred in last line of highlighted portion): https://github.com/storybookjs/storybook/blob/b747c5c2396786682f36e5ac9b78ea990b6f952d/addons/docs/src/frameworks/vue/sourceDecorator.ts#L50-L56

Related error: Failed to generate dynamic story source: TypeError: null is not an object (evaluating 'storyNode._vnode') sourceDecorator — sourceDecorator.js:136

After I comment out dynamic story instance identification via vm, and manually use window.$nuxt..., it seems to be a step in the right direction. See here:

    var channel = _addons.addons.getChannel();
    // var storyComponent = getStoryComponent(story.options.STORYBOOK_WRAPS);
    // console.log("storyComponent", storyComponent())
    // var storyNode = lookupStoryInstance(vm, storyComponent);
    // console.log("storyNode", storyNode)
    var code = vnodeToString(window.$nuxt.$children[0].$children[0].$children[0].$vnode);
    console.log("code",  code)

In the console, I can see the logs of component stories being formatted with each change of args (e.g., toggle "rounded" via the toggle button in docs):

sourceDecorator.js:142:

code <MyButton rounded label="Primary">123</MyButton>

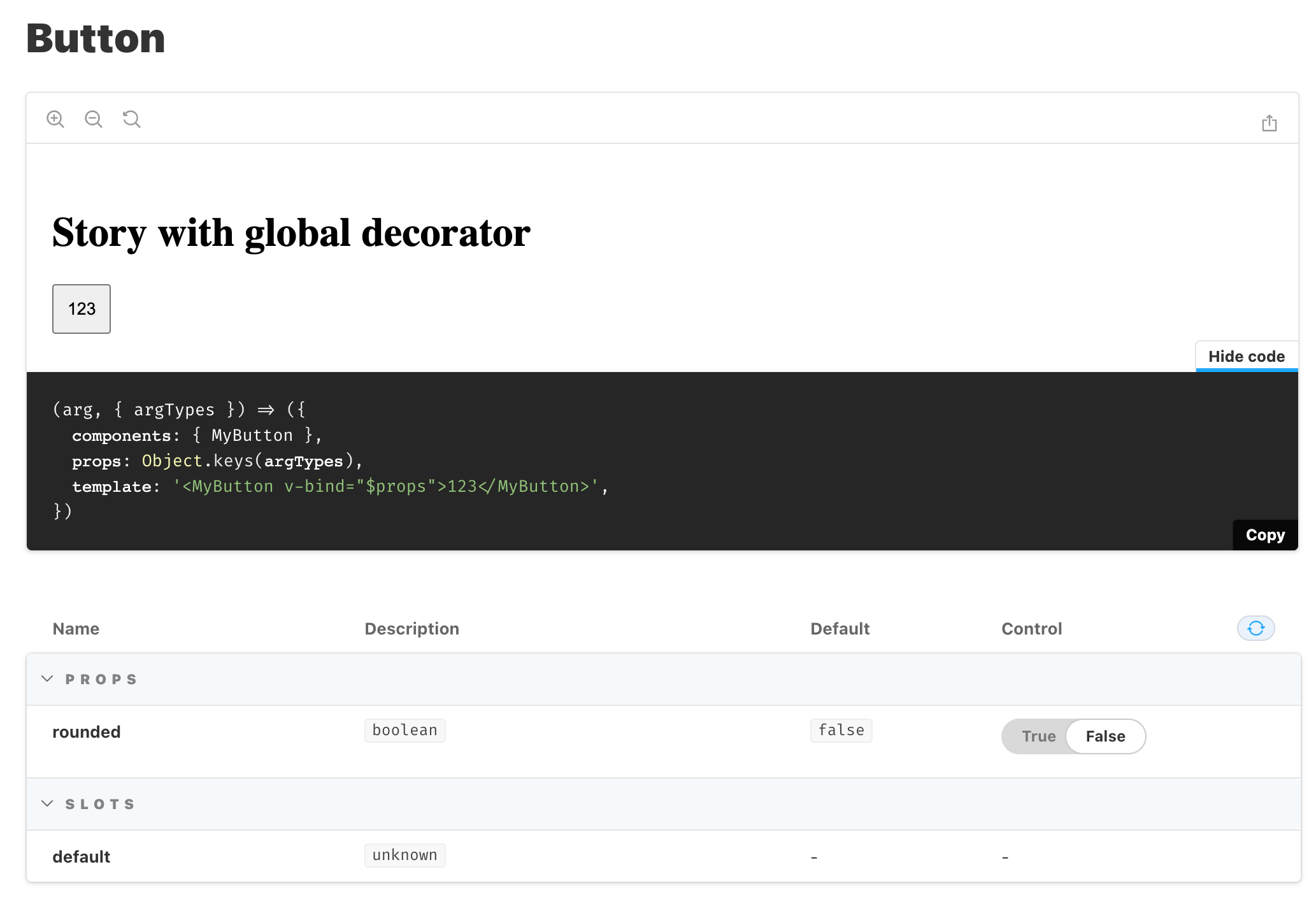

Initially, the formatted code displayed below the story stays the same:

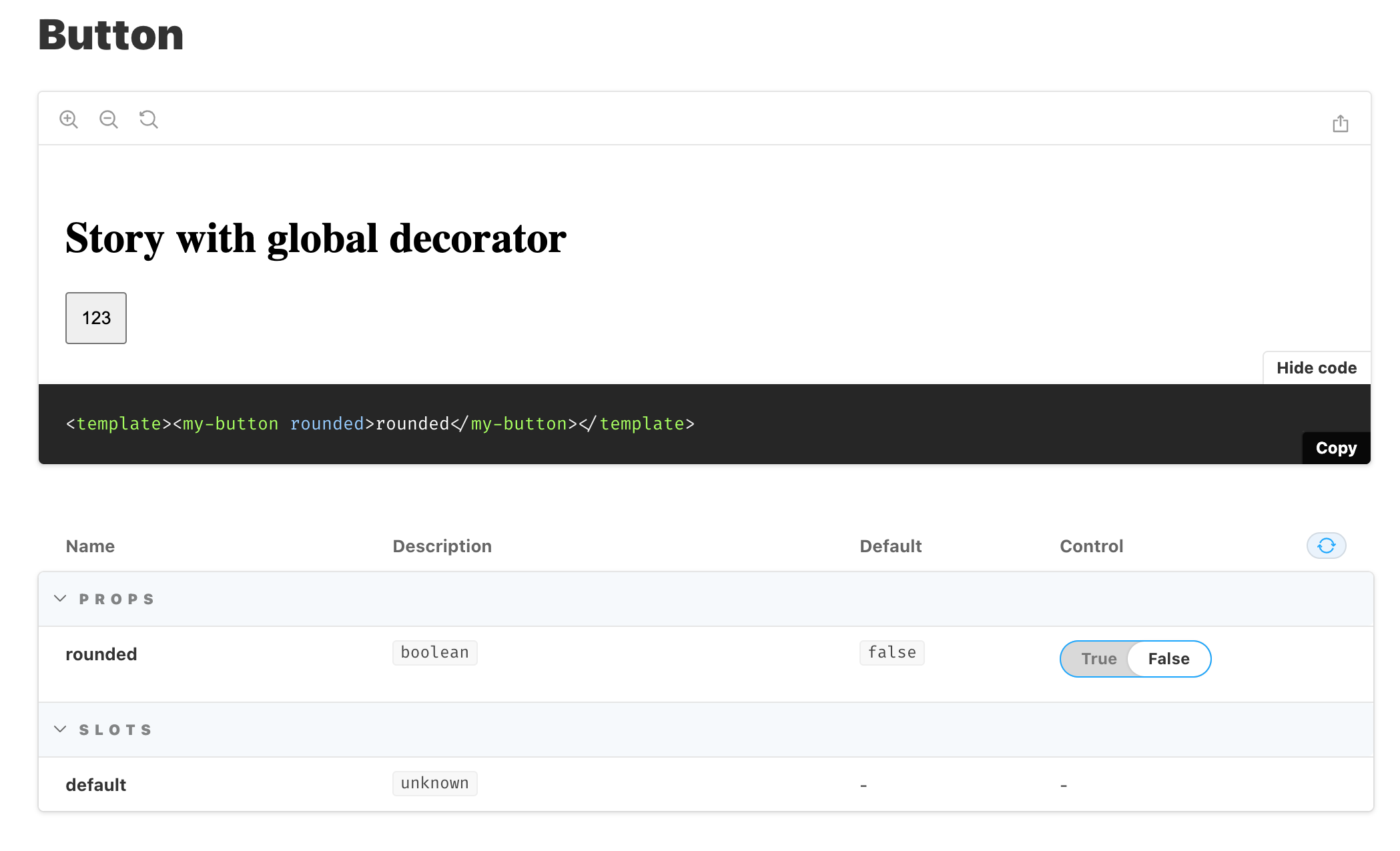

But then, after I change args a few times (e.g., toggle "rounded" via the toggle button in docs) twice, the formatted code is updated accordingly:

Now, obviously these are nothing more than a few leads, but I'm afraid that I feel out of my depth. I'll be following this issue and am ready to reproduce or confirm any behavior, though.

Many thanks!

[farnabaz]

Awesome work @visini, Thanks for the issue and investigation. This is definitely is a tough issue to solve. Unfortunately storybook does not have proper way to customize internals.
This might be solve by modifying modules internals without need to change sourceDecorator. If not we should write our own sourceDecorator with same logic you explained.

[aacassandra]

Hello @farnabaz @Atinux , does the current storybook / nuxtjs support as suggested by @visini .

[aacassandra]

hmm .. for a while I used the original storybook package and it worked. i hope it works on nuxt/storybook soon. thankyou friends

[pocka]

Starting from [email protected], the sourceDecorator reuses an existing Vue node tree instead of new Vue-ing. Could you try it?

https://github.com/storybookjs/storybook/releases/tag/v6.2.0-beta.2

[philwolstenholme]

https://github.com/storybookjs/storybook/pull/14002 is the PR for the change @pocka mentioned

[farnabaz]

Thank you @pocka @philwolstenholme for mentioning the change.

Integrating 6.2 needs to consider some changes. I think we should wait for 6.2 official release to support it.

[philwolstenholme]

@farnabaz I wonder if the release of 6.2 will help us with this issue 🤔

[farnabaz]

In order to get it worked you need to define first argument for all your stories. This way storybook detects that your story depends on arguments and renders the code. @philwolstenholme

const SampleComponent = (args) => '<div>With Source</div>'

[philwolstenholme]

Hi @farnabaz , I don't quite understand?

I am using 4.0.1 of @nuxtjs/storybook. This is an example story of mine:

import * as components from '~/.nuxt-storybook/components';

export default {
  title: 'atoms/Button',
  component: components.AtomsVaButton,
  argTypes: {
    iconPosition: {
      control: {
        type: 'select',
        options: ['left', 'right'],
      },
    },
  },
  args: {
    slotContent: 'Button slot content',
  },
};

const Template = (arg, { argTypes }) => ({
  props: Object.keys(argTypes),
  template: `<atoms-va-button v-bind="$props">{{ slotContent }}</atoms-va-button>`,
});

export const Default = Template.bind({});
Default.storyName = 'VaButton';

export const WithIcon = Template.bind({});
WithIcon.storyName = 'With icon';
WithIcon.args = {
  iconName: 'va/right-arrow',
};

export const WithIconOnRight = Template.bind({});
WithIconOnRight.storyName = 'With icon on right';
WithIconOnRight.args = {
  iconName: 'va/left-arrow',
  iconPosition: 'right',
};

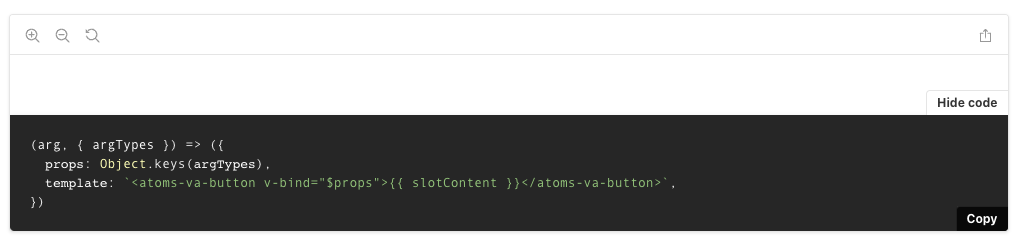

and this is what appears in the Docs tab preview:

Note the missing component visual preview:

And the code:

(arg, { argTypes }) => ({
  props: Object.keys(argTypes),
  template: `<atoms-va-button v-bind="$props">{{ slotContent }}</atoms-va-button>`,
})

[vaban-ru]

Have same issue with code preview

[farnabaz]

Try using Template without bind. @philwolstenholme

export const Default = Template;

[philwolstenholme]

Hmmm so if I try

const Template = (arg, { argTypes }) => ({
  props: Object.keys(argTypes),
  template: `<atoms-va-button v-bind="$props">{{ slotContent }}</atoms-va-button>`,
});

export const Default = Template;
Default.storyName = 'VaButton';

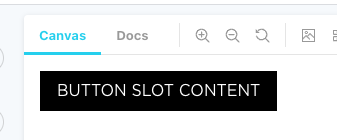

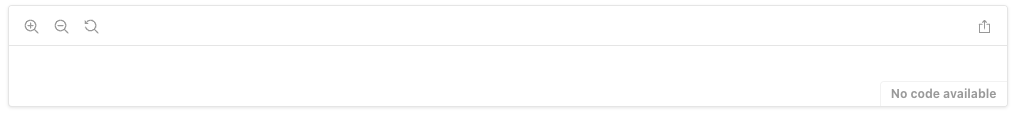

Then I get no preview in the Docs tab, and Storybook says no code is available either. The Canvas tab still works though:

[vaban-ru]

Conducted an experiment and found out the following.

I try:

import BaseButton from '@/components/base/BaseButton'

export default {
  title: 'Base/Buttons',
  component: BaseButton,
}

export const DefaultButton = (args) => ({
  components: { BaseButton },
  template: '<base-button>Кнопка</base-button>',
})

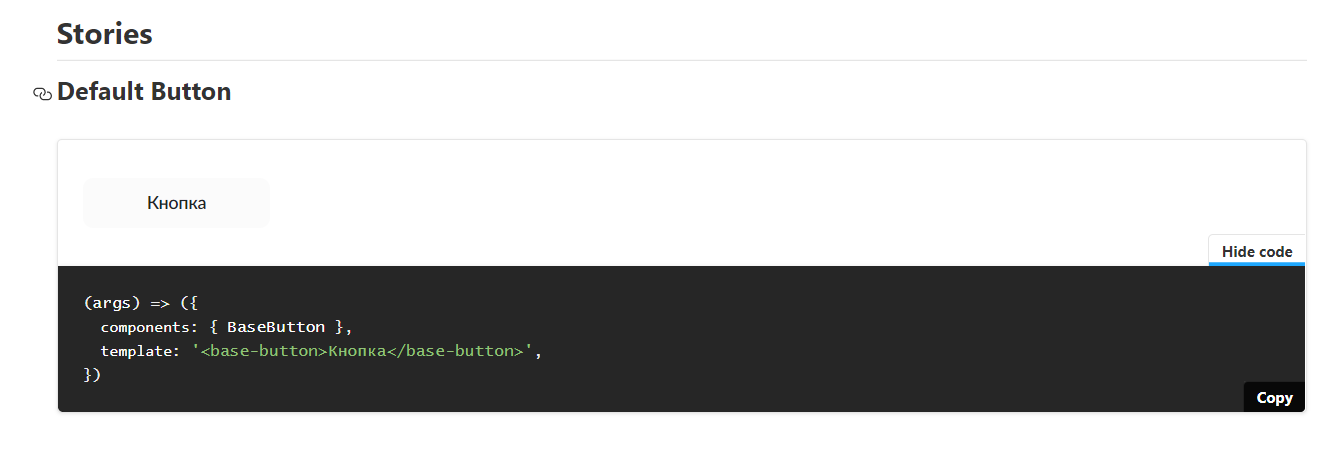

On docs page i see:

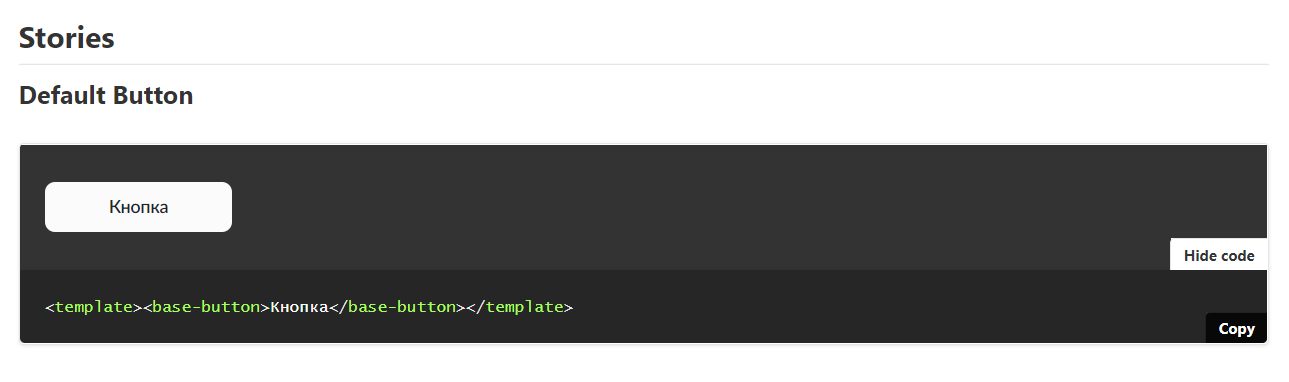

But, if i click on "Refresh controls" button, i see:

[Rigo-m]

I have the same problem as @philwolstenholme .

Why are you guys suggesting to not use Template.bind({}) anymore? This goes against writing DRY code :/ How would we tackle many stories of a component? Should we write a new template function every time?

[vaban-ru]

Any update of this issue guys?

[schristian30]

I also have the same issue, any update on how to fix it guys?

[Decipher]

While this is not a final solution, I have been working around this issue by providing a source parameter:

Default.parameters = {
  docs: {
    source: {
      code: '<MyComponent />
    }
  }
}

See https://storybook.js.org/docs/vue/writing-docs/doc-blocks#docspage-1 for details

Note that this option will not reflect dynamic properties as it's static.

[vaban-ru]

While this is not a final solution, I have been working around this issue by providing a source parameter:

Default.parameters = {
  docs: {
    source: {
      code: '<MyComponent />
    }
  }
}

It will be legen "wait-wait" dary, legendary!

[schristian30]

While this is not a final solution, I have been working around this issue by providing a source parameter:

Default.parameters = {
  docs: {
    source: {
      code: '<MyComponent />
    }
  }
}

Still not fixed mine, for me it just show " <MyComponent /> " as code

[Decipher]

@schristian30 Is your story exported as Default? This is just an example, for the correct documentation please refer to https://storybook.js.org/docs/vue/writing-docs/doc-blocks#docspage-1

[petetrickey]

I've run into the same problems as highlighted above, where the 'code preview' shows correctly only after a change on the story (when hot reload is working), and otherwise it shows the content of the Template that is bound to the individual stories.

While searching for temporary solutions, I came across https://stackoverflow.com/a/66589490 which does get it working for me.

Using

• nuxt: 2.15.7
• @nuxtjs/storybook: 4.1.1

Hope this helps

[mrillusion]

For anyone looking at this and using @nuxtjs/storybook updating the @nuxtjs/storybook package to 4.3.1 resolved the issue for me (updated from 4.2.0).

[tobiasdiez]

v4 of this module is no longer actively supported. Please try the newest version and open an new issue if the problem persists. Thank you for your understanding.
