Netdisco incorrectly show ports Huawei SW's and show MAC's in different ports.
Hi, I found a problem on the netdisco web when it shows the interfaces of the huawei SW's Huawei E9000. It's showing interfaces UP that are DOWN and confusing where the MAC addresses are learned. Here's an example:

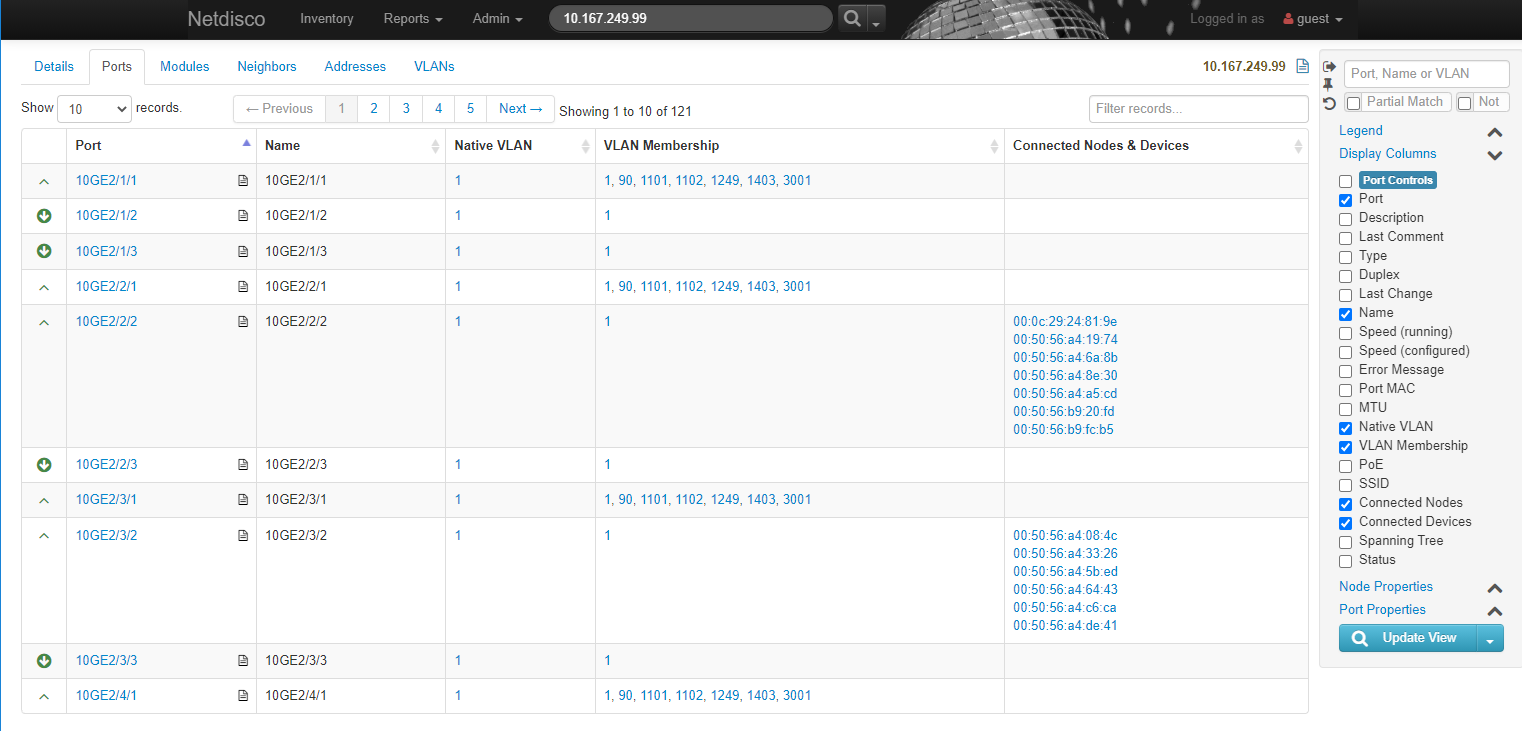

In the image the port 10GE2/2/1 is UP and 10GE2/2/2 is UP. But in the cli:
10GE2/2/1 up up 0.18% 0.21% 0 0 10GE2/2/2 down down 0% 0% 0 0 10GE2/2/3 down down 0% 0% 0 0 10GE2/3/1 up up 0.53% 0.54% 0 0 10GE2/3/2 down down 0% 0% 0 0 10GE2/3/3 down down 0% 0% 0 0
** clearly only the por 2/2/1 is UP.**
Also in the image the MAC's are learned in the port 10GE2/3/2, but in the cli the same MAC's are in the port 10GE2/2/1:
display mac-address | i 2/2 ---- Flags: * - Backup ------------------------------------------------------------------------------- MAC Address VLAN/VSI Learned-From Type ------------------------------------------------------------------------------- 0050-56a4-084c 90/- 10GE2/2/1 dynamic 0050-56a4-c6ca 90/- 10GE2/2/1 dynamic 0050-56a4-3326 1249/- 10GE2/2/1 dynamic 0050-56a4-5bed 1249/- 10GE2/2/1 dynamic 0050-56a4-de41 1249/- 10GE2/2/1 dynamic 0050-56a4-6443 3001/- 10GE2/2/1 dynamic -------------------------------------------------------------------------------
this is the output of this commands:
~/bin/netdisco-do show -e ifIndex -DI -d 10.167.249.99 ~/bin/netdisco-do show -e ifDescr -DI -d 10.167.249.99 ~/bin/netdisco-do show -e ifName -DI -d 10.167.249.99 ~/bin/netdisco-do show -e ifAlias -DI -d 10.167.249.99 ~/bin/netdisco-do show -e ifOperStatus -DI -d 10.167.249.99
From what you see in the output of these 5 commands, the interfaces are read by SNMP correctly, if you need any additional debug command, ask me, thank you very much.
~ $ ~/bin/netdisco-do show -e ifIndex -DI -d 10.167.249.99 [90] 2021-09-10 20:16:27 info App::Netdisco version 2.049005 loaded. [90] 2021-09-10 20:16:27 info show: [10.167.249.99]/ifIndex started at Fri Sep 10 20:16:27 2021 [90] 2021-09-10 20:16:28 debug show: running with timeout 600s [90] 2021-09-10 20:16:28 debug => running workers for phase: check [90] 2021-09-10 20:16:28 debug -> run worker check/_base_/0 [90] 2021-09-10 20:16:28 debug Show is able to run [90] 2021-09-10 20:16:28 debug => running workers for phase: main [90] 2021-09-10 20:16:28 debug -> run worker main/_base_/100 [90] 2021-09-10 20:16:28 debug snmp reader cache warm: [10.167.249.99] [90] 2021-09-10 20:16:28 debug [10.167.249.99:161] try_connect with ver: 2, class: SNMP::Info::Layer3::Huawei, comm:SNMP::Info::_global uptime : DISMAN-EVENT-MIB::sysUpTimeInstance : .1.3.6.1.2.1.1.3.0 SNMP::Info::_global layers : SNMPv2-MIB::sysServices.0 : .1.3.6.1.2.1.1.7.0 SNMP::Info::_global description : SNMPv2-MIB::sysDescr.0 : .1.3.6.1.2.1.1.1.0 SNMP::Info::_global id : SNMPv2-MIB::sysObjectID.0 : .1.3.6.1.2.1.1.2.0 SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info::_load_attr ifIndex : IF-MIB::ifIndex : .1.3.6.1.2.1.2.2.1.1 { 1 1, 2 2, 3 3, 5 5, 6 6, 7 7, 8 8, 9 9, 10 10, 11 11, 12 12, 13 13, 14 14, 15 15, 16 16, 17 17, 18 18, 19 19, 20 20, 21 21, 22 22, 23 23, 24 24, 25 25, 26 26, 27 27, 28 28, 29 29, 30 30, 31 31, 32 32, 33 33, 34 34, 35 35, 36 36, 37 37, 38 38, 39 39, 40 40, 41 41, 42 42, 43 43, 44 44, 45 45, 46 46, 47 47, 48 48, 49 49, 50 50, 51 51, 52 52, 53 53, 54 54, 55 55, 56 56, 57 57, 58 58, 59 59, 60 60, 61 61, 62 62, 63 63, 66 66, 67 67, 68 68, 69 69, 70 70, 71 71, 72 72, 73 73, 74 74, 75 75, 76 76, 77 77, 78 78, 79 79, 80 80, 81 81, 82 82, 83 83, 84 84, 85 85, 86 86, 87 87, 88 88, 89 89, 90 90, 91 91, 92 92, 93 93, 94 94, 95 95, 96 96, 97 97, 98 98, 99 99, 100 100, 101 101, 102 102, 103 103, (...skipping 23 keys...) } [90] 2021-09-10 20:16:29 info show: finished at Fri Sep 10 20:16:29 2021 [90] 2021-09-10 20:16:29 info show: status done: Showed ifIndex response from 10.167.249.99 ~ $ ~/bin/netdisco-do show -e ifDescr -DI -d 10.167.249.99 [92] 2021-09-10 20:16:29 info App::Netdisco version 2.049005 loaded. [92] 2021-09-10 20:16:30 info show: [10.167.249.99]/ifDescr started at Fri Sep 10 20:16:30 2021 [92] 2021-09-10 20:16:30 debug show: running with timeout 600s [92] 2021-09-10 20:16:30 debug => running workers for phase: check [92] 2021-09-10 20:16:30 debug -> run worker check/_base_/0 [92] 2021-09-10 20:16:30 debug Show is able to run [92] 2021-09-10 20:16:30 debug => running workers for phase: main [92] 2021-09-10 20:16:30 debug -> run worker main/_base_/100 [92] 2021-09-10 20:16:30 debug snmp reader cache warm: [10.167.249.99] [92] 2021-09-10 20:16:30 debug [10.167.249.99:161] try_connect with ver: 2, class: SNMP::Info::Layer3::Huawei, comm: SNMP::Info::_global uptime : DISMAN-EVENT-MIB::sysUpTimeInstance : .1.3.6.1.2.1.1.3.0 SNMP::Info::_global layers : SNMPv2-MIB::sysServices.0 : .1.3.6.1.2.1.1.7.0 SNMP::Info::_global description : SNMPv2-MIB::sysDescr.0 : .1.3.6.1.2.1.1.1.0 SNMP::Info::_global id : SNMPv2-MIB::sysObjectID.0 : .1.3.6.1.2.1.1.2.0 SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info::_load_attr ifDescr : IF-MIB::ifDescr : .1.3.6.1.2.1.2.2.1.2 { 1 "NULL0", 2 "InLoopBack0", 3 "MEth0/0/0", 5 "10GE2/1/1" (dualvar: 10), 6 "10GE2/1/2" (dualvar: 10), 7 "10GE2/1/3" (dualvar: 10), 8 "10GE2/2/1" (dualvar: 10), 9 "10GE2/2/2" (dualvar: 10), 10 "10GE2/2/3" (dualvar: 10), 11 "10GE2/3/1" (dualvar: 10), 12 "10GE2/3/2" (dualvar: 10), 13 "10GE2/3/3" (dualvar: 10), 14 "10GE2/4/1" (dualvar: 10), 15 "10GE2/4/2" (dualvar: 10), 16 "10GE2/4/3" (dualvar: 10), 17 "10GE2/5/1" (dualvar: 10), 18 "10GE2/5/2" (dualvar: 10), 19 "10GE2/5/3" (dualvar: 10), 20 "10GE2/6/1" (dualvar: 10), 21 "10GE2/6/2" (dualvar: 10), 22 "10GE2/6/3" (dualvar: 10), 23 "10GE2/7/1" (dualvar: 10), 24 "10GE2/7/2" (dualvar: 10), 25 "10GE2/7/3" (dualvar: 10), 26 "10GE2/8/1" (dualvar: 10), 27 "10GE2/8/2" (dualvar: 10), 28 "10GE2/8/3" (dualvar: 10), 29 "10GE2/9/1" (dualvar: 10), 30 "10GE2/9/2" (dualvar: 10), 31 "10GE2/10/1" (dualvar: 10), 32 "10GE2/10/2" (dualvar: 10), 33 "10GE2/11/1" (dualvar: 10), 34 "10GE2/11/2" (dualvar: 10), 35 "10GE2/12/1" (dualvar: 10), 36 "10GE2/12/2" (dualvar: 10), 37 "10GE2/13/1" (dualvar: 10), 38 "10GE2/13/2" (dualvar: 10), 39 "10GE2/14/1" (dualvar: 10), 40 "10GE2/14/2" (dualvar: 10), 41 "10GE2/15/1" (dualvar: 10), 42 "10GE2/15/2" (dualvar: 10), 43 "10GE2/16/1" (dualvar: 10), 44 "10GE2/16/2" (dualvar: 10), 45 "10GE2/17/1" (dualvar: 10), 46 "10GE2/17/2" (dualvar: 10), 47 "10GE2/17/3" (dualvar: 10), 48 "10GE2/17/4" (dualvar: 10), 49 "10GE2/17/5" (dualvar: 10), 50 "10GE2/17/6" (dualvar: 10), 51 "10GE2/17/7" (dualvar: 10), 52 "10GE2/17/8" (dualvar: 10), 53 "10GE2/17/9" (dualvar: 10), 54 "10GE2/17/10" (dualvar: 10), 55 "10GE2/17/11" (dualvar: 10), 56 "10GE2/17/12" (dualvar: 10), 57 "10GE2/17/13" (dualvar: 10), 58 "10GE2/17/14" (dualvar: 10), 59 "10GE2/17/15" (dualvar: 10), 60 "10GE2/17/16" (dualvar: 10), 61 "40GE2/18/1" (dualvar: 40), 62 "40GE2/18/2" (dualvar: 40), 63 "Stack-Port2/1", 66 "10GE3/1/1" (dualvar: 10), 67 "10GE3/1/2" (dualvar: 10), 68 "10GE3/1/3" (dualvar: 10), 69 "10GE3/2/1" (dualvar: 10), 70 "10GE3/2/2" (dualvar: 10), 71 "10GE3/2/3" (dualvar: 10), 72 "10GE3/3/1" (dualvar: 10), 73 "10GE3/3/2" (dualvar: 10), 74 "10GE3/3/3" (dualvar: 10), 75 "10GE3/4/1" (dualvar: 10), 76 "10GE3/4/2" (dualvar: 10), 77 "10GE3/4/3" (dualvar: 10), 78 "10GE3/5/1" (dualvar: 10), 79 "10GE3/5/2" (dualvar: 10), 80 "10GE3/5/3" (dualvar: 10), 81 "10GE3/6/1" (dualvar: 10), 82 "10GE3/6/2" (dualvar: 10), 83 "10GE3/6/3" (dualvar: 10), 84 "10GE3/7/1" (dualvar: 10), 85 "10GE3/7/2" (dualvar: 10), 86 "10GE3/7/3" (dualvar: 10), 87 "10GE3/8/1" (dualvar: 10), 88 "10GE3/8/2" (dualvar: 10), 89 "10GE3/8/3" (dualvar: 10), 90 "10GE3/9/1" (dualvar: 10), 91 "10GE3/9/2" (dualvar: 10), 92 "10GE3/10/1" (dualvar: 10), 93 "10GE3/10/2" (dualvar: 10), 94 "10GE3/11/1" (dualvar: 10), 95 "10GE3/11/2" (dualvar: 10), 96 "10GE3/12/1" (dualvar: 10), 97 "10GE3/12/2" (dualvar: 10), 98 "10GE3/13/1" (dualvar: 10), 99 "10GE3/13/2" (dualvar: 10), 100 "10GE3/14/1" (dualvar: 10), 101 "10GE3/14/2" (dualvar: 10), 102 "10GE3/15/1" (dualvar: 10), 103 "10GE3/15/2" (dualvar: 10), (...skipping 23 keys...) } [92] 2021-09-10 20:16:31 info show: finished at Fri Sep 10 20:16:31 2021 [92] 2021-09-10 20:16:31 info show: status done: Showed ifDescr response from 10.167.249.99 ~ $ ~/bin/netdisco-do show -e ifName -DI -d 10.167.249.99 [94] 2021-09-10 20:16:32 info App::Netdisco version 2.049005 loaded. [94] 2021-09-10 20:16:33 info show: [10.167.249.99]/ifName started at Fri Sep 10 20:16:33 2021 [94] 2021-09-10 20:16:33 debug show: running with timeout 600s [94] 2021-09-10 20:16:33 debug => running workers for phase: check [94] 2021-09-10 20:16:33 debug -> run worker check/_base_/0 [94] 2021-09-10 20:16:33 debug Show is able to run [94] 2021-09-10 20:16:33 debug => running workers for phase: main [94] 2021-09-10 20:16:33 debug -> run worker main/_base_/100 [94] 2021-09-10 20:16:33 debug snmp reader cache warm: [10.167.249.99] [94] 2021-09-10 20:16:33 debug [10.167.249.99:161] try_connect with ver: 2, class: SNMP::Info::Layer3::Huawei, comm: SNMP::Info::_global uptime : DISMAN-EVENT-MIB::sysUpTimeInstance : .1.3.6.1.2.1.1.3.0 SNMP::Info::_global layers : SNMPv2-MIB::sysServices.0 : .1.3.6.1.2.1.1.7.0 SNMP::Info::_global description : SNMPv2-MIB::sysDescr.0 : .1.3.6.1.2.1.1.1.0 SNMP::Info::_global id : SNMPv2-MIB::sysObjectID.0 : .1.3.6.1.2.1.1.2.0 SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info::_load_attr ifName : IF-MIB::ifName : .1.3.6.1.2.1.31.1.1.1.1 { 1 "NULL0", 2 "InLoopBack0", 3 "MEth0/0/0", 5 "10GE2/1/1" (dualvar: 10), 6 "10GE2/1/2" (dualvar: 10), 7 "10GE2/1/3" (dualvar: 10), 8 "10GE2/2/1" (dualvar: 10), 9 "10GE2/2/2" (dualvar: 10), 10 "10GE2/2/3" (dualvar: 10), 11 "10GE2/3/1" (dualvar: 10), 12 "10GE2/3/2" (dualvar: 10), 13 "10GE2/3/3" (dualvar: 10), 14 "10GE2/4/1" (dualvar: 10), 15 "10GE2/4/2" (dualvar: 10), 16 "10GE2/4/3" (dualvar: 10), 17 "10GE2/5/1" (dualvar: 10), 18 "10GE2/5/2" (dualvar: 10), 19 "10GE2/5/3" (dualvar: 10), 20 "10GE2/6/1" (dualvar: 10), 21 "10GE2/6/2" (dualvar: 10), 22 "10GE2/6/3" (dualvar: 10), 23 "10GE2/7/1" (dualvar: 10), 24 "10GE2/7/2" (dualvar: 10), 25 "10GE2/7/3" (dualvar: 10), 26 "10GE2/8/1" (dualvar: 10), 27 "10GE2/8/2" (dualvar: 10), 28 "10GE2/8/3" (dualvar: 10), 29 "10GE2/9/1" (dualvar: 10), 30 "10GE2/9/2" (dualvar: 10), 31 "10GE2/10/1" (dualvar: 10), 32 "10GE2/10/2" (dualvar: 10), 33 "10GE2/11/1" (dualvar: 10), 34 "10GE2/11/2" (dualvar: 10), 35 "10GE2/12/1" (dualvar: 10), 36 "10GE2/12/2" (dualvar: 10), 37 "10GE2/13/1" (dualvar: 10), 38 "10GE2/13/2" (dualvar: 10), 39 "10GE2/14/1" (dualvar: 10), 40 "10GE2/14/2" (dualvar: 10), 41 "10GE2/15/1" (dualvar: 10), 42 "10GE2/15/2" (dualvar: 10), 43 "10GE2/16/1" (dualvar: 10), 44 "10GE2/16/2" (dualvar: 10), 45 "10GE2/17/1" (dualvar: 10), 46 "10GE2/17/2" (dualvar: 10), 47 "10GE2/17/3" (dualvar: 10), 48 "10GE2/17/4" (dualvar: 10), 49 "10GE2/17/5" (dualvar: 10), 50 "10GE2/17/6" (dualvar: 10), 51 "10GE2/17/7" (dualvar: 10), 52 "10GE2/17/8" (dualvar: 10), 53 "10GE2/17/9" (dualvar: 10), 54 "10GE2/17/10" (dualvar: 10), 55 "10GE2/17/11" (dualvar: 10), 56 "10GE2/17/12" (dualvar: 10), 57 "10GE2/17/13" (dualvar: 10), 58 "10GE2/17/14" (dualvar: 10), 59 "10GE2/17/15" (dualvar: 10), 60 "10GE2/17/16" (dualvar: 10), 61 "40GE2/18/1" (dualvar: 40), 62 "40GE2/18/2" (dualvar: 40), 63 "Stack-Port2/1", 66 "10GE3/1/1" (dualvar: 10), 67 "10GE3/1/2" (dualvar: 10), 68 "10GE3/1/3" (dualvar: 10), 69 "10GE3/2/1" (dualvar: 10), 70 "10GE3/2/2" (dualvar: 10), 71 "10GE3/2/3" (dualvar: 10), 72 "10GE3/3/1" (dualvar: 10), 73 "10GE3/3/2" (dualvar: 10), 74 "10GE3/3/3" (dualvar: 10), 75 "10GE3/4/1" (dualvar: 10), 76 "10GE3/4/2" (dualvar: 10), 77 "10GE3/4/3" (dualvar: 10), 78 "10GE3/5/1" (dualvar: 10), 79 "10GE3/5/2" (dualvar: 10), 80 "10GE3/5/3" (dualvar: 10), 81 "10GE3/6/1" (dualvar: 10), 82 "10GE3/6/2" (dualvar: 10), 83 "10GE3/6/3" (dualvar: 10), 84 "10GE3/7/1" (dualvar: 10), 85 "10GE3/7/2" (dualvar: 10), 86 "10GE3/7/3" (dualvar: 10), 87 "10GE3/8/1" (dualvar: 10), 88 "10GE3/8/2" (dualvar: 10), 89 "10GE3/8/3" (dualvar: 10), 90 "10GE3/9/1" (dualvar: 10), 91 "10GE3/9/2" (dualvar: 10), 92 "10GE3/10/1" (dualvar: 10), 93 "10GE3/10/2" (dualvar: 10), 94 "10GE3/11/1" (dualvar: 10), 95 "10GE3/11/2" (dualvar: 10), 96 "10GE3/12/1" (dualvar: 10), 97 "10GE3/12/2" (dualvar: 10), 98 "10GE3/13/1" (dualvar: 10), 99 "10GE3/13/2" (dualvar: 10), 100 "10GE3/14/1" (dualvar: 10), 101 "10GE3/14/2" (dualvar: 10), 102 "10GE3/15/1" (dualvar: 10), 103 "10GE3/15/2" (dualvar: 10), (...skipping 23 keys...) } [94] 2021-09-10 20:16:34 info show: finished at Fri Sep 10 20:16:34 2021 [94] 2021-09-10 20:16:34 info show: status done: Showed ifName response from 10.167.249.99 ~ $ ~/bin/netdisco-do show -e ifAlias -DI -d 10.167.249.99 [96] 2021-09-10 20:16:35 info App::Netdisco version 2.049005 loaded. [96] 2021-09-10 20:16:36 info show: [10.167.249.99]/ifAlias started at Fri Sep 10 20:16:36 2021 [96] 2021-09-10 20:16:36 debug show: running with timeout 600s [96] 2021-09-10 20:16:36 debug => running workers for phase: check [96] 2021-09-10 20:16:36 debug -> run worker check/_base_/0 [96] 2021-09-10 20:16:36 debug Show is able to run [96] 2021-09-10 20:16:36 debug => running workers for phase: main [96] 2021-09-10 20:16:36 debug -> run worker main/_base_/100 [96] 2021-09-10 20:16:36 debug snmp reader cache warm: [10.167.249.99] [96] 2021-09-10 20:16:36 debug [10.167.249.99:161] try_connect with ver: 2, class: SNMP::Info::Layer3::Huawei, comm: SNMP::Info::_global uptime : DISMAN-EVENT-MIB::sysUpTimeInstance : .1.3.6.1.2.1.1.3.0 SNMP::Info::_global layers : SNMPv2-MIB::sysServices.0 : .1.3.6.1.2.1.1.7.0 SNMP::Info::_global description : SNMPv2-MIB::sysDescr.0 : .1.3.6.1.2.1.1.1.0 SNMP::Info::_global id : SNMPv2-MIB::sysObjectID.0 : .1.3.6.1.2.1.1.2.0 SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info::_load_attr ifAlias : IF-MIB::ifAlias : .1.3.6.1.2.1.31.1.1.1.18 { 1 "", 2 "", 3 "", 5 "", 6 "", 7 "", 8 "", 9 "", 10 "", 11 "", 12 "", 13 "", 14 "", 15 "", 16 "", 17 "", 18 "", 19 "", 20 "", 21 "", 22 "", 23 "", 24 "", 25 "", 26 "", 27 "", 28 "", 29 "", 30 "", 31 "", 32 "", 33 "", 34 "", 35 "", 36 "", 37 "", 38 "", 39 "", 40 "", 41 "", 42 "", 43 "", 44 "", 45 "", 46 "", 47 "", 48 "", 49 "", 50 "", 51 "", 52 "", 53 "", 54 "", 55 "", 56 "", 57 "", 58 "", 59 "", 60 "", 61 "", 62 "", 63 "", 66 "", 67 "", 68 "", 69 "", 70 "", 71 "", 72 "", 73 "", 74 "", 75 "", 76 "", 77 "", 78 "", 79 "", 80 "", 81 "", 82 "", 83 "", 84 "", 85 "", 86 "", 87 "", 88 "", 89 "", 90 "", 91 "", 92 "", 93 "", 94 "", 95 "", 96 "", 97 "", 98 "", 99 "", 100 "", 101 "", 102 "", 103 "", (...skipping 23 keys...) } [96] 2021-09-10 20:16:37 info show: finished at Fri Sep 10 20:16:37 2021 [96] 2021-09-10 20:16:37 info show: status done: Showed ifAlias response from 10.167.249.99 ~ $ ~/bin/netdisco-do show -e ifOperStatus -DI -d 10.167.249.99 [98] 2021-09-10 20:16:41 info App::Netdisco version 2.049005 loaded. [98] 2021-09-10 20:16:41 info show: [10.167.249.99]/ifOperStatus started at Fri Sep 10 20:16:41 2021 [98] 2021-09-10 20:16:41 debug show: running with timeout 600s [98] 2021-09-10 20:16:41 debug => running workers for phase: check [98] 2021-09-10 20:16:41 debug -> run worker check/_base_/0 [98] 2021-09-10 20:16:41 debug Show is able to run [98] 2021-09-10 20:16:41 debug => running workers for phase: main [98] 2021-09-10 20:16:41 debug -> run worker main/_base_/100 [98] 2021-09-10 20:16:41 debug snmp reader cache warm: [10.167.249.99] [98] 2021-09-10 20:16:41 debug [10.167.249.99:161] try_connect with ver: 2, class: SNMP::Info::Layer3::Huawei, comm: SNMP::Info::_global uptime : DISMAN-EVENT-MIB::sysUpTimeInstance : .1.3.6.1.2.1.1.3.0 SNMP::Info::_global layers : SNMPv2-MIB::sysServices.0 : .1.3.6.1.2.1.1.7.0 SNMP::Info::_global description : SNMPv2-MIB::sysDescr.0 : .1.3.6.1.2.1.1.1.0 SNMP::Info::_global id : SNMPv2-MIB::sysObjectID.0 : .1.3.6.1.2.1.1.2.0 SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info::_load_attr ifOperStatus : IF-MIB::ifOperStatus : .1.3.6.1.2.1.2.2.1.8 { 1 "up", 2 "up", 3 "up", 5 "up", 6 "down", 7 "down", 8 "up", 9 "down", 10 "down", 11 "up", 12 "down", 13 "down", 14 "up", 15 "down", 16 "down", 17 "down", 18 "down", 19 "down", 20 "down", 21 "down", 22 "down", 23 "down", 24 "down", 25 "down", 26 "down", 27 "down", 28 "down", 29 "up", 30 "down", 31 "down", 32 "down", 33 "down", 34 "down", 35 "up", 36 "down", 37 "down", 38 "down", 39 "down", 40 "down", 41 "down", 42 "down", 43 "down", 44 "down", 45 "up", 46 "down", 47 "down", 48 "down", 49 "down", 50 "down", 51 "down", 52 "down", 53 "down", 54 "down", 55 "down", 56 "down", 57 "down", 58 "down", 59 "down", 60 "down", 61 "up", 62 "up", 63 "up", 66 "up", 67 "down", 68 "down", 69 "up", 70 "down", 71 "down", 72 "up", 73 "down", 74 "down", 75 "up", 76 "down", 77 "down", 78 "down", 79 "down", 80 "down", 81 "down", 82 "down", 83 "down", 84 "down", 85 "down", 86 "down", 87 "down", 88 "down", 89 "down", 90 "up", 91 "down", 92 "down", 93 "down", 94 "down", 95 "down", 96 "up", 97 "down", 98 "down", 99 "down", 100 "down", 101 "down", 102 "down", 103 "down", (...skipping 23 keys...) } [98] 2021-09-10 20:16:44 info show: finished at Fri Sep 10 20:16:44 2021 [98] 2021-09-10 20:16:44 info show: status done: Showed ifOperStatus response from 10.167.249.99 ~ $
Your Environment
Netdisco Docker Image 2.49.5
Software Version App::Netdisco 2.49.5 SNMP::Info 3.78 DB Schema 66 PostgreSQL 13.00.4 Perl 5.32.1
Device information
~ $ ~/bin/netdisco-do show -e specify -DI -d 10.167.249.99 [107] 2021-09-10 20:57:32 info App::Netdisco version 2.049005 loaded. [107] 2021-09-10 20:57:32 info show: [10.167.249.99]/specify started at Fri Sep 10 20:57:32 2021 [107] 2021-09-10 20:57:33 debug show: running with timeout 600s [107] 2021-09-10 20:57:33 debug => running workers for phase: check [107] 2021-09-10 20:57:33 debug -> run worker check/_base_/0 [107] 2021-09-10 20:57:33 debug Show is able to run [107] 2021-09-10 20:57:33 debug => running workers for phase: main [107] 2021-09-10 20:57:33 debug -> run worker main/_base_/100 [107] 2021-09-10 20:57:33 debug snmp reader cache warm: [10.167.249.99] [107] 2021-09-10 20:57:33 debug [10.167.249.99:161] try_connect with ver: 2, class: SNMP::Info::Layer3::Huawei, comm:SNMP::Info::_global uptime : DISMAN-EVENT-MIB::sysUpTimeInstance : .1.3.6.1.2.1.1.3.0 SNMP::Info::_global layers : SNMPv2-MIB::sysServices.0 : .1.3.6.1.2.1.1.7.0 SNMP::Info::_global description : SNMPv2-MIB::sysDescr.0 : .1.3.6.1.2.1.1.1.0 SNMP::Info::_global id : SNMPv2-MIB::sysObjectID.0 : .1.3.6.1.2.1.1.2.0 SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info 3.78 SNMP::Info::device_type() layers:01001110 id:2011 sysDescr:"Huawei Versatile Routing Platform Software VRP (R) software, Version 8.80 (OSCA V100R005C50) Copyright (C) 2012-2014 Huawei Technologies Co., Ltd. HUAWEI OSCA " SNMP::Info::specify() - Changed Class to SNMP::Info::Layer3::Huawei. SNMP::Info::_validate_autoload_method(_data_printer) Unable to resolve method. SNMP::Info::_validate_autoload_method(as_string) Unable to resolve method. SNMP::Info::_validate_autoload_method(stringify) Unable to resolve method. SNMP::Info::_validate_autoload_method(to_string) Unable to resolve method. SNMP::Info::Layer3::Huawei { parents: SNMP::Info::IEEE802dot3ad, SNMP::Info::Layer3, Exporter linear @ISA: SNMP::Info::Layer3::Huawei, SNMP::Info::IEEE802dot3ad, SNMP::Info::Aggregate, SNMP::Info, Exporter, SNMP::Info::Layer3, SNMP::Info::PowerEthernet, SNMP::Info::IPv6, SNMP::Info::Entity, SNMP::Info::EtherLike, SNMP::Info::Bridge, SNMP::Info::AdslLine, SNMP::Info::LLDP, SNMP::Info::DocsisHE public methods (186): agg_ports, bp_index, fan, i_duplex, i_duplex_admin, i_ignore, i_mtu, mac, munge_hw_peth_admin, munge_hw_peth_class, munge_hw_peth_power, munge_hw_peth_status, os, os_ver, peth_port_admin, peth_port_class, peth_port_ifindex, peth_port_neg_power, peth_port_power, peth_port_status, ps1_status, ps2_status, vendor Carp: carp, confess, croak Data::Dumper: Dumper Exporter: as_heavy, export, export_fail, export_ok_tags, export_tags, export_to_level, import, require_version SNMP: RECEIVED_MESSAGE, SNMP_API_SINGLE, SNMP_API_TRADITIONAL, SNMP_DEFAULT_ADDRESS, SNMP_DEFAULT_COMMUNITY_LEN, SNMP_DEFAULT_ENTERPRISE_LENGTH, SNMP_DEFAULT_ERRINDEX, SNMP_DEFAULT_ERRSTAT, SNMP_DEFAULT_PEERNAME, SNMP_DEFAULT_REMPORT, SNMP_DEFAULT_REQID, SNMP_DEFAULT_RETRIES, SNMP_DEFAULT_TIME, SNMP_DEFAULT_TIMEOUT, SNMP_DEFAULT_VERSION, snmp_get, snmp_getnext, snmp_set, snmp_trap, SNMPERR_BAD_ADDRESS, SNMPERR_BAD_LOCPORT, SNMPERR_BAD_SESSION, SNMPERR_GENERR, SNMPERR_TOO_LONG, TIMED_OUT SNMP::Info: all, args, AUTOLOAD, bulkwalk, bulkwalk_no, c_cap, c_id, c_if, c_ip, c_platform, c_port, cache, can, cisco_comm_indexing, class, clear_cache, debug, DESTROY, device_type, error, error_throw, funcs, globals, has_layer, has_topo, i_speed, i_speed_raw, if_ignore, init, ip_index, ip_netmask, ip_table, load_all, loopdetect, mibs, modify_port_list, munge, munge_bits, munge_counter64, munge_dec2bin,munge_e_type, munge_highspeed, munge_i_up, munge_ip, munge_mac, munge_null, munge_octet2hex, munge_port_list, munge_prio_mac, munge_prio_port, munge_speed, new, nosuch, offline, resolve_desthost, session, set_multi, snmp_comm, snmp_connect_ip, snmp_ver, specify, store, update SNMP::Info::Aggregate: agg_ports_ifstack SNMP::Info::Bridge: fw_mac, fw_port, fw_status, i_stp_bridge, i_stp_id, i_stp_port, i_stp_state, i_untagged, i_vlan, i_vlan_membership, i_vlan_membership_untagged, qb_fdb_index, qb_fw_mac, qb_fw_vlan, qb_i_vlan_t, set_add_i_vlan_tagged, set_i_pvid, set_i_untagged, set_i_vlan, set_remove_i_vlan_tagged, v_index SNMP::Info::Entity: e_index, e_port, entity_derived_os_ver, entity_derived_serial SNMP::Info::EtherLike: munge_el_duplex SNMP::Info::IEEE802dot3ad: agg_ports_lag SNMP::Info::IPv6: CISCO, IPMIB, ipv6_addr, ipv6_addr_prefix, ipv6_addr_prefixlength, ipv6_index, ipv6_n2p_addr, ipv6_n2p_if, ipv6_n2p_mac, ipv6_n2p_state, ipv6_n2p_type, ipv6_pfx_origin, ipv6_type, IPV6MIB, munge_physaddr SNMP::Info::LLDP: hasLLDP, lldp_addr, lldp_cap, lldp_id, lldp_if, lldp_ip, lldp_ipv6, lldp_mac, lldp_media_cap, lldp_platform, lldp_port SNMP::Info::Layer3: at_index, at_netaddr, at_paddr, i_name, interfaces, isis_peers, model, root_ip, serial private methods (0) internals: { args { AutoSpecify 0, BulkRepeaters 20, BulkWalk 1, Community "*********", Debug 1, DebugSNMP 0, DestHost "10.167.249.99" (dualvar: 10.167), IgnoreNetSNMPConf 1, MibDirs [ [0] "/home/netdisco/netdisco-mibs/3com", [1] "/home/netdisco/netdisco-mibs/adtran", [2] "/home/netdisco/netdisco-mibs/aerohive", [3] "/home/netdisco/netdisco-mibs/alcatel", [4] "/home/netdisco/netdisco-mibs/allied", [5] "/home/netdisco/netdisco-mibs/apc", [6] "/home/netdisco/netdisco-mibs/arista", [7] "/home/netdisco/netdisco-mibs/aruba", [8] "/home/netdisco/netdisco-mibs/asante", [9] "/home/netdisco/netdisco-mibs/avaya", [10] "/home/netdisco/netdisco-mibs/bluecoat", [11] "/home/netdisco/netdisco-mibs/bluesocket", [12] "/home/netdisco/netdisco-mibs/brother", [13] "/home/netdisco/netdisco-mibs/cabletron", [14] "/home/netdisco/netdisco-mibs/ceragon", [15] "/home/netdisco/netdisco-mibs/cern", [16] "/home/netdisco/netdisco-mibs/checkpoint", [17] "/home/netdisco/netdisco-mibs/ciena", [18] "/home/netdisco/netdisco-mibs/cisco", [19] "/home/netdisco/netdisco-mibs/ciscosb", [20] "/home/netdisco/netdisco-mibs/citrix", [21] "/home/netdisco/netdisco-mibs/clavister", [22] "/home/netdisco/netdisco-mibs/cloudgenix", [23] "/home/netdisco/netdisco-mibs/colubris", [24] "/home/netdisco/netdisco-mibs/cumulus", [25] "/home/netdisco/netdisco-mibs/cyclades", [26] "/home/netdisco/netdisco-mibs/d-link", [27] "/home/netdisco/netdisco-mibs/dell", [28] "/home/netdisco/netdisco-mibs/eaton", [29] "/home/netdisco/netdisco-mibs/efficientip", [30] "/home/netdisco/netdisco-mibs/enterasys", [31] "/home/netdisco/netdisco-mibs/etherwan", [32] "/home/netdisco/netdisco-mibs/exinda", [33] "/home/netdisco/netdisco-mibs/EXTRAS", [34] "/home/netdisco/netdisco-mibs/extreme", [35] "/home/netdisco/netdisco-mibs/extricom", [36] "/home/netdisco/netdisco-mibs/f5", [37] "/home/netdisco/netdisco-mibs/force10", [38] "/home/netdisco/netdisco-mibs/fortinet", [39] "/home/netdisco/netdisco-mibs/foundry", [40] "/home/netdisco/netdisco-mibs/gigamon", [41] "/home/netdisco/netdisco-mibs/h3c", [42] "/home/netdisco/netdisco-mibs/hirschmann", [43] "/home/netdisco/netdisco-mibs/hp", [44] "/home/netdisco/netdisco-mibs/hpe", [45] "/home/netdisco/netdisco-mibs/huawei", [46] "/home/netdisco/netdisco-mibs/ibm", [47] "/home/netdisco/netdisco-mibs/intel", [48] "/home/netdisco/netdisco-mibs/juniper", [49] "/home/netdisco/netdisco-mibs/korenix", [50] "/home/netdisco/netdisco-mibs/lancom", [51] "/home/netdisco/netdisco-mibs/lantronix", [52] "/home/netdisco/netdisco-mibs/lenovo", [53] "/home/netdisco/netdisco-mibs/liebert", [54] "/home/netdisco/netdisco-mibs/mediant", [55] "/home/netdisco/netdisco-mibs/mellanox", [56] "/home/netdisco/netdisco-mibs/meraki", [57] "/home/netdisco/netdisco-mibs/meru", [58] "/home/netdisco/netdisco-mibs/microsens", [59] "/home/netdisco/netdisco-mibs/mikrotik", [60] "/home/netdisco/netdisco-mibs/moser-baer", [61] "/home/netdisco/netdisco-mibs/motorola", [62] "/home/netdisco/netdisco-mibs/moxa", [63] "/home/netdisco/netdisco-mibs/nateks", [64] "/home/netdisco/netdisco-mibs/net-snmp", [65] "/home/netdisco/netdisco-mibs/netapp", [66] "/home/netdisco/netdisco-mibs/netgear", [67] "/home/netdisco/netdisco-mibs/netonix", [68] "/home/netdisco/netdisco-mibs/netscreen", [69] "/home/netdisco/netdisco-mibs/nexans", [70] "/home/netdisco/netdisco-mibs/nortel", [71] "/home/netdisco/netdisco-mibs/northerndesign", [72] "/home/netdisco/netdisco-mibs/oneaccess", [73] "/home/netdisco/netdisco-mibs/openbsd", [74] "/home/netdisco/netdisco-mibs/opengear", [75] "/home/netdisco/netdisco-mibs/packetfront", [76] "/home/netdisco/netdisco-mibs/paloalto", [77] "/home/netdisco/netdisco-mibs/pica8", [78] "/home/netdisco/netdisco-mibs/pulsesecure-gateway", [79] "/home/netdisco/netdisco-mibs/rad", [80] "/home/netdisco/netdisco-mibs/redlionram", [81] "/home/netdisco/netdisco-mibs/rfc", [82] "/home/netdisco/netdisco-mibs/rittal", [83] "/home/netdisco/netdisco-mibs/riverbed", [84] "/home/netdisco/netdisco-mibs/ruckus", [85] "/home/netdisco/netdisco-mibs/schleifenbauer", [86] "/home/netdisco/netdisco-mibs/sentry", [87] "/home/netdisco/netdisco-mibs/siemens", [88] "/home/netdisco/netdisco-mibs/sixnet", [89] "/home/netdisco/netdisco-mibs/sonicwall", [90] "/home/netdisco/netdisco-mibs/teleste", [91] "/home/netdisco/netdisco-mibs/teltonika", [92] "/home/netdisco/netdisco-mibs/tplink", [93] "/home/netdisco/netdisco-mibs/trapeze", [94] "/home/netdisco/netdisco-mibs/ubnt", [95] "/home/netdisco/netdisco-mibs/vmware", [96] "/home/netdisco/netdisco-mibs/watchguard", [97] "/home/netdisco/netdisco-mibs/wipipe", [98] "/home/netdisco/netdisco-mibs/xedia", [99] "/home/netdisco/netdisco-mibs/xirrus" ], NonIncreasing 0, RemotePort 161, Retries 0, Session SNMP::Session, Timeout 3000000, Version 2 }, BulkRepeaters 20, BulkWalk 1, class "SNMP::Info::Layer3::Huawei", debug 1, funcs { ad_lag_ports "dot3adAggPortListPorts", adsl_atuc_crc_block_len "adslAtucChanCrcBlockLength", adsl_atuc_curr_tx_rate "adslAtucChanCurrTxRate", adsl_atuc_interleave_delay "adslAtucChanInterleaveDelay", adsl_atuc_prev_tx_rate "adslAtucChanPrevTxRate", adsl_atur_crc_block_len "adslAturChanCrcBlockLength", adsl_atur_curr_tx_rate "adslAturChanCurrTxRate", adsl_atur_interleave_delay "adslAturChanInterleaveDelay", adsl_atur_prev_tx_rate "adslAturChanPrevTxRate", at_index "ipNetToMediaIfIndex", at_netaddr "ipNetToMediaNetAddress", at_paddr "ipNetToMediaPhysAddress", bgp_peer_addr "bgpPeerRemoteAddr", bgp_peer_as "bgpPeerRemoteAs", bgp_peer_fsm_est_trans "bgpPeerFsmEstablishedTransitions", bgp_peer_id "bgpPeerIdentifier", bgp_peer_in_tot_msgs "bgpPeerInTotalMessages", bgp_peer_in_upd "bgpPeerInUpdates", bgp_peer_in_upd_el_time "bgpPeerInUpdateElapsedTime", bgp_peer_out_tot_msgs "bgpPeerOutTotalMessages", bgp_peer_out_upd "bgpPeerOutUpdates", bgp_peer_state "bgpPeerState", bgp_peers "bgpPeerLocalAddr", bp_index "dot1dBasePortIfIndex", bp_port "dot1dBasePortCircuit", bs_mac "dot1dStaticAddress", bs_port "dot1dStaticReceivePort", bs_status "dot1dStaticStatus", bs_to "dot1dStaticAllowedToGoTo", c_addr6_index "cIpAddressIfIndex", c_addr6_pfx "cIpAddressPrefix", c_addr6_type "cIpAddressType", c_inet_phys_addr "cInetNetToMediaPhysAddress", c_inet_phys_state "cInetNetToMediaState", c_inet_phys_type "cInetNetToMediaType", c_pfx_origin "cIpAddressPfxOrigin", docs_cmts_cm_down_channel_if_index "docsIfCmtsCmStatusDownChannelIfIndex", docs_cmts_cm_up_channel_if_index "docsIfCmtsCmStatusUpChannelIfIndex", docs_if3_cmts_cm_status_md_if_index "docsIf3CmtsCmRegStatusMdIfIndex", docs_if_cmts_cm_status_inet_address "docsIfCmtsCmStatusInetAddress", docs_if_cmts_cm_status_inet_address_type "docsIfCmtsCmStatusInetAddressType", e_alias "entPhysicalAlias", e_class "entPhysicalClass", e_descr "entPhysicalDescr", e_fru "entPhysicalIsFRU", e_fwver "entPhysicalFirmwareRev", e_hwver "entPhysicalHardwareRev", e_id "entPhysicalAssetID", e_map "entAliasMappingIdentifier", e_model "entPhysicalModelName", e_name "entPhysicalName", e_parent "entPhysicalContainedIn", e_pos "entPhysicalParentRelPos", e_serial "entPhysicalSerialNum", e_swver "entPhysicalSoftwareRev", e_type "entPhysicalVendorType", e_vendor "entPhysicalMfgName", el_chipset "dot3StatsEtherChipSet", el_coll_excess "dot3StatsExcessiveCollisions", el_coll_freq "dot3CollFrequencies", el_coll_late "dot3StatsLateCollisions", el_coll_mult "dot3StatsMultipleCollisionFrames", el_coll_single "dot3StatsSingleCollisionFrames", el_duplex "dot3StatsDuplexStatus", el_error_alignment "dot3StatsAlignmentErrors", el_error_cs "dot3StatsCarrierSenseErrors", el_error_fcs "dot3StatsFCSErrors", el_error_frame "dot3StatsFrameTooLongs", el_error_mac_rec "dot3StatsInternalMacReceiveErrors", el_error_mac_xmit "dot3StatsInternalMacTransmitErrors", el_error_sqe "dot3StatsSQETestErrors", el_error_symbol "dot3StatsSymbolErrors", el_index "dot3StatsIndex", el_xmit_defer "dot3StatsDeferredTransmissions", fw_mac "dot1dTpFdbAddress", fw_port "dot1dTpFdbPort", fw_status "dot1dTpFdbStatus", hw_eth_auto "hwEthernetNegotiation", hw_eth_duplex "hwEthernetDuplex", hw_eth_frame_len "hwEthernetJumboframeMaxLength", hw_eth_speed_admin "hwEthernetSpeedSet", hw_fan_descr "hwEntityFanDesc", hw_fan_state "hwEntityFanState", hw_l2if_port_idx "hwL2IfPortIfIndex", hw_peth_port_admin "hwPoePortEnable", hw_peth_port_class "hwPoePortPdClass", hw_peth_port_power "hwPoePortConsumingPower", hw_peth_port_status "hwPoePortPowerStatus", hw_phy_port_slot "hwPhysicalPortInSlot", hw_pwr_descr "hwEntityPwrDesc", hw_pwr_state "hwEntityPwrState", hw_trunk_entry "hwTrunkValidEntry", hw_trunk_if_idx "hwTrunkIfIndex", i6_addr_pfxlen "ipv6AddrPfxLength", i6_n2p_phys_addr "ipv6NetToMediaPhysAddress", i6_n2p_phys_state "ipv6IfNetToMediaState", i6_n2p_phys_type "ipv6NetToMediaType", i_alias "ifAlias", i_bad_proto_in "ifInUnknownProtos", i_description "ifDescr", (...skipping 150 keys...) }, globals { b_mac "dot1dBaseBridgeAddress", b_ports "dot1dBaseNumPorts", b_type "dot1dBaseType", bgp_id "bgpIdentifier.0", bgp_local_as "bgpLocalAs.0", contact "sysContact", description "sysDescr", id "sysObjectID", ipforwarding "ipForwarding", layers "sysServices", lldp_sys_cap "lldpLocSysCapEnabled", lldp_sysdesc "lldpLocSysDesc", lldp_sysname "lldpLocSysName", location "sysLocation", mac "ifPhysAddress.1", name "sysName", ports "ifNumber", qb_next_vlan_index "dot1qNextFreeLocalVlanIndex", qb_vlans "dot1qNumVlans", qb_vlans_max "dot1qMaxSupportedVlans", router_ip "ospfRouterId.0", serial1 ".1.3.6.1.4.1.9.3.6.3.0" (dualvar: 0.1), stp_priority "dot1dStpPriority", stp_root "dot1dStpDesignatedRoot", stp_root_port "dot1dStpRootPort", stp_time "dot1dStpTimeSinceTopologyChange", stp_ver "dot1dStpProtocolSpecification", uptime "sysUpTime" }, IgnoreNetSNMPConf 1, init \ 1, mibdirs var{args}{MibDirs}, mibs { ADSL-LINE-MIB "adslLineType", BGP4-MIB "bgpIdentifier", BRIDGE-MIB "dot1dBaseBridgeAddress", CISCO-IETF-IP-MIB "cInetNetToMediaNetAddress", DOCS-IF-MIB "docsIfMib", DOCS-IF3-MIB "docsIf3Mib", ENTITY-MIB "entPhysicalSerialNum", EtherLike-MIB "etherMIB", HUAWEI-ENTITY-EXTENT-MIB "hwEntityFanState", HUAWEI-IF-EXT-MIB "hwTrunkIfIndex", HUAWEI-L2IF-MIB "hwL2IfPortIfIndex", HUAWEI-MIB "quidway", HUAWEI-POE-MIB "hwPoePower", HUAWEI-PORT-MIB "hwEthernetDuplex", IEEE8023-LAG-MIB "dot3adAggPortSelectedAggID", IF-MIB "ifIndex", IP-MIB "ipNetToMediaIfIndex", IPV6-MIB "ipv6IfTableLastChange", ISIS-MIB "isisSysID", LLDP-EXT-DOT1-MIB "lldpXdot1MIB", LLDP-EXT-DOT3-MIB "lldpXdot3MIB", LLDP-EXT-MED-MIB "lldpXMedMIB", LLDP-MIB "lldpLocSysCapEnabled", OSPF-MIB "ospfRouterId", POWER-ETHERNET-MIB "pethPsePortDetectionStatus", Q-BRIDGE-MIB "dot1qPvid", RSTP-MIB "dot1dStpPortOperEdgePort", SNMPv2-MIB "sysObjectID" }, munge { ad_lag_ports sub { ... }, at_paddr sub { ... }, b_mac var{munge}{at_paddr}, bs_mac var{munge}{at_paddr}, c_inet_phys_addr sub { ... }, e_type sub { ... }, el_duplex sub { ... }, fw_mac var{munge}{at_paddr}, hw_peth_port_admin sub { ... }, hw_peth_port_class sub { ... }, hw_peth_port_status sub { ... }, i6_n2p_phys_addr var{munge}{at_paddr}, i_mac var{munge}{at_paddr}, i_octet_in64 sub { ... }, i_octet_out64 var{munge}{i_octet_in64}, i_pkts_bcast_in64 var{munge}{i_octet_in64}, i_pkts_bcast_out64 var{munge}{i_octet_in64}, i_pkts_multi_out64 var{munge}{i_octet_in64}, i_pkts_mutli_in64 var{munge}{i_octet_in64}, i_pkts_ucast_in64 var{munge}{i_octet_in64}, i_pkts_ucast_out64 var{munge}{i_octet_in64}, i_speed sub { ... }, i_speed_high sub { ... }, i_up sub { ... }, ip sub { ... }, ip_n2p_phys_addr var{munge}{at_paddr}, layers sub { ... }, lldp_lport_desc sub { ... }, lldp_lport_id var{munge}{lldp_lport_desc}, lldp_rem_asset var{munge}{lldp_lport_desc}, lldp_rem_cap_spt sub { ... }, lldp_rem_fw_rev var{munge}{lldp_lport_desc}, lldp_rem_hw_rev var{munge}{lldp_lport_desc}, lldp_rem_media_cap var{munge}{lldp_rem_cap_spt}, lldp_rem_media_cap_spt var{munge}{lldp_rem_cap_spt}, lldp_rem_model var{munge}{lldp_lport_desc}, lldp_rem_port_desc var{munge}{lldp_lport_desc}, lldp_rem_serial var{munge}{lldp_lport_desc}, lldp_rem_sw_rev var{munge}{lldp_lport_desc}, lldp_rem_sys_cap var{munge}{lldp_rem_cap_spt}, lldp_rem_sysdesc var{munge}{lldp_lport_desc}, lldp_rem_sysname var{munge}{lldp_lport_desc}, lldp_rem_vendor var{munge}{lldp_lport_desc}, lldp_sys_cap var{munge}{lldp_rem_cap_spt}, lldp_sysdesc var{munge}{lldp_lport_desc}, lldp_sysname var{munge}{lldp_lport_desc}, mac var{munge}{at_paddr}, n2p_paddr var{munge}{at_paddr}, old_at_paddr var{munge}{at_paddr}, peth_power_consumption sub { ... }, peth_power_watts var{munge}{peth_power_consumption}, qb_cv_egress var{munge}{ad_lag_ports}, qb_cv_untagged var{munge}{ad_lag_ports}, qb_v_egress var{munge}{ad_lag_ports}, qb_v_fbdn_egress var{munge}{ad_lag_ports}, qb_v_untagged var{munge}{ad_lag_ports}, stp_i_mac var{munge}{at_paddr}, stp_i_root sub { ... }, stp_p_bridge var{munge}{stp_i_root}, stp_p_port sub { ... }, stp_p_root var{munge}{stp_i_root}, stp_root var{munge}{stp_i_root} }, nosuch 1, sess var{args}{Session}, snmp_comm "**********", snmp_user "initial", snmp_ver 2, store {} } } [107] 2021-09-10 20:57:34 info show: finished at Fri Sep 10 20:57:34 2021 [107] 2021-09-10 20:57:34 info show: status done: Showed specify response from 10.167.249.99
