Question about P3 : 64*64 1/32 Driver ICN2037BP

Open brainhasan opened this issue 3 years ago • 4 comments
trafficstars

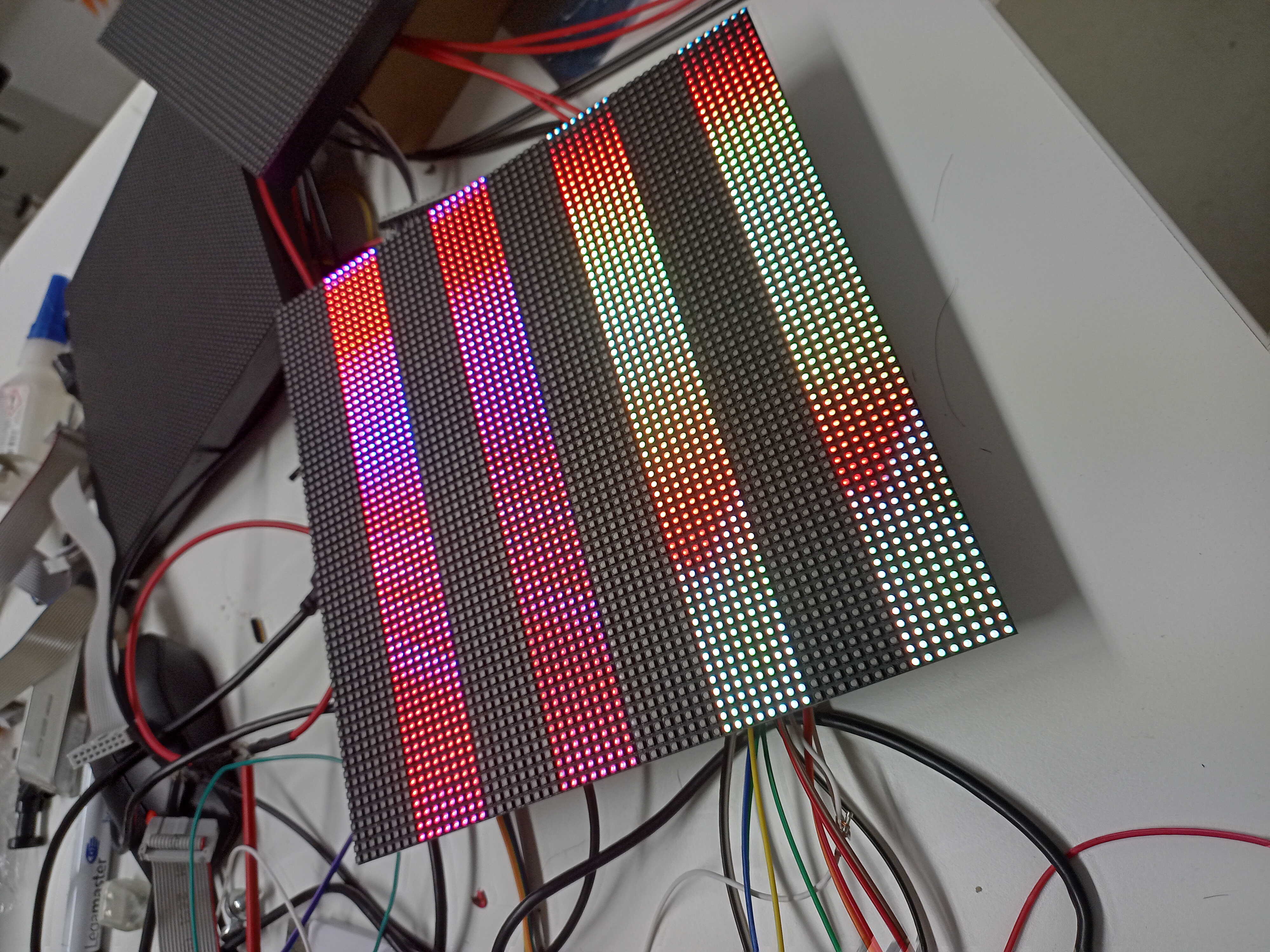

IMG_20220927_101826 does the library support the panel with the driver ICN2037BP ?

brainhasan avatar Sep 27 '22 08:09 brainhasan

Looks to me like you have your D line missing....

DarrylStrong avatar Sep 27 '22 12:09 DarrylStrong

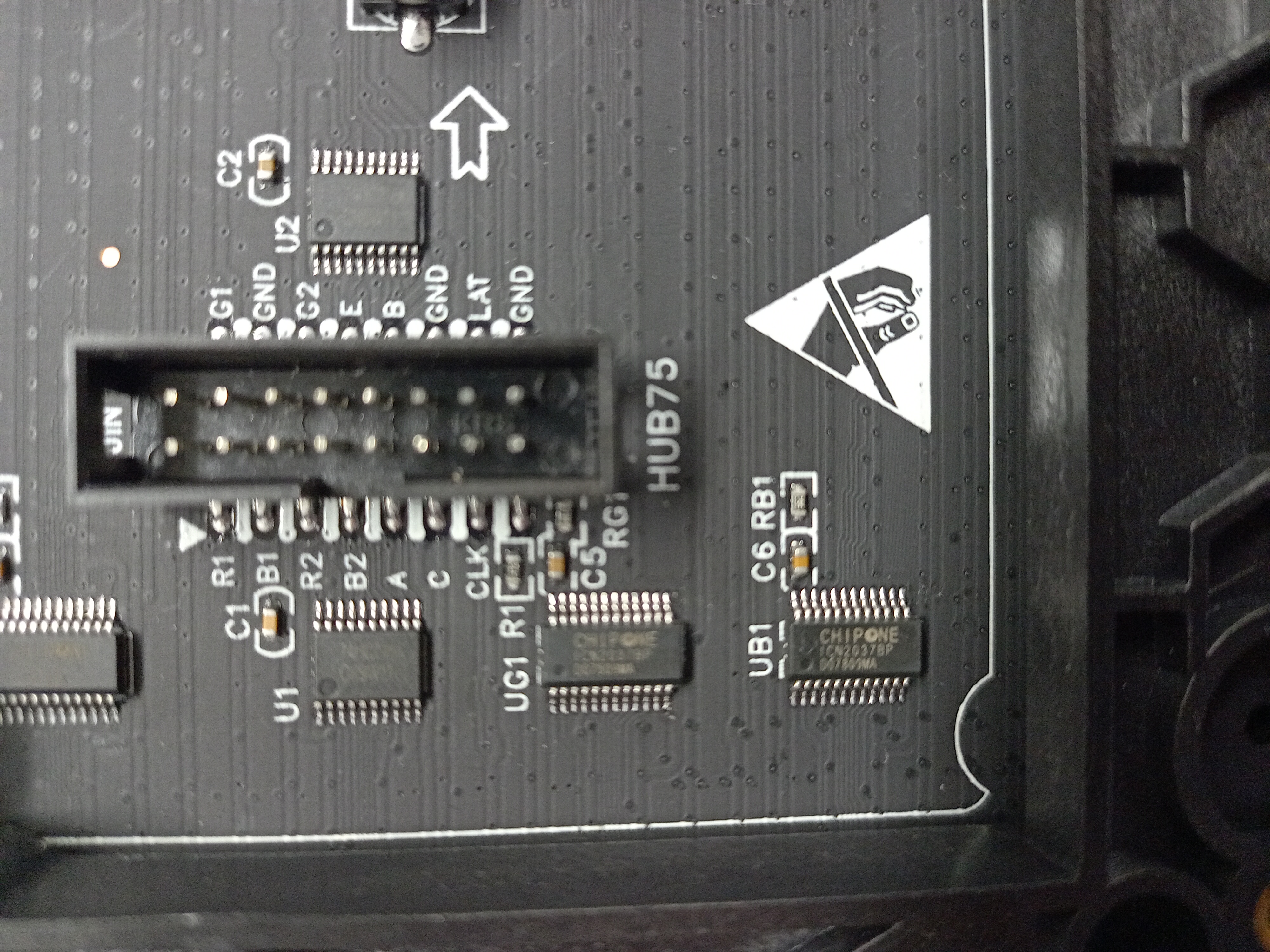

@DarrylStrong yes my pannel dont have it IMG_20220922_124812

brainhasan avatar Sep 27 '22 12:09 brainhasan

There is something odd with the markings as it has an E...

Check to see which pins are actually ground as I suspect the standard D pin is marked as GND.

DarrylStrong avatar Sep 27 '22 13:09 DarrylStrong

i have the same panel and the D pin is next to the C pin and is for some reason labelled as ground, it works with the library without any modifications Screenshot_20230420-030953_Photos

mzashh avatar Apr 19 '23 21:04 mzashh
