Linux ICON APP not displayed in task bar (need SVG format support)
Environment
Platform ServicePack Version VersionString
Win32NT 10.0.21364.0 Microsoft Windows NT 10.0.21364.0
Steps to reproduce
- Install all the steps, with the latest insider's version
- with ubuntu 20.04, sudo apt install ubuntu-desktop
- launch: gedit, nautilus, firefox or any other app
Expected behavior
when launch, the icon of the linux app should be displayed in the task bar
Actual behavior
Problem: In the great video of Craig, we can see the icon of the aplication in the windows task bar with a small linux icon upside, in all the apps i launch, y see a big linux icon, without the app icon
This is a bug?, i must configure some others files?.
@ferkorol , the taskbar ICON for X11 app is obtained from "_NET_WM_ICON" window property, can you run "xprop" to see if they provide some ICON ? For Wayland native app, the taskbar ICON is obtained from .desktop file. If none of them provides ICON, then the default big penguin Linux icon is used (with overlaying small penguin icon as badge).

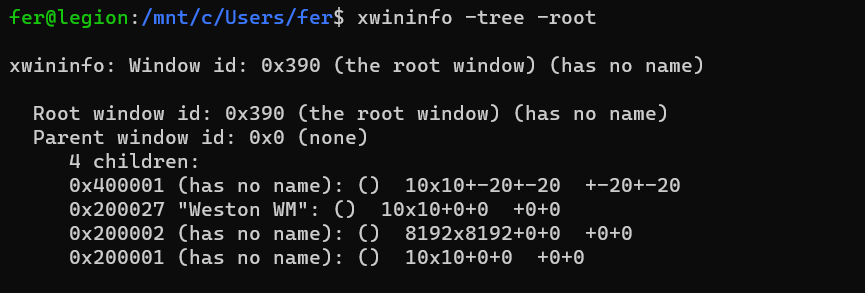

Hi!, My wsl2 distro is ubuntu 20.04, xprop dont return anything for nautilus or gedit, but yes the info for firefox, thunderbird and others. A rare case, if i run "sudo nautilus", the first time i have one error, if i try again, it open the root nautilus, and the nautilus icon in this case are displayed correctly in the taskbar. The problem seem to by for my original user.
Any other idea that i can try?
Thanks a lot!!!
@ferkorol , I guess in your case nautilus and gedit could be running in Wayland native mode.
First, would you please check if those window shows up in "xwininfo -tree -root"? if it does show up, then it should be running in X11 mode and should respond to "xprop" (like below, this is from gedit in X11 mode).
If it is running in Wayland mode, you can force them to run in X11 mode by "export GDK_BACKEND=x11" first (you might need to restart WSLg if you ever run them in Wayland mode, but I'm not 100% sure on this). I will need to see why only root can reach icon data separately.
FYI: currently running nautilus in X11 mode is hitting separate issue (related to clipboard), so it may crash WSLg. If you encounter this, you will see "read error from data source: Bad address" in /mnt/wslg/weston.log.
_NET_WM_ICON(CARDINAL) = Icon (48 x 48):
░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░░░░░
░ ░░░░░
▒░ ░░░
▒▒░ ░
░ ░
░ ░
░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░
_GTK_WINDOW_OBJECT_PATH(UTF8_STRING) = "/org/gnome/gedit/window/1" _GTK_APPLICATION_OBJECT_PATH(UTF8_STRING) = "/org/gnome/gedit" _GTK_UNIQUE_BUS_NAME(UTF8_STRING) = ":1.0" _GTK_APPLICATION_ID(UTF8_STRING) = "org.gnome.gedit"
And gedit and nautilus seems currently only offer SVG format icon data, and currently WSLg does not support SVG image format for ICON.
Hi!,

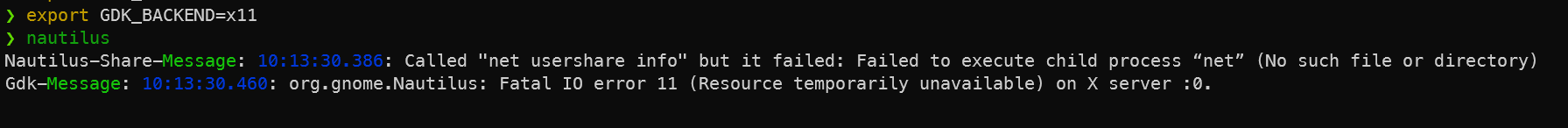

The export GDK_BACKEND=x11
In my current wsl ubuntu vm i get this error:
currently WSLg does not support SVG image format for ICON. ->Can i create a custom .desktop with a compatible image to nautilus and others as a temporary solution?.
Regards!
@ferkorol , yes you can create custom .desktop file as workaround and have it point to PNG format bitmap as ICON.
With X11 backend, I am able to run nautilus with https://github.com/microsoft/wslg/issues/72 applied.
Good morning!,
Great!, do you know where is the .desktop of the nautilus app?, i replace the icon property of the: /usr/share/applications/nautilus-autorun-software.desktop /usr/share/applications/org.gnome.Nautilus.desktop
Algo i create a custom nautilus.desktop in /home/fer/.local/share/applications
The new icon is a 96x96 png file in my home/Images folder.
Regards!
@ferkorol, currently WSLg is not looking desktop files under home directory. I believe /usr/share/applications/org.gnome.Nautilus.desktop is right one, and you can place your new icon at /usr/share/icons/hicolor/96x96/apps. thanks!
I cannot get the icons to work right, unless I am root. In my case, with emacs (installed via apt, Debian 11)
Even with a desktop file pointing directly to the icon (.png or .icon, both don't work):
- In startup menu under Debian, there is emacs with the pinguin icon
- When started, in the task bar, there is emacs with the pinguin icon
When using xprop on my emacs the _NET_WM_ICON property is indeed not set (unless I am root, in which case it is set and the icon is fine), but apparently the .desktop file doesn't fix it.
My emacs.desktop:
[Desktop Entry]
Name=Emacs
GenericName=Text Editor
Comment=Edit text
MimeType=text/english;text/plain;text/x-makefile;text/x-c++hdr;text/x-c++src;text/x-chdr;text/x-csrc;text/x-java;text/x-moc;text/x-pascal;text/x-tcl;text/x-tex;application/x-shellscript;text/x-c;text/x-c++;
Exec=emacs
Icon=/usr/share/icons/hicolor/128x128/apps/emacs.png
Type=Application
Terminal=false
Categories=Development;TextEditor;
StartupWMClass=Emacs
I've been looked into the code and found the SVG format has been supported in "img-load.c" by using librsvg2 lib. However the build Dockerfile doesn't include that as building dependency, so this will be disabled at current release.
pixman_image_t *
load_icon_image(struct desktop_shell *shell, const char *filename)
{
pixman_image_t *image;
image = load_image(filename);
#ifdef HAVE_LIBRSVG2
if (!image)
image = load_svg(shell, filename);
#endif // HAVE_LIBRSVG2
return image;
}
It won't be easy to add librsvg2 to the build environment because Microsoft's repository doesn't have that lib. I've tried to build it from source code but it says the Rust runtime was too old( 1.42 < required 1.5x)
@theironrobin, I completed the SVG support PR, https://github.com/microsoft/wslg/pull/798, but there is an issue with fontconfig with only x64 while arm64 build works, we are investigating that, thanks!
@theironrobin Please refer the comment I made in the PR, you should do some code modifications and it works. If you just want to enable the Icon, I can send you a modified WSL system VHD to you.
@seflerZ, I merged the PR, but noticed the issue with pango/fontconfig text rendering on x64 (arm64 is working fine), which causes the title bar text with X11 application does not render correctly, thus reverted back the PR. Have you noticed such? thanks!
@seflerZ, I merged the PR, but noticed the issue with pango/fontconfig text rendering on x64 (arm64 is working fine), which causes the title bar text with X11 application does not render correctly, thus reverted back the PR. Have you noticed such? thanks!

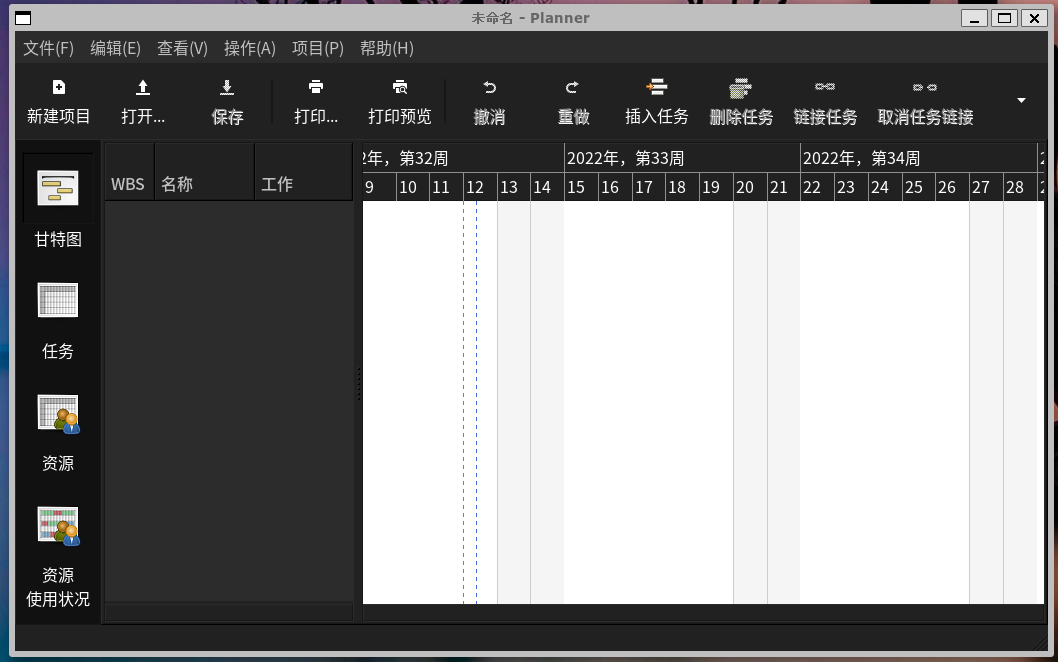

No, I haven't. Everything works fine.
I'm using a customized theme. Maybe saved me?
I don't understand why code has to be patched manually for this to work? why can't @seflerZ add the scalable icon paths in a PR rather than comment.

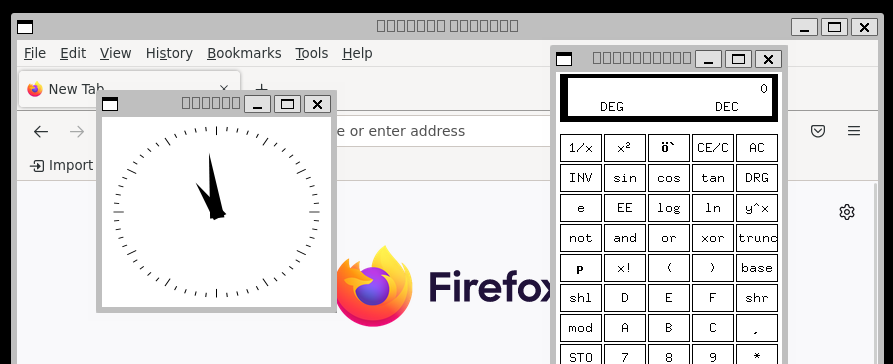

@seflerZ, thanks for screenshot, and this is very interesting. Below is what I got with enabling librsvg2, please see the title bar fonts are all boxes. Would you please try firefox. xclock and xcalc?
And here is some findings...
• If a process only uses pango (even librsvg2 is installed on system), pango works fine to render font glyph. • If a process only uses librsvg2 (even pango is installed on system), librsvg2 works fine to decode SVG image. • But if a process loads both pango and librsvg2 libraries, while librsvg2 works fine, but pango is failing to render font glyph, and our compositor is falling this case.
If yours is still working fine with those X11 apps, I would be very interested in to look into that. If you don't mind, would you please share your private VHD file? thanks!

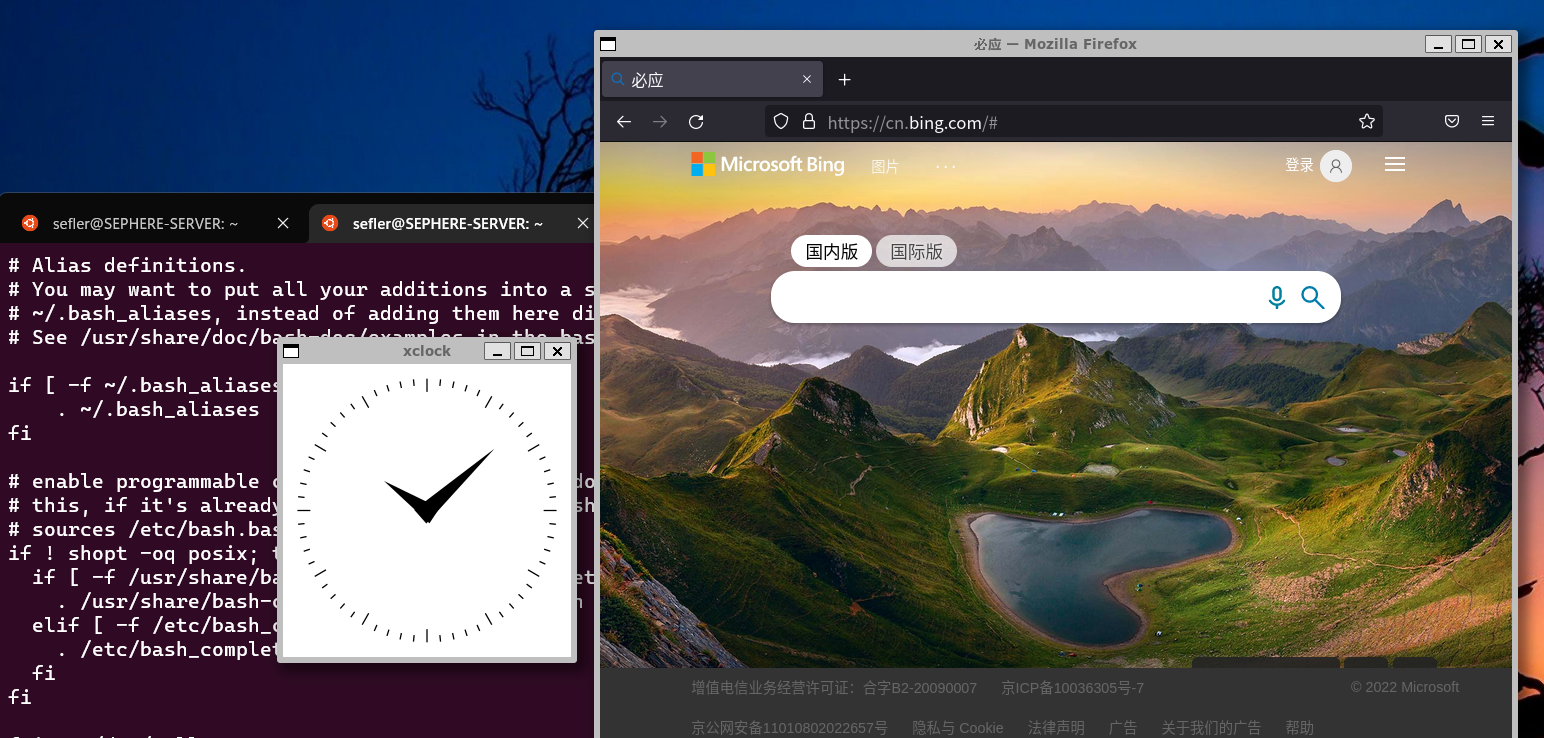

Hello @hideyukn88 , everything works fine.
I'm using Ubuntu 22.04 with WSLg.
I don't understand why code has to be patched manually for this to work? why can't @seflerZ add the scalable icon paths in a PR rather than comment.
It is because I'm also hard coded my theme path to that dir string. At present, I can't come up with an idea to get user applied theme in the WSL system image. They are isolated. @hideyukn88 do you have any idea?
@seflerZ, one of issue is that currently theme data file installed at user-distro is not accessible from system distro, but we can change this to be shared with system distro (as currently we are working on xfonts on user-distro to be shared for system distro).
And I'm still would like to check why enabling SVG doesn't cause issue with font rendering on your image, so if you don't mind, please share your system distro VHD with us, thank you!
I was having this problem about the icon on the taskbar. The app (Zathura) was running on Wayland. Changing for X11 solved the problem.
But I actually prefer the Wayland visual. Is there any other way to keep the Wayland and make the icon correct?
(Sorry for english)
As per https://github.com/microsoft/wslg/issues/614#issuecomment-1006143044 https://github.com/microsoft/CBL-MarinerCoreUI/pull/95 was holding up svg support in wslg's wayland implementation. Is that fixed now @hideyukn88 ?
This is still an issue in WSL 2.4.5, where I am getting the penguin icon in the task bar when I launch wayland apps such as ptyxis.
