2d alignment seems bad

[phypan11]

When I plot landmarks_2d on an image in input folder, it produces bad result. Why is this happening?

[YuDeng]

Hi, landmarks may have a 1-pixel shift in 224*224 output image due to coordinates inconsistency between python and matlab (starts from 0 or 1). Besides, our model may not perform well if the photo is taken at a near-range distance like the first example. In addition, our model cannot handle the case if eyes are closed. Thanks.

[watermoon123]

Actually I have a silly question. How do you compute the landmark coordinates on source image, as the predicted landmarks are conputed from cropped image.

[xinxxx0124]

Actually I have a silly question. How do you compute the landmark coordinates on source image, as the predicted landmarks are conputed from cropped image.

Do you solve this problem now? I have the same question.

[acmlau]

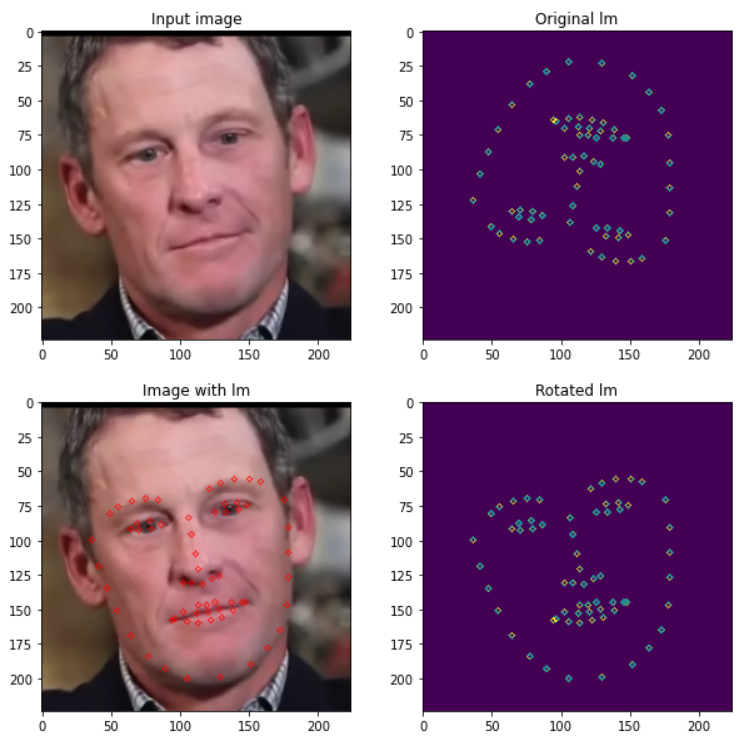

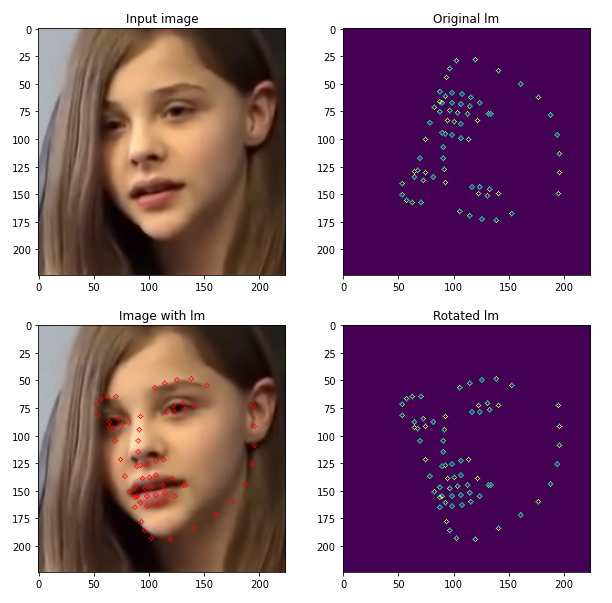

@watermoon123 @xinxxx0124 I rewrote the demo a bit such that I could obtain the "cropped img" and "68 landmarks" in a jupyter notebook.

Then I did

for x,y in landmark:
        cv2.circle(mask, (x,int(224-y)), 2, (255,0,0))

Originally the landmarks seemed upside down for me but this did the job. The 224 is the size of the cropped image.
