Emacs mu4e + mbsync + davmail

[bepolymathe]

Expected or desired behavior

Make exchange works with mu4e (via davmail)

Actual behavior

Hello,

I have read the documentation correctly but I still have difficulties to successfully identify my business email via davmail.

The configuration of my.mbsynrc is as follows:

IMAPAccount Work
Host localhost
Port 1143
AuthMechs LOGIN
User domain\\user.name
UseIMAPS no
RequireSSL no
UseTLSv1 no
Pass MYPASSWORD

IMAPStore Work-remote
Account Work

MaildirStore Work-local
Path ~/Maildir/Work/
Inbox ~/Maildir/Work/INBOX

Channel Work
Master :Work-remote:
Slave :Work-local:
Create Slave
Sync Pull
SyncState *

I get the following error message (in terminal) :

[12:03:34]  ~ : mbsync Work
Notice: IMAP account 'Work': UseSSL*, UseTLS*, UseIMAPS, and RequireSSL are deprecated. Use SSLType and SSLVersions instead.
C: 0/1  B: 0/1  M: +0/0 *0/0 #0/0  S: +0/0 *0/0 #0/0
*** IMAP Warning *** Password is being sent in the clear
IMAP command 'LOGIN <user> <pass>' returned an error: NO LOGIN failed
C: 1/1  B: 0/1  M: +0/0 *0/0 #0/0  S: +0/0 *0/0 #0/0

I tried to change "user" to "user.name" (without the domain) but it doesn't work.

I don't understand what I'm doing wrong. Do you have any idea? Thank you in advance.

[bepolymathe]

I have tried with LOGIN

domain\\user.name
domain\user.name
user.name

But nothing works. Maybe i need to configure something in davmail ?

[mguessan]

Please first check DavMail configuration by accessing Caldav in a web browser. If your client does not like domain\username syntax, please set default domain in DavMail settings

[bepolymathe]

Yes it seems to work.

When davmail run, i can access to the webmail in firefox.

[mguessan]

Which credentials do you use to access https://localhost:1080 ?

=> you will have to use the same credentials on the client side

[bepolymathe]

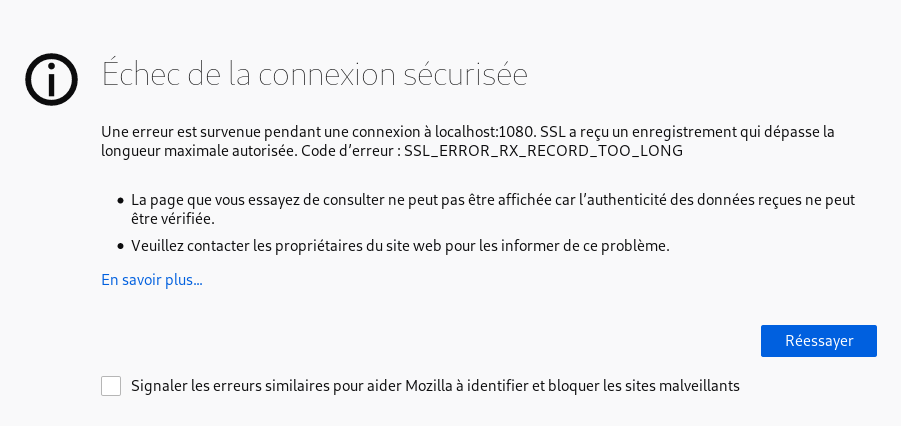

Hi, thanks for reply. I have an SSL error

[mguessan]

Sorry, default config without certificate: http://localhost:1080

[bepolymathe]

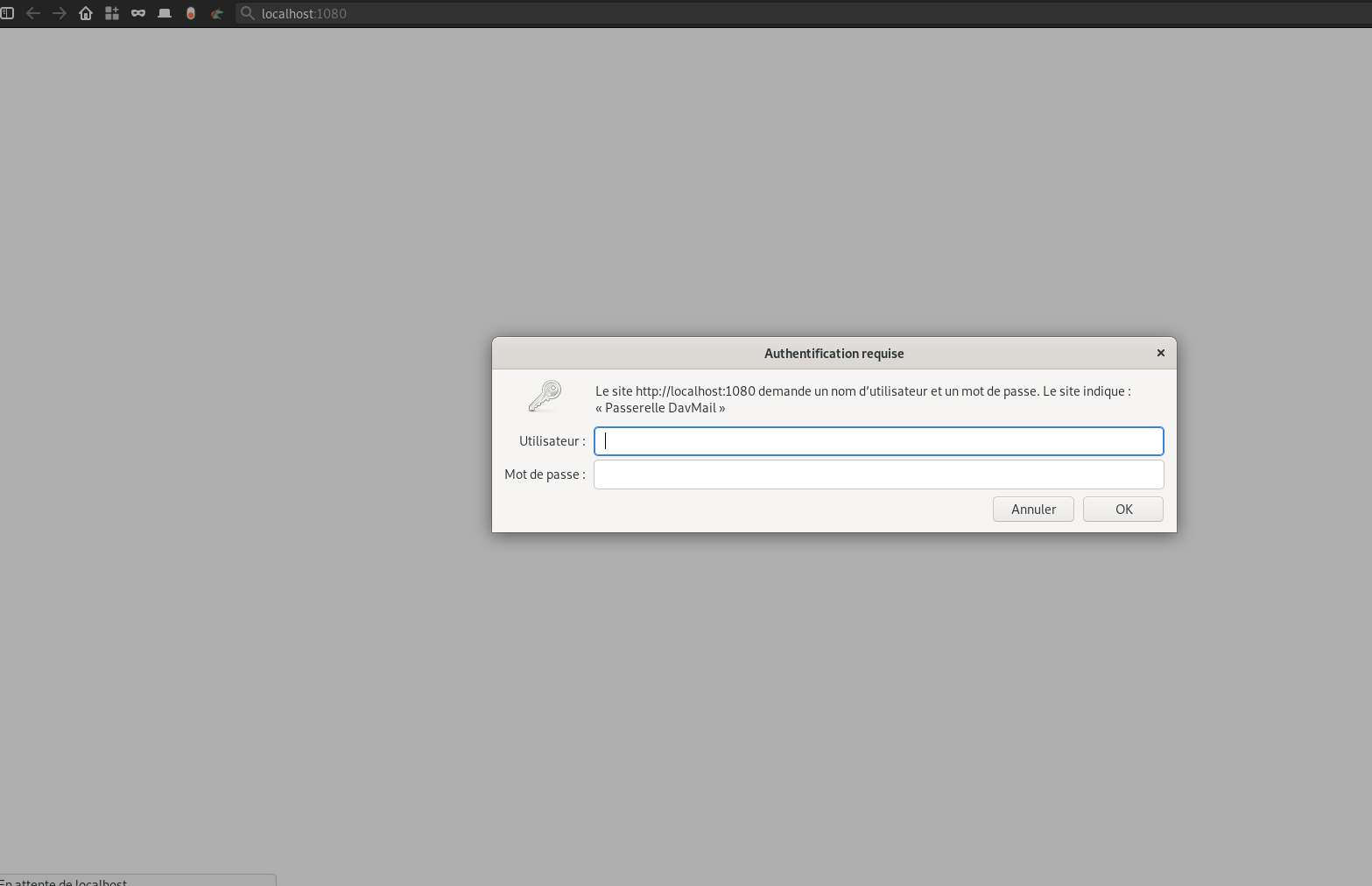

I do have a dialog box to enter the login and password but I can't login...

[bepolymathe]

With classic webmail I sometimes have a connection problem. I have to empty the cookies to make it work. Could I have a problem like that?

[bepolymathe]

[bepolymathe]

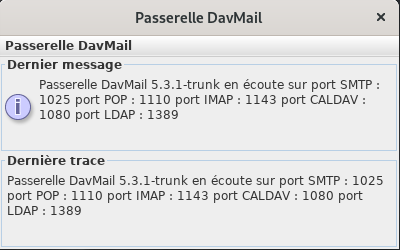

I'm still stuck. Maybe they closed some ports? But if I have the identification window below it's a pretty good sign, right @mguessan ?

[mguessan]

Well, this means you can access DavMail.

=> Next steps:

• check authentication directly to Exchange
• check authentication through DavMail
• check davmail.log for errors.

=> No need to try with your IMAP client until you make both work.

[bepolymathe]

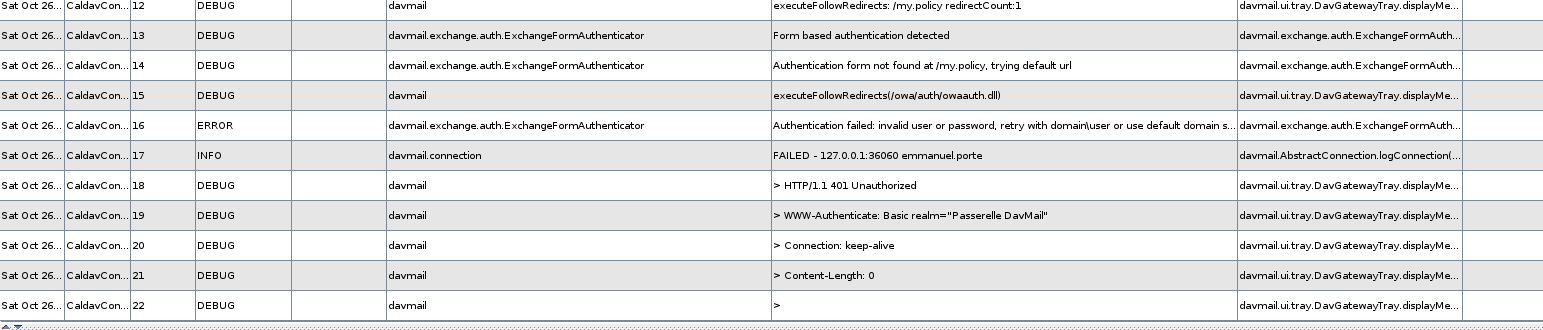

Hi, Thank for reply. Authentification directly to exchange by webmail is OK. Through Davmail, i have those errors :

2019-11-02 13:23:09,273 INFO  [davmail.caldav.CaldavServer] davmail.connection  - DISCONNECT - 127.0.0.1:49692
2019-11-02 13:23:09,274 DEBUG [CaldavConnection-49692] davmail  - Connection closed
2019-11-02 13:23:09,276 INFO  [CaldavConnection-49692] davmail.connection  - DISCONNECT - 127.0.0.1:49692
2019-11-02 13:23:09,291 INFO  [AWT-EventQueue-0] davmail  - DavMail Gateway 5.3.1-trunk listening on SMTP port 1025 IMAP port 1143 CALDAV port 1080
2019-11-02 13:23:09,641 DEBUG [CheckRelease] davmail.DavGateway  - DavMail released version: 5.3.1-3079
2019-11-02 13:23:25,056 DEBUG [davmail.caldav.CaldavServer] davmail  - Connection from /127.0.0.1 on port 1080
2019-11-02 13:23:25,062 INFO  [davmail.caldav.CaldavServer] davmail.connection  - CONNECT - 127.0.0.1:49720
2019-11-02 13:23:25,064 DEBUG [CaldavConnection-49720] davmail  - < GET / HTTP/1.1
2019-11-02 13:23:25,065 DEBUG [CaldavConnection-49720] davmail  - < Host: localhost:1080
2019-11-02 13:23:25,066 DEBUG [CaldavConnection-49720] davmail  - < User-Agent: Mozilla/5.0 (X11; Fedora; Linux x86_64; rv:70.0) Gecko/20100101 Firefox/70.0
2019-11-02 13:23:25,067 DEBUG [CaldavConnection-49720] davmail  - < Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
2019-11-02 13:23:25,067 DEBUG [CaldavConnection-49720] davmail  - < Accept-Language: fr-FR,fr;q=0.8,en-US;q=0.5,en;q=0.3
2019-11-02 13:23:25,068 DEBUG [CaldavConnection-49720] davmail  - < Accept-Encoding: gzip, deflate
2019-11-02 13:23:25,068 DEBUG [CaldavConnection-49720] davmail  - < DNT: 1
2019-11-02 13:23:25,068 DEBUG [CaldavConnection-49720] davmail  - < Connection: keep-alive
2019-11-02 13:23:25,069 DEBUG [CaldavConnection-49720] davmail  - < Upgrade-Insecure-Requests: 1
2019-11-02 13:23:25,069 DEBUG [CaldavConnection-49720] davmail  - < Authorization: ********
2019-11-02 13:23:25,207 DEBUG [CaldavConnection-49720] davmail  - executeFollowRedirects(https://messagerie.social.gouv.fr/owa/)
2019-11-02 13:23:25,248 DEBUG [CaldavConnection-49720] davmail  - executeFollowRedirects: /my.policy redirectCount:1
2019-11-02 13:23:25,311 DEBUG [CaldavConnection-49720] davmail.exchange.auth.ExchangeFormAuthenticator  - Form based authentication detected
2019-11-02 13:23:25,321 DEBUG [CaldavConnection-49720] davmail.exchange.auth.ExchangeFormAuthenticator  - Authentication form not found at /my.policy, trying default url
2019-11-02 13:23:25,322 DEBUG [CaldavConnection-49720] davmail  - executeFollowRedirects(/owa/auth/owaauth.dll)
2019-11-02 13:23:25,356 ERROR [CaldavConnection-49720] davmail.exchange.auth.ExchangeFormAuthenticator  - Authentication failed: invalid user or password, retry with domain\user or use default domain setting
2019-11-02 13:23:25,356 INFO  [CaldavConnection-49720] davmail.connection  - FAILED - 127.0.0.1:49720 MY.NAME
2019-11-02 13:23:25,356 DEBUG [CaldavConnection-49720] davmail  - > HTTP/1.1 401 Unauthorized
2019-11-02 13:23:25,356 DEBUG [CaldavConnection-49720] davmail  - > WWW-Authenticate: Basic realm="Passerelle DavMail"
2019-11-02 13:23:25,356 DEBUG [CaldavConnection-49720] davmail  - > Connection: keep-alive
2019-11-02 13:23:25,356 DEBUG [CaldavConnection-49720] davmail  - > Content-Length: 0
2019-11-02 13:23:25,357 DEBUG [CaldavConnection-49720] davmail  - >

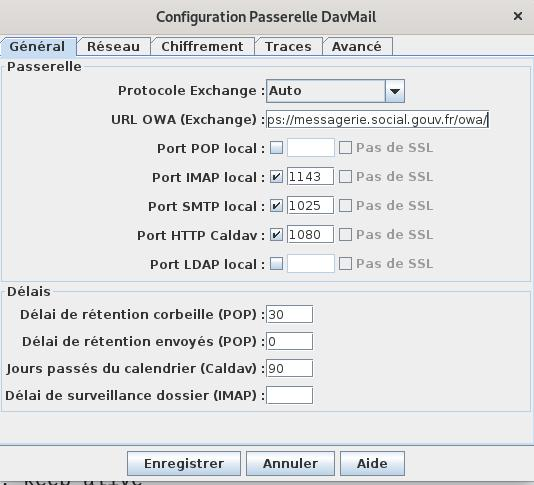

And davmail config like this :

[bepolymathe]

And a precision, I can connect via thunderbird (Chouette module) on another machine. So it must be possible ;-)

[mguessan]

Please try in EWS mode with the following url: https://messagerie.social.gouv.fr/EWS/Exchange.asmx

[bepolymathe]

Ok thanks, the new error message is

019-11-03 10:12:43,633 DEBUG [CaldavConnection-49726] davmail  - < GET / HTTP/1.1
2019-11-03 10:12:43,640 DEBUG [CaldavConnection-49726] davmail  - < Host: localhost:1080
2019-11-03 10:12:43,641 DEBUG [CaldavConnection-49726] davmail  - < User-Agent: Mozilla/5.0 (X11; Fedora; Linux x86_64; rv:70.0) Gecko/20100101 Firefox/70.0
2019-11-03 10:12:43,643 DEBUG [CaldavConnection-49726] davmail  - < Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
2019-11-03 10:12:43,644 DEBUG [CaldavConnection-49726] davmail  - < Accept-Language: fr-FR,fr;q=0.8,en-US;q=0.5,en;q=0.3
2019-11-03 10:12:43,646 DEBUG [CaldavConnection-49726] davmail  - < Accept-Encoding: gzip, deflate
2019-11-03 10:12:43,646 DEBUG [CaldavConnection-49726] davmail  - < DNT: 1
2019-11-03 10:12:43,647 DEBUG [CaldavConnection-49726] davmail  - < Connection: keep-alive
2019-11-03 10:12:43,648 DEBUG [CaldavConnection-49726] davmail  - < Upgrade-Insecure-Requests: 1
2019-11-03 10:12:43,649 DEBUG [CaldavConnection-49726] davmail  - < Authorization: ********
2019-11-03 10:12:43,651 DEBUG [CaldavConnection-49726] davmail.http.DavGatewayHttpClientFacade  - get Default proxy selector
2019-11-03 10:12:43,651 DEBUG [CaldavConnection-49726] davmail.http.DavGatewayHttpClientFacade  - getProxyForURI(https://messagerie.social.gouv.fr/EWS/Exchange.asmx)
2019-11-03 10:12:43,652 DEBUG [CaldavConnection-49726] davmail.http.DavGatewayProxySelector  - Selected [DIRECT] proxy for https://messagerie.social.gouv.fr/EWS/Exchange.asmx
2019-11-03 10:12:43,652 DEBUG [CaldavConnection-49726] davmail.http.DavGatewayProxySelector  - Selected [DIRECT] proxy for https://messagerie.social.gouv.fr/EWS/Exchange.asmx
2019-11-03 10:12:43,653 DEBUG [CaldavConnection-49726] davmail.http.DavGatewayHttpClientFacade  - got system proxies:[DIRECT]
2019-11-03 10:12:43,760 DEBUG [CaldavConnection-49726] davmail  - executeFollowRedirects(https://messagerie.social.gouv.fr/EWS/Exchange.asmx)
2019-11-03 10:12:44,361 WARN  [CaldavConnection-49726] org.apache.commons.httpclient.HttpMethodBase  - Cookie rejected: "$Version=0; TS01092e1b=012337f68dc912f62e3f79a1cc0e9fbba9bf3f5455b87fbc72f85b3392a4a409c638ac3061ba8e5d0693caef66fd84bdabc69751479b49667e4a6c7d55765b9240395bf619; $Path=/; $Domain=.messagerie.social.gouv.fr". Illegal domain attribute ".messagerie.social.gouv.fr". Domain of origin: "messagerie.social.gouv.fr"
2019-11-03 10:12:44,362 ERROR [CaldavConnection-49726] org.apache.commons.httpclient.HttpMethodDirector  - basic authorization challenge expected, but not found
org.apache.commons.httpclient.auth.AuthenticationException: basic authorization challenge expected, but not found
	at org.apache.commons.httpclient.auth.AuthChallengeProcessor.processChallenge(AuthChallengeProcessor.java:159)
	at org.apache.commons.httpclient.HttpMethodDirector.processWWWAuthChallenge(HttpMethodDirector.java:694)
	at org.apache.commons.httpclient.HttpMethodDirector.processAuthenticationResponse(HttpMethodDirector.java:668)
	at org.apache.commons.httpclient.HttpMethodDirector.executeMethod(HttpMethodDirector.java:193)
	at org.apache.commons.httpclient.HttpClient.executeMethod(HttpClient.java:397)
	at org.apache.commons.httpclient.HttpClient.executeMethod(HttpClient.java:323)
	at davmail.http.DavGatewayHttpClientFacade.executeMethod(DavGatewayHttpClientFacade.java:353)
	at davmail.http.DavGatewayHttpClientFacade.executeFollowRedirects(DavGatewayHttpClientFacade.java:420)
	at davmail.http.DavGatewayHttpClientFacade.executeFollowRedirects(DavGatewayHttpClientFacade.java:349)
	at davmail.exchange.auth.ExchangeFormAuthenticator.authenticate(ExchangeFormAuthenticator.java:194)
	at davmail.exchange.ExchangeSessionFactory.getInstance(ExchangeSessionFactory.java:207)
	at davmail.exchange.ExchangeSessionFactory.getInstance(ExchangeSessionFactory.java:97)
	at davmail.caldav.CaldavConnection.run(CaldavConnection.java:176)
2019-11-03 10:12:44,366 ERROR [CaldavConnection-49726] davmail.exchange.auth.ExchangeFormAuthenticator  - Authentication failed: invalid user or password
2019-11-03 10:12:44,367 INFO  [CaldavConnection-49726] davmail.connection  - FAILED - 0:0:0:0:0:0:0:1:49726 MY.NAME
2019-11-03 10:12:44,367 DEBUG [CaldavConnection-49726] davmail  - > HTTP/1.1 401 Unauthorized
2019-11-03 10:12:44,369 DEBUG [CaldavConnection-49726] davmail  - > WWW-Authenticate: Basic realm="Passerelle DavMail"
2019-11-03 10:12:44,370 DEBUG [CaldavConnection-49726] davmail  - > Connection: keep-alive
2019-11-03 10:12:44,370 DEBUG [CaldavConnection-49726] davmail  - > Content-Length: 0
2019-11-03 10:12:44,371 DEBUG [CaldavConnection-49726] davmail  - >

Seems to be a cookie problem ?

[bepolymathe]

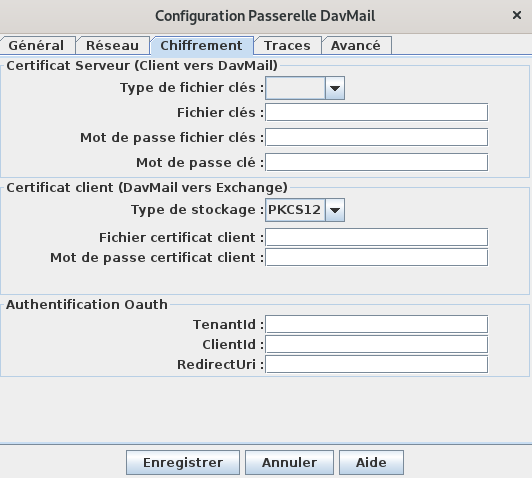

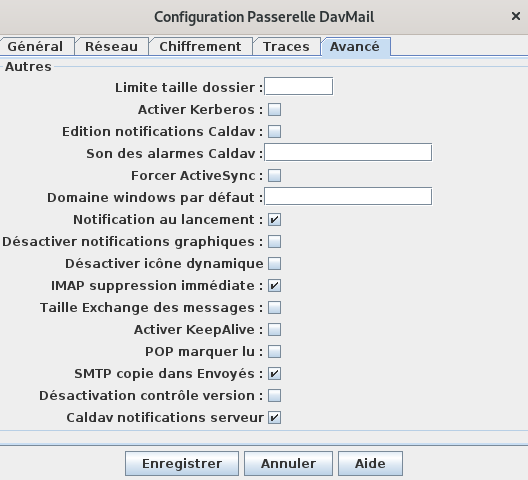

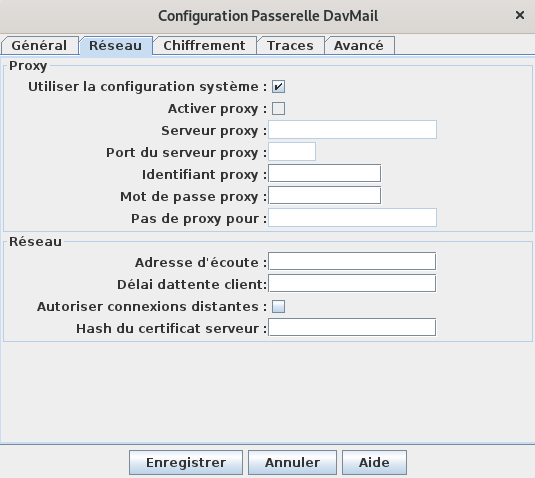

To complete, here are some screenshots of my configuration.

[bepolymathe]

Same message when i try to change "auto" for "EWS" in davmail config...

[bepolymathe]

This cookie problem would be consistent with the behavior of webmail. I "often" have to type my password several times or delete the cookie in my browser to make a successful connection. What do you think about this situation @mguessan ?

[mguessan]

We are not supposed to have cookies over EWS, however we do see a Cookie rejected message in your log... this may be an issue.

Anyway, it would be interesting to have a log of a successful authentication in a web browser (F12+network)

[bepolymathe]

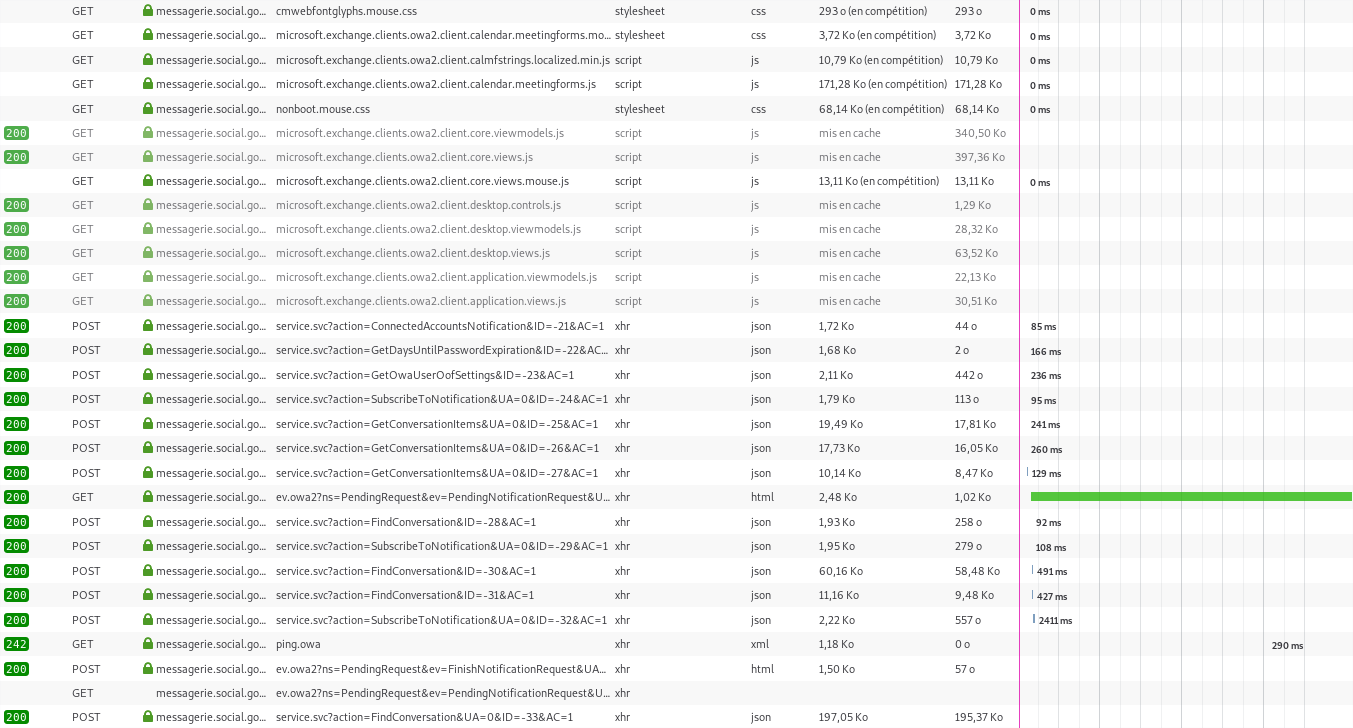

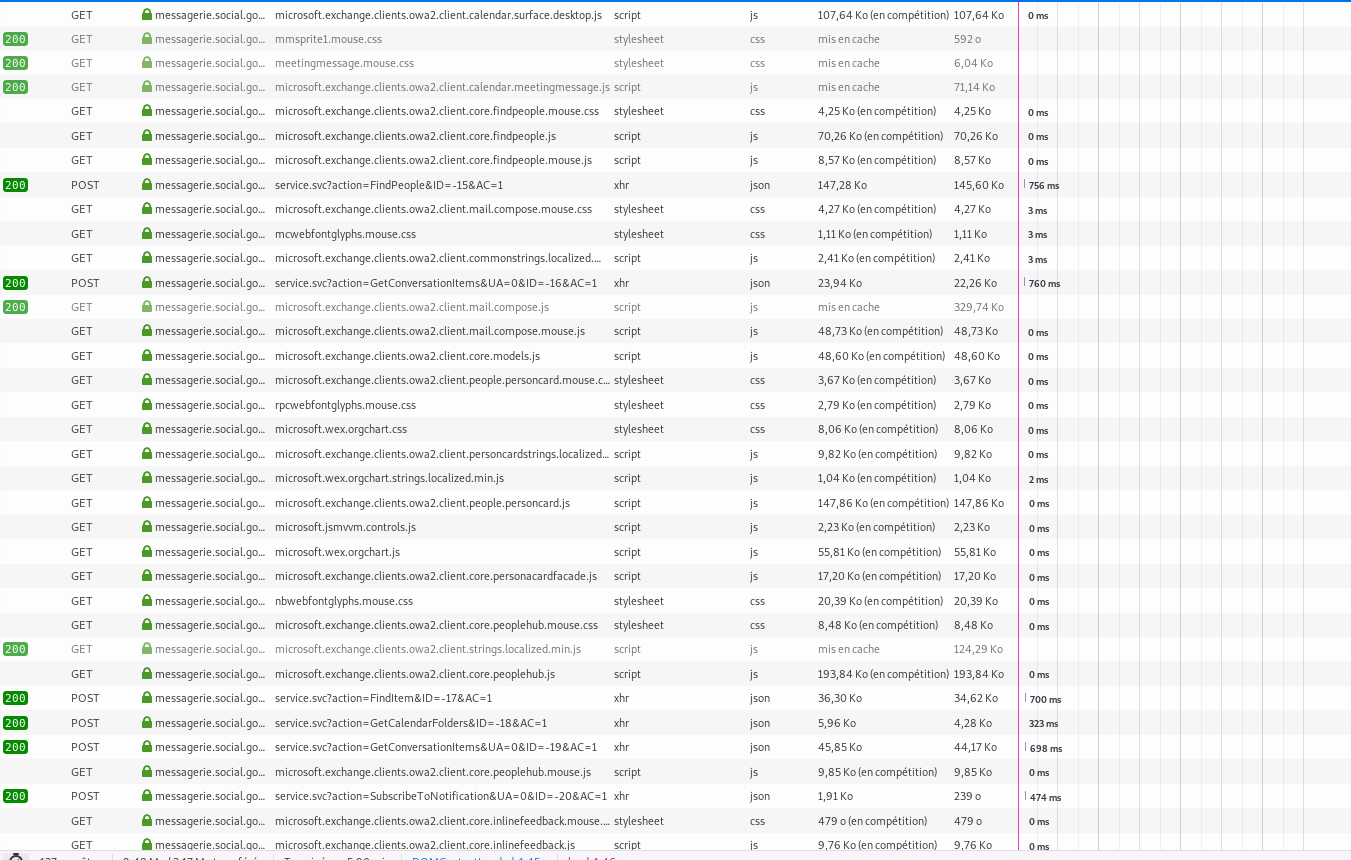

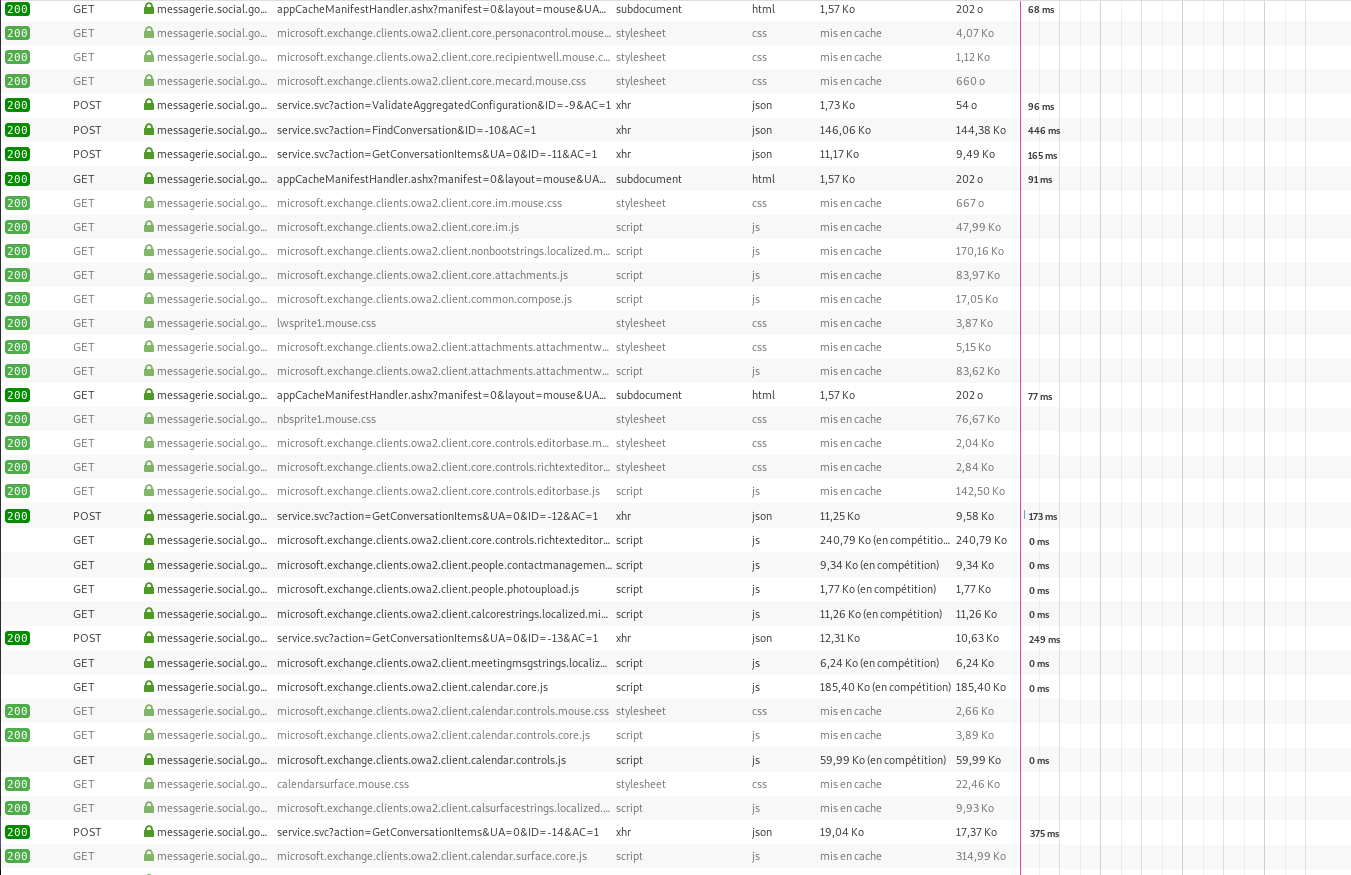

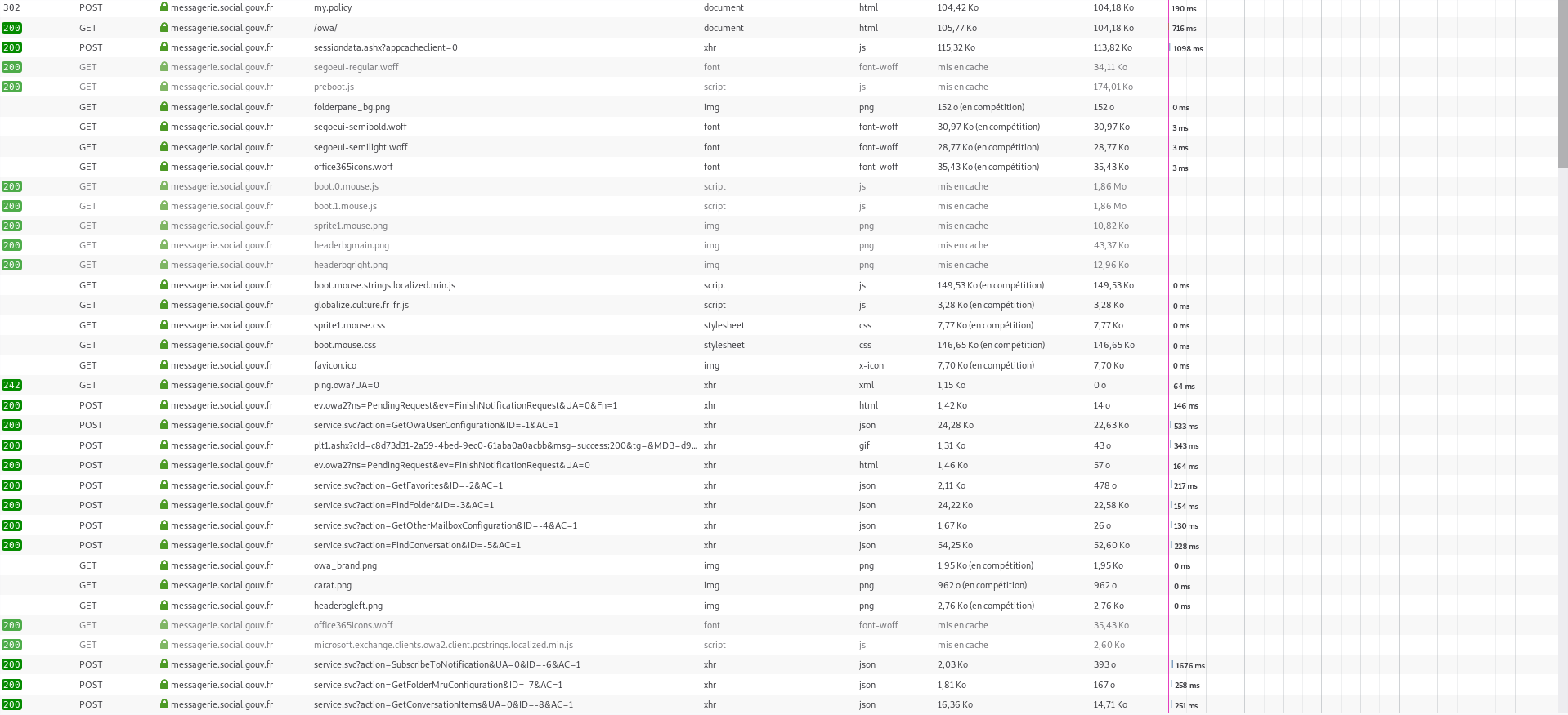

Ok. Identification in web browser looks like this

What information do you need in more detail?

[averter]

Hi, Based on the latest figures of your configuration can you try to: change the protocole exchange to EWS (not AUTO); leave network, encryption and logging empty. Note: I also have ports for POP (1110) and LDAP (1389) on but that shouldn't make a difference. Let me know if anything improves.

[bepolymathe]

Yes i have test it but nothing work at this time. Same problem, same error message with EWS. :thinking:

[averter]

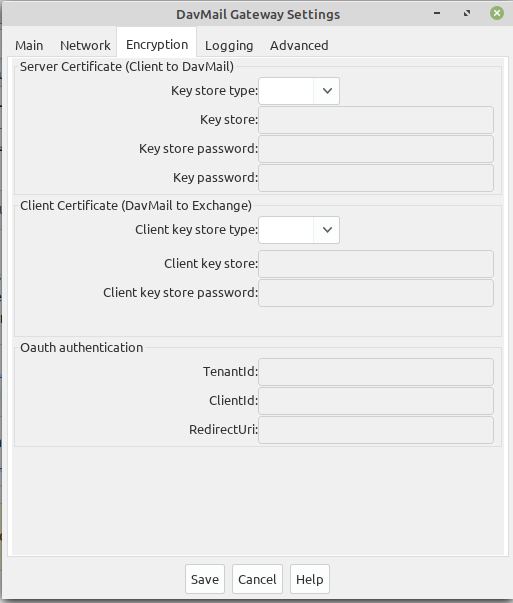

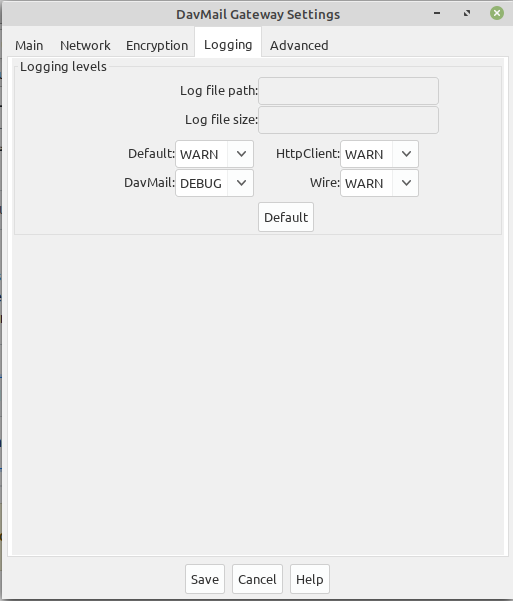

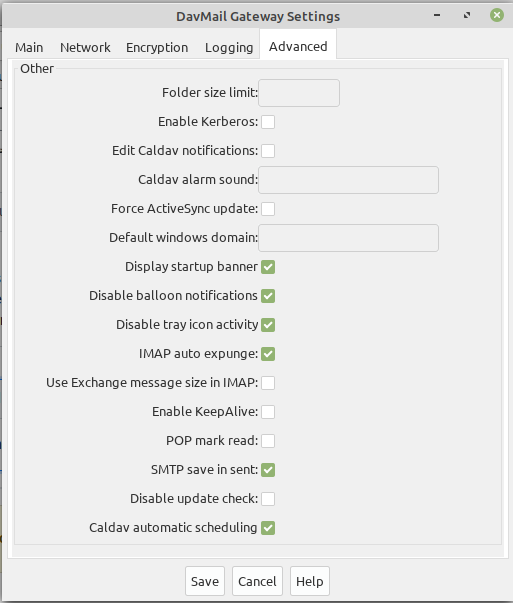

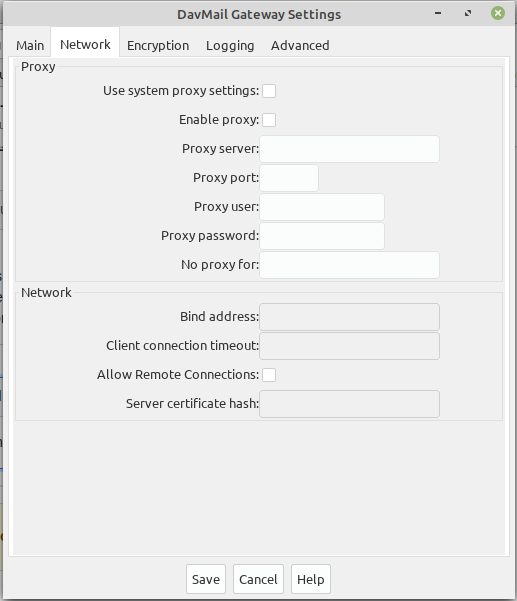

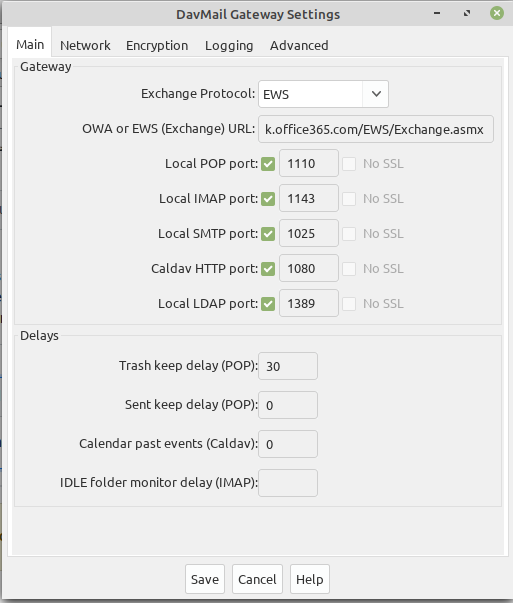

This is the configuration that I am using at the moment

[bepolymathe]

Ok, thanks.

[mguessan]

@bepolymathe your browser screenshot contain an OWA authentication, not EWS, which is et /EWS/Exchange.asmx

You can then export requests as a har file. Please do not post it publicly and send it to my private email address [email protected]

[bepolymathe]

@mguessan Ok. I send you an email.

[mguessan]

Can you please provide a status update on this ?

[bepolymathe]

It's always the same problem. I can't make a positive I.D. I've tried dozens of configurations... without success.

[averter]

If davmail seems to be working fine, then it is something between mbsync and davmail. Can you run mbsync with the verbose option -V and post the output? I had a login error just as yours and it was because of special characters in the password, that mbsync was unable to pass to davmail. I know you said that you already tried removing special characters and it didn't work, but just to make sure, you left only letters or numbers right?

[bepolymathe]

@averter No, the problem is upstream. I can't find the right I.D. with the pro server... "name", "\domain\name", etc...
