lock

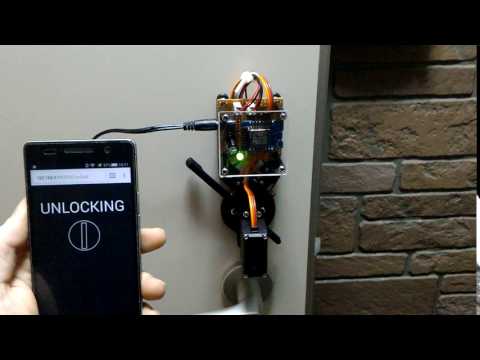

Wifi enabled door lock that can be controlled via either MQTT messages or HTTP requests.

Project page: https://cms.maximemoreillon.com/articles/237

Video:

Requirements

• Arduino IDE with support for ESP8266
• Async MQTT client
• ESPAsyncTCP

Hardware

Parts list

• Wemos D1 Mini
• MG996R servo
• 2x Limit switch
• 2x LED + resistor
• Screws and standoffs

Schematic

3D printed parts

STL files available on Thingiverse
